GINTOOYUN-RJ45 Waterproof Connector,Shielded RJ45 Female to Female Outdoor Ethernet Coupler,IP67 LAN Network Extension Adapter for Cat5/5e/6 8P8C -2PCS

• The RJ45 waterproof connector coupler is compatible with CAT 5, CAT 5E, CAT 6 and8P8C patch cords, and is suitable for expanding Ethernet connections by connecting 2 short network cables together, Prevent the network parts from moisture, dirt and insects for quality connections.
• Shielded RJ45 is female to female connector, installed easily, plug and play. No welding, the thread design can be disassembled and arbitrarily installed, without damaging or interrupting the original wire, and will not reduce signal quality.
• Super durable and strong anti-interference ability, No attenuation,PVC shield protection structure, more stable signal trasmission, IP67 waterproof and dustproof protection, making it suitable for outdoor or humid environment. It is ideal for printers, routers, computer servers, switch box network media players, etc. It is a good solution to connect the Ethernet network in the outdoor environment.
• This RJ45 waterproof connector is lightweight, compact, easy to carry, and easy to install without any tools. Waterproof, dustproof, high temperature resistant, can be used for a long time, please refer to Figure 5 for connection method
• Note: After long-term use in a humid environment, it is necessary to regularly check the tightness of the seal ring to prevent water from seeping into the connector. If used in corrosive soils and humid environments, the enclosure will be more susceptible to corrosion. In addition, IP67 is not immersion-proof, so please do not immerse the connector in water.

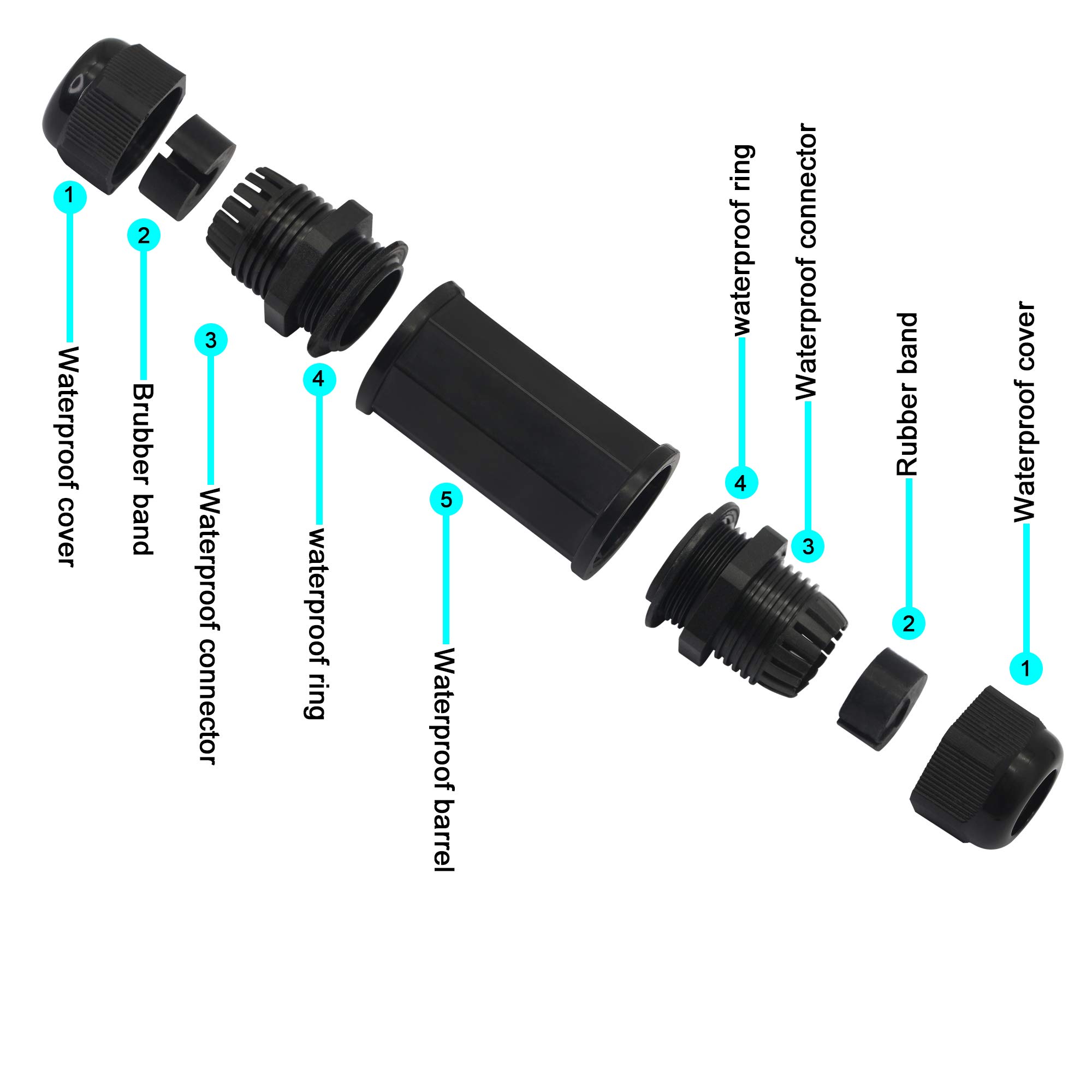

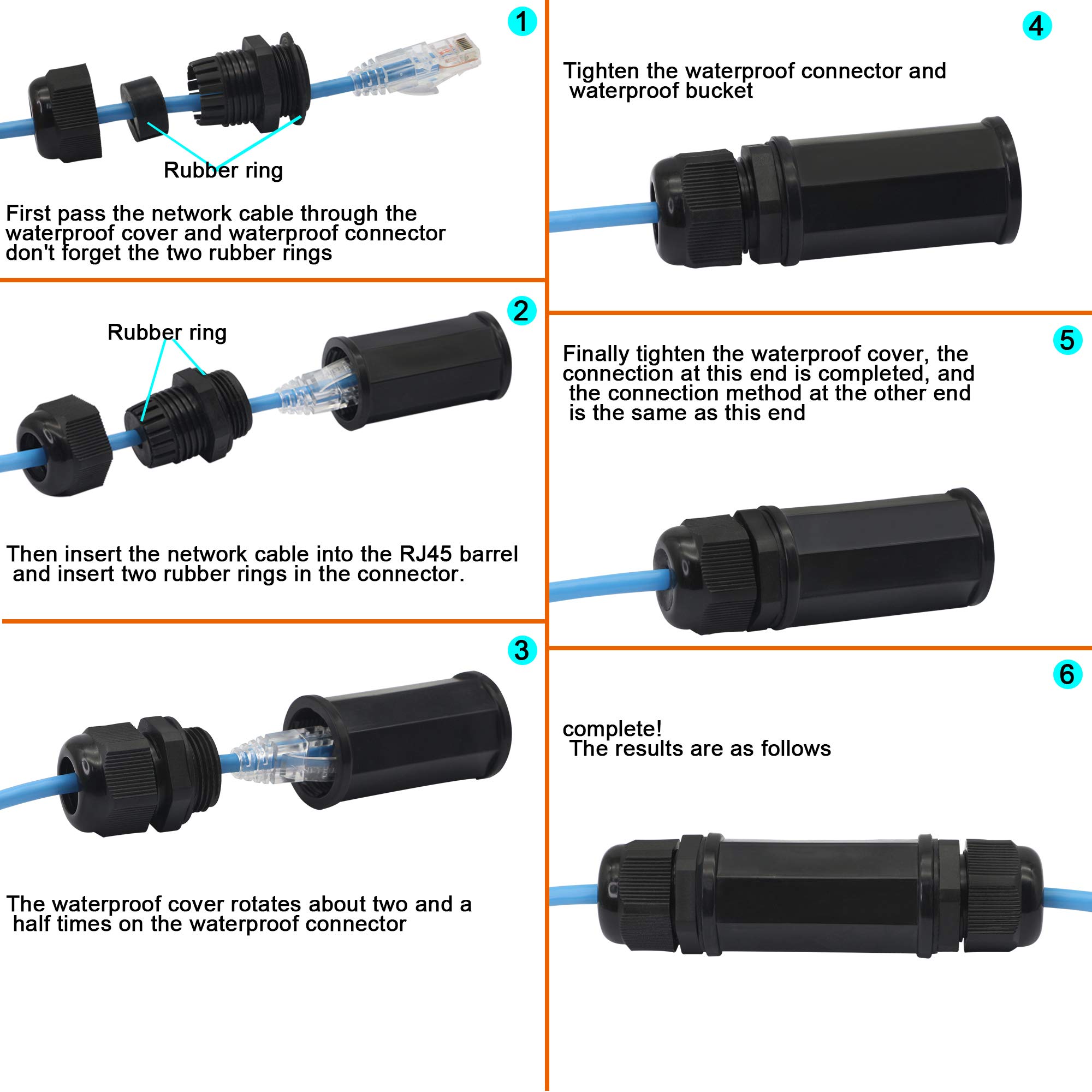

RJ45 waterproof connector female to female LAN Ethernet network expansion adapter coupler, you can connect two cables in a short distance to work. IP67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections. Plug and play, no welding, thread design can be quickly disassembled without tools, small size, easy to carry, suitable for outdoor or harsh industrial environments. Connection method: Pass the cable through the waterproof cover, the connector, insert the RJ45 waterproof main body tube, install two rubber rings on the waterproof connector, and then rotate the waterproof cover on the waterproof connector about two and a half times (the first time). The steps to perform this step are to prevent the rubber ring on the waterproof cover from deforming and protruding and causing water leakage), then tighten the waterproof connector to the RJ45 waterproof bucket, and finally tighten the waterproof cover to avoid leakage, the method of connecting both ends is the same (Figure 5 For installation tutorial). Product parameters: Compatible with CAT5, CAT5E, and CAT6 cables; material is PVC + metal; waterproof grade IP65; temperature -40 ~ 120 ℃; maximum shape size 30mm * 105mm. packaging include: 2 x RJ45 Waterproof Connector Note: This RJ45 waterproof connector has IP67,waterproof and dustproof protection, but IP67 is not resistant to immersion, so we do not recommend using it in water.
