GINTOOYUN 5 Sets 3-Pole 5.08 mm Terminal, 2EDGRK Phoenix Connector 3 Pin with Screw Lock Plate Fixed, PCB Pluggable Screw Terminal Block Connectors, 5.08mm Pitch Male Female Plug

• 5 Sets 3-pole terminal pitch: 5.08mm. Rated voltage: 300V 15A. They have screw locking plates to hold in place. Plug-in terminal, non-welding butt. Suitable for electrical connection, bid farewell to traditional wiring, bid farewell to dangerous, safe wiring
• Phoenix connector 3 pin with lock plate fixed terminals are widely used in electronics,communication equipment,instruments,computers,automatic control systems,household appliances and alarm equipment,etc
• PCB pluggable screw terminal block connectors, anti-vibration design to ensure the long-term airtight connection, low control signal loss, high switching frequency, no mechanical contact jitter, not affected by position and long service life

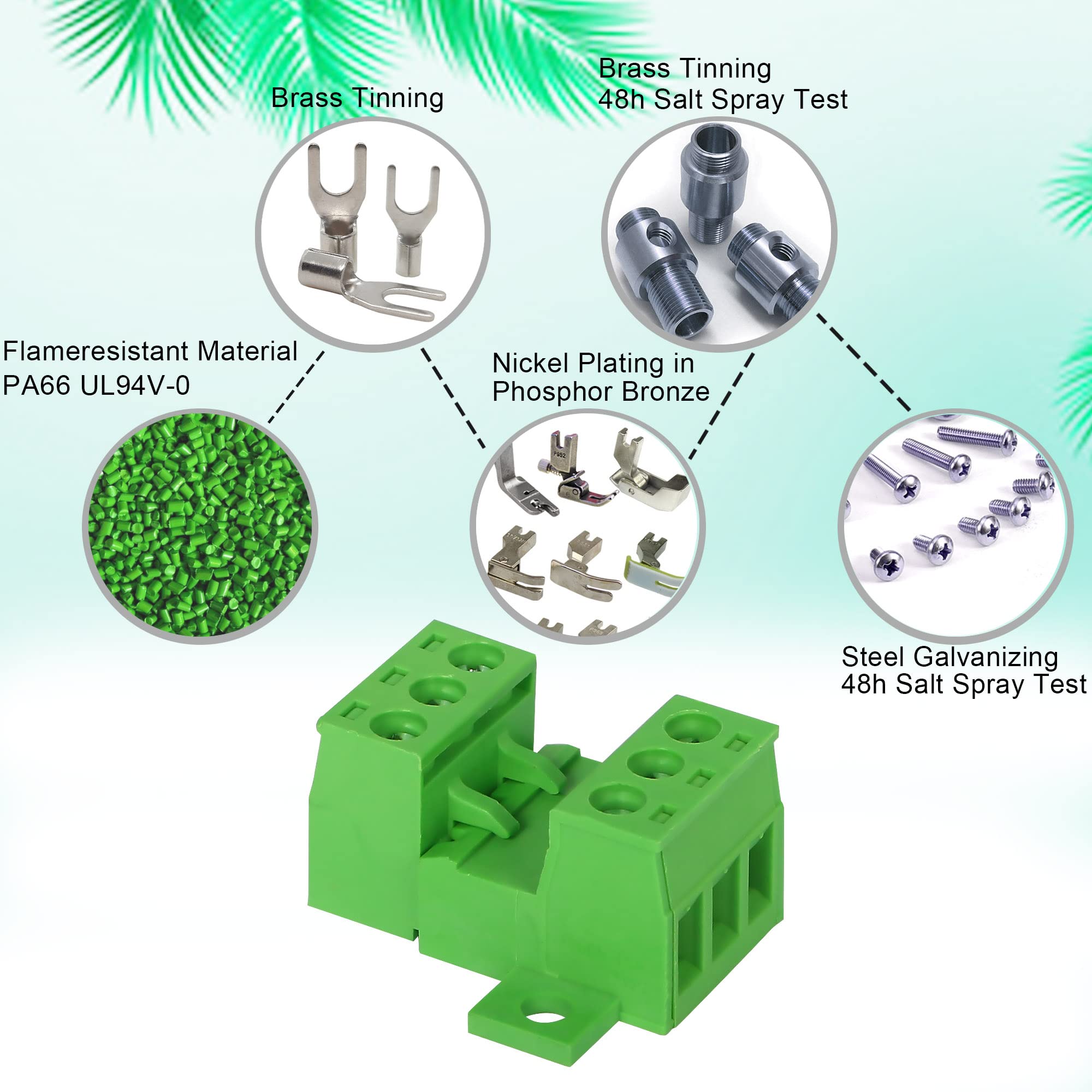

• Temperature resistance flame retardant, use high-quality environmental protection plastic PA66 high temperature resistant V0 flame retardant material. Steel screw environmentally friendly electroplating,no slippage. Surface nickel plating treatment,corrosion resistance,high stability
• Easy to Install, just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires

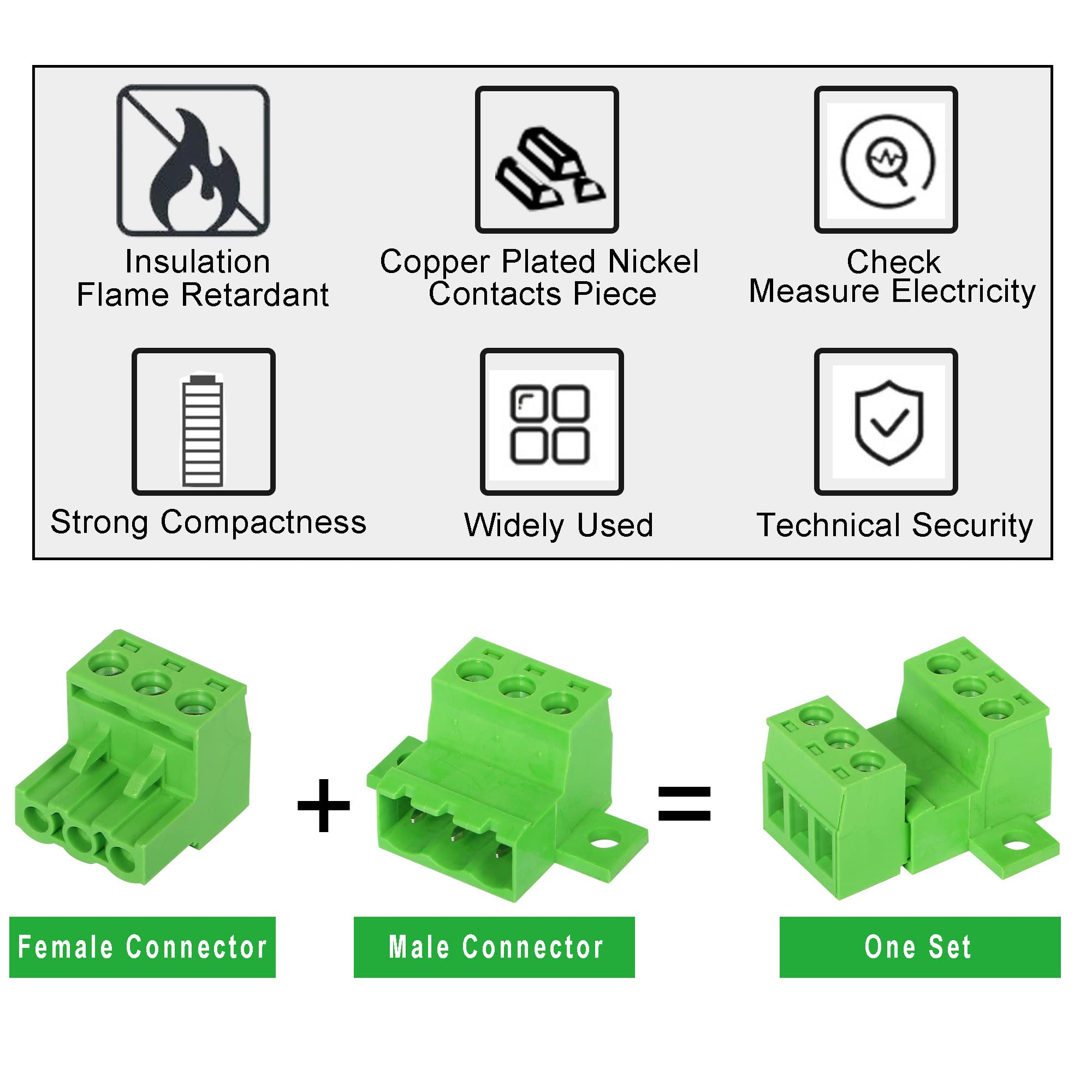

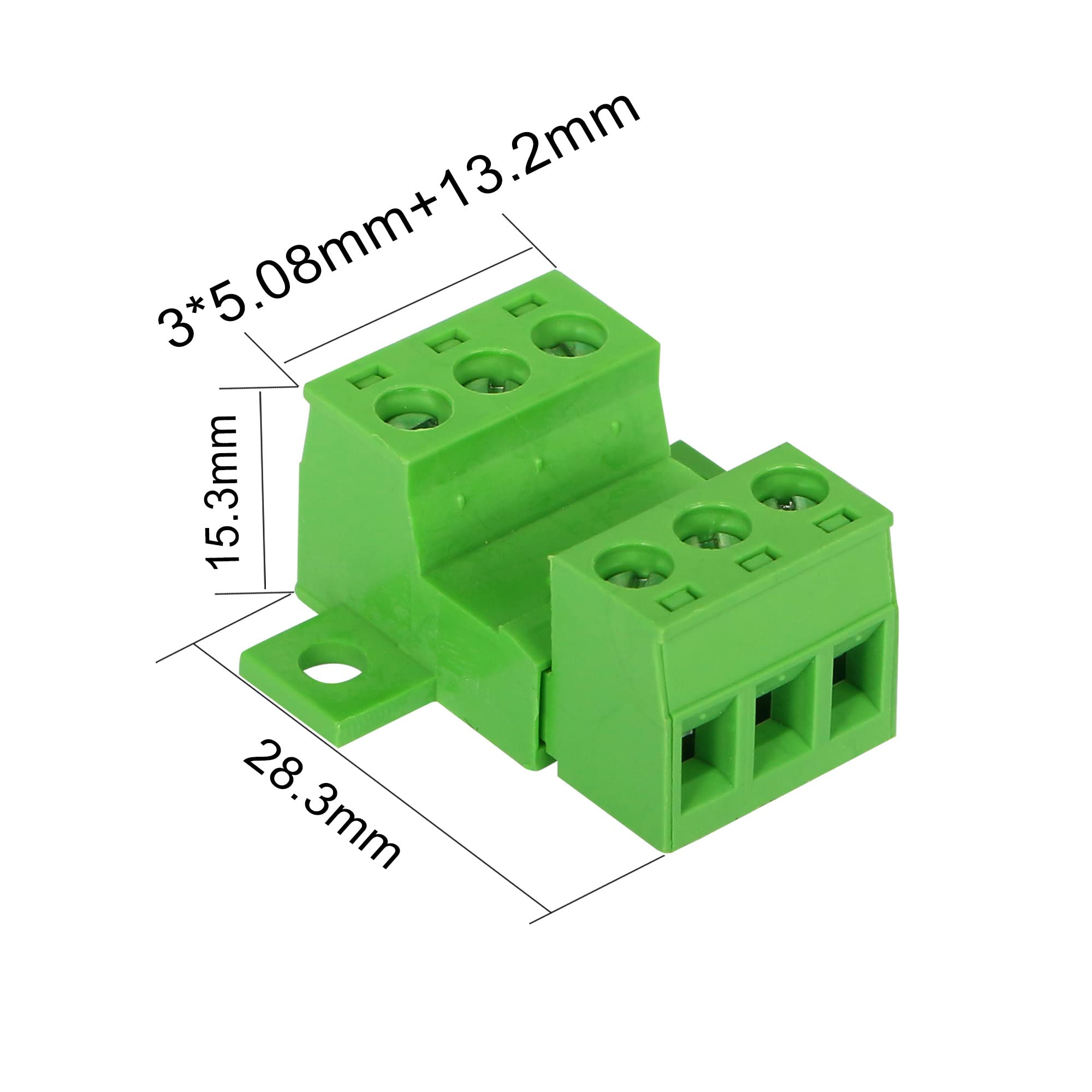

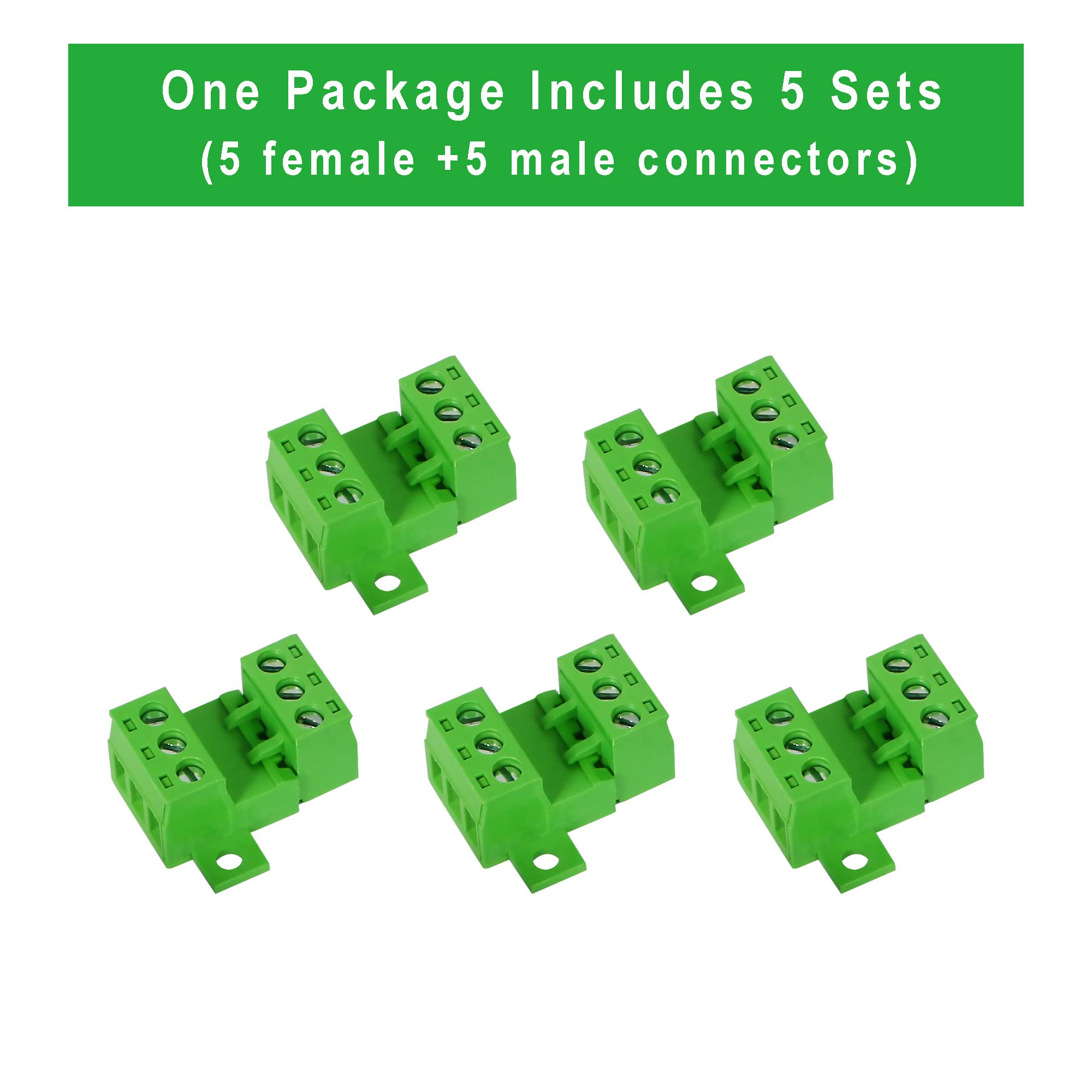

1. 3-pole 5.08 mm terminals are snap together well and have screw locking plates to hold in place, they have a quick release capability. Just need to loosen the screws to land the wires. The quick disconnect connecting block that makes these terminals easy to swap out another device without unscrewing all the wires. They are widely used in electronics,communication equipment,instruments,computers,automatic control systems,household appliances and alarm equipment,etc. 2. Description: Pitch:5.08mm Poles:3P Rated Voltage:300V Rated Current:15A Wire Range: 28-12AWG Screw:M2.5,Steel,Zinc plated Contact Material:Phosphor bronze,Nickel plating Wire Cage:Brass,Nickel plating Plastic Parts:PA66 UL94V-0 Temperature Range:-40℃ - +105℃ Wire Stripping Length:7-8mm Color: Green 3. Package includes: 5 Sets x 5.08 mm Male Female Plug Terminal
