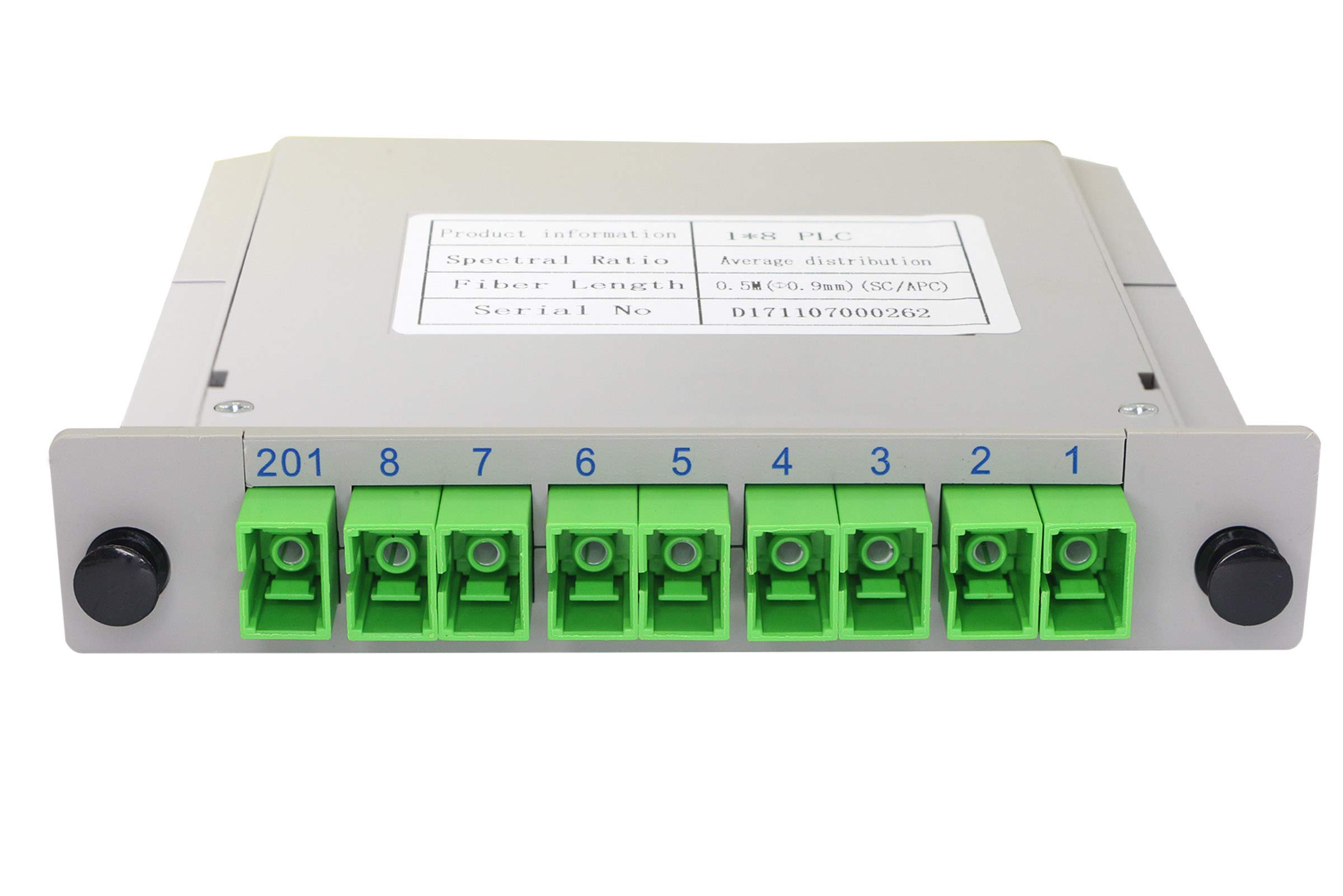

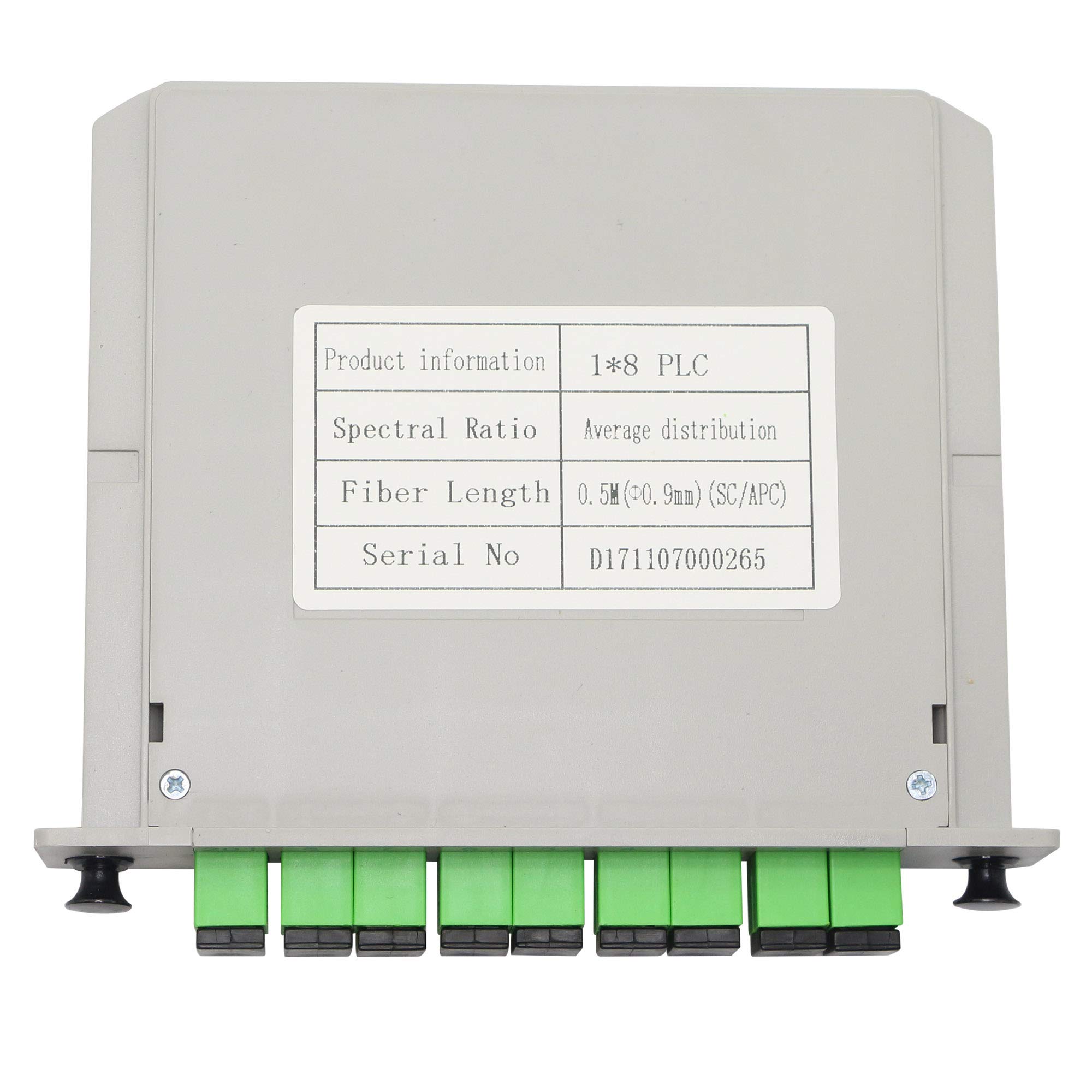

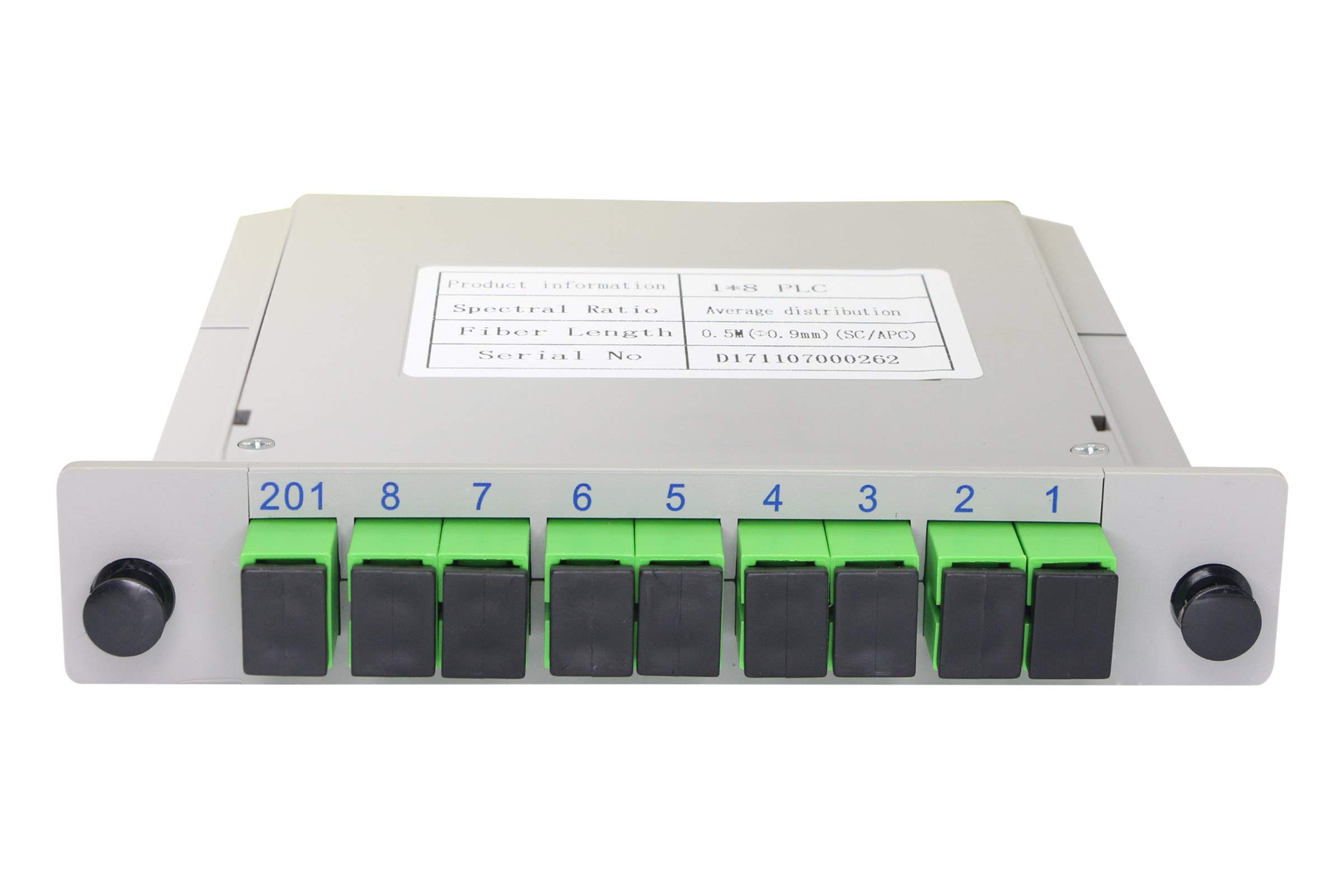

GINTOOYUN 1x8 Fiber Optical PLC Splitter SC/APC Splitter Cassette Card Inserting Singlemode for Home Wiring, Engineering Projects, Fiber Optic LAN

• 1x8 insert type PLC Splitter.The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.
• It has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space.
• All-fiber structure,stable and fast, built-in high-quality chip,ensure uniform and stable light splitting,quick response without delay.which can meet the needs of different wavelengths
• ABS plastic shell, with pit impact resistance, heat resistance and low temperature resistance.
• Low insertion loss and low back reflection, High Reliability and Stability,Low PDL.

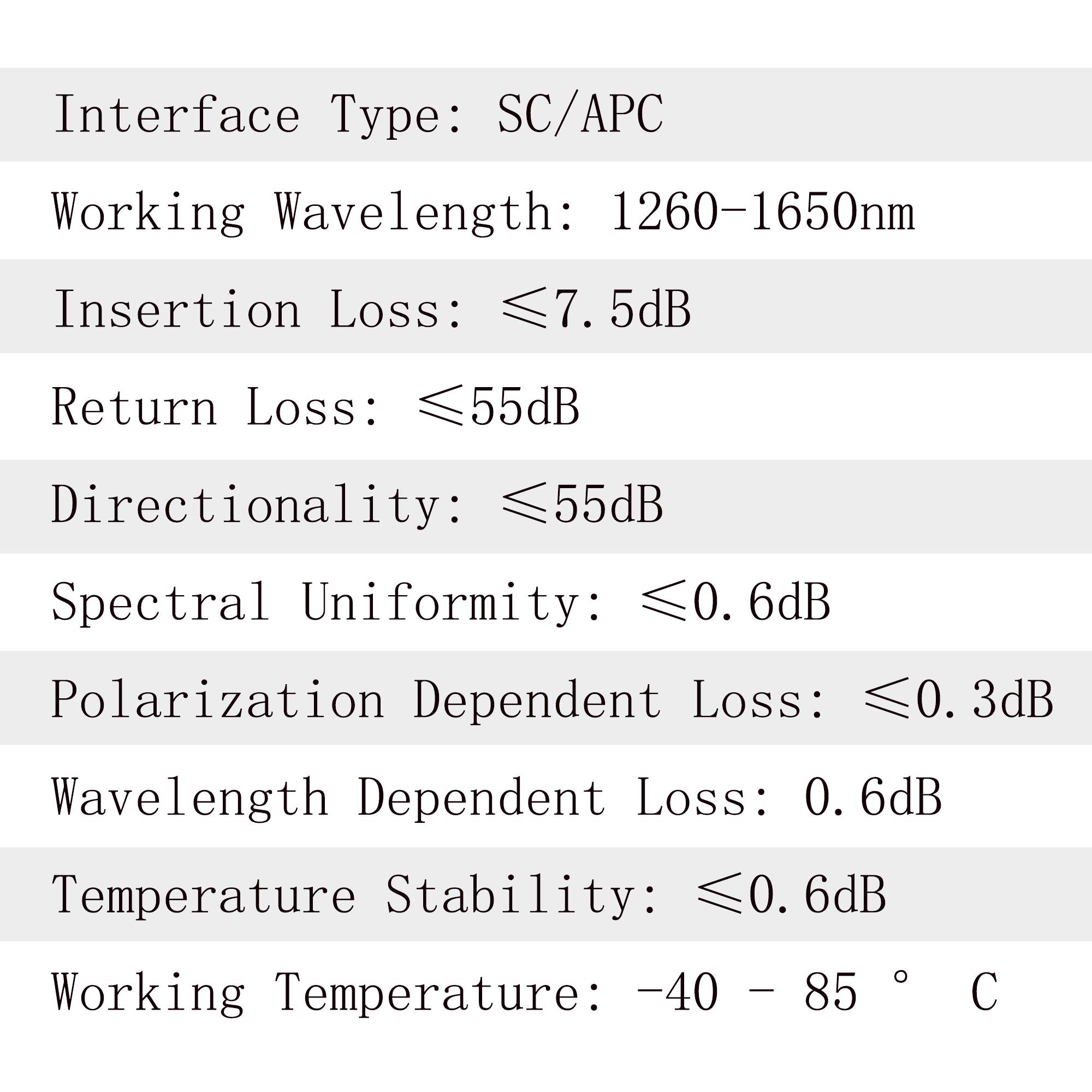

Specification: Item Type: SC/APC with insert type 1x8 fiber optic PLC splitter Standard: 1X8 Type: PLC Interface Type: SC/APC Working Wavelength: 1260-1650nm Insertion Loss: ≤7.5dB Return Loss: ≤55dB Directionality: ≤55dB Spectral Uniformity: ≤0.6dB Polarization Dependent Loss: ≤0.3dB Wavelength Dependent Loss: 0.6dB Temperature Stability: ≤0.6dB Working Temperature: -40 - 85 ° C Scope Of Application: Home Wiring Project Company Optical LAN network room monitoring equipment transfer box fiber distribution box cable TV Feature 1.Low Insertion loss,Low PDL 2.Compact Design,Good channel-to-channel uniformity 3.High Reliability and Stability size:113*112*25cm weight:116g Package List: 1 x SC/APC with insert type 1x8 fiber optic PLC splitter
