GINTOOYUN 1 to 2 POE Extender 100 Meter Transmission 1 in 2 Out Standard POE Repeater for Network Surveillance Cameras POE Switches etc

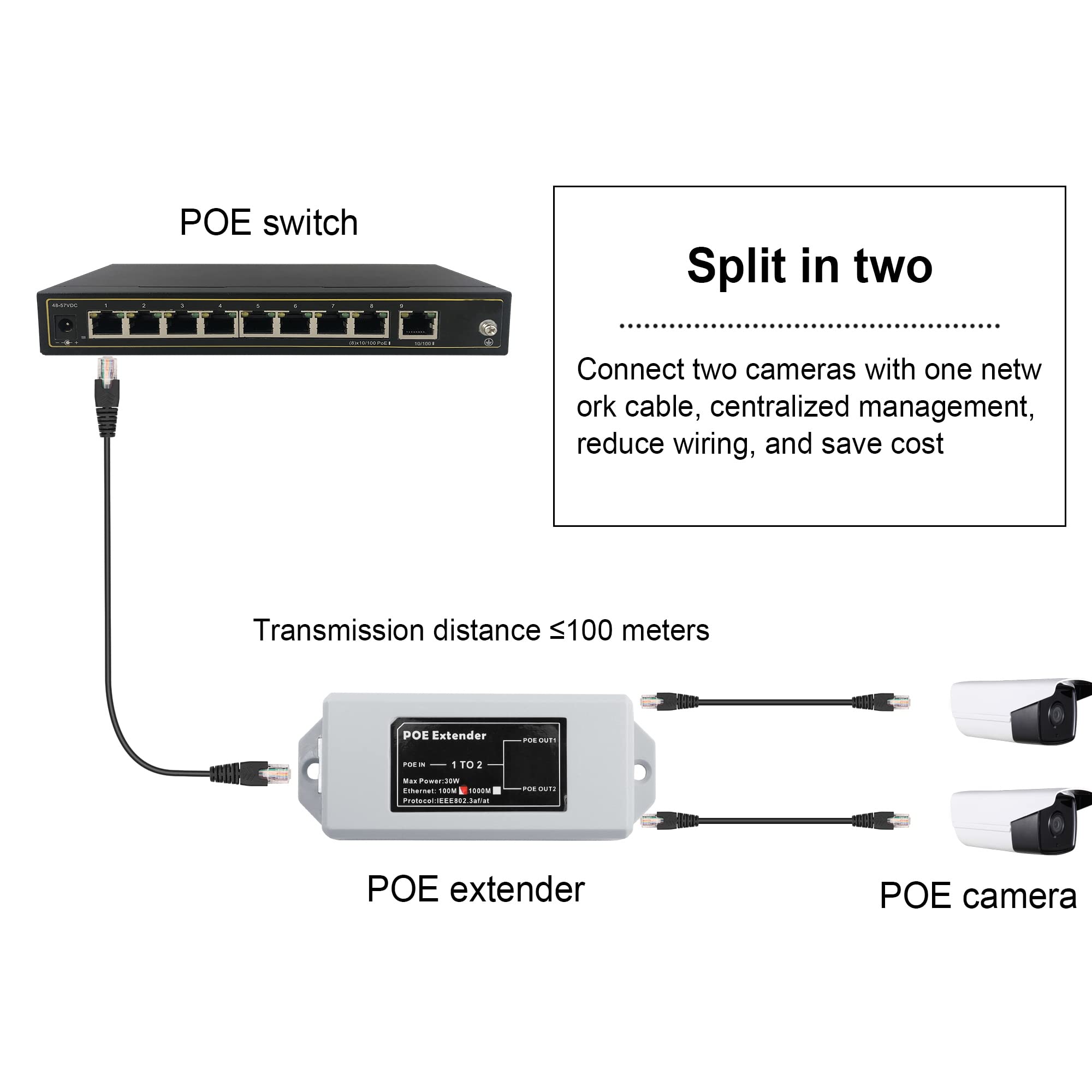

• GINTOOYUN 1 in 2 out POE repeater is used to connect a POE switch to a POE camera, extending the RJ45 port on the POE switch and allowing you to connect multiple POE cameras to a single POE switch, saving you the cost of buying multiple POE switches.

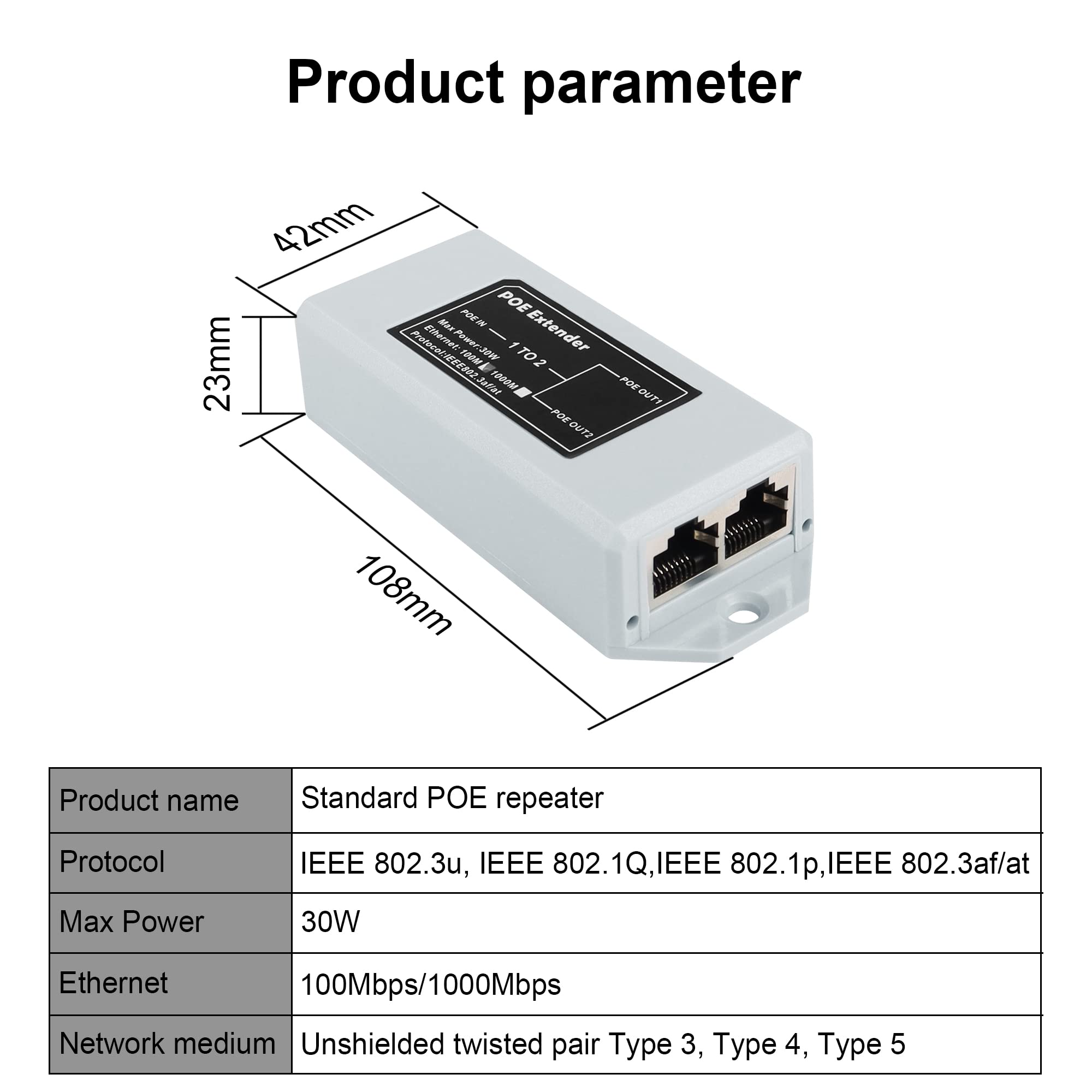

• 【Model parameters】 Connector 1: RJ45 connector with yellow-green indicator (input); Connector 2: two RJ45 connectors (output); Maximum power: 30W; Transmission rate: 100Mbps/1000Mbps; Transmission distance: ≤100m; Supported protocol types: IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af/at.

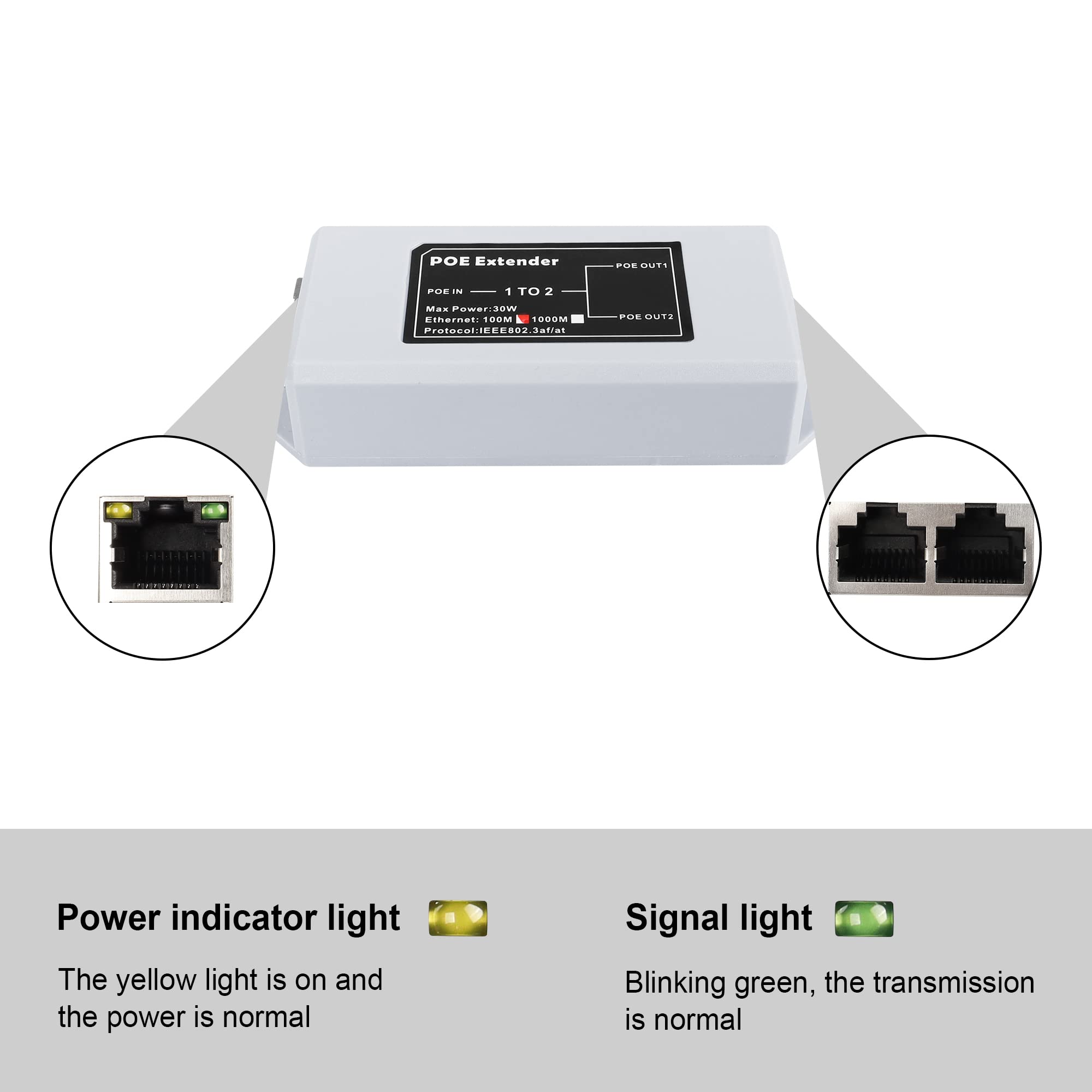

• The RJ45 port of the POE repeater has a yellow-green indicator light, when the yellow light is on it means that the power is normal, when the green light is flashing it means that the signal transmission is normal, you can easily know the working status of the device by the indicator light of the input port.

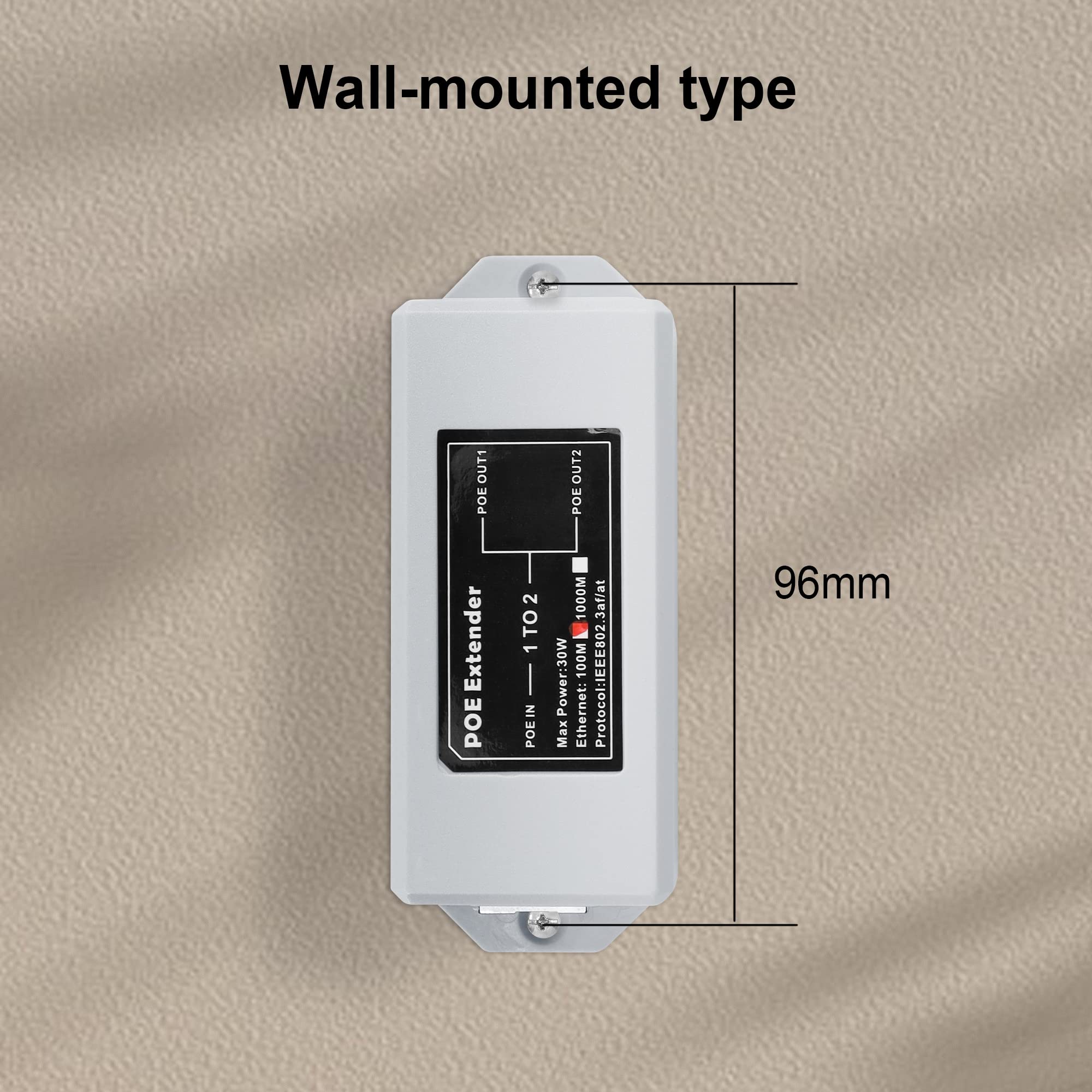

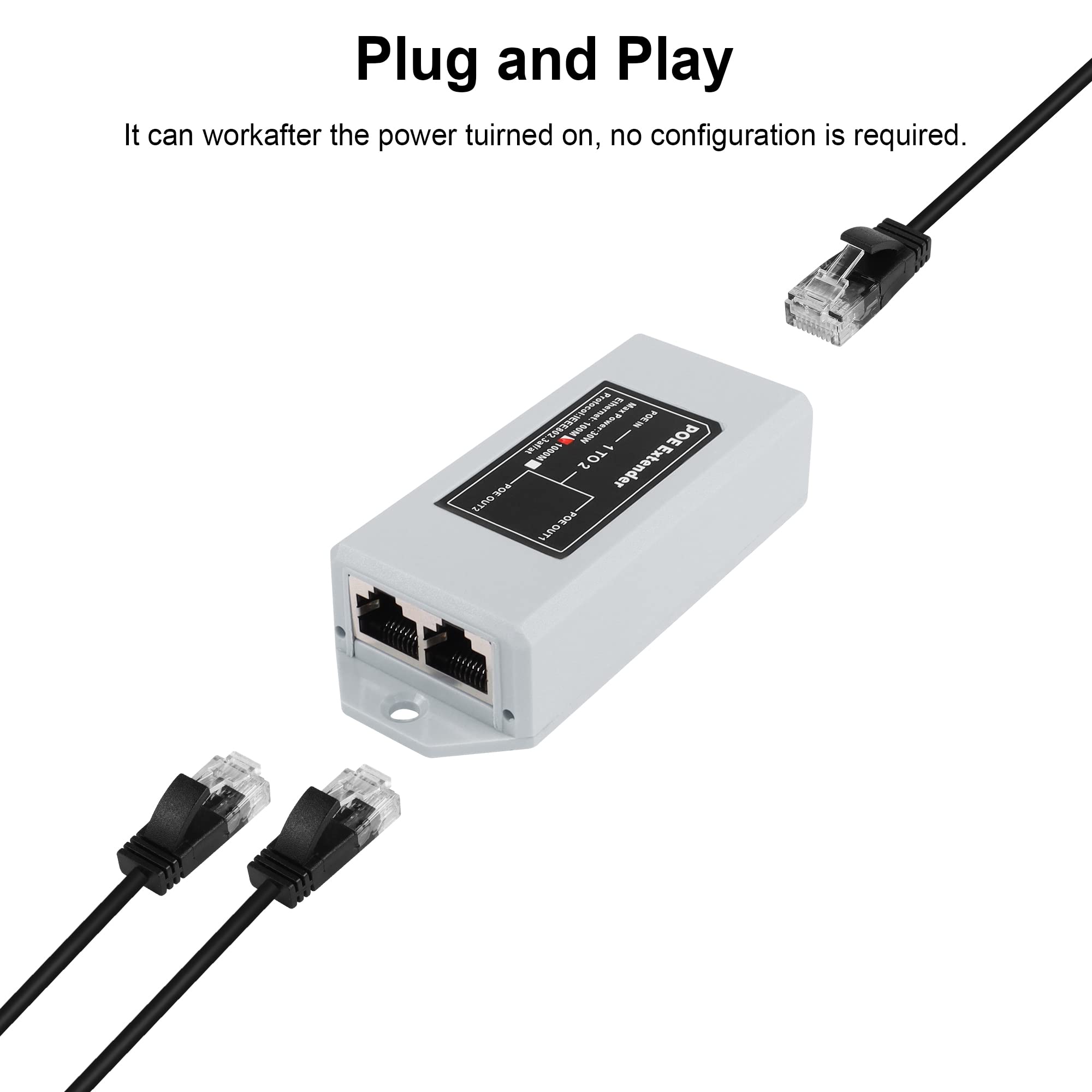

• The POE repeater is a plug-and-play design that is easy to install and requires no software or configuration.The POE repeater supports wall and desktop mounting and is small enough to save space and facilitate cabling.

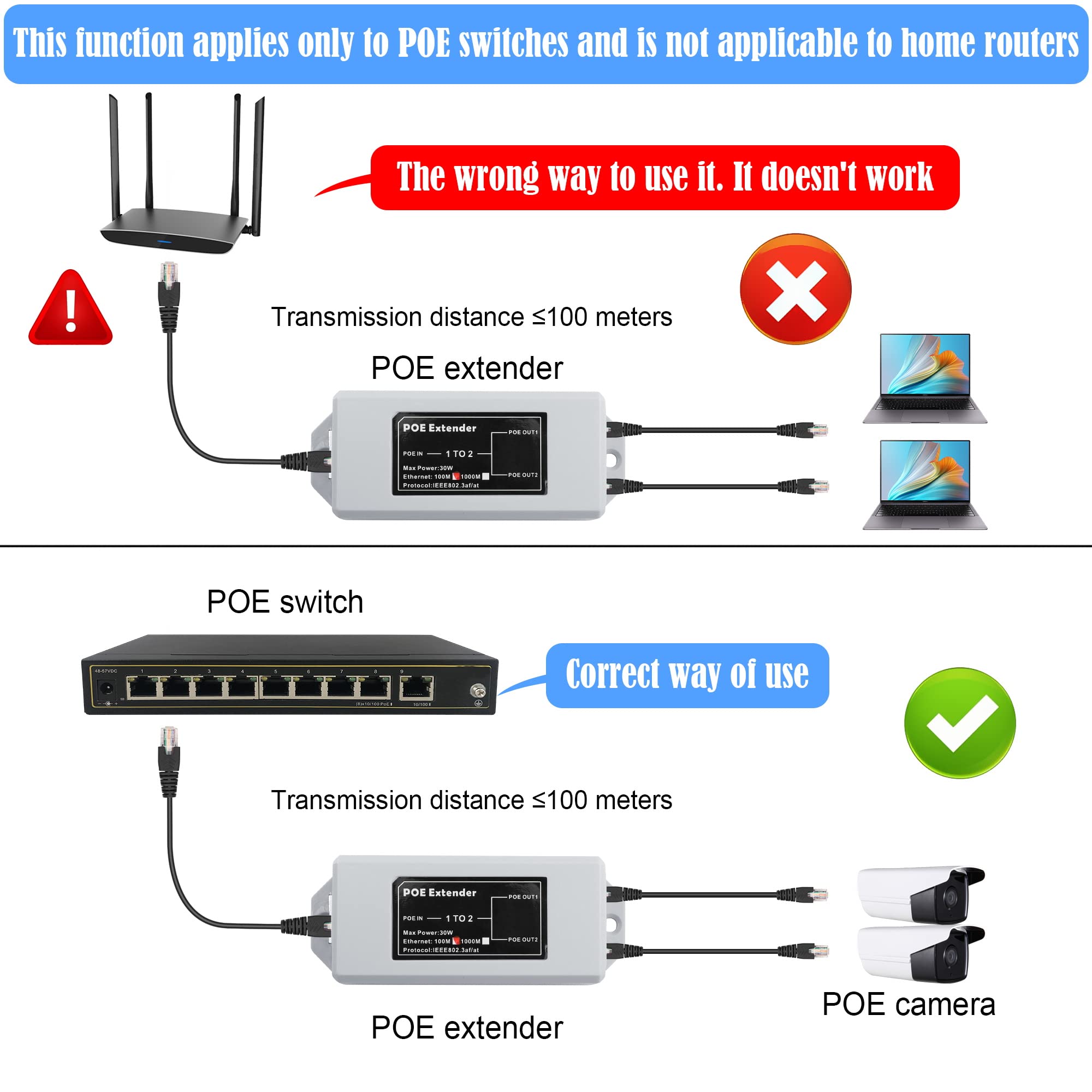

• Note:POE repeaters are only used for POE switches and POE monitoring devices, not for home routers and home network transmission.

Features: 1.POE repeater with 1 in 2 out design, you can connect to the POE repeater through the RJ45 power port of a POE switch and power two POE cameras at the same time. This extends the RJ45 power supply port on the POE switch and solves the problem of insufficient RJ45 power supply ports on the POE switch. 2.The RJ45 port of the POE Repeater has a yellow-green indicator, you can easily understand the working status of the device by the indicator on the input port. 3.The POE repeater comes with wall mounting holes for wall and desktop mounting, making it easy to arrange network cables in a neat and beautiful way. Specifications: Maximum power: 30W Transmission rate: 100Mbps/1000Mbps Transmission distance: ≤100m Network media: unshielded Category 3, Category 4, Category 5 twisted-pair cable Supported protocol types: IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af/at Connector 1: RJ45 connector with yellow-green indicator (input) Connector 2: two RJ45 connectors (output) Package includes: 1x1 to 2 POE extenders
