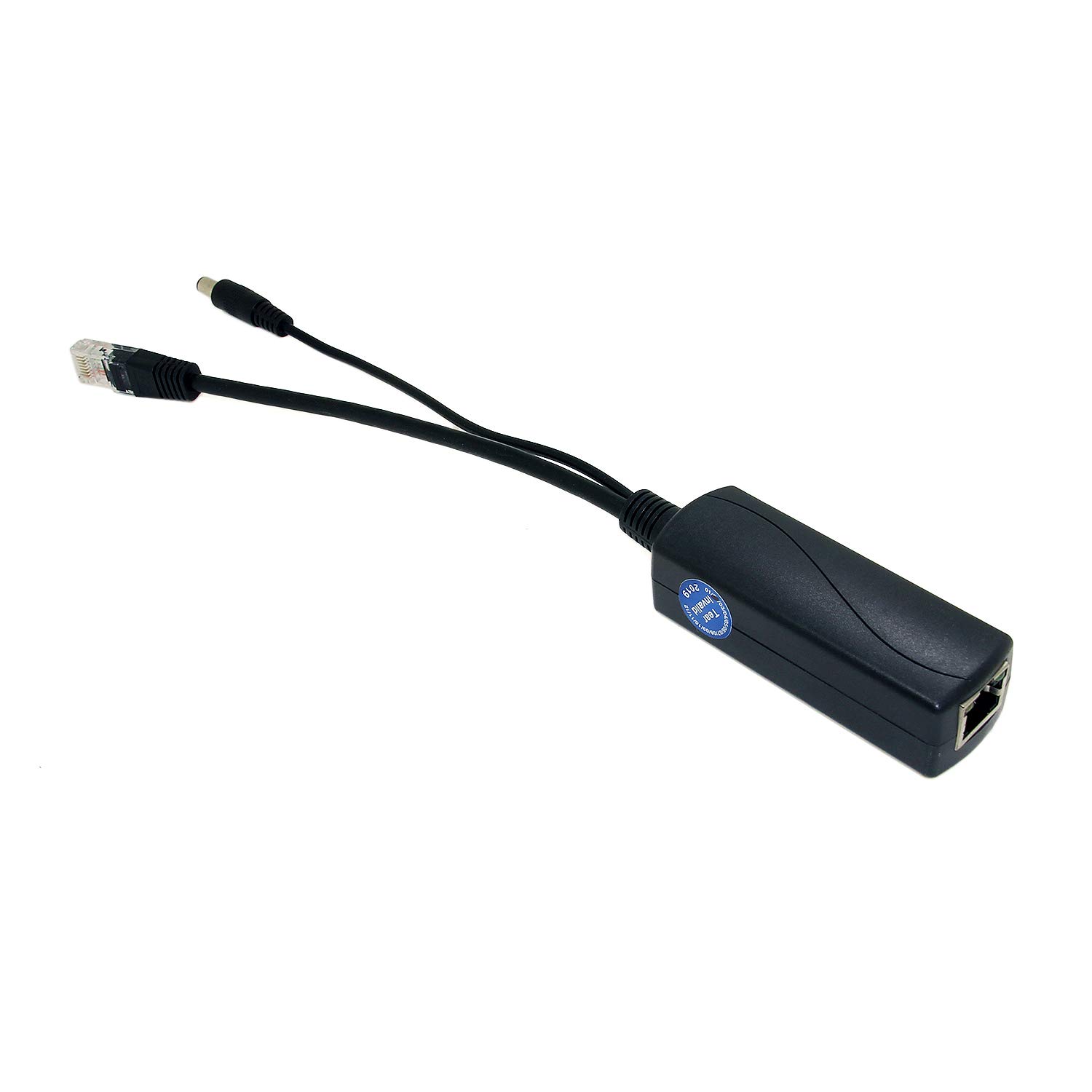

Gigabit PoE Splitter 12V 1A Output with IEEE 802.3af Standard Compliant 10,100,1000Mbps Power Over Ethernet Splitter Adapter for Security Camera CCTV Surveillance 5.5x2.1mm DC Plug Cable(PS5712G)

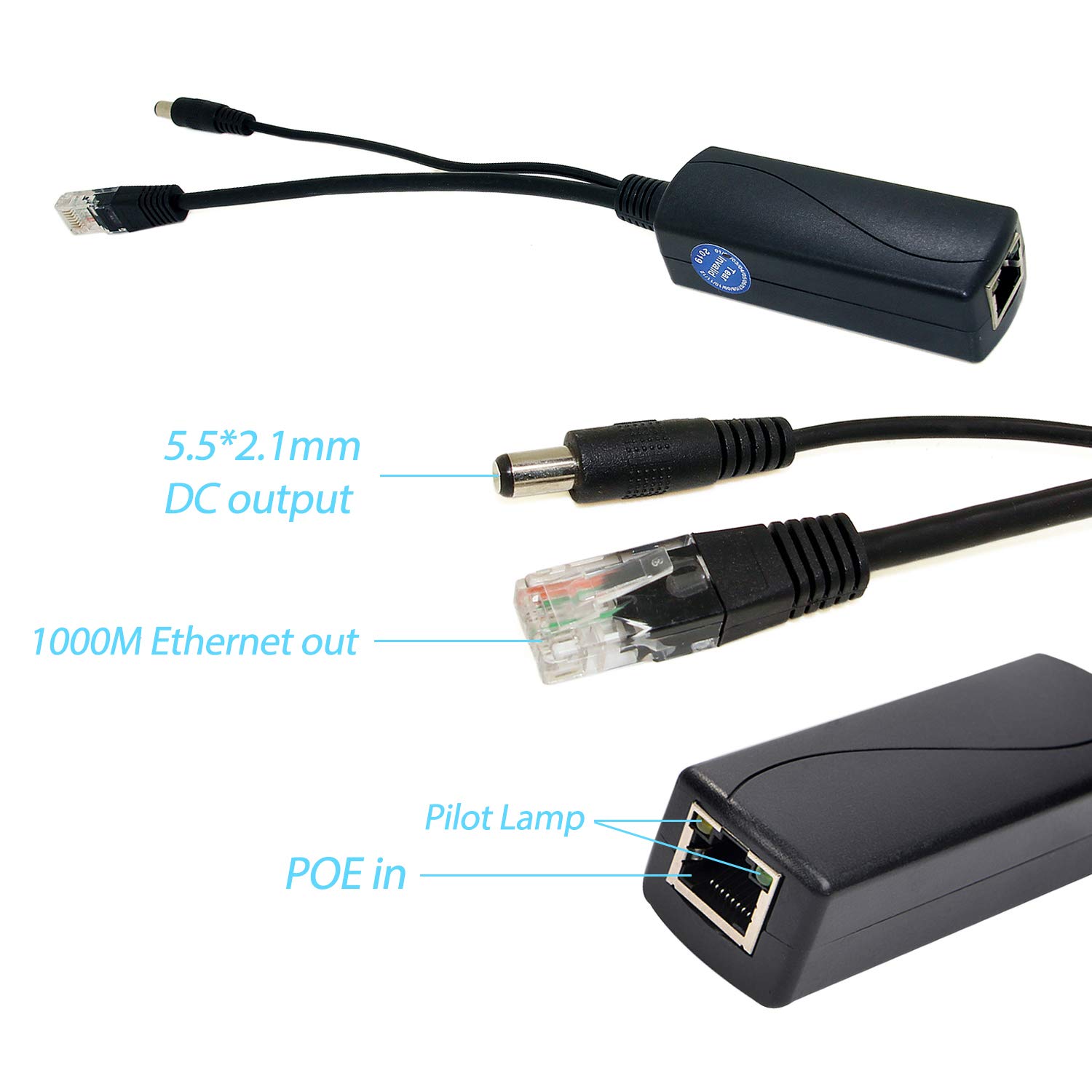

• 【PoE 48V to DC 12V/1A】Convert 48V PoE to DC 5.5*2.1 mm 12V/1A output. DC cable for power supply and RJ45 cable for netework. Non-PoE devices with DC 5.5*2.1 mm ports can enjoy the same convenience of POE power as POE devices.
• 【Max 12W DC Output】Auto detecte, appropriate power output to connected devices. Up to Max 12W (12V/1A) via DC 5.5*2.1 mm connector.
• 【Gigabit Speed up to 1000Mbps】Support fast gigabit transmission, compatible with 10/100/1000Mbps rates.
• 【Plug and Play 】Simply connect to terminal equipment and work, easy to use, avoid complex configuration.

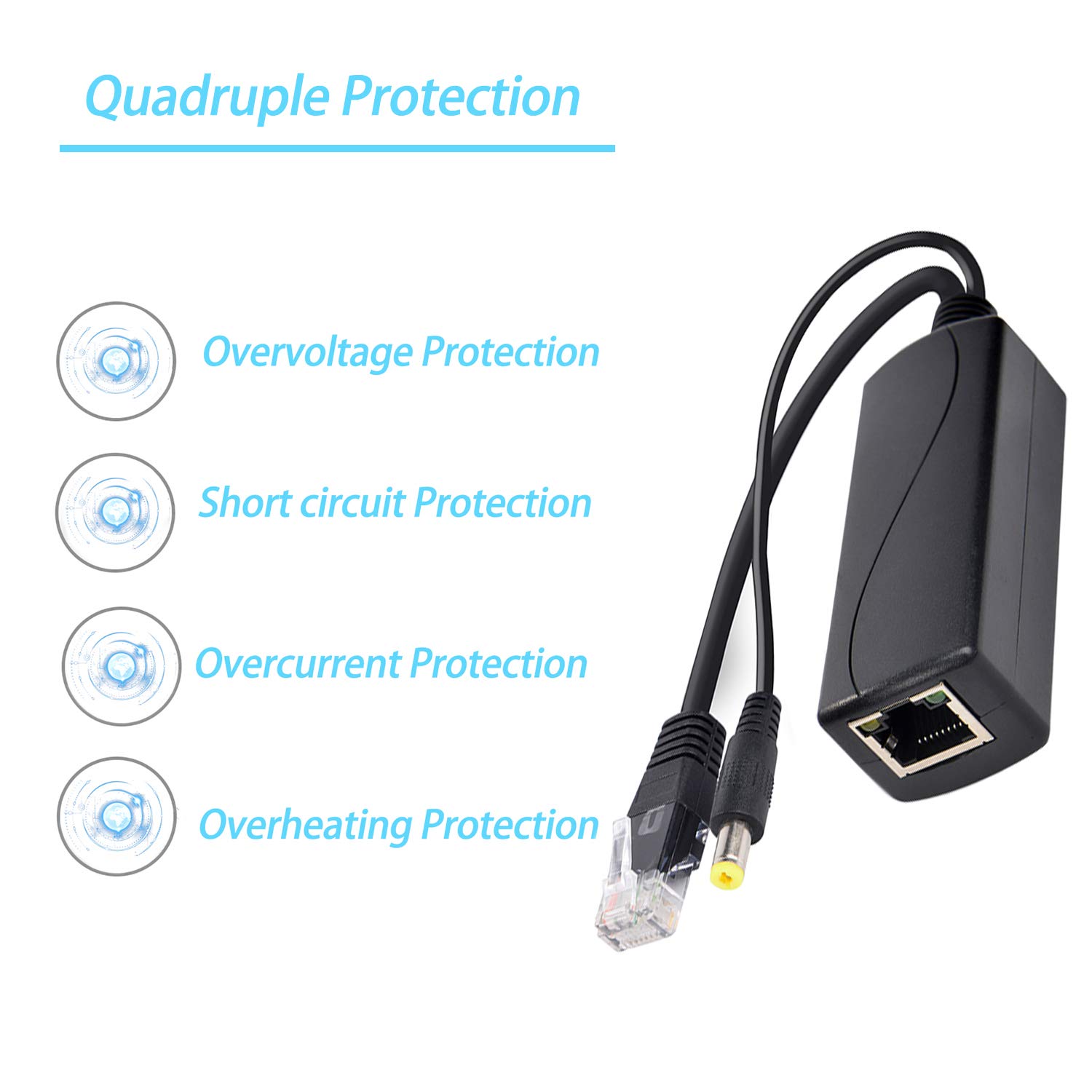

• 【Multiple Protection】Isolation circuit protection, Short circuit protection, Overvoltage protection, effectively protect your equipment.

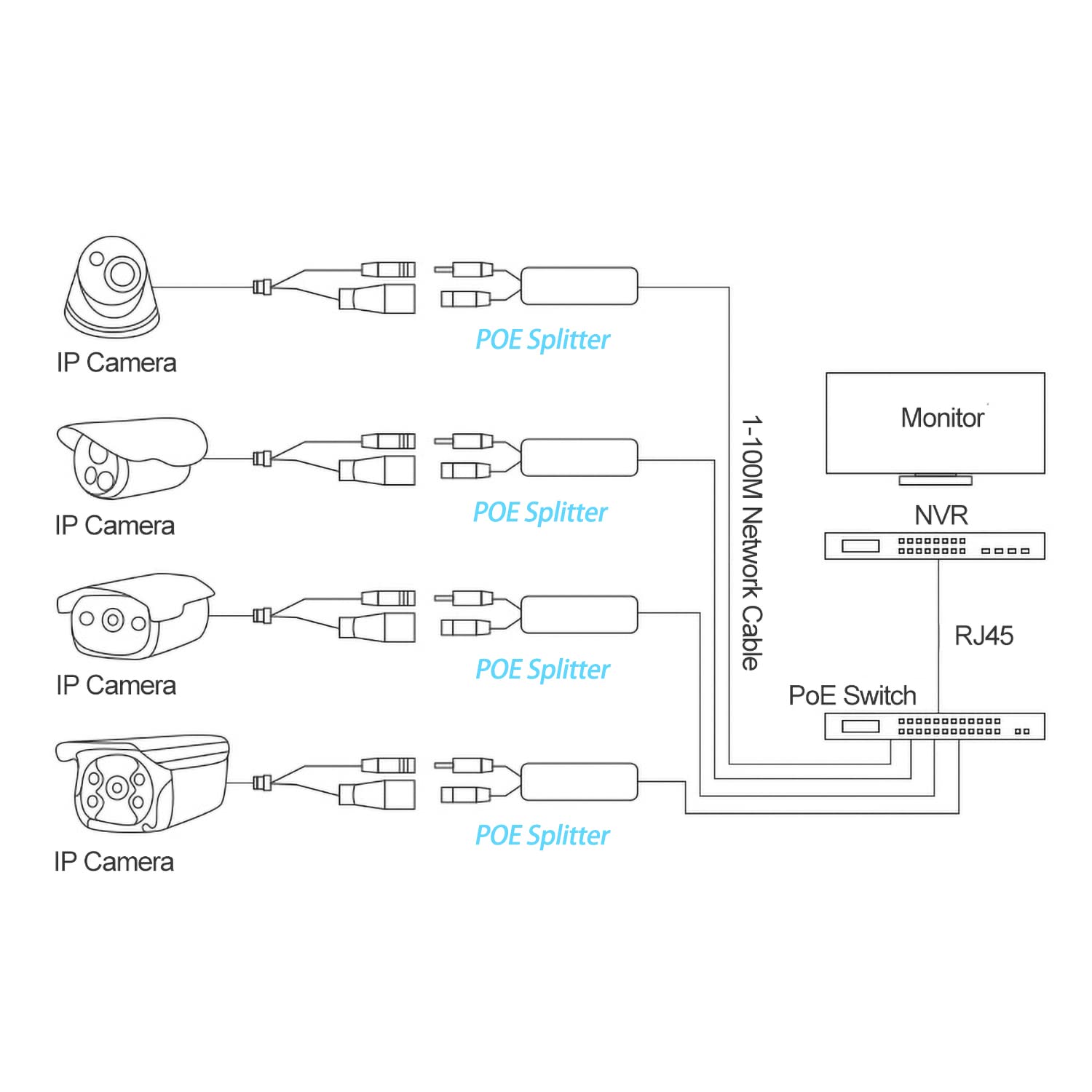

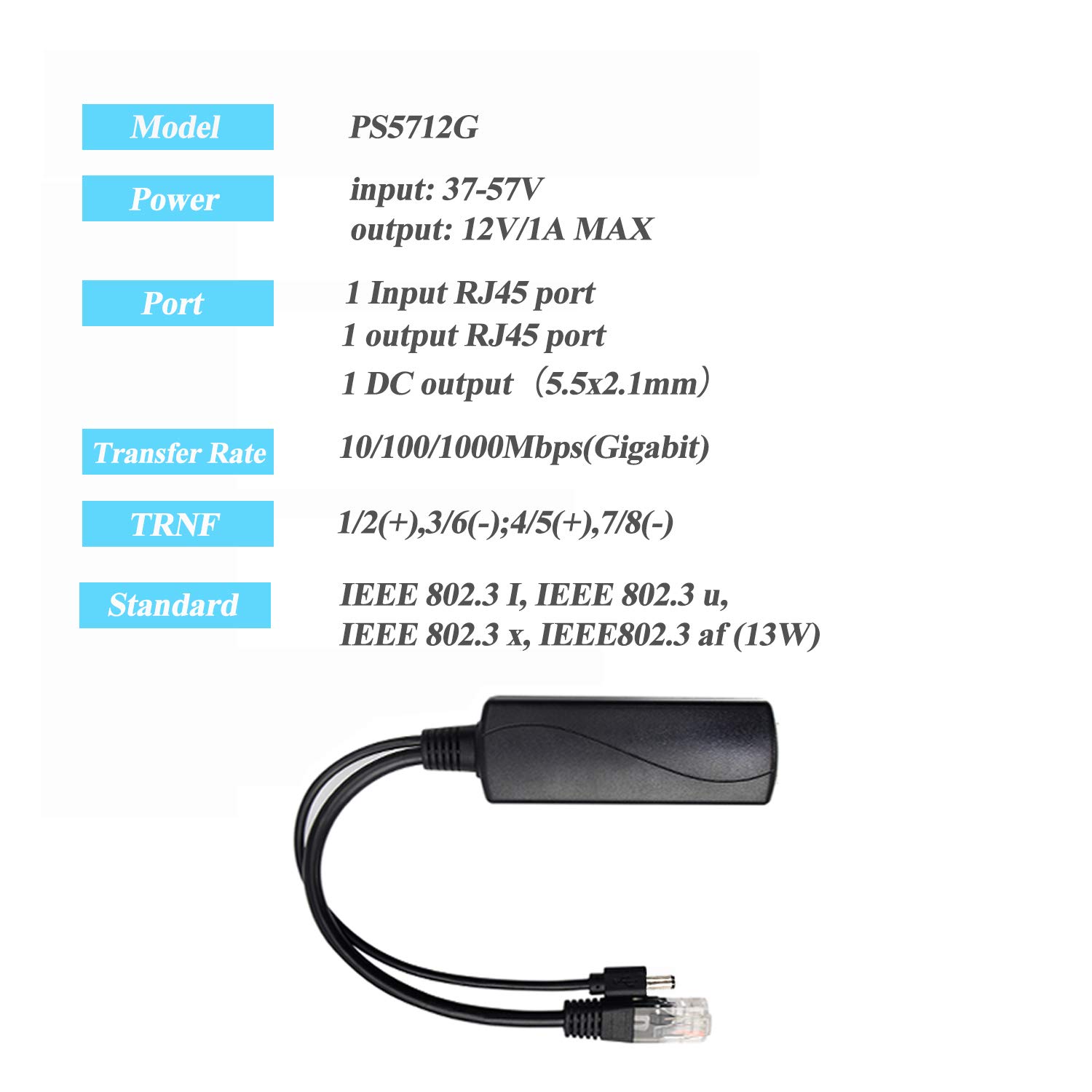

Overview: The PoE Splitter is a cost-effective and convenient PoE remote power equipment based on the IEEE802.3af standard. It can separate power and data via cable transmission and suitable use with PoE switch or PSE injector which meet IEEE802.3af standard, provides power and data at the same time as the terminal does not support PoE. PoE splitter, 12V output voltage used with power equipment, it helps to extend wireless city, security monitoring and other convenient PoE places, and is not limited by the layout of the power line. Features: Support international standard IEEE802.3 af (13 W); Support POE port 10/100/1000Mbps data transmission PD supports 37V - 57V voltage transmission, automatically detects PSE power supply module 12V Power Output, Easy Access Poe Network for Non-PoE Terminal Support insulation circuit protection, can effectively protect electrical equipment. Support short circuit, surge protection 1500V High Voltage Insulation Model: PS5712G. Transfer rate: 10/100/1000Mbps (Gigabit) Power: input 48 V DC /0.35 A, output 12 V/1 A. Standard: IEEE802.3 af (15.4 W) TRNF: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Interface type: 1 RJ45 input port, 1 RJ45 output port, 1 DC output (5.5x2.1mm) Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af LED: yellow PoE lamp Temperature: work between -20 ~ 50 °, storage between -30 ~ 60 ° Humidity: working between 10% and 90% (no condensation), storage between 5% and 95% (no condensation) DC plug: 5.5 x 2.1 mm Dimensions: 27.5 x 2.8 x 2.2 cm. Weight: 0.05 kg Box contents: 1 x POE Separator (PS5712G)
