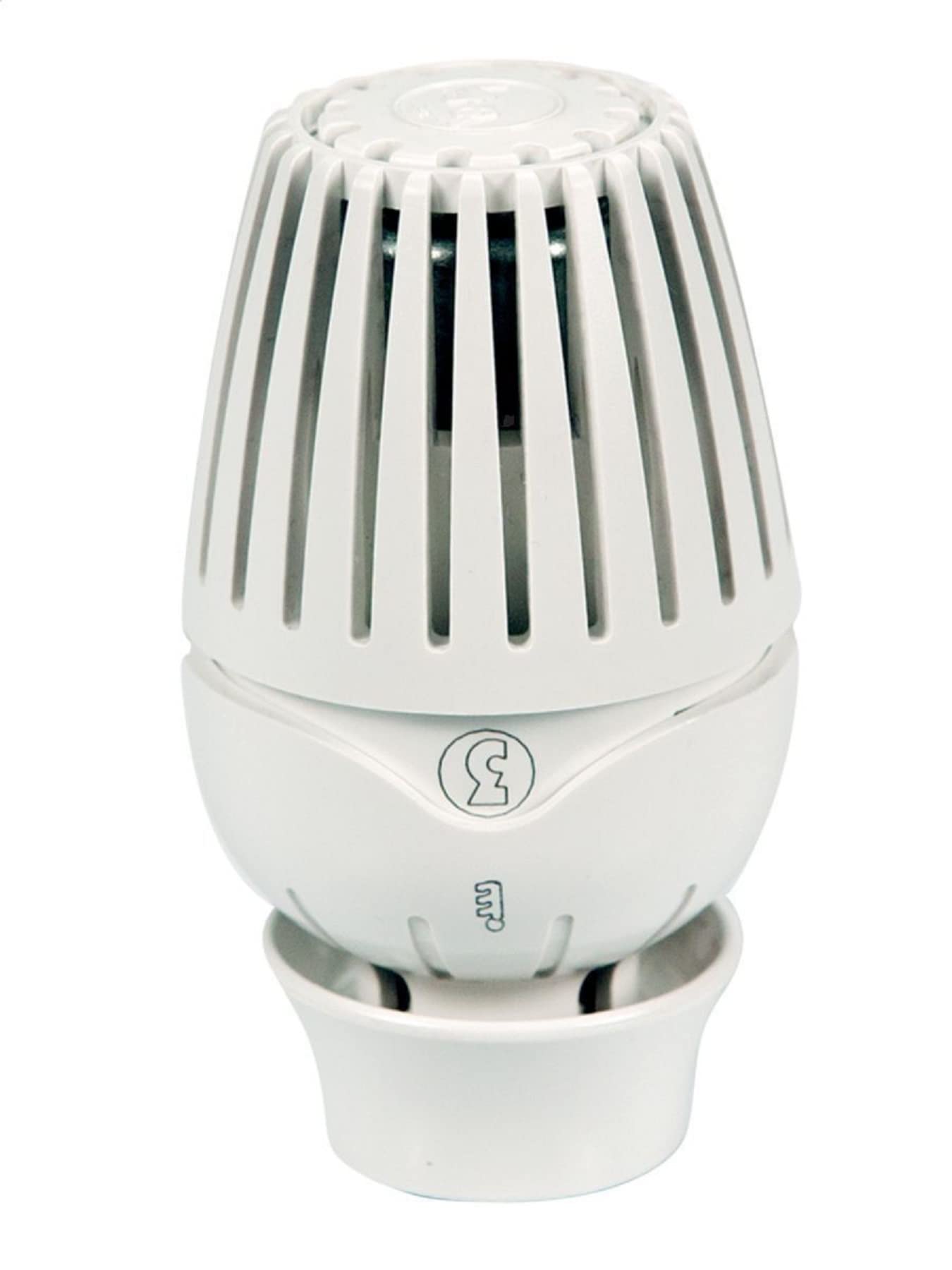

GIACOMINI Thermostatic Radiator Head with Liquid Sensor R460X001

• Giacomini
• R460X001
• Thermostat head with liquid detector
• With frost protection position
• Clip-clap connection

To use heating only where and when it is really needed, the simplest, most reliable and inexpensive thermoregulation solution is to equip each radiator in the building with faucets with thermostatic option and thermostatic head. The thermostatic head serves to maintain a constant temperature in the room in which it is installed, depending on the temperature that has been chosen. The R460 thermostatic head is equipped with a liquid sensor and a clip-clap connection to the faucet body. It can be installed on all taps with thermostatic option, TG, D and F series. Temperature range in combination with the tap body: 5 - 110 °C max. Working pressure in combination with the tap body: 10 bar maximum. Differential pressure in valve: 1.4 bar (3/8, 1/2); 0.7 bar (3/4). Minimum head calibration: 8C in position. Maximum head calibration: 32C in position. Thermostatic heads must be installed in a horizontal position.
