Gesipa 7010001.0 Flipper Hand Riveter

• Total stroke: 16.2 mm
• VERSATILE CRAFTSMANSHIP The flipper is able to handle blind rivets up to a diameter of 5mm for aluminum and 4mm for steel and stainless steel, with a maximum mandrel diameter of 2.8mm. Its large device stroke is particularly advantageous for extra-long blind rivets
• EFFECTIVE FEEDING MECHANISM The chuck mechanism secures the rivet mandrel firmly after being torn down and allows for easy release for next use by pushing the lever forward

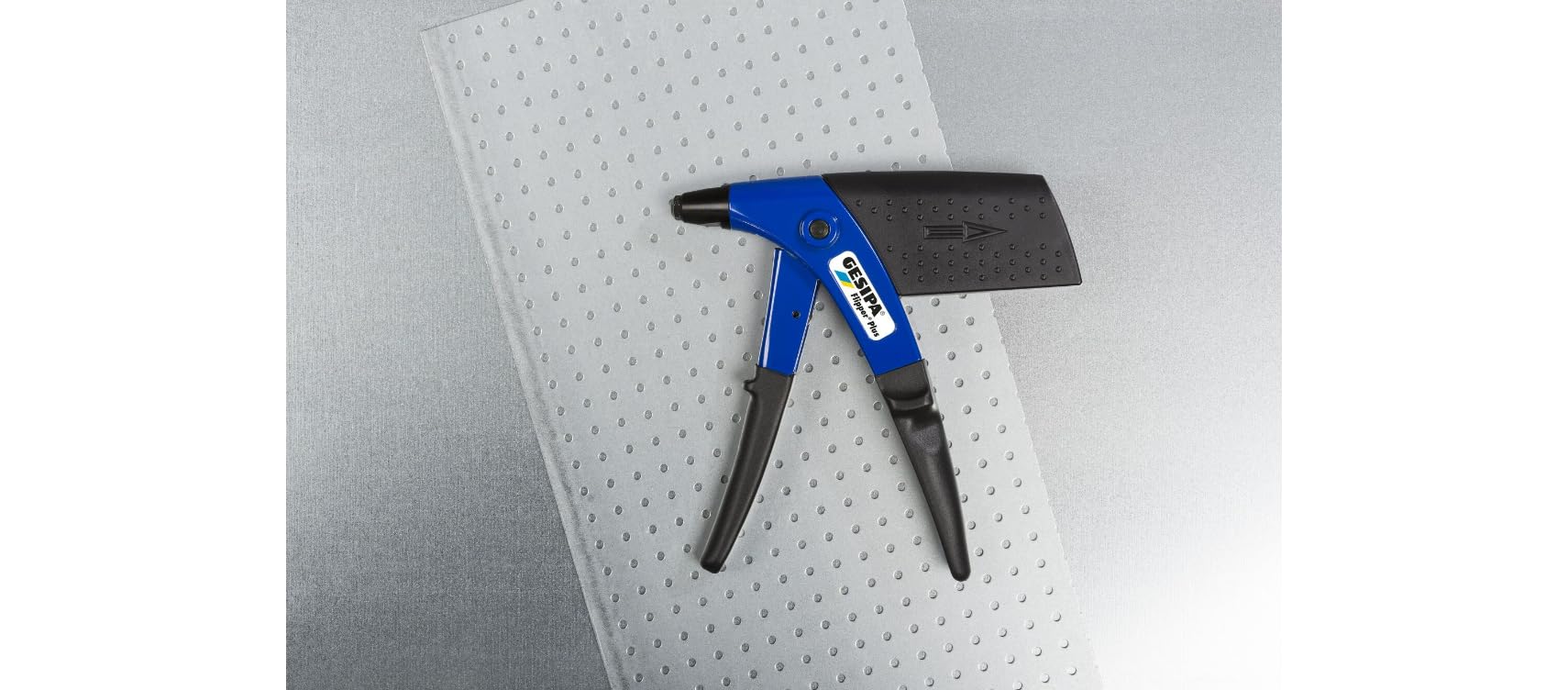

Gesipa Flipper The Flipper hand blind rivet device offers optimal one-handed use and is a robust, stable setting tool with a collection container for rivet mandrels. Its one-handed operation reduces the effort required by about 40 percent. Thanks to its ergonomic design, the force is effectively used when closing the hand, which is supported by a special lever arrangement for setting blind rivets. The chuck mechanism holds the rivet mandrel firmly after being torn and by pressing the lever forward it is released. The large device stroke is particularly advantageous for extra-long blind rivets. Features and workmanship Processing of blind rivets: all blind rivets up to 5 mm diameter in aluminium and up to 4 mm diameter in steel and stainless steel (max. Mandrel diameter 2.8 mm) can be processed. Technical details: Device with opening spring: yes. Max. Working range in steel: 4.00 mm. Operating mode: manual operation. Single stroke: 1.80 mm. Device length: 221.00 mm. Total stroke: 16.20 mm. Carcass weight: 0.75 kg. Max. Mandrel diameter: 2.80 mm. Description of the work area: processing of blind rivets up to 5 mm diameter aluminium and 4 mm diameter steel and stainless steel (max. Mandrel diameter: 2.8 mm). Package weight: 0.86 kg (with packaging and accessories). Box contents: Flipper, mouthpieces: 10/18, 10/24 and 10/29, 1 mounting key (on the collection container), maintenance instructions with spare parts list, delivered in a box.
