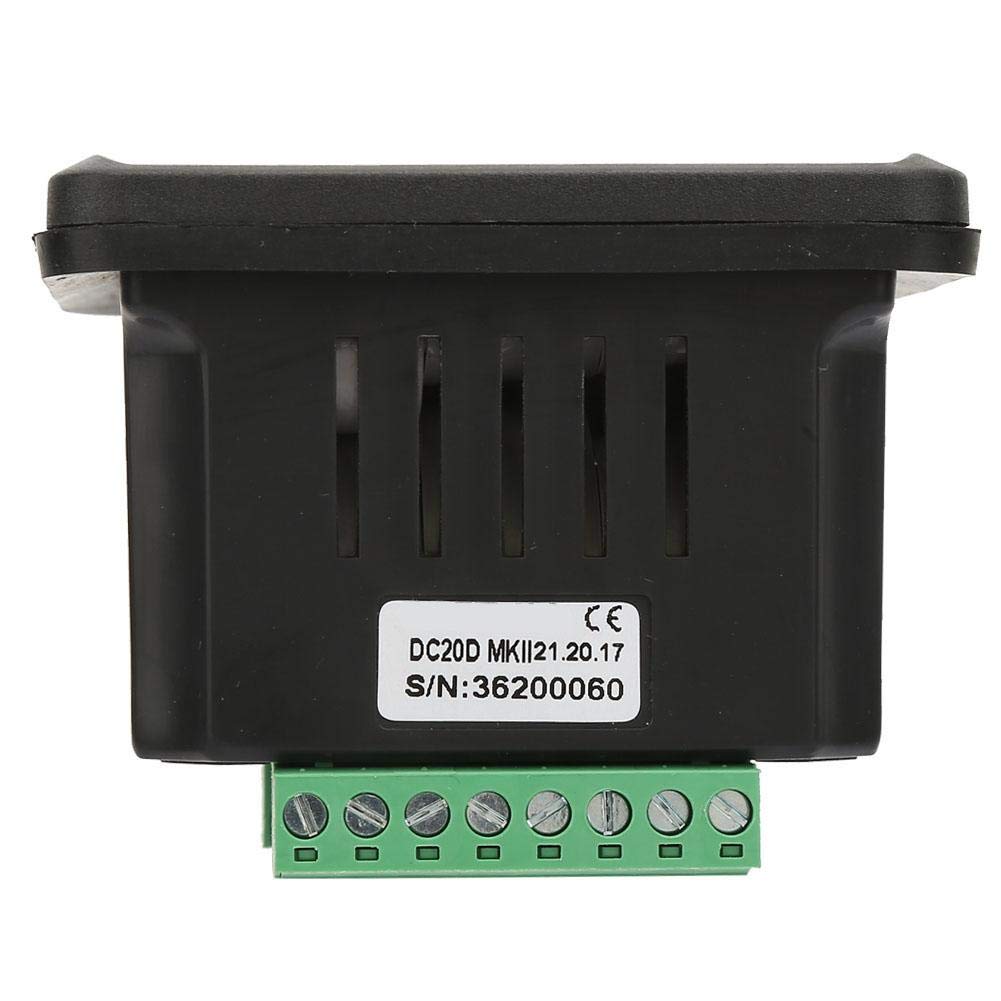

Generator Controller,DC20D MKII Electronic Generator Controller Module,Control Panel for Diesel Engine or Generator, Auto Start/Stop, and Alarm indication

• DC20D is one module used for Diesel Engine or Generator.

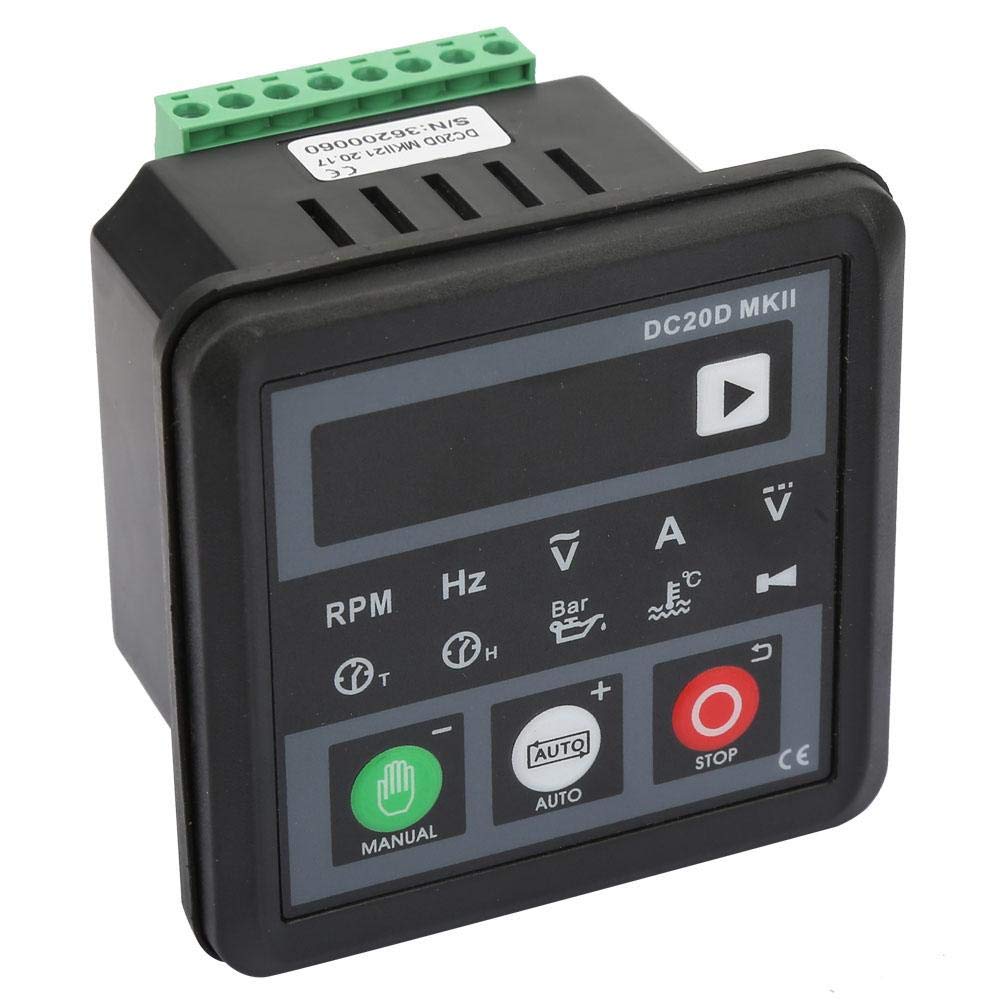

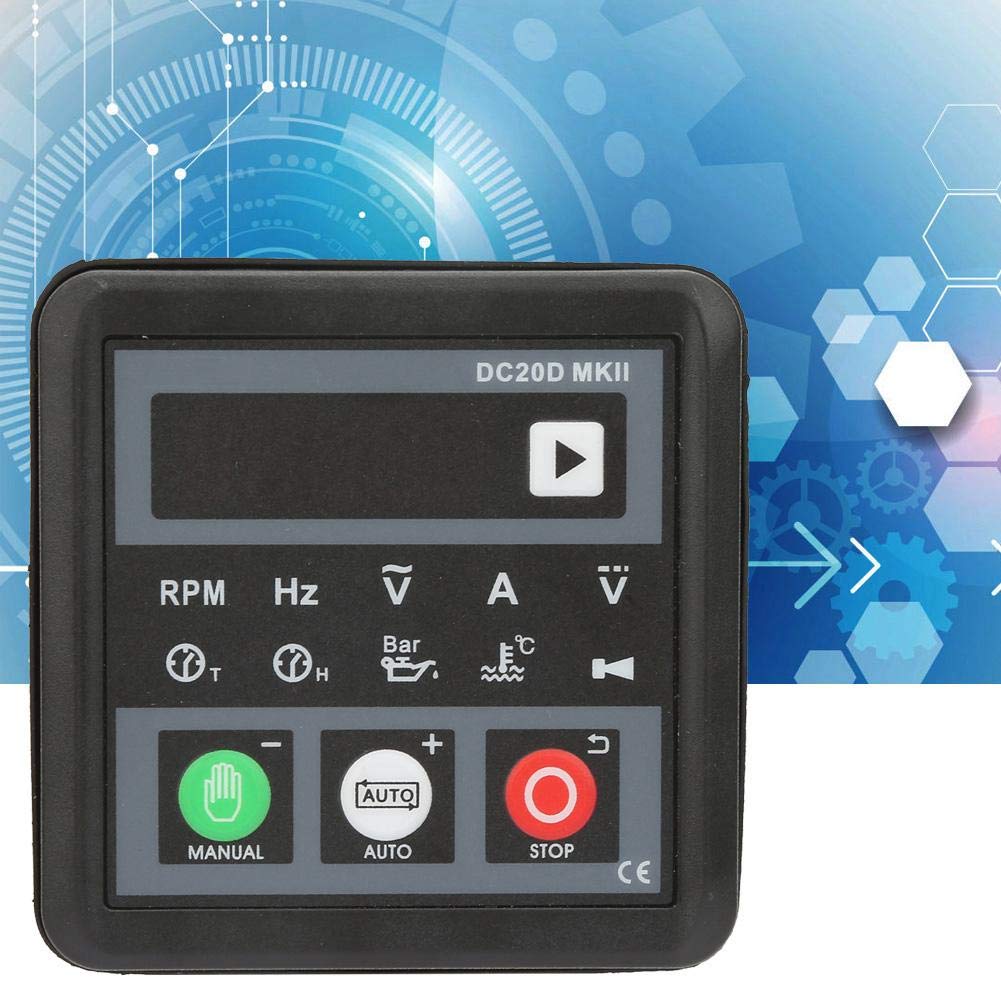

• It is with the functions of Auto Start/Stop, and Alarm indication. DC Power and Running situation is indicated on the front panel.
• The status of the engine and generator can be checked conveniently.
• Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.
• The output contact adopts relay, which can withstand large output current, and can set system parameters according to the button, so as to meet the application of different occasions.

Main Functions: Manual / automatic start, stop 5-digit LED digital tube shows unit operating status and parameters LED indicator and fault code display alarm indication Two sets of programmable output relays Application for various kinds of Engine by self-setting. Front panel IP54 rating Control Function: Automatic control of the car Start delay control Local manual start/stop Remote automatic start/stop Preheat control Automatic cold control Parking/idle control Damper control Parameters Display: Engine speed Generator frequency Generator AC voltage Load current Engine battery voltage Current running time Cumulative running time Engine oil pressure Engine water temperature Specification: Condition: Brand New Item Type: Generator Controller DC Supply: DC 8-36V Power Consumption: MAX 3W Measuring Frequency: 10-70Hz Input voltage range: AC 20-80V Current measurement range: 0-2000A. Speed sensor Frequency: 30-9999Hz Output: Fuel Relay Output: MAX 5A Start Relay Output: MAX 5A Configurable output1: MAX 2.5A Configurable output2: MAX 2.5A Excitation output: MAX 1A Size: Approx. 78mm * 78mm * 55mm / 3.1 * 3.1 * 2.2in Panel cut-out: Approx. 67mm * 67mm / 2.6 * 2.6in Protection Level: Front panel splash-proof after installation. Operation Temperature :-30℃-70℃ Storage Condition:-40℃- 85℃ Panel: Chinese/English Optional Package List: 1 * Controller 2 * Fixing screws 1 * Interface wiring
