GEFONG Kitchen Cabinet Exposed Hinges 270 Degree with Catch Full Overlay Mounting 3/4 Inch Zinc Alloy Furniture Door Folding Hinge for Cupboard Wardrobe Doors 4 Pcs

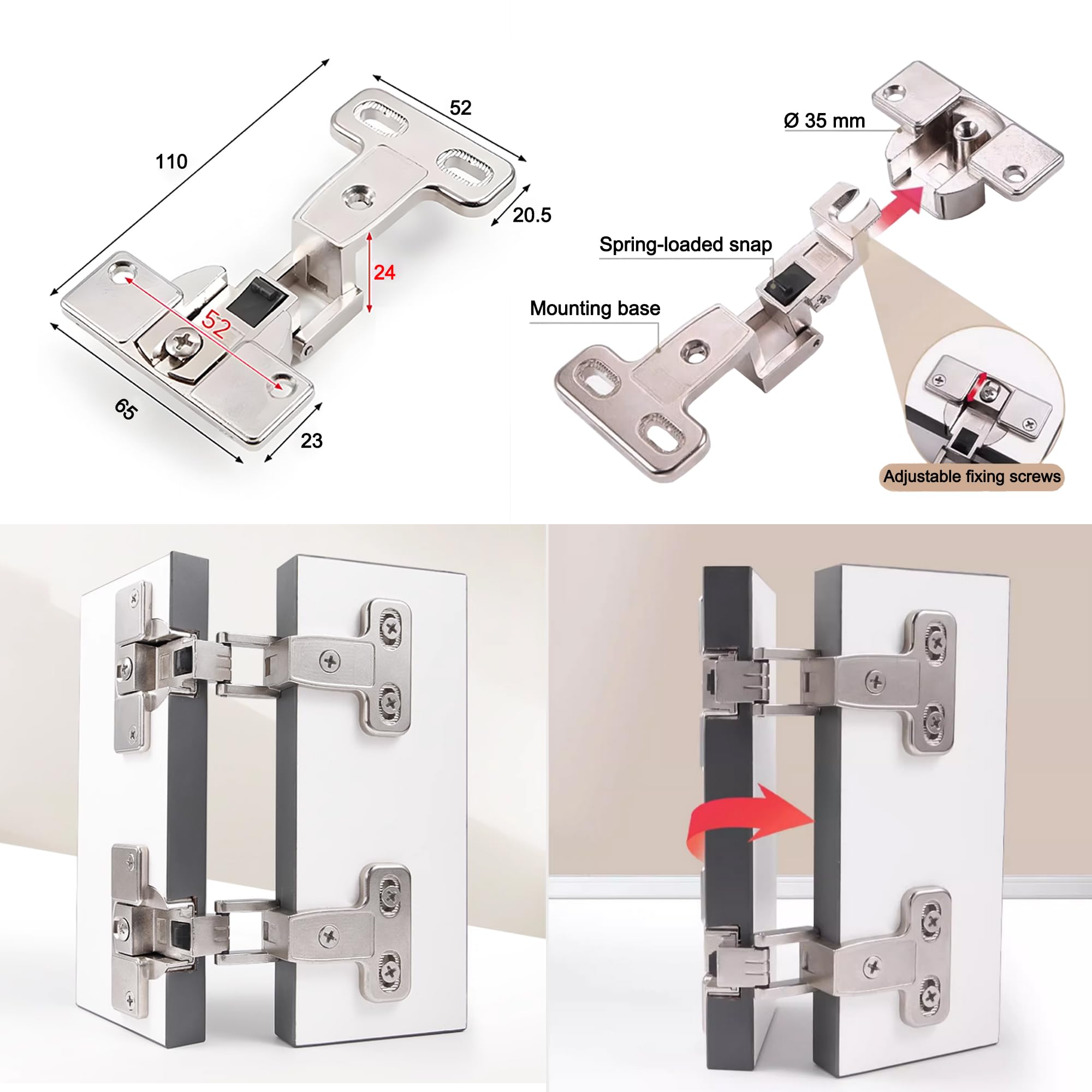

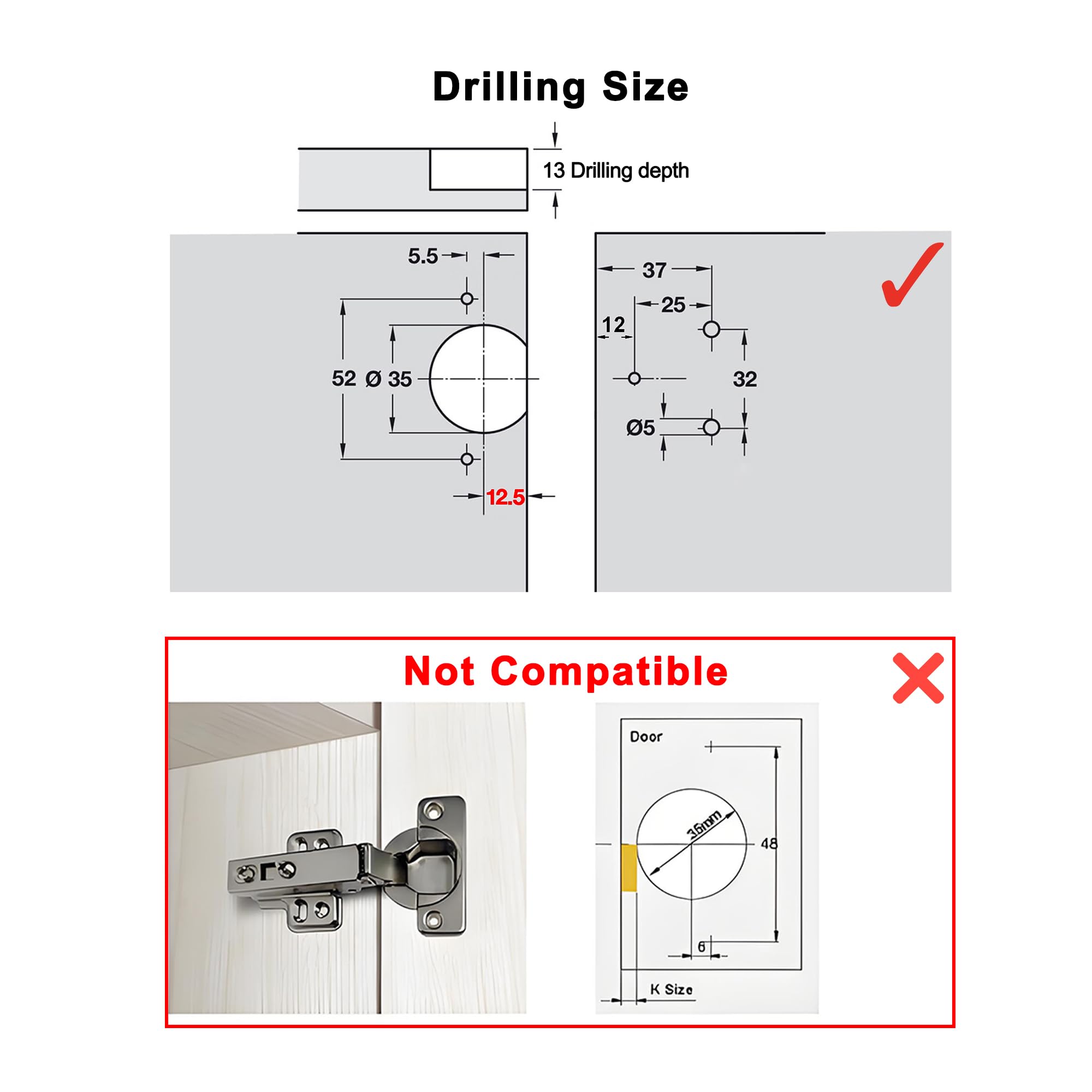

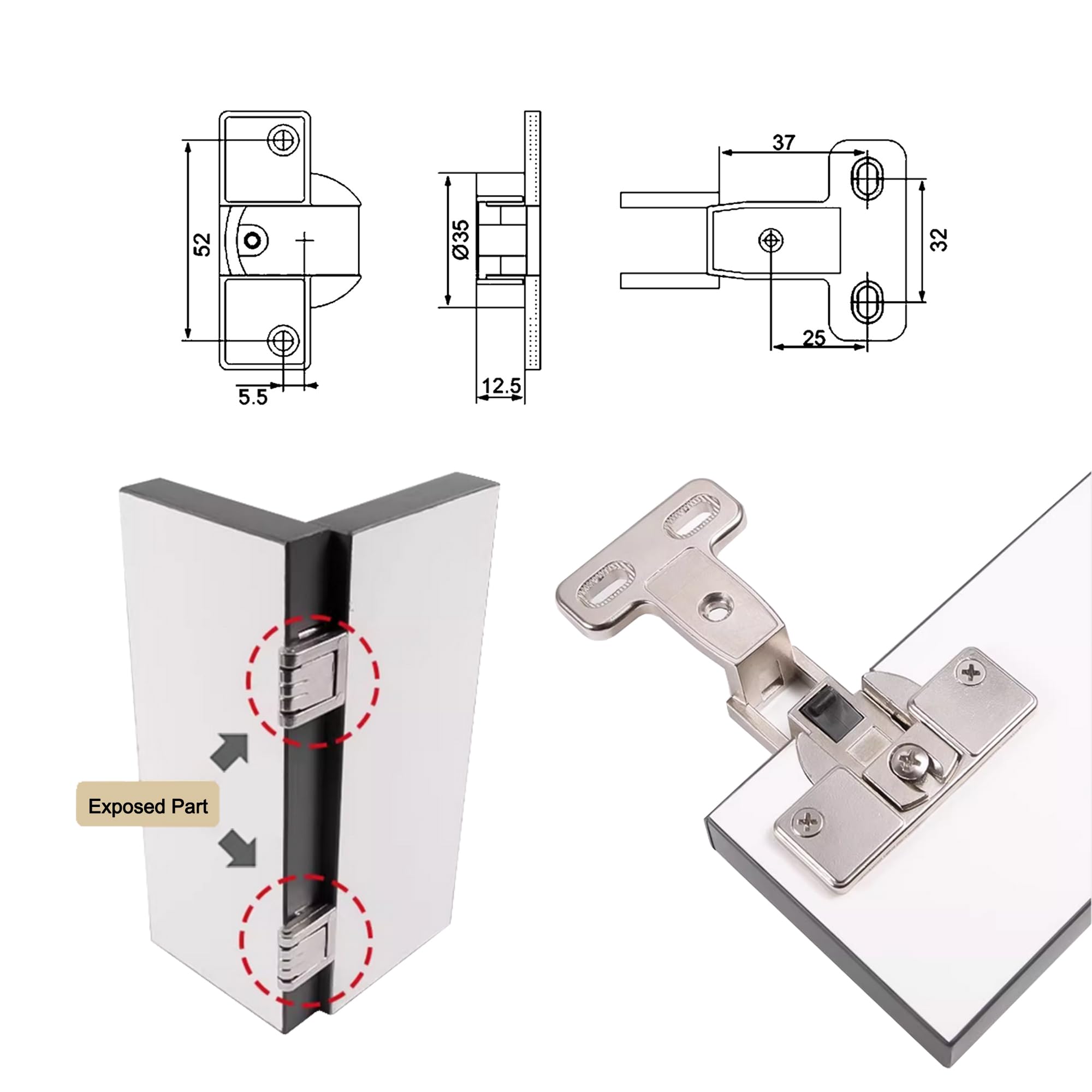

• For overlay door and side panel mounted; Drilling pattern 52mm/5.5mm, Hinge cup Ø 35mm; With spring catch to prevent door from opening automatically

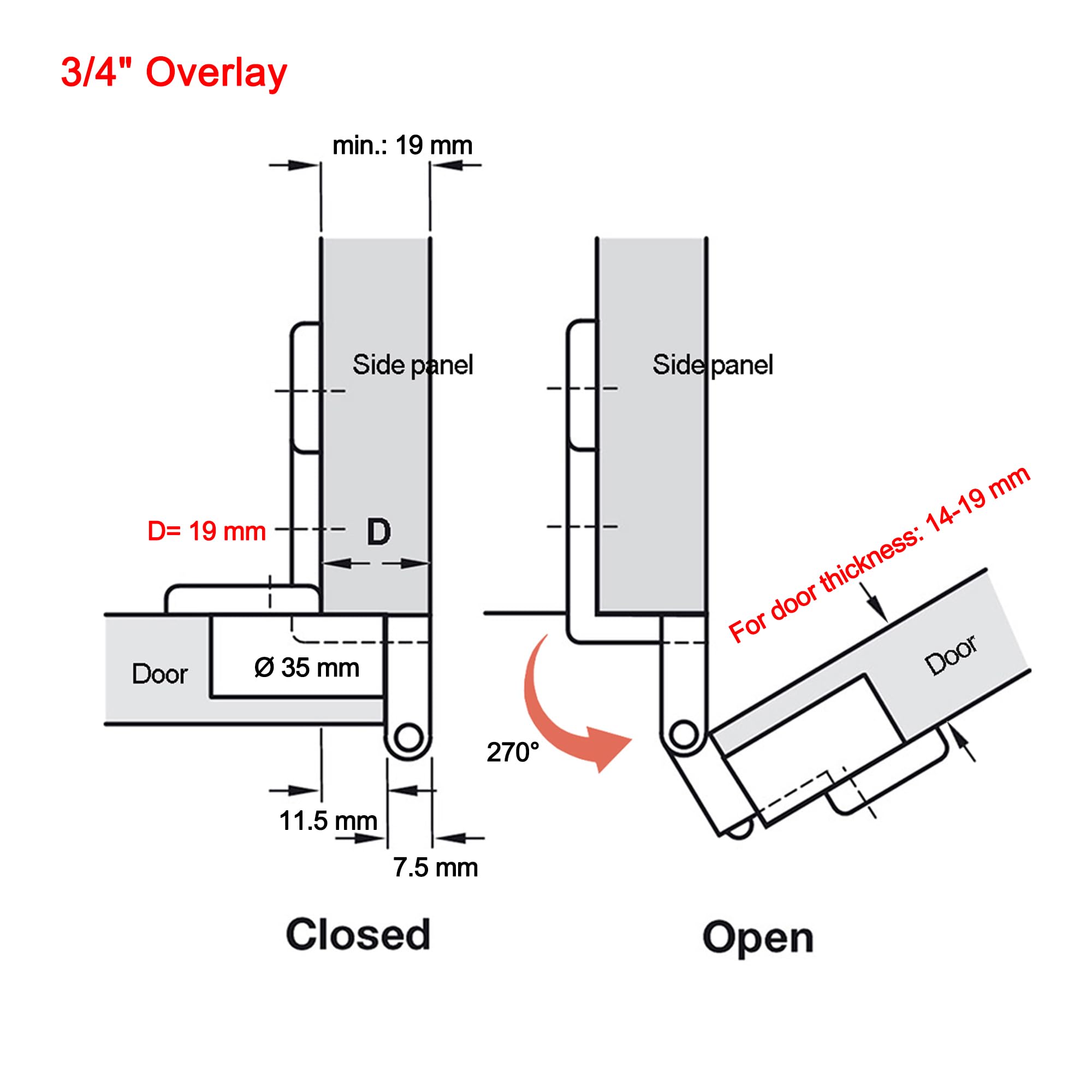

• The required overlay size on side board: D=19 mm (3/4" – Full Overlay Door Installation), For door thickness: 14-19 mm

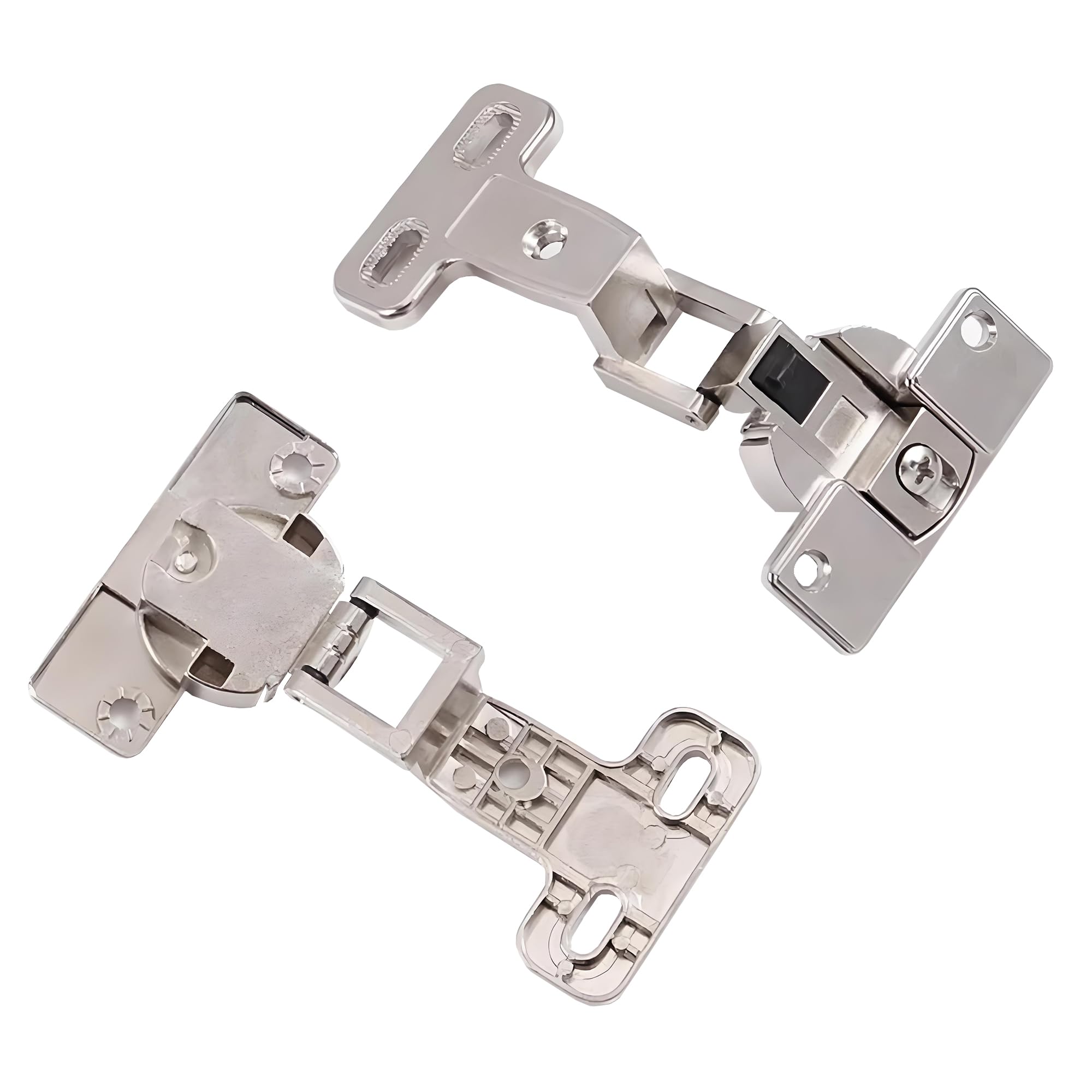

• The hinges are made of high-quality zinc alloy, which has strong corrosion resistance and durable to use
• Unique design and compact appearance, the bearing capacity of two hinges can reach about 6 kg
• The hinges are suitable for kitchen cabinet doors, bathroom cabinet doors, mirror cabinets, bedroom wardrobes, living room, shoe cabinets, sideboards, etc.

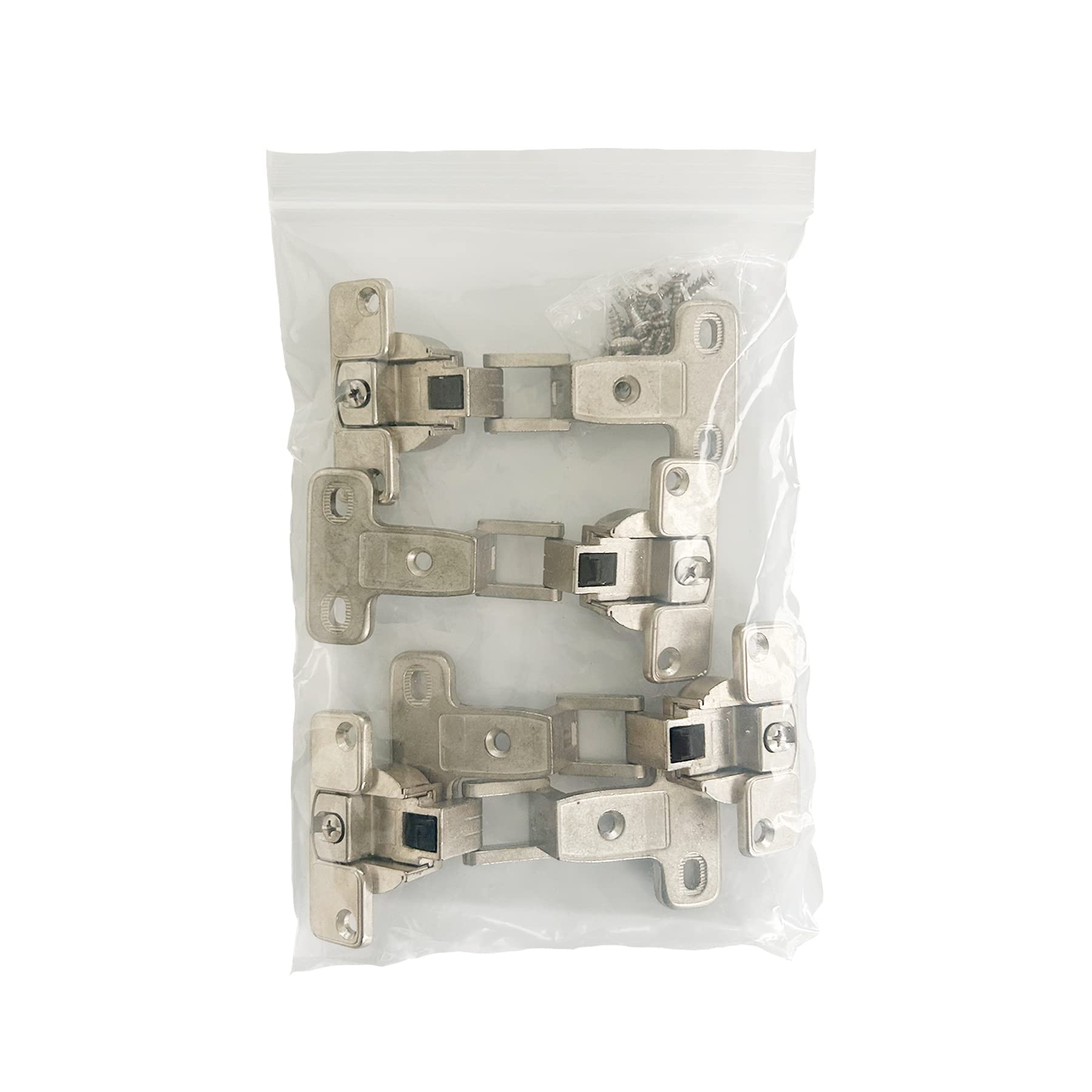

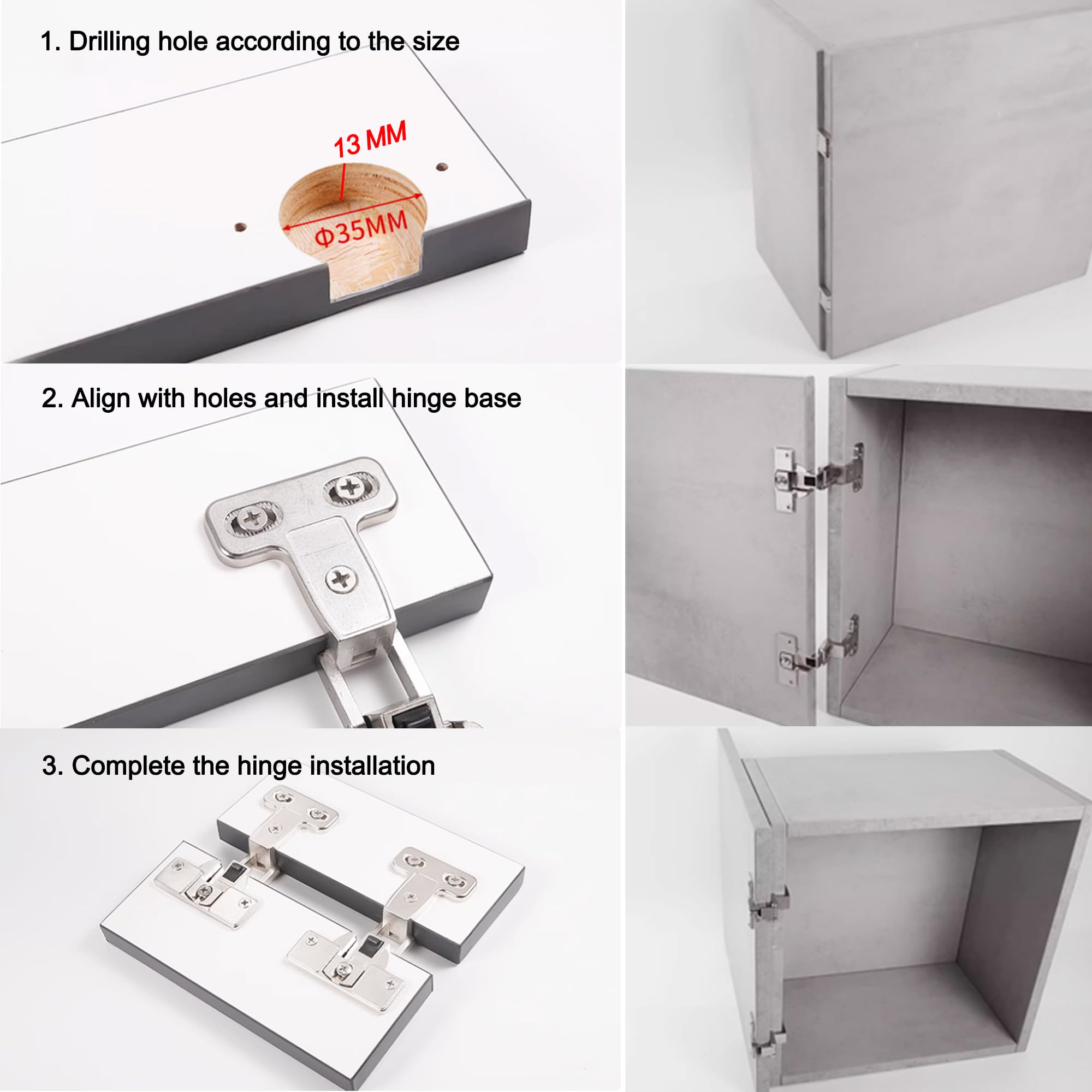

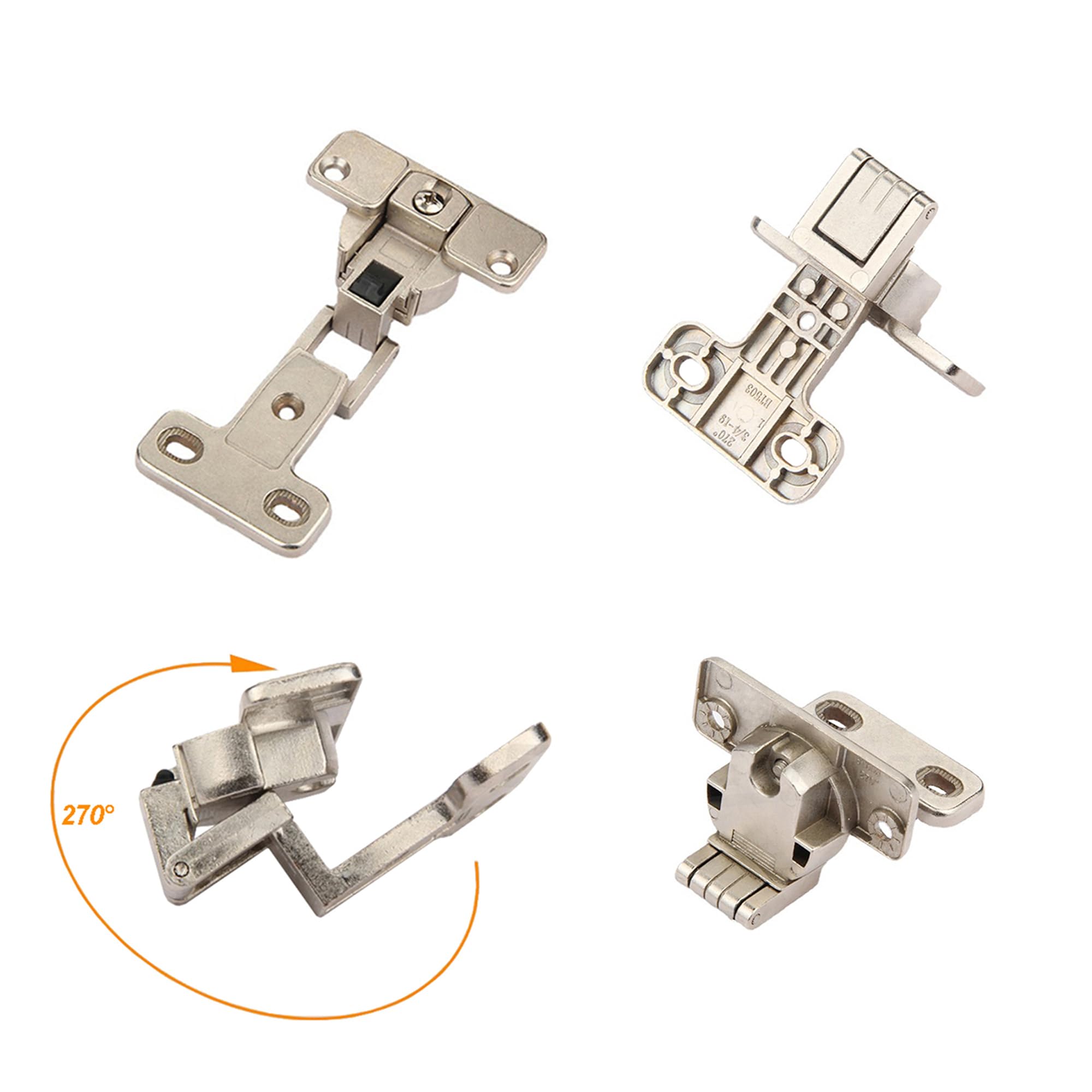

Article Details Material of cup and hinge arm: Zinc alloy Finish: Nickel plated Adjustment facility: Lateral adjustment up to - 2 mm; Vertical adjustment ± 2 mm Opening angle: 270° Installation: Side panel mounted, screw fixing For door thickness: 14-19 mm Side panel thickness: 19 mm (min.) Drilling depth: 13 mm Drilling pattern: 52 mm / 5.5 mm Required overlay size on side board: D=19 mm (3/4" – Full Overlay Door Installation) Maximum Loading capacity: 6 kg / 2 pcs Package Hinges: 4 Pcs Mounting screws (M4x16mm): 20 Pcs
