Geekstory 35KG TD-8135MG 360 Degree Servo Motor Digital Coreless Continuous Rotation Servo Large Torque Full Metal Gear for DIY Robot Robotic RC Car

• 【Feature】Operat voltage: 4.8V~8.4V. No load speed: 0.32sec/60°(4.8V); 0.22sec/60°(8.4V), Peak stall torque: 32.7kg.cm(4.8V); 35.2kg.cm(8.4V). Dimensions：1.58x0.79x1.60inch (40x20x40.5mm);Weight: 85g (3oz) only
• 【High Quality】equipped with strong metal gear,CNC aluminium middle Shell; Can provide good durability and stability

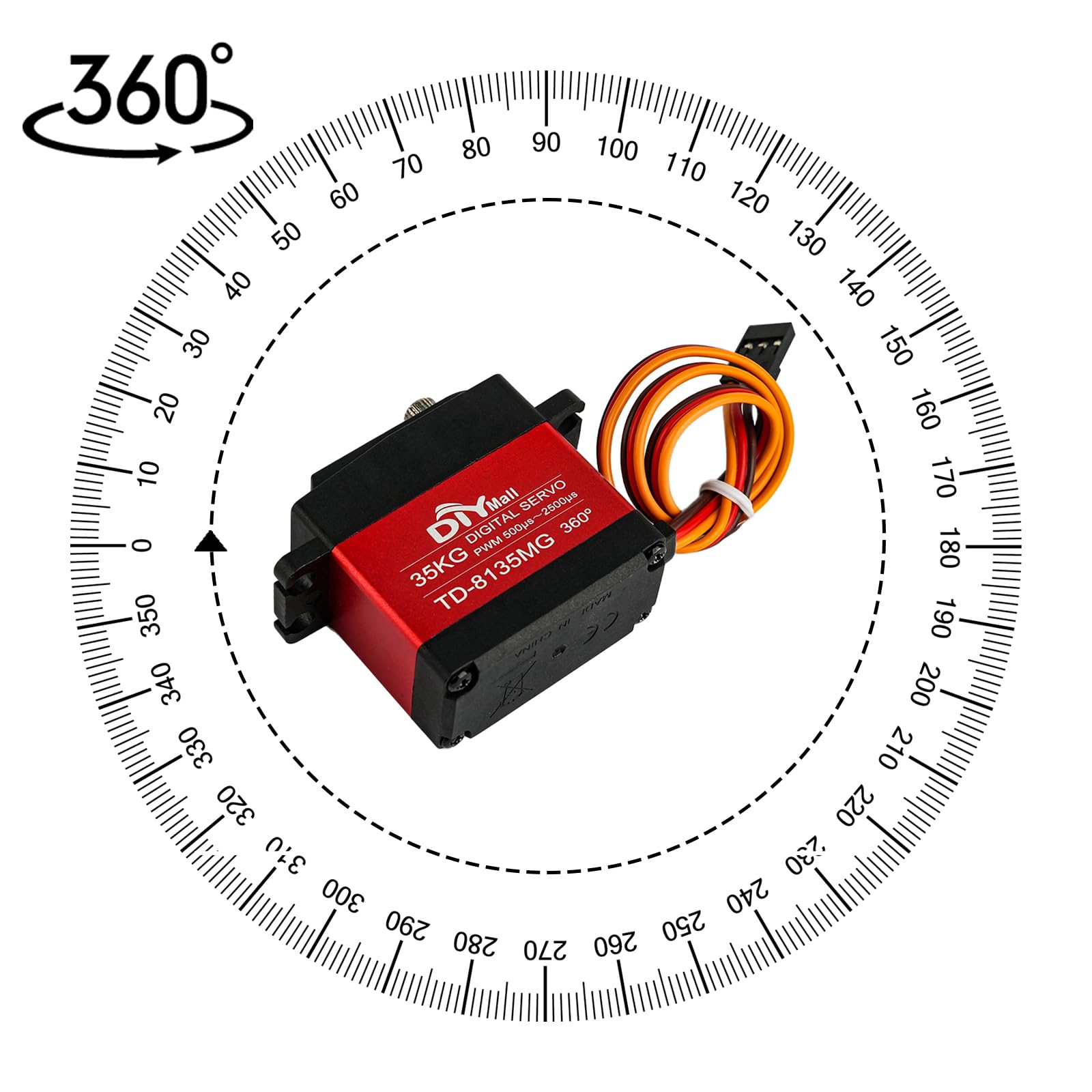

• 【Command signal】Pulse width modification; Pulse width range: 500～2500usec; Running degree: 360°±3°(when 500～2500usec)
• 【Note】360 degrees is a continuous rotation, and the angle and speed cannot be controlled
• 【Application】Widely uesd for DIY Car Robot Robotic RC Model
• 【Package】1pcs TD-8135MG 35KG Digital Servo with Accessories

Product description Description: Storage Temperature Range:-30°C～80°C Operating Temperature Range:-25°C～70°C Temperature Range: -25°C～70°C Humidity Range: 65%±10% Size: 40.0*20.5*40.5mm Weight: 56g±5% Gear type:5 Metal Limit angle: 360° Bearing: 2BB Horn gear spline:25T OD: 5.9mm Horn type: Plastic, POM Case:Engineering plastics(PBT)+Aluminum alloy Connector wire: 320mm±5mm Motor: Carbon brush motor Splash water resistance: No Operat voltage: 4.8V-7.2V Idle current: mA No load speed: 0.32sec/60°-0.22sec/60° Running current: 140mA-200mA Peak stall torque: 32.7kg.cm-35.2kg.cm Stall current: 2600mA±10%-3400mA±10% Working voltage range: 4.8-7.2V Command signal: Pulse width modification Amplifier type: Digital controller Pulse width range: 500～2500usec Neutral position: 1500usec Dead band width: 5 usec Rotating direction: Counterclockwise (when 1000～2000us Package Includes: 1 X Waterproof 35KG 360 Degree Continuous Rotation Servo Safety Warning /
