GeeekPi nRF52840 Micro Dev Kit USB Dongle

• The nRF52840 Micro Dev Kit USB Dongle is a small and low-cost development platform enabled by the nRF52840 multi-protocol SoC in a convenient USB dongle form factor.

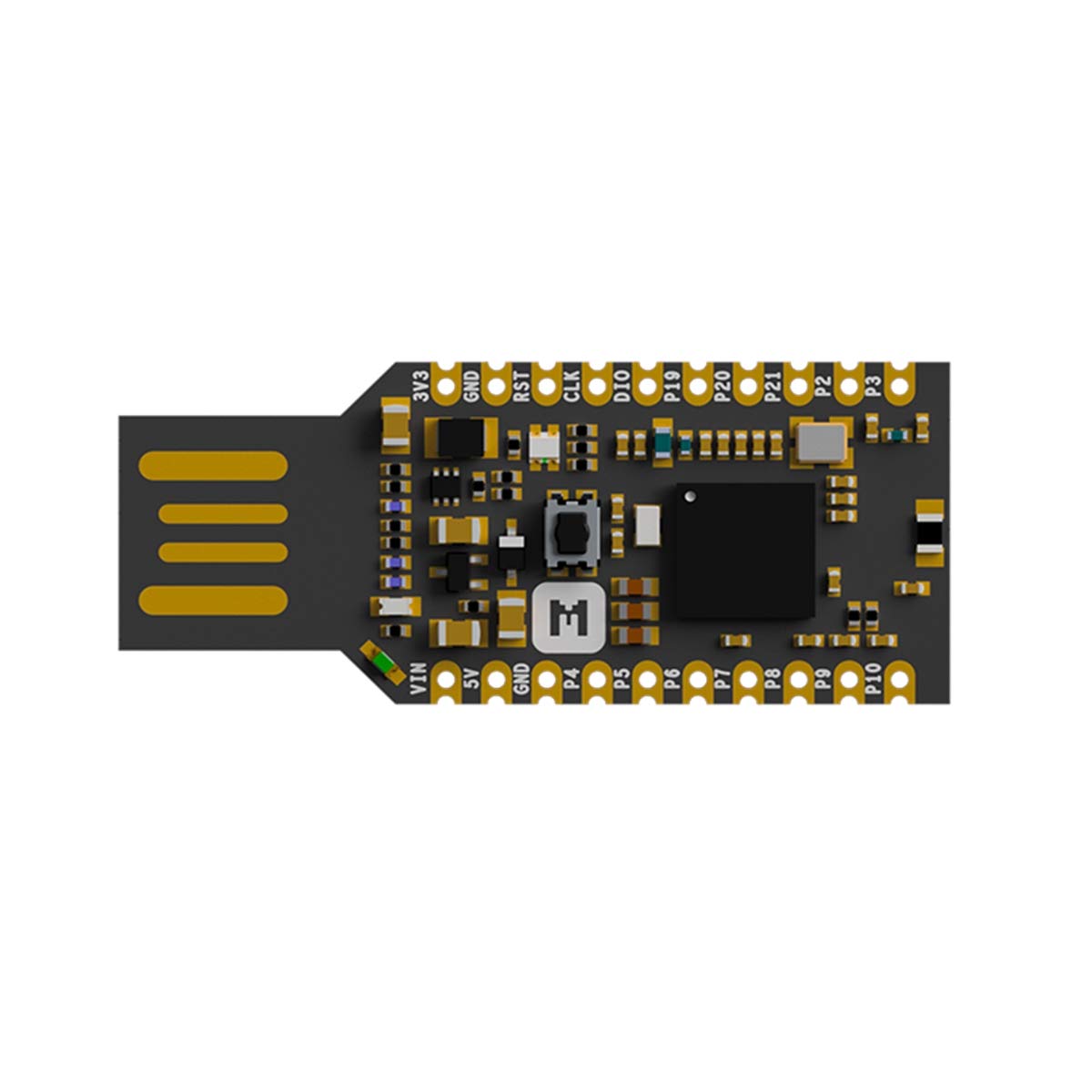

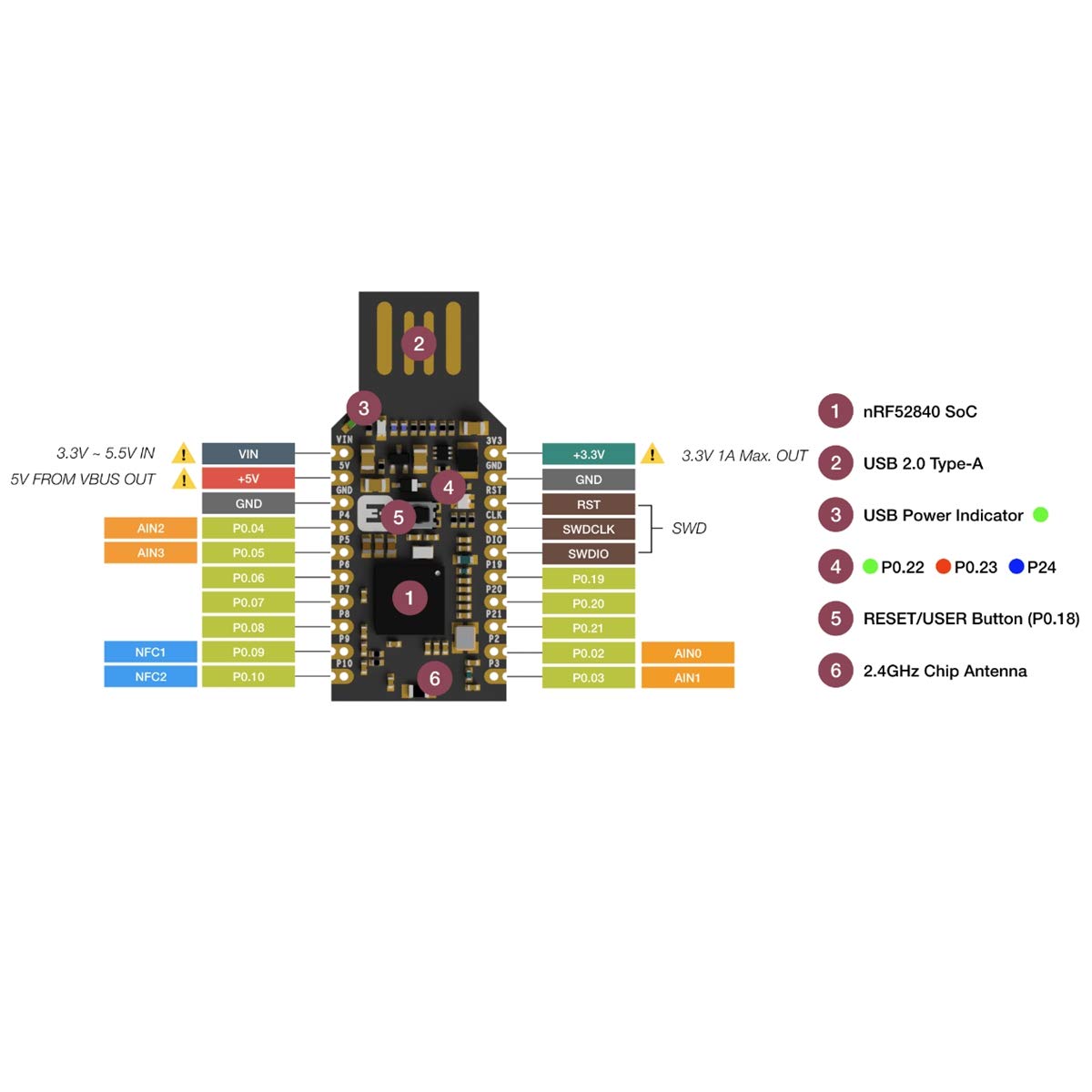

• The nRF52840 Micro Dev Kit USB Dongle features a programmable user button, RGB LED, up to 12 GPIOs and 2.4G Chip antenna on board.

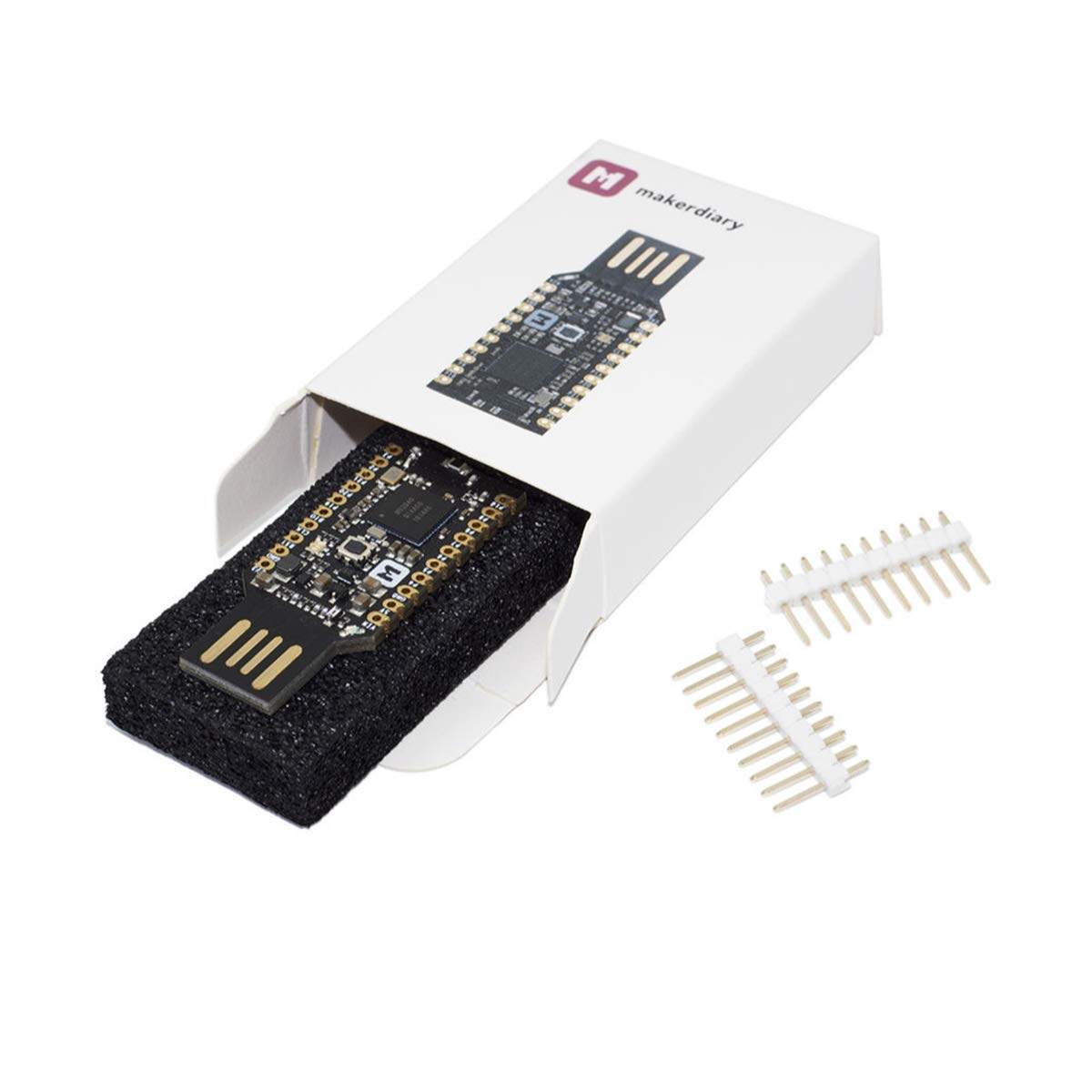

• Package Includes: 1x nRF52840 Micro Dev Kit USB Dongle, 2x 10 Pin Header
• The Manufacturer for this device is Makerdiary.

Features Pre-built OpenThread NCP Firmware support OpenThread Border Router support Thread Network Sniffer with Wireshark Hardware Specification Nordic nRF52840 System-on-Chip ARM Cortex-M4F processor optimized for ultra-low power operation ARM TrustZone Cryptocell 310 security subsystem 1 MB FLASH and 256 kB RAM Up to 12 GPIOs available via headers User programmable Button and RGB LED On-board 2.4G chip antenna 3.3V regulator with 1A peak current output VBUS & VIN Power-Path Management Convenient USB dongle form factor Breadboard-friendly with dual 10-Pin headers Measures 1.65" x 0.7" x 0.16" (42mm x 18mm x 4mm) without headers soldered in Kit Contains 1x nRF52840 Micro Dev Kit USB Dongle 2x 10 Pin Header
