GeeekPi for Raspberry Pi 4,X862 V2.0 M.2 NGFF SATA SSD Storage expansion board with USB 3.1 connection Support Key-B 2280 SSD Only

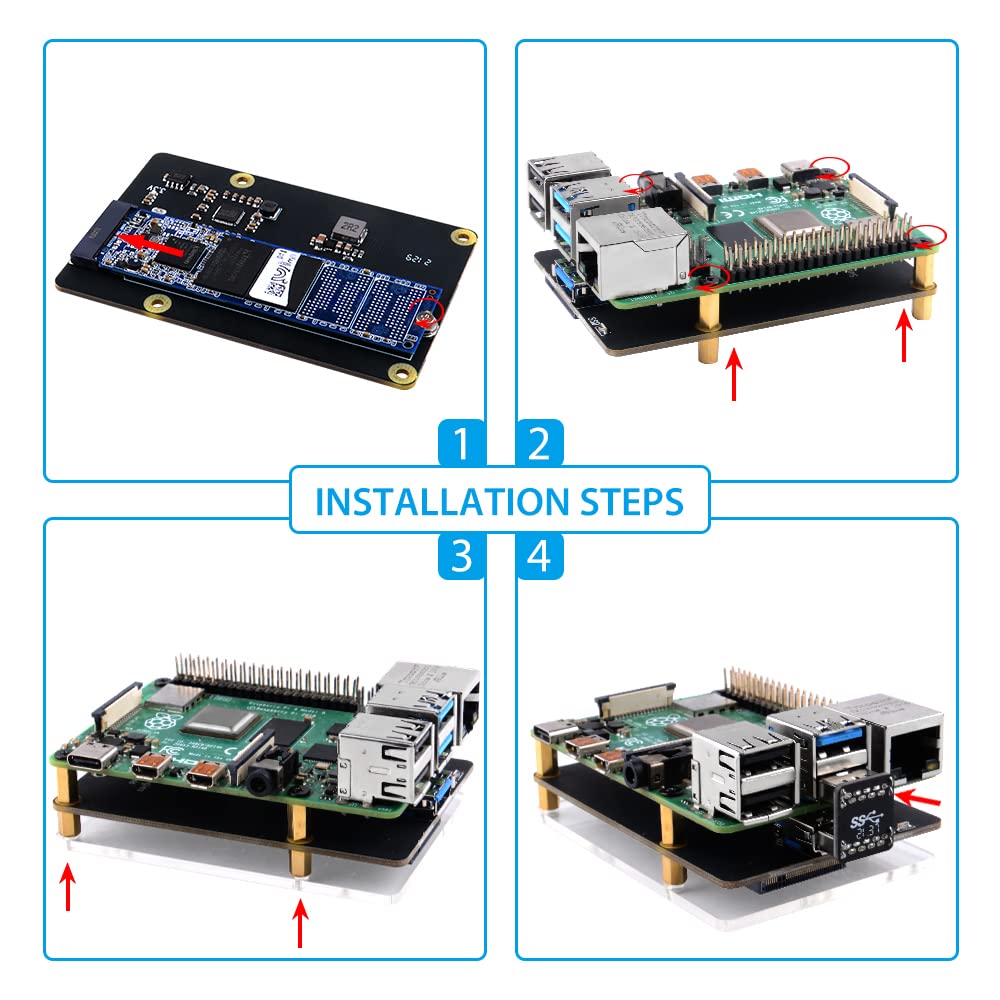

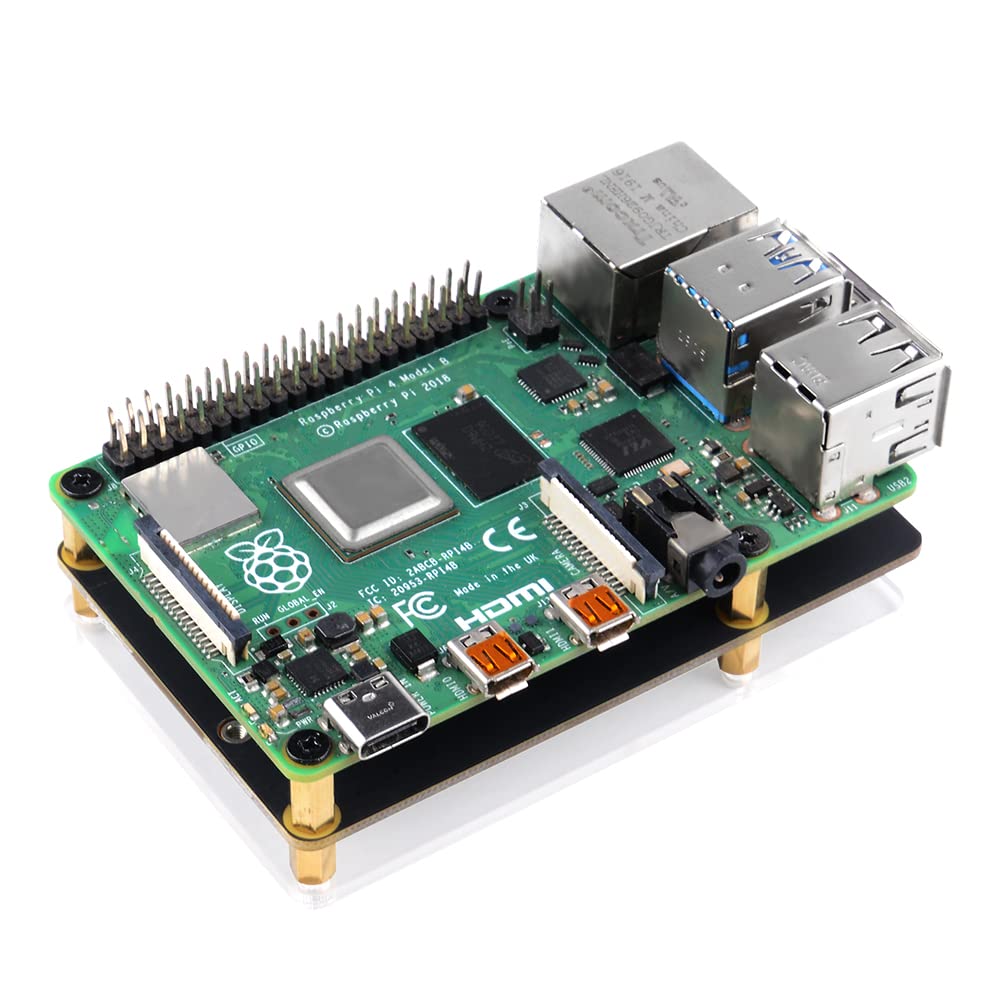

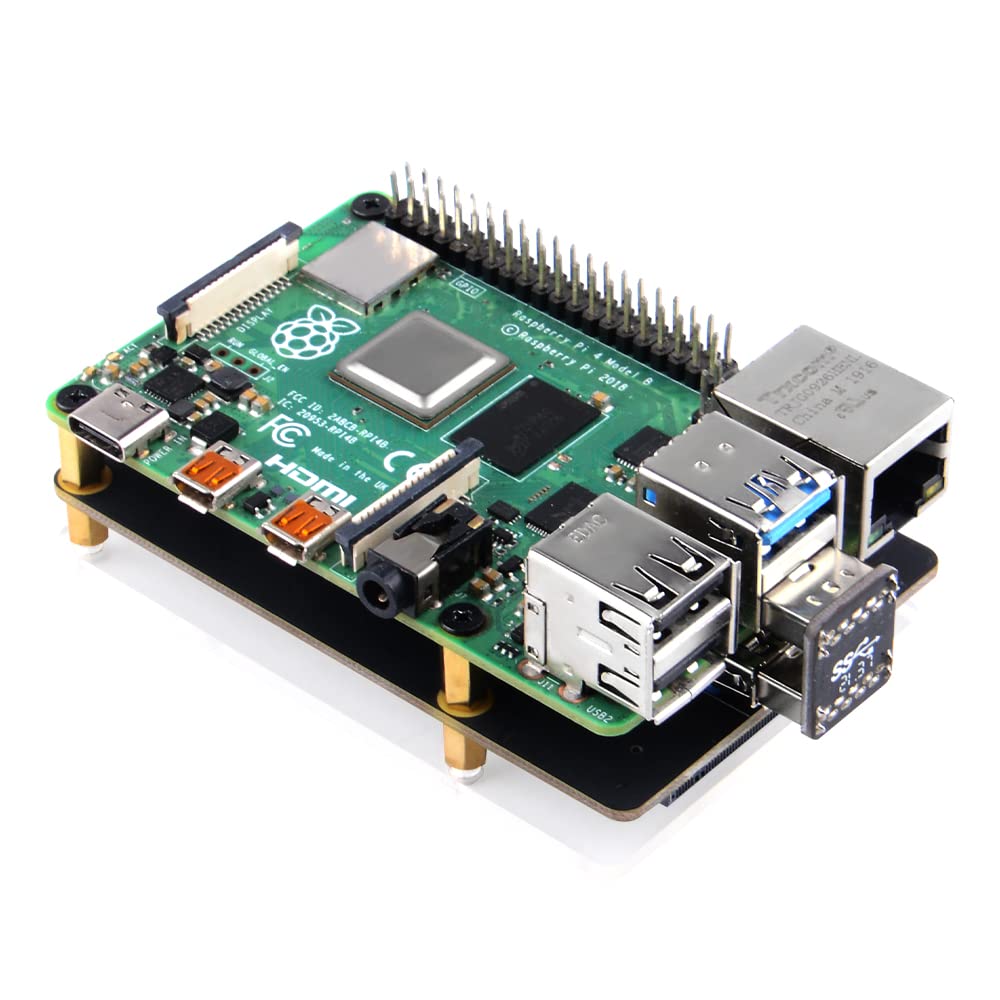

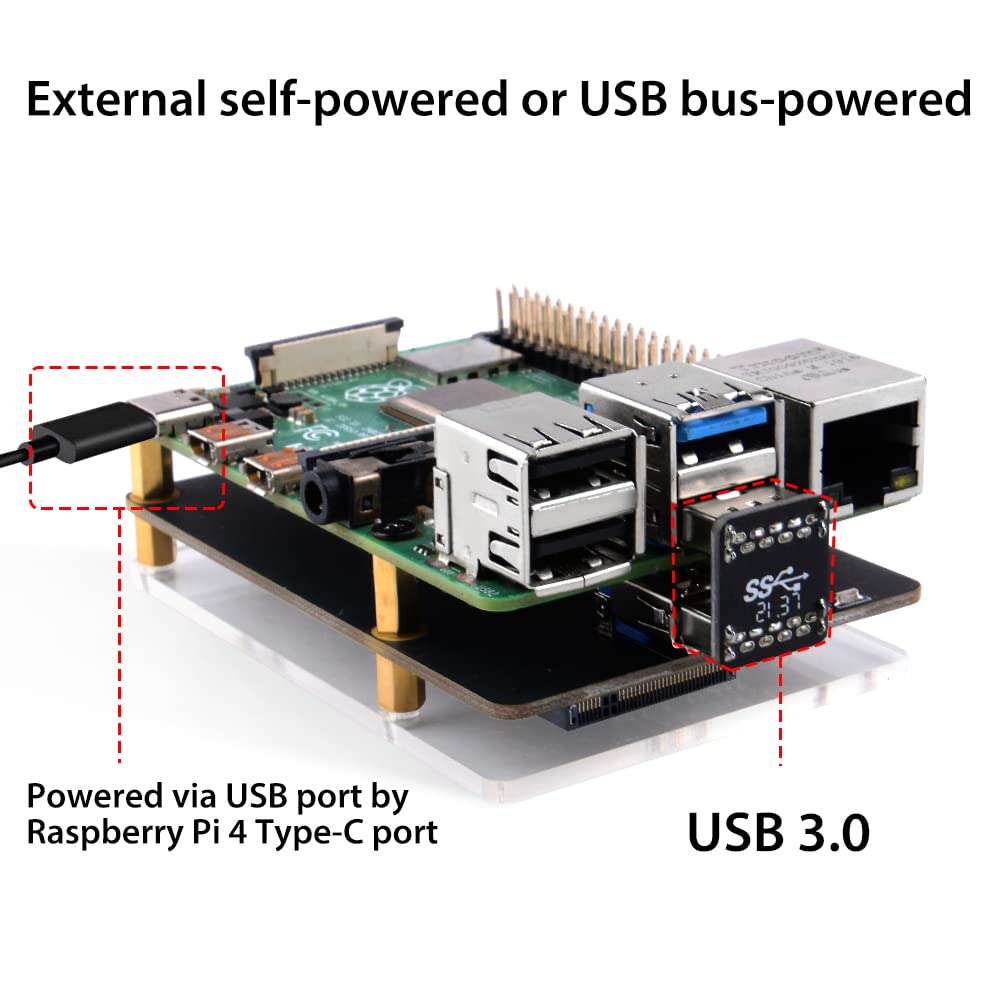

• X862 V2.0 is powered via USB 3.0 connector. Using shorter copper spacer to connect Raspberry Pi 4 and X862 V2.0, which reduces the height of the entire product.

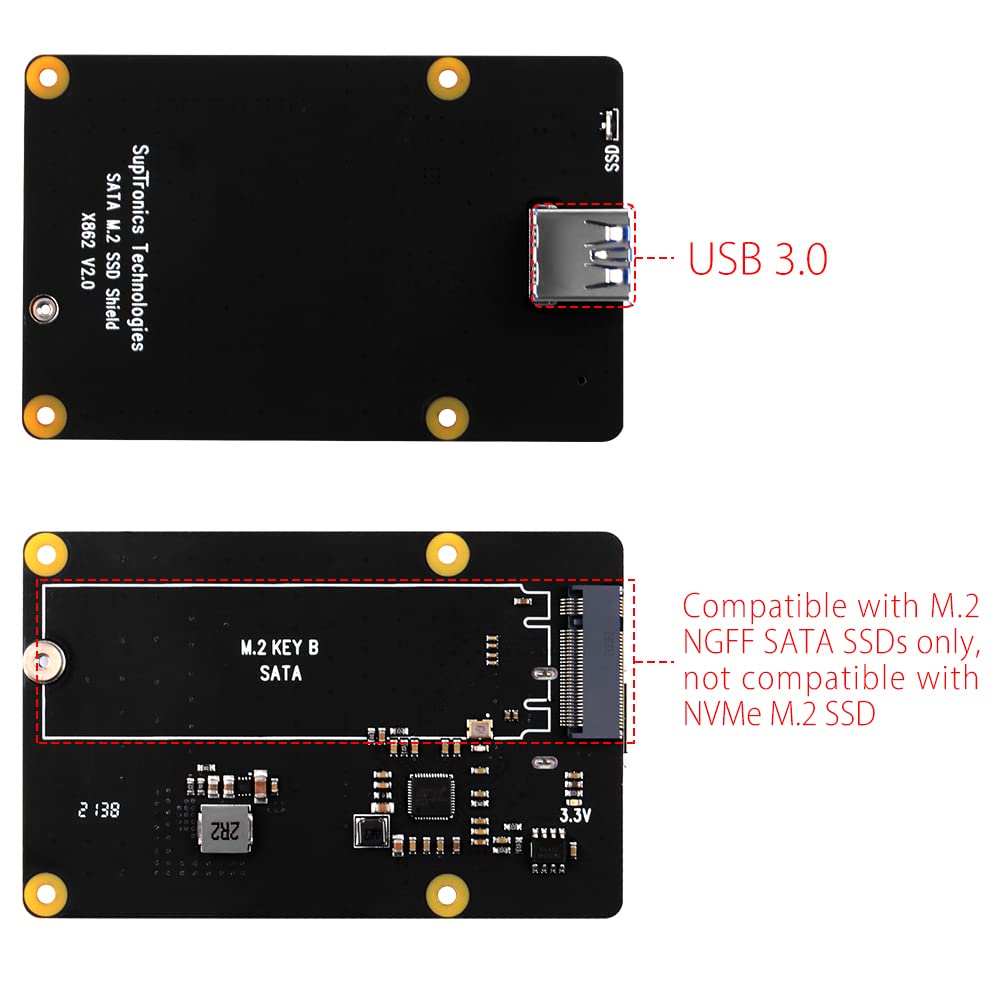

• It Provides SATA SSD expansion board with M.2/NGFF SSD Key-B 2280 length interface.
• Supports Raspberry Pi 4B ONLY.
• Supports M.2 NGFF 2280 Key-B 2280 lengths ONLY
• Supports UASP ONLY, not support TRIM.
• Technology support:wiki.52pi.com/index.php/X862_SKU:_EZ-0096
• Package Inlcudes:1x X862 V2.0 M.2 NGFF SATA SSD Shield,1x USB3.1 adapter (USB connector),4x Screw M2.5 *6mm,4x Copper Pillar M/F M2.5 *7+6mm,4x Copper Pillar F/F M2.5 *9.5mm,1x Screw driver ,1x Screw M2 *4mm (for fixing SSD),4x Heatsinks,1x Transparent bottom plate

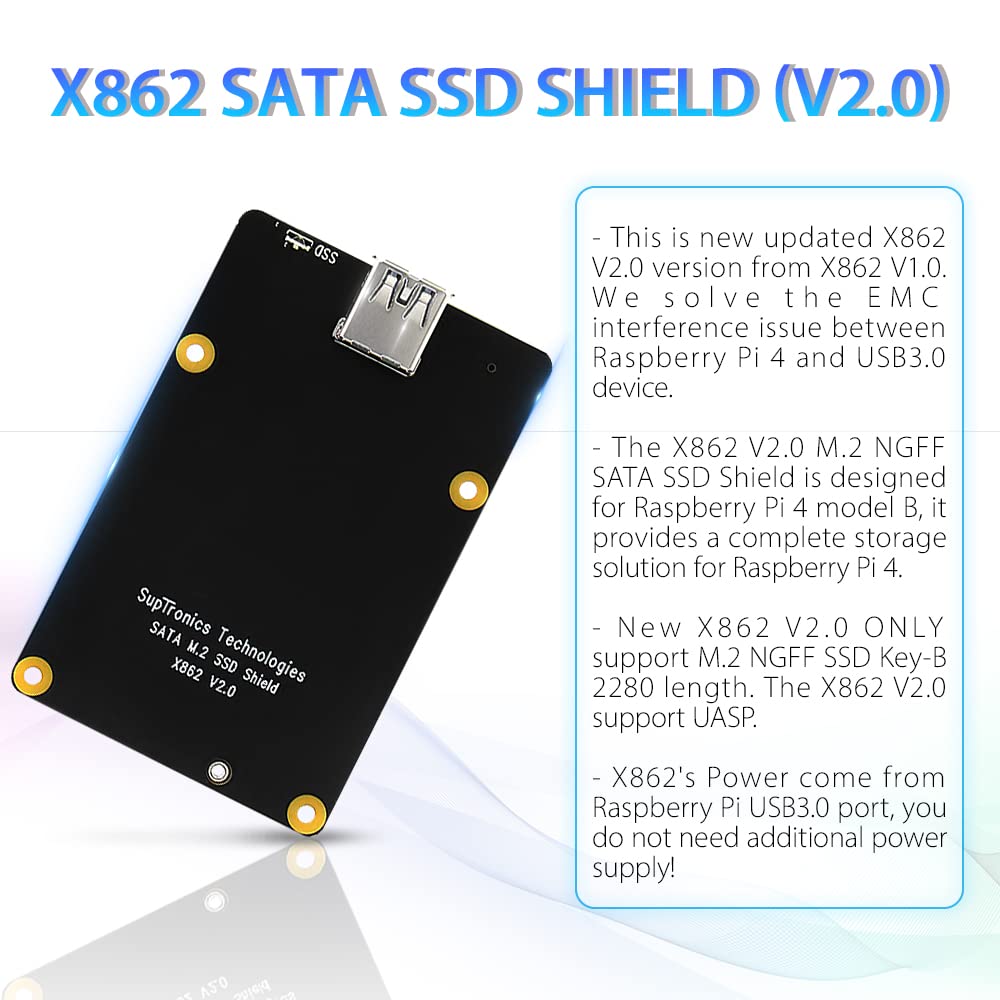

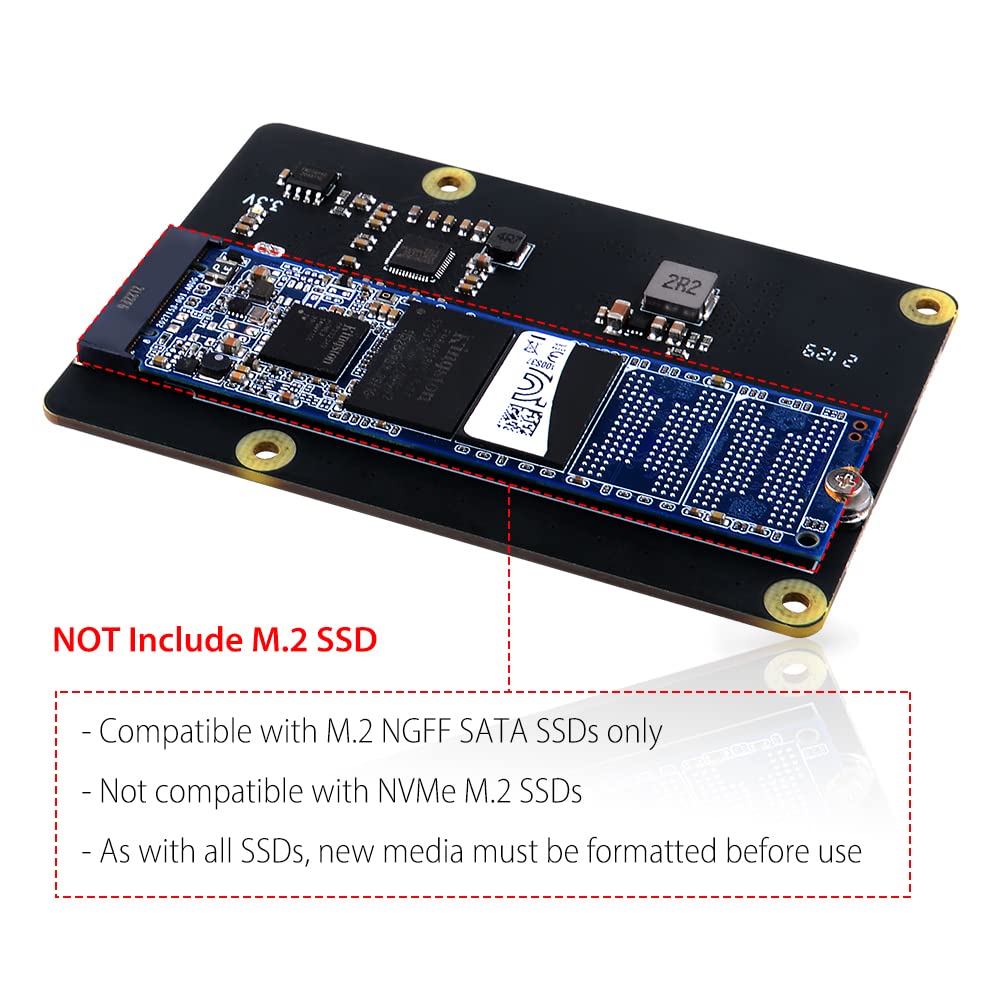

Description:It Provides SATA SSD expansion board with M.2/NGFF SSD Key-B 2280 length interface. X862 V2.0 is powered via USB 3.0 connector. Using shorter copper spacer to connect Raspberry Pi 4 and X862 V2.0, which reduces the height of the entire product. The new X862 V2.0 improves the EMC interference issue between Raspberry Pi 4 and USB3.0 device ON X862 V2.0. But if you use a metal shell, then you can only use 5.8G wifi AP, 2.4G wifi will not be available(be shielded by metal case); As a Raspberry pi NAS device, we advised that you use ethernet network to replace wifi, this will be more stable and reliable. The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4B. The X860 V2.0 support UASP for Raspberry Pi 4B. Note:NGFF SATA SSD is not included,Only compatible with Key-B SSD length 2280 Compatible with M.2 NGFF SATA SSDs only! Dose not compatible with NVMe M.2 SSDs As with all SSDs, new media must be formatted before use SSDs use exceptionally high performance storage media that will run hot when under load Older SSD drives with less efficient flash media may not perform as well as newer drives Support UASP Only DO NOT Support Trim. It is strongly recommend to use 5.8G wifi AP instead of 2.4G wifi AP, according to the feedback if use the external USB device (like mouse, keyboard, display) or use X857-C3 metal case. Package Includes: 1x X862 V2.0 M.2 NGFF SATA SSD Shield 1x USB3.1 adapter (USB connector) 4x Screw M2.5 *6mm 4x Copper Pillar M/F M2.5 *7+6mm 4x Copper Pillar F/F M2.5 *9.5mm 1x Screw driver 1x Screw M2 *4mm (for fixing SSD) 4x Heatsinks 1x Transparent bottom plate Technology support:s://wiki.52pi.com/index.php/X862_SKU:_EZ-0096
