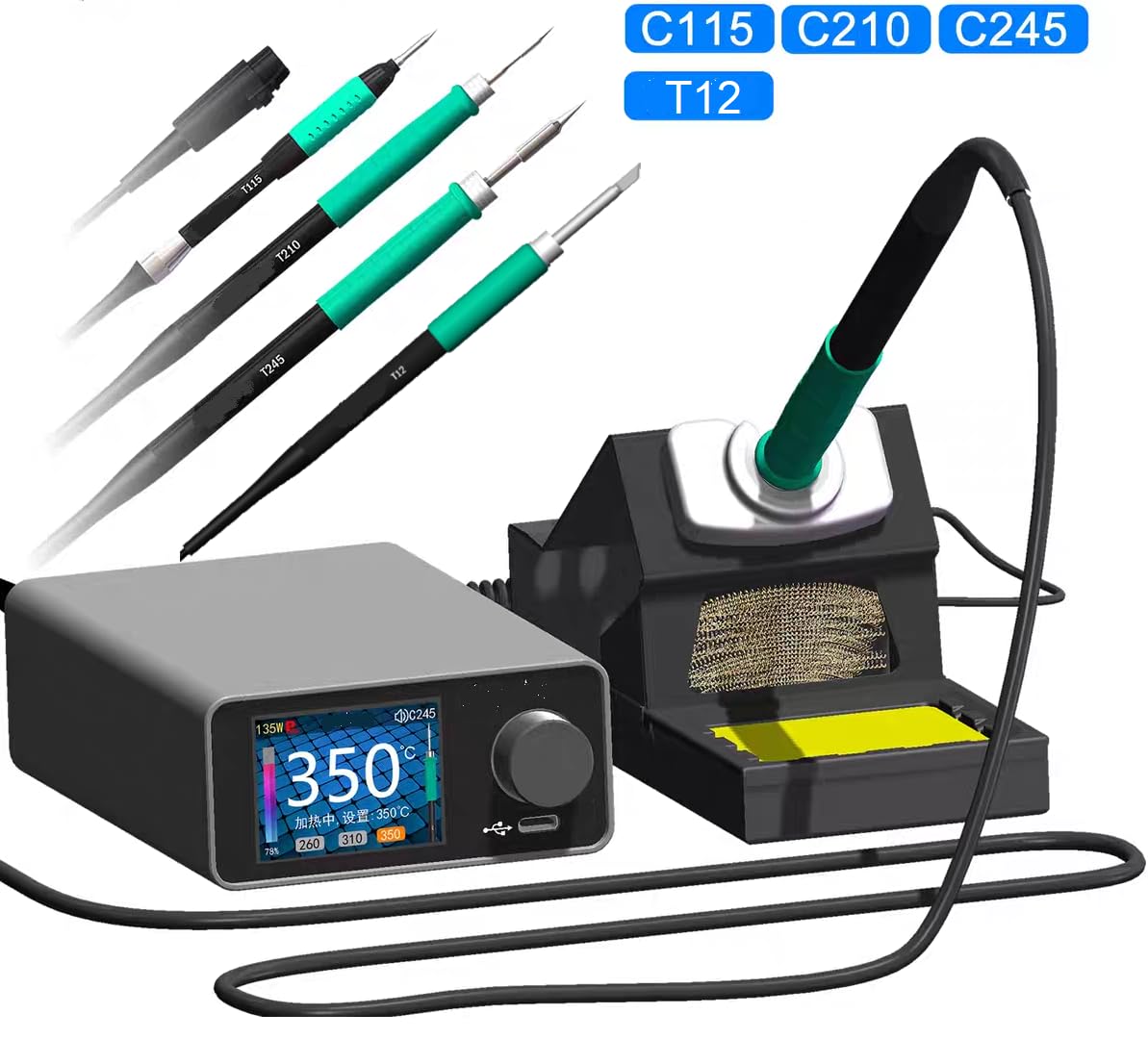

GEEBOON TC22 Soldering Station Iron Kit, 220W Soldering Iron Compatible with 115/210/245/T12 Soldering Tip Color Curve Display (T245, 2 Tips)

• Rapid heating: The power of TC22 has been changed to 220W, but it still uses a 240W power supply and is able to reach the set temperature in a very short time. For example, it only takes 2-3 seconds to reach 350 ° C, which allows users to quickly carry out welding work without waiting for a long time when using the soldering iron, greatly improving work efficiency.
• Anti static function: It has good anti-static performance and can effectively protect electronic components from static damage, which is particularly important for welding work in the electronics industry.
• Rapid temperature compensation: During the welding process, when the soldering iron tip comes into contact with the solder joint, the temperature will instantly drop. The heating system of the soldering station can quickly compensate for the temperature, so that the temperature of the soldering iron tip can quickly rise to the set value, ensuring the quality and stability of the welding.
• High precision temperature control: Using a precise temperature control system, the temperature of the soldering iron tip can be accurately controlled, with high temperature control accuracy and small temperature fluctuations, which can avoid damaging components due to high or low temperature.
• Sleep and hibernation mode: After the soldering iron tip is placed on the tool holder for a period of time, the soldering station will automatically enter sleep mode, reducing the temperature of the soldering nozzle and preventing the soldering iron tip from overheating when idle.

Supports short-circuit protection (response time is less than 10us), hot-swappable heating core, no burning of the host, no burning of the heating core, absolutely high performance. The voltage of the soldering iron tip to the ground is less than 10mv, which complies with safety regulations and can repair precision instruments.(Measurement method: Use the multimeter AC gear to measure the voltage between the rear ground wire and the soldering iron tip. Note that the soldering iron tip is heated at full power in water). Supports password lock, in line with factory audit requirements.Suitable for maintenance of mobile phones, industrial control systems, and ECU with safety requirements. Specifications: ● Name: soldering iron station ● Model: TC22 ● Input voltage: 110V-240V ● Power: 220W ● Maximum heating power: 240W ● Supported tools: C245/C210/C115/T12 ● Ground resistance: less than 2Ω ● Soldering tip voltage: less than 10mV ● Temperature control range: 100°C-480°C ● Weight: 450g ● Machine size: 149*92*45mm Packing List: ● 1x Soldering iron station ● 1x T245 handle (with 1.2m/3.9ft cable) ● 1x C245-I soldering iron tip ● 1x C245-K soldering iron tip ● 1x SSD01 soldering iron stand ● 1x Power cable ● 1x Manual
