Gedotec Cup Hinge Tiomos Mirro | 1 Piece | for Mirror & Glass Doors | Soft-Closing Mechanism | Opening Angle 125° | Made in Germany | with Mounting Plate
★★★★★
$138.99
Options
1 availableQuantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

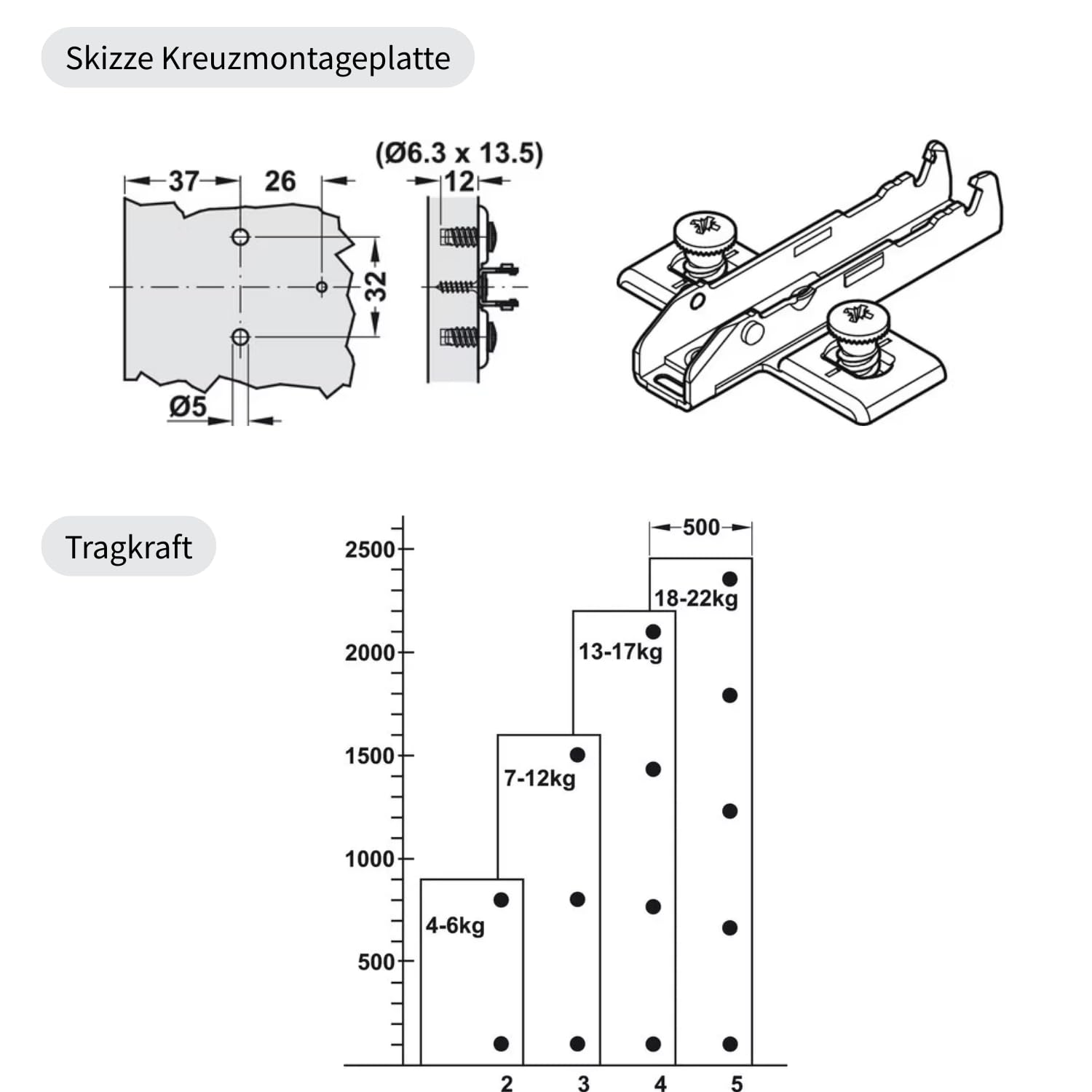

- Box contents: 1x Tiomos Mirro hinge nickel-plated including 1x cross mounting plate, 1x cover cap, 1x adapter – cranked hinged with damping for glass and mirror doors – pot and articulated arm made of sturdy metal – closes mirror and glass doors gently and in barely noticeable movement, especially gentle on the fragile door

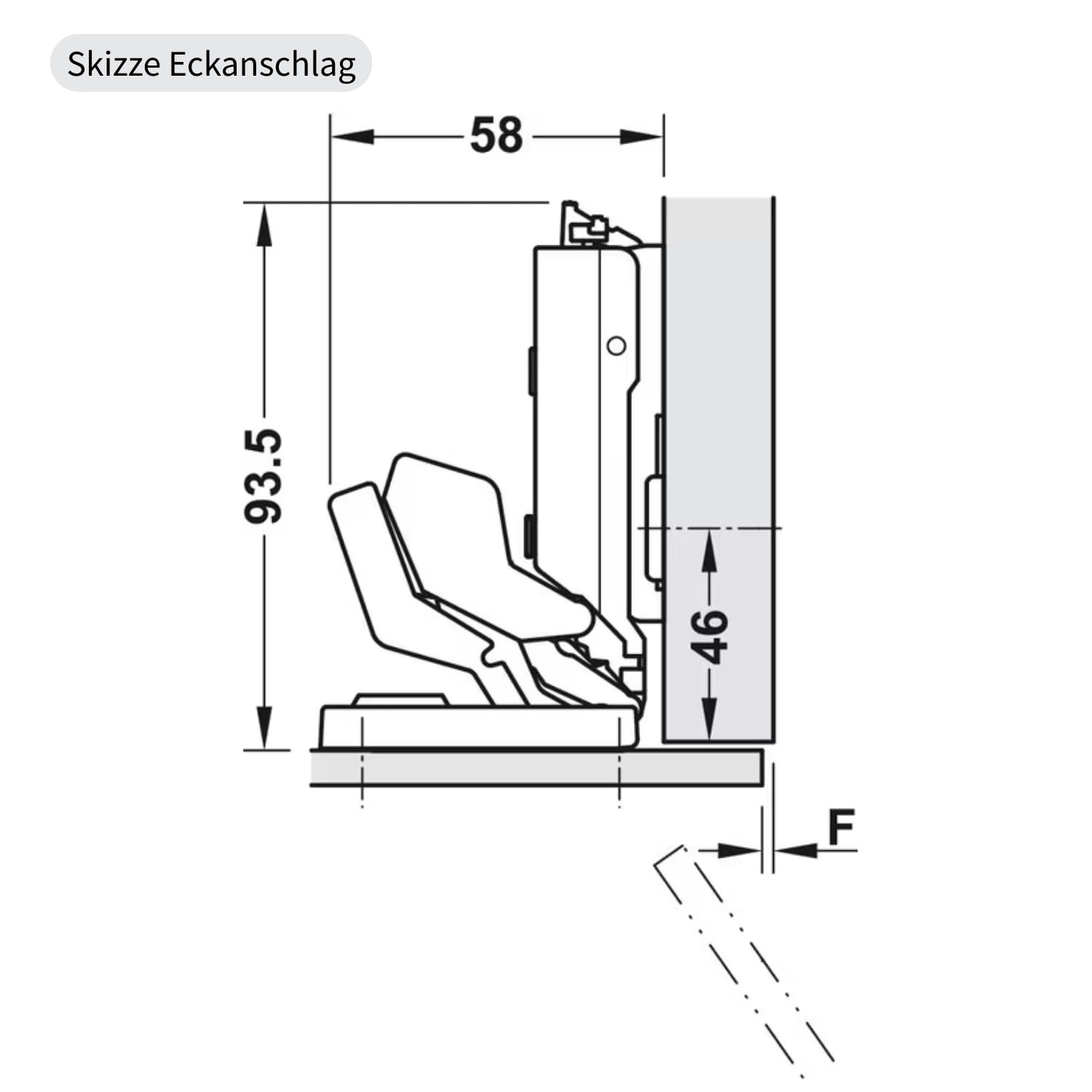

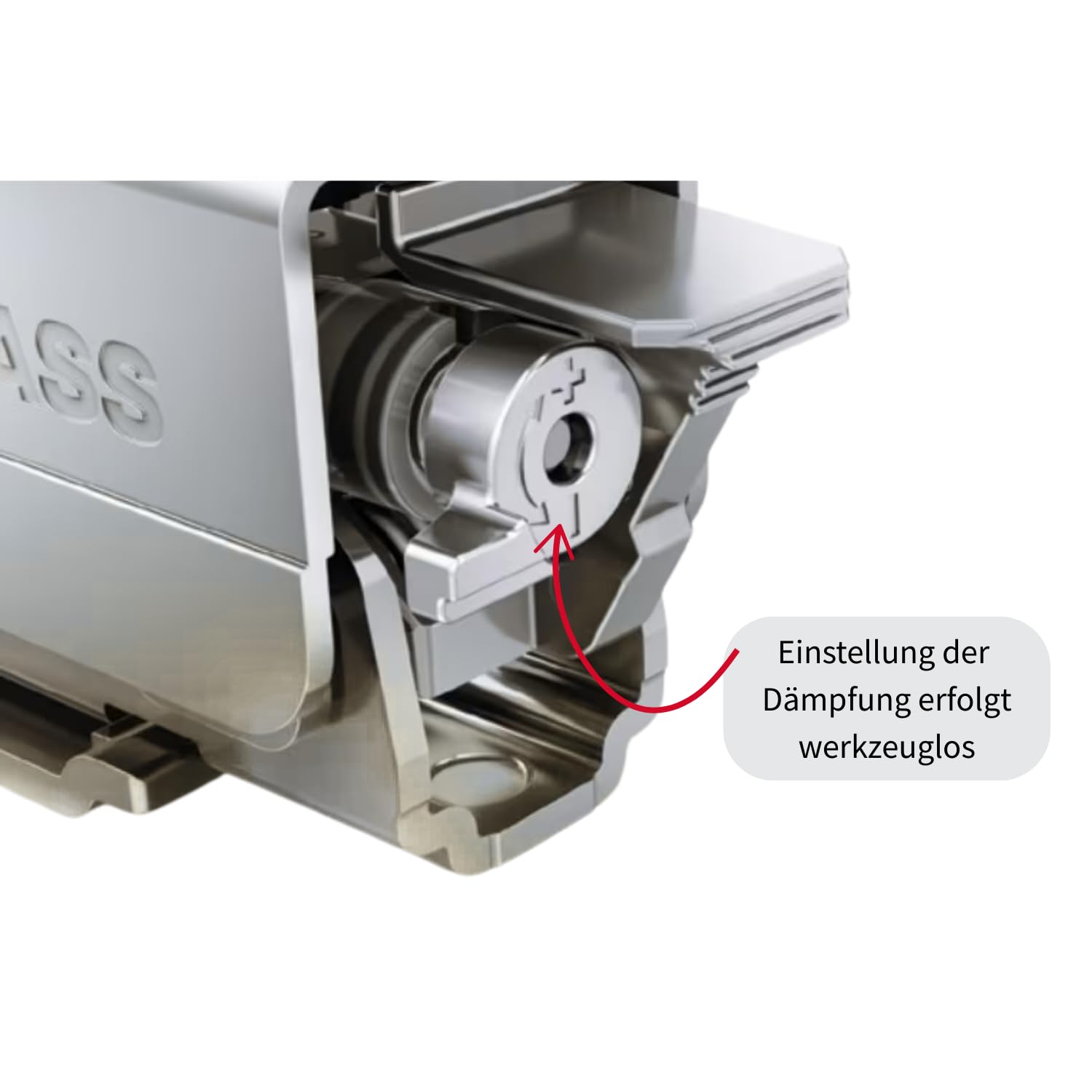

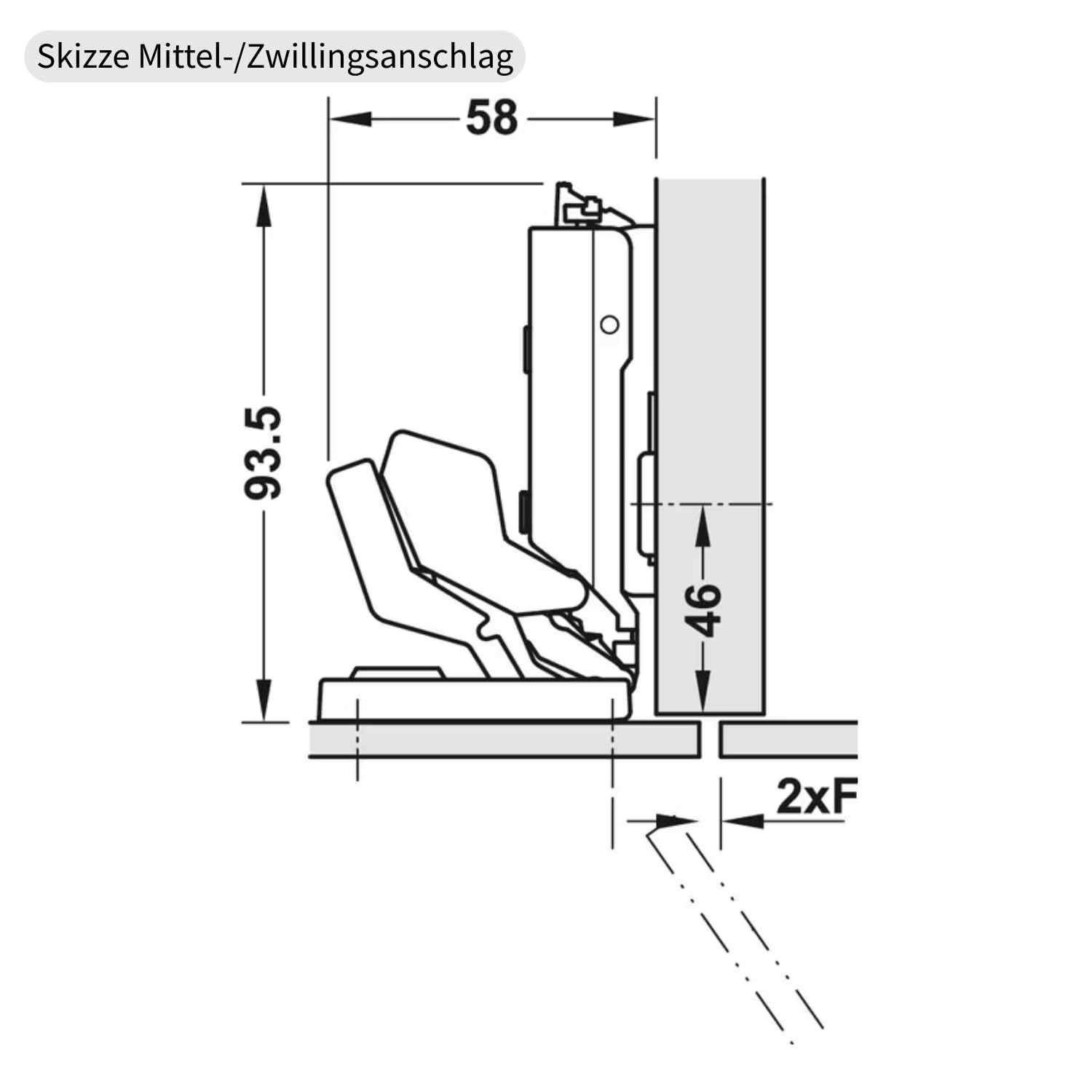

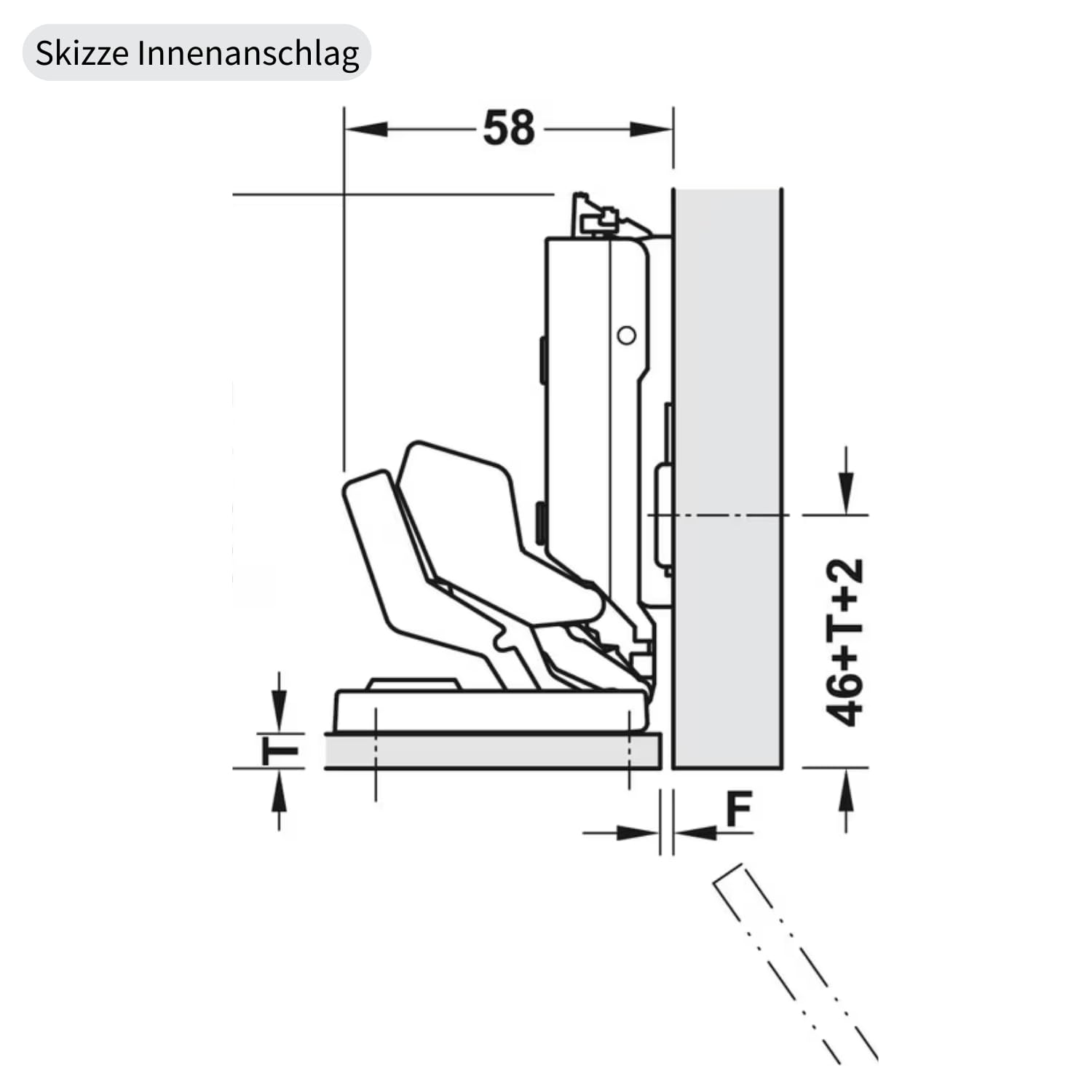

- Important information: soft-close damping of the glass door hinge can be adjusted to 3 levels – please note the all-round 1.5 mm joint, otherwise risk of breakage – minimum joint F = 2 mm – valid for factory adjustment of the hinge, glass thickness from 3 to 8 mm with chamfered edges (R = 1 mm) and adhesive size Z of 4 to 26 mm

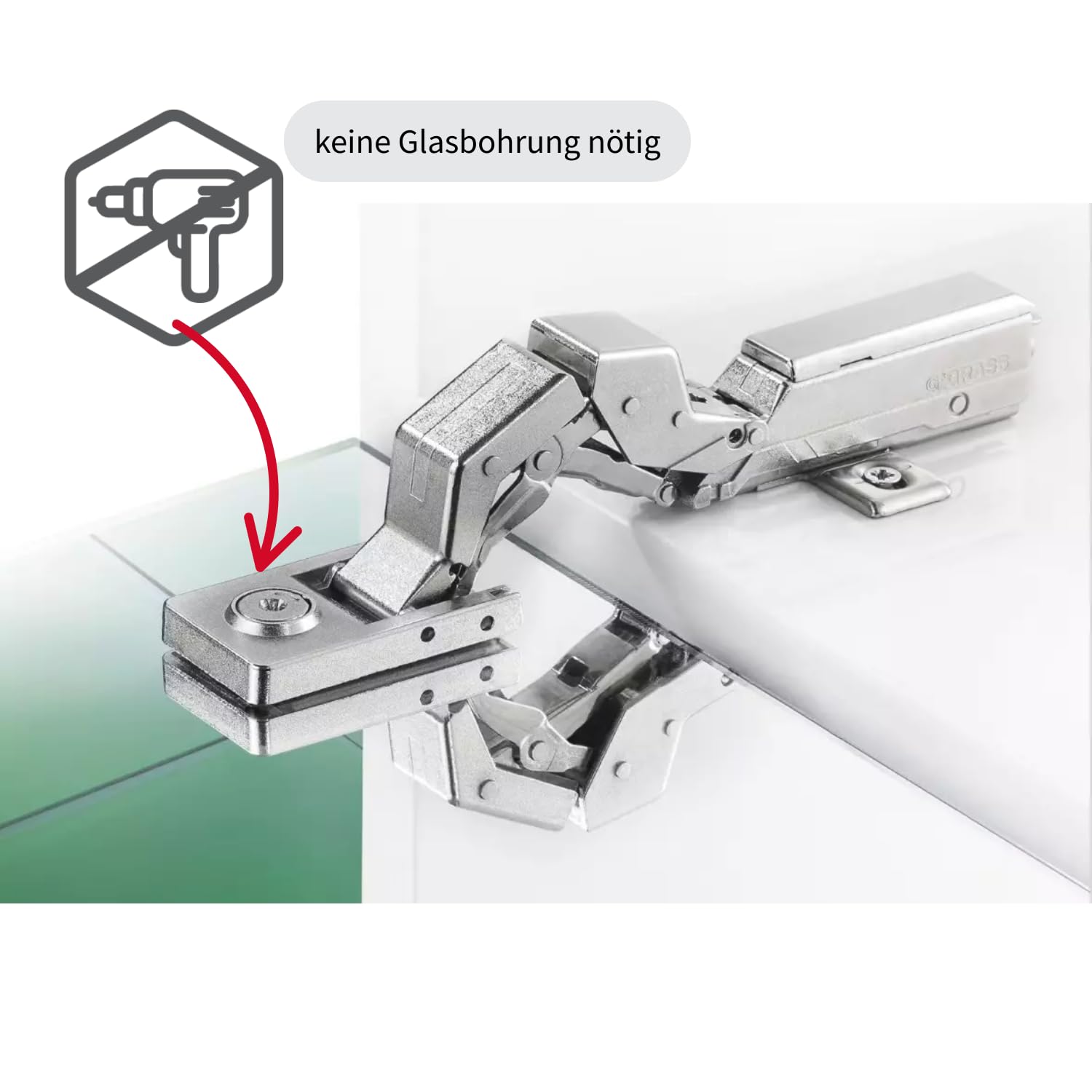

- Specifications: door hinge for glass thickness 3 – 8 mm – 125° opening angle – furniture hinge nickel-plated for glass, clear glass or mirror doors – door support up to 19 mm – no glass drilling required – side adjustment 2 mm, height adjustment -2.5 – 2.5 mm, depth adjustment -2 – 3 mm, height adjustment. over over mounting plate

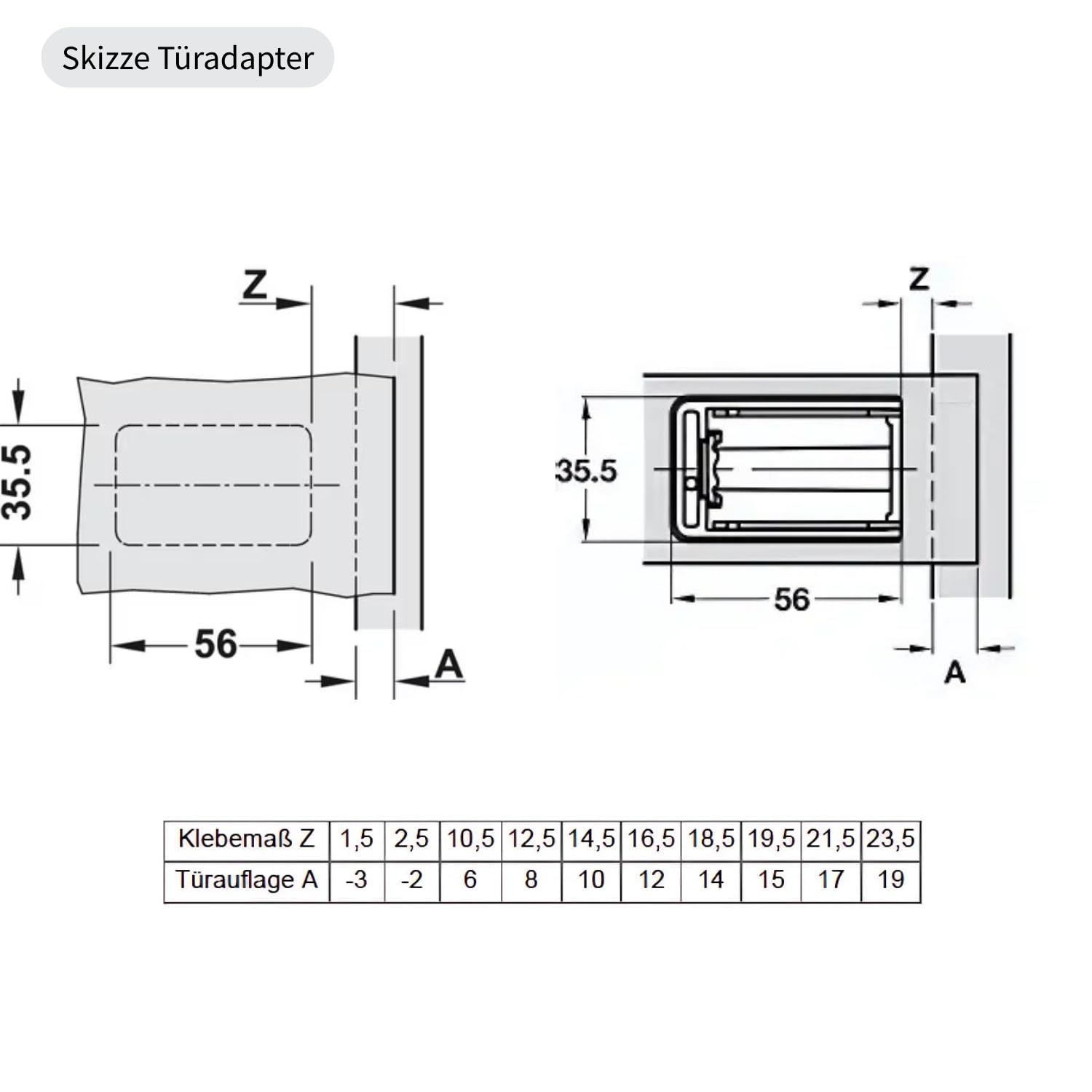

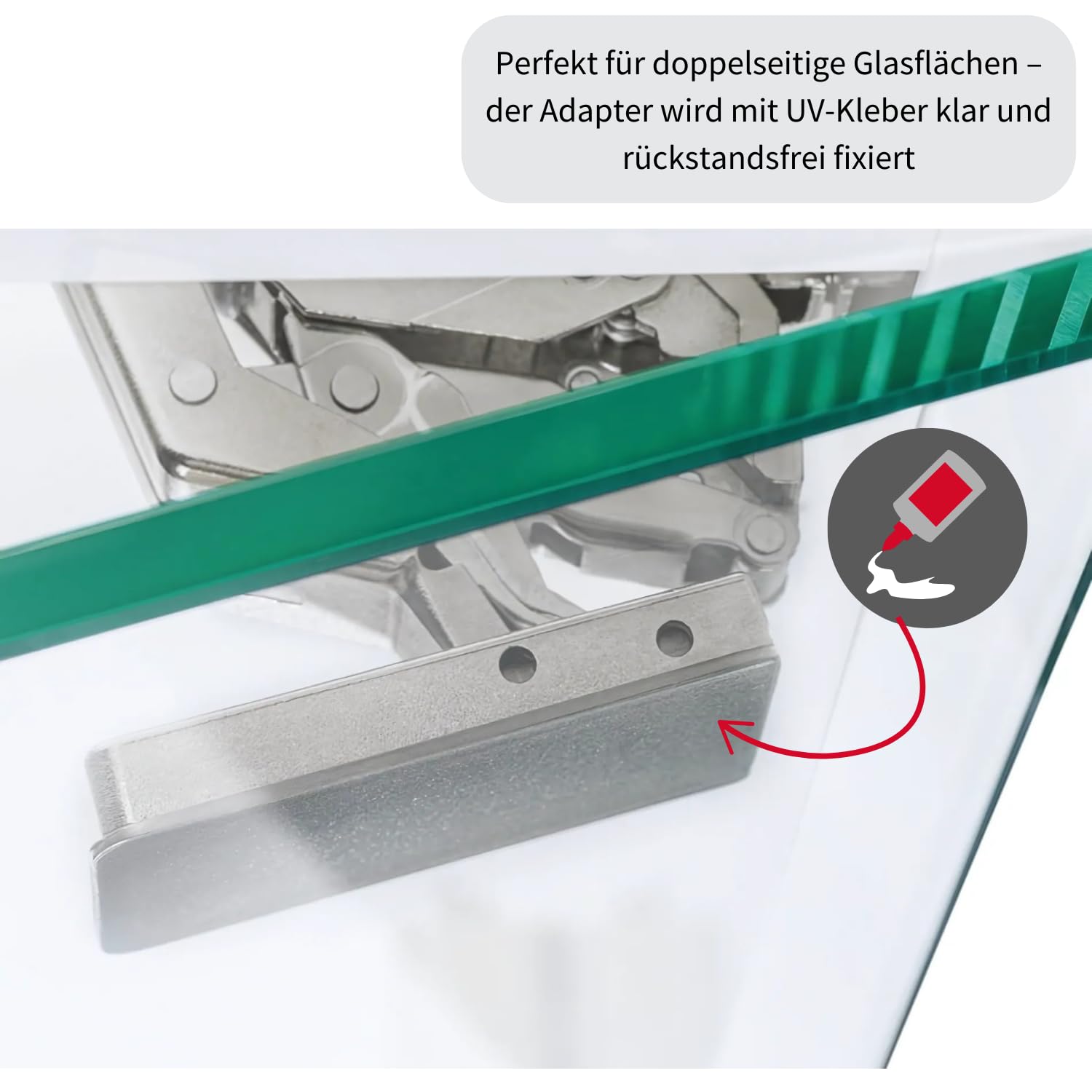

- Mounting: clear glass hinge mounting by gluing a zinc die-cast adapter – then sliding the hinge and locking – mounting of the door to the body is done without tools by pressing (clip technology) onto the mounted grass mounting plate – hinge pot can also be easily attached to existing adhesive adapters
- Glass furniture hinge with unique kinematics, timeless design, trouble-free function and exceptionally long service life. Grass kitchen hinge surface: nickel-plated. TÜV-tested according to DIN EN 15570/08.08 regarding Strength and durability
