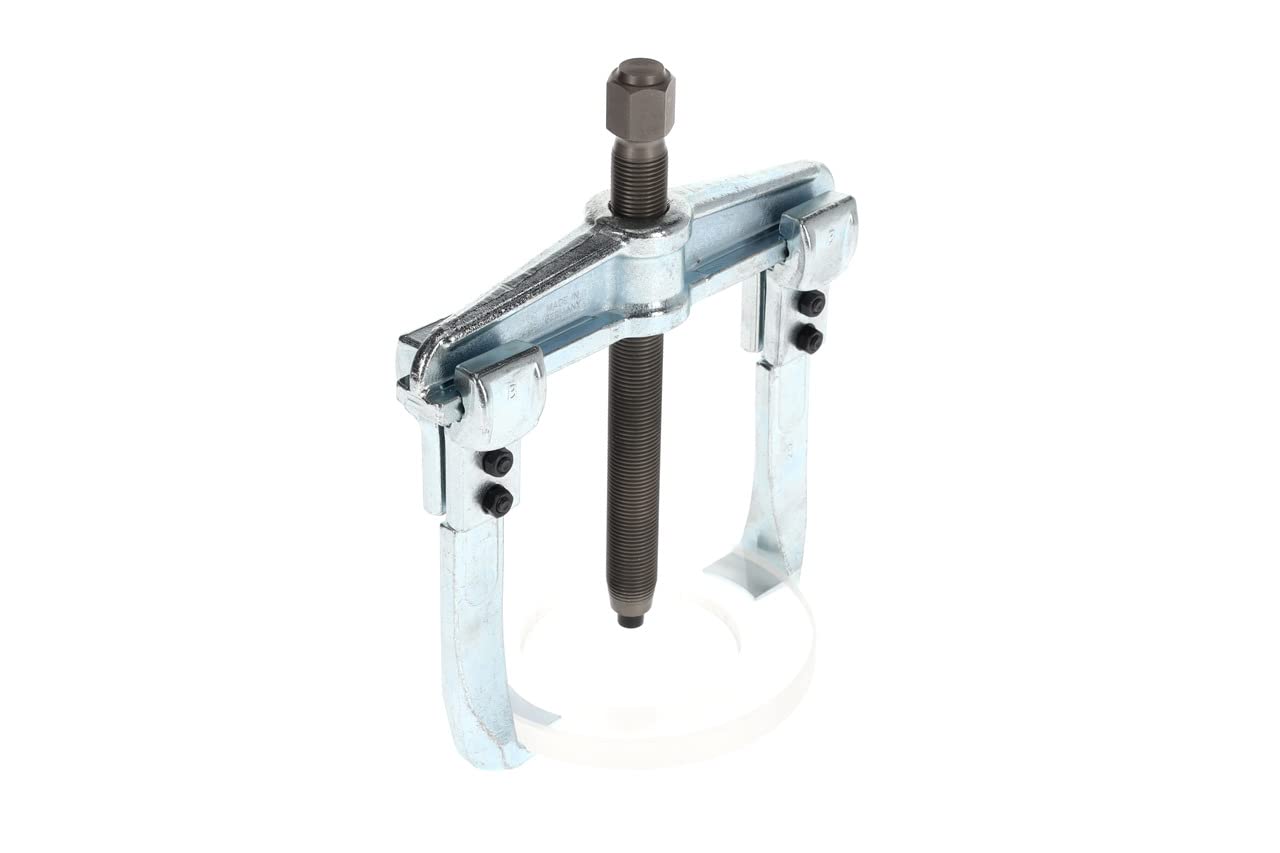

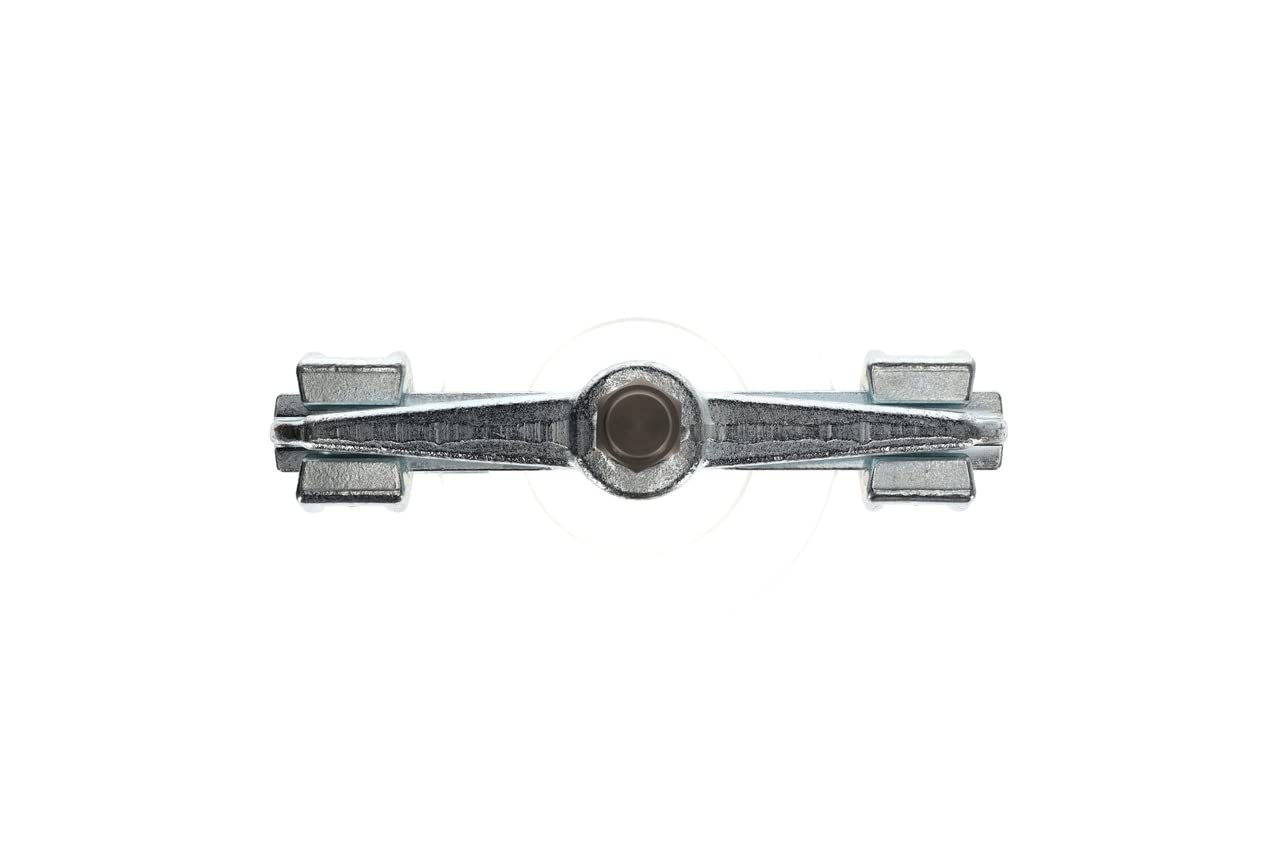

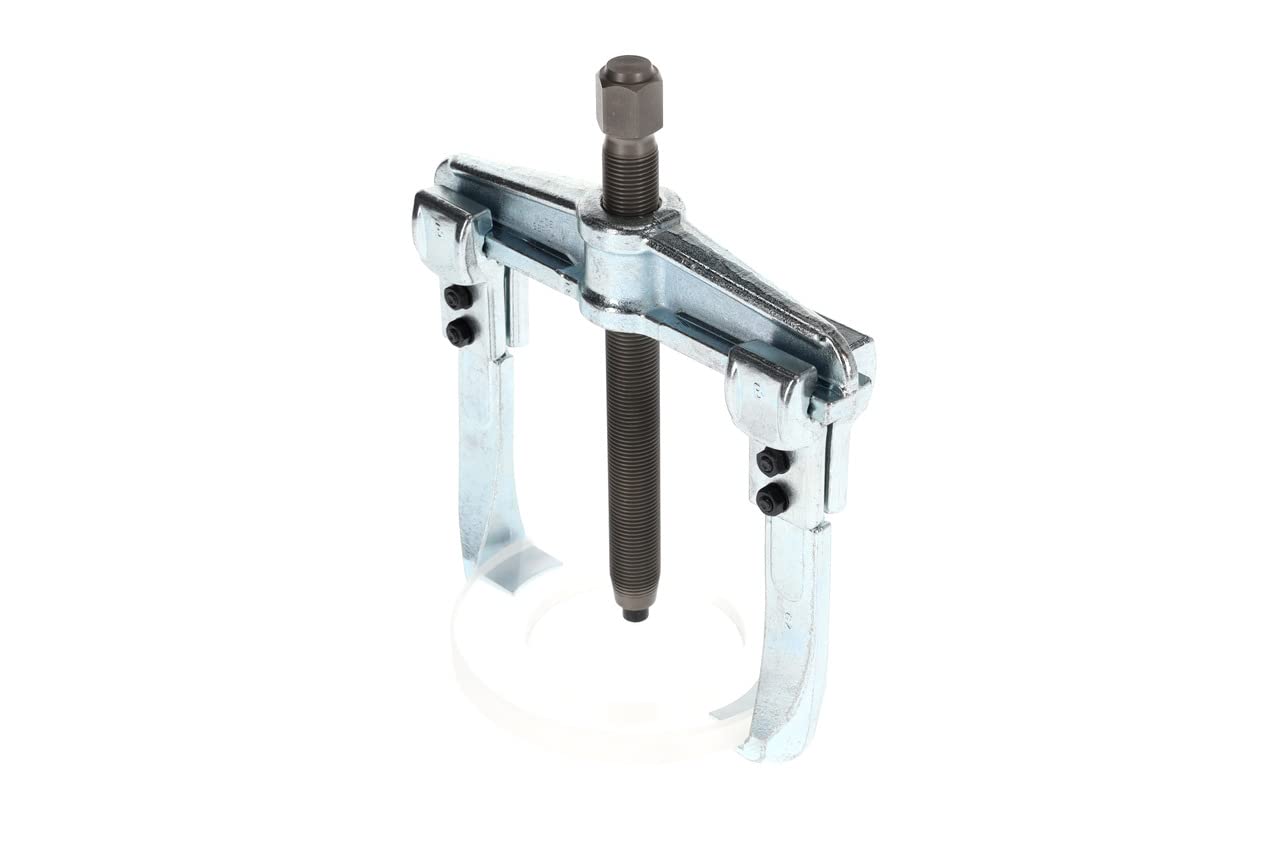

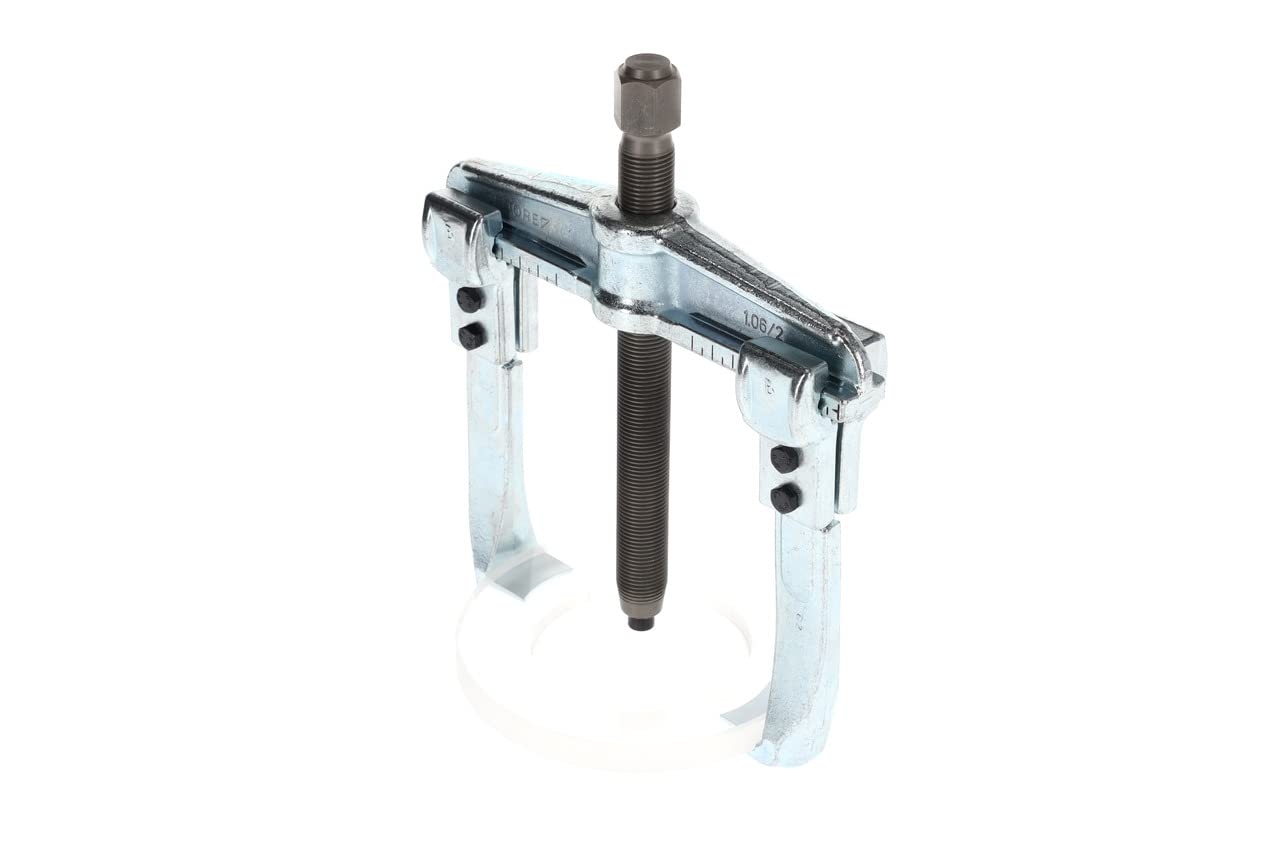

Gedore 1.06/2 160 x 150mm Universal Puller 2-Arm Pattern

• Strong drop forged design
• Scale for uniform adjustment of the puller legs. Allows centred pulling , with optimised application of force, even when extremely high pulling forces are required
• Reversible legs for internal or external pulling
• Available extras are replaceable legs for various clamping reaches
• Upgradeable with hydraulic spindle

The classic design 2 arm puller for the fast and safe removal of pulleys, gears, wheels, ball bearings etc. Both crosspiece and arms are of strong drop forged construction with scales on both sides of the crosspiece to ensure even distribution of the pulling force at even the greatest pulling forces. The reversable legs allow both internal pulling. Alternative and replacement legs are available to extend the range of the puller. The replaceable mechanical spindle can be replaced by a hydraulic version to increase the pulling power for difficult to remove items. With a range of diameters achievable from 90mm to 520mm external and 60mm to 600mm internal combined with a reach covering from 100mm to 200mm this universal puller range is suitable for an extensive selection of jobs.
