Gebildet Automotive Relays for Car Truck Motor Boat Car Starter - 24V DC 120 Amp Split Charge Relay Switch with 2 Pin Footprint + 2 Terminal

• 【Continuous Relay】 You can use it as continuous relay, if the relay keeps working for 5 hours, it would be better to stop it and then use it again . It could pass continuous 50A~60A current
• 【Package Contains】 1 x Heavy Duty Split Charge 120A ON/OFF Relay; 2 x Terminal; 2 x Footprint
• 【Large Capacity】 Up to 120A coil capacity able to handle those high current applications with ease, Heavy duty make or break (on/off) relay
• 【Long service life】 Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations, keep a high level in ongoing work

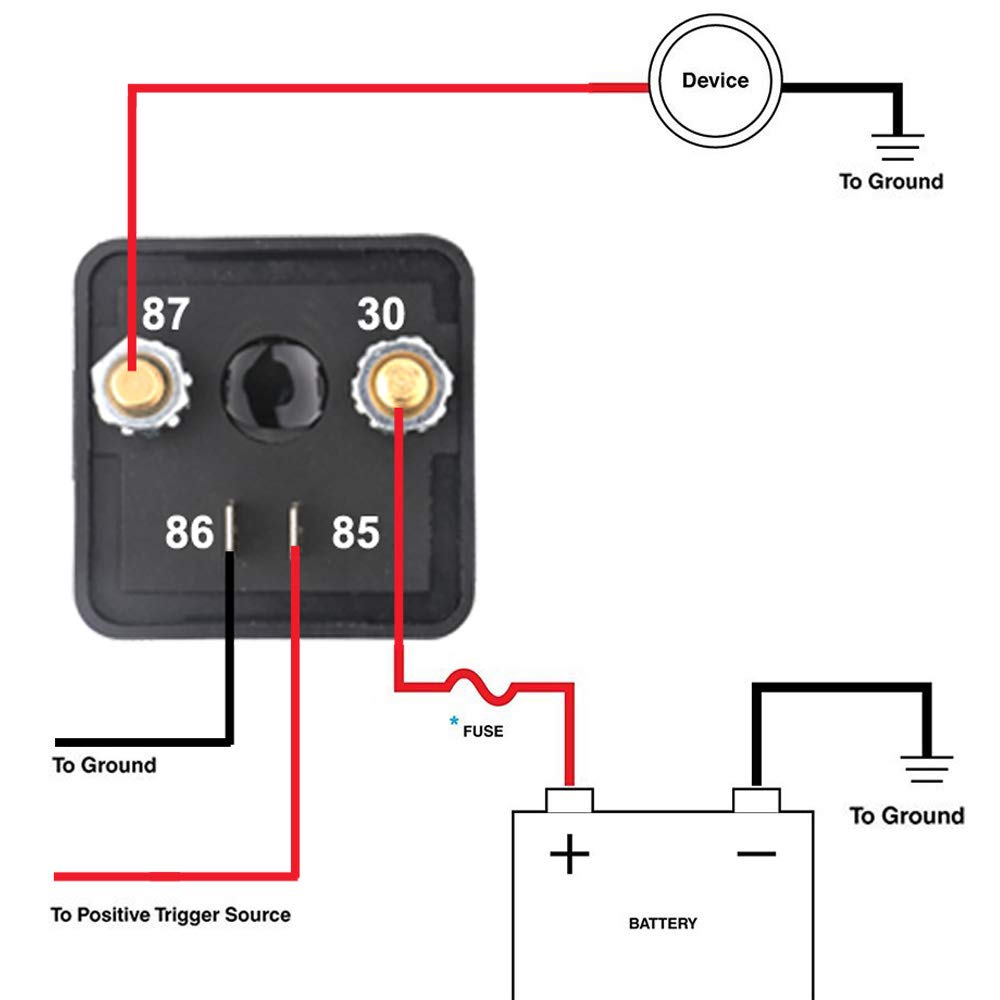

• 【Applicable】 High Power automotive relays provide standard contact form, and has the standard 4 pin layout, fit of starter kills, dome light supervision, trunk release, polarity change, power door lock/actuator control etc

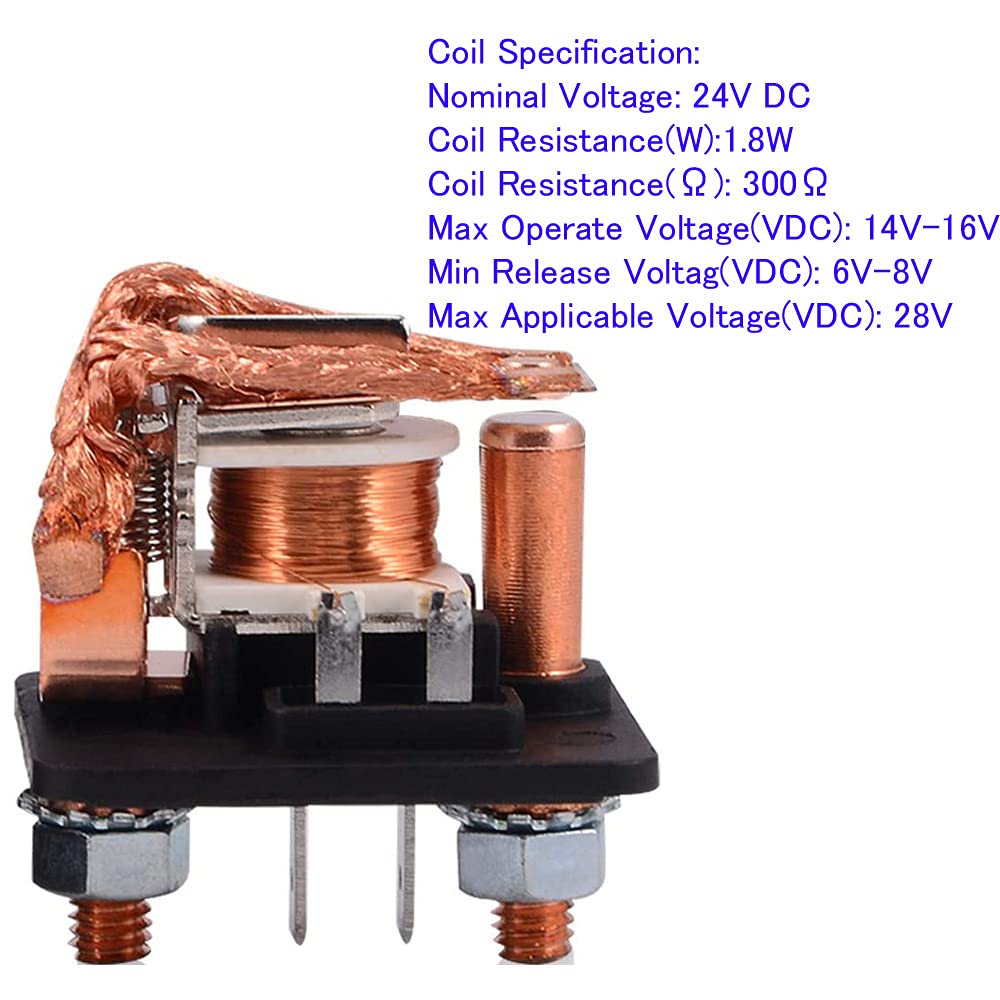

Interchangeable/Compatible with: All automobiles and devices equipped with a 24 Volt DC power source. Contact Data: Contact Material: AgSnO12 Contact Form: Normal Open Contact Ratings: No: 120A 24VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 300A (5ms) Max Switching Voltage: 75VDC Max Switching Power: 2000W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 24V Coil Resistance (4.8W/2.4W): 120/240 Max Operate Voltage (VDC): 12.0~16.8 Mix Release (VDC): 2.4~7.2 Max Applicable Voltage (VDC): 31.2
