Gebildet 5pcs 16mm Momentary Push Button Screw Type Terminals Stainless Steel Metal Waterproof Button 5A 12V/24V/125V/250VAC with 2 Screw Terminals Stainless Steel(High Head)

• Momentary Type: Push & Hold-ON, Release-OFF
• These terminal holes size are 2.1mm (5/64") diameter, you can use AWG 12 wire maximum; popular size of AWG 14 to 18 are fine also.

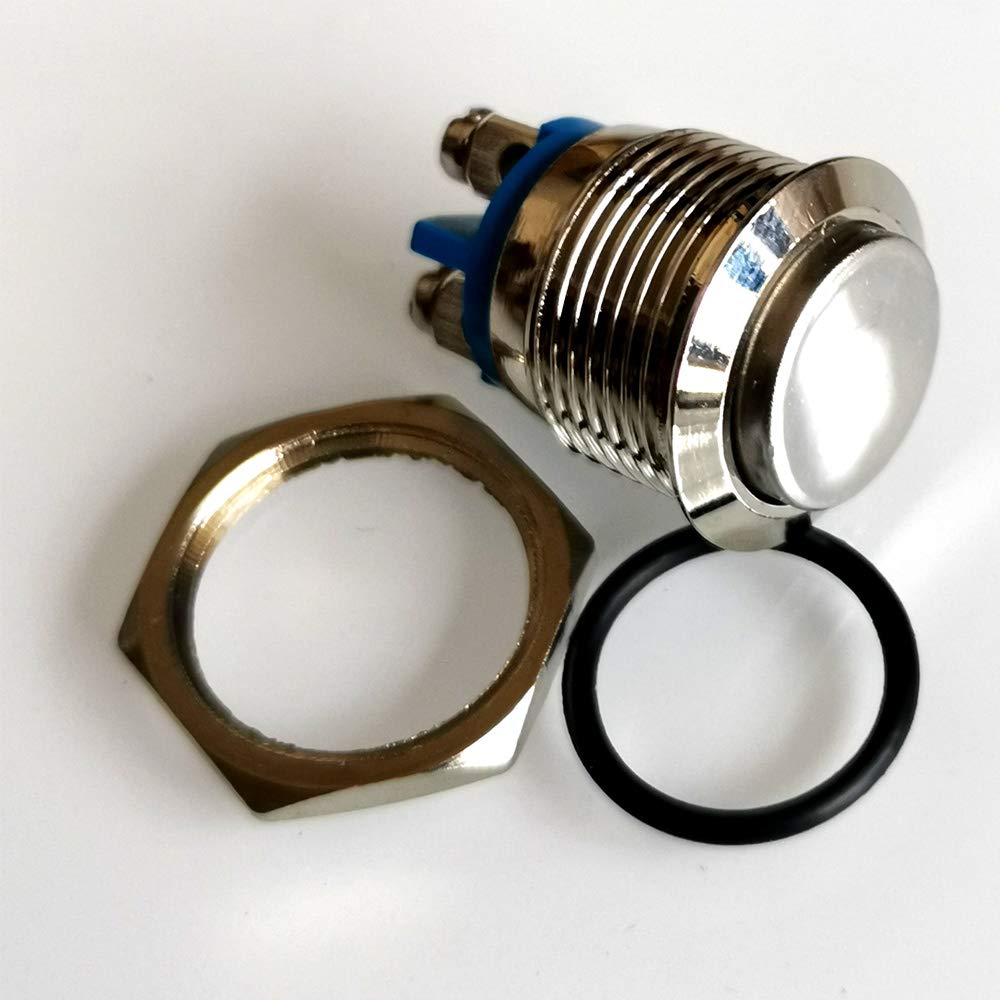

• 5pcs High Head metal Momentary push buttons with IP65 protection: waterproof and rust proof, can be used in wet or dusty environments.

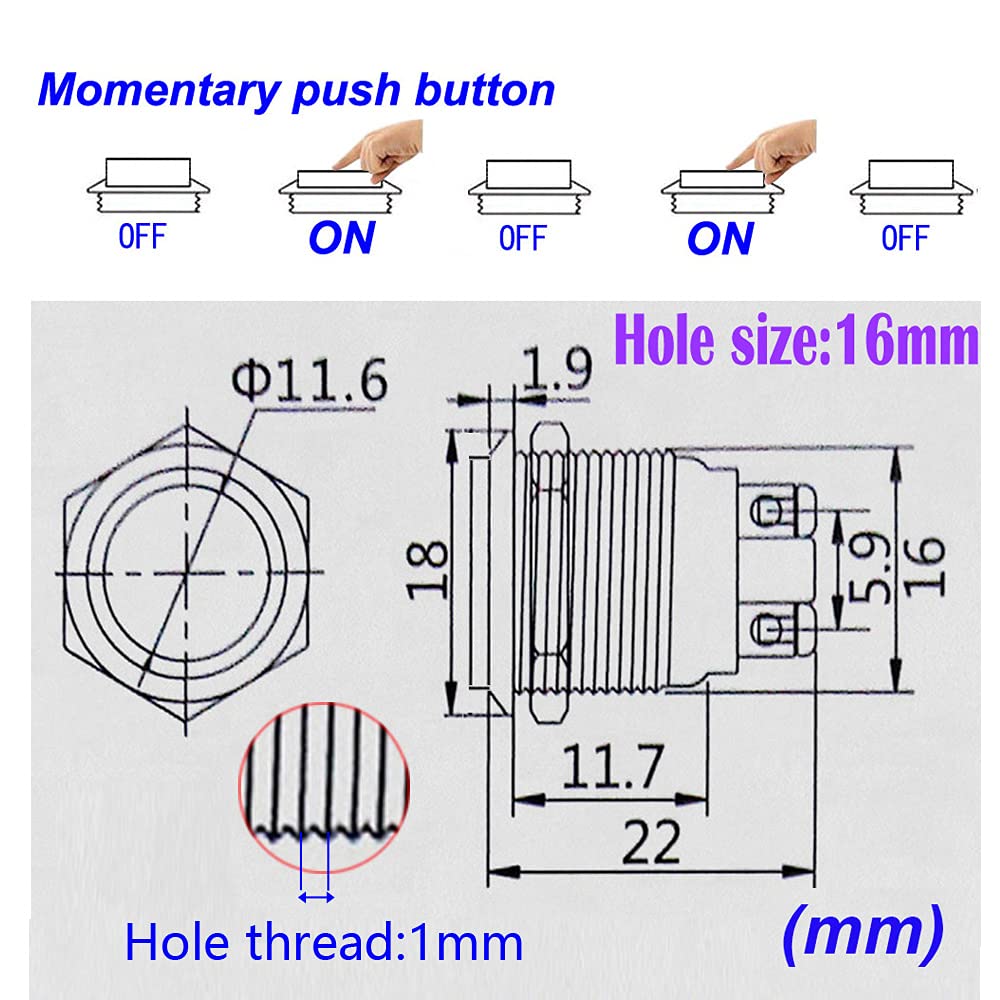

• Instantaneous button mounting hole: 16mm; Push buttons hole thread:1mm.rated current and voltage: 5A/12V/24V/125V/250VAC,easy to Install: Screw type terminals, don't need to solder.
• Universal fit all 12V Car SUV truck conversion Van RV Boat Yacht. Great for electromagnetic starter, relay, Horn Button, PC Power Switch or any circuit controls.

Product Description: Package includes: 5×Metal Push Button(High Head) * Product Name: Waterproof and Rustproof Momentary Push Button * Color: Silver * Material: nickel plated brass+stainless steel * Head Shape: High Head * mounting hole: 16mm * Push buttons Hole thread:1mm * Terminal Type: Screw * Operation Type: Momentary * Button Max Rating: 5A/12V/24V/125V/250VAC * Protection Level: IP65, IK10 * Operation Temperature: -20℃ to +55℃ * Contact Resistance: ≤50mΩ * Insulation Resistance: ≥1000mΩ * Mechanical life: >500,000 times * Electrical life: >50,000 times The using guide is NOT included, this product is recommended to professional users. But if you meet any problem during operation, please feel free to contact us. We will reply you within 24 hours. Notes: 1.These buttons come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water. 2.Screw type terminals, don't need to solder. 3.Please allow 1-3mm error due to manual measurement. Thanks for your understanding. 4.We are committed to provide our customers with good products and excellent after-sales service.Should you have any problem, please feel free to contact us. We will solve all problems for you.
