Gebildet 2pcs 16mm Momentary Push Button Switch IP65 3A/12V 24V 36 DC 110V 250VAC 1NO SPST Waterproof Aluminium Alloy Shell Screw Terminal (Gold Case)

• Momentary Push Button Switch rating: 3A 12V 24V 36 DC 110V 250V AC , with Screw Terminals, easy to contact wires. Durable: More than 50,000 Cycles Long electrical life.

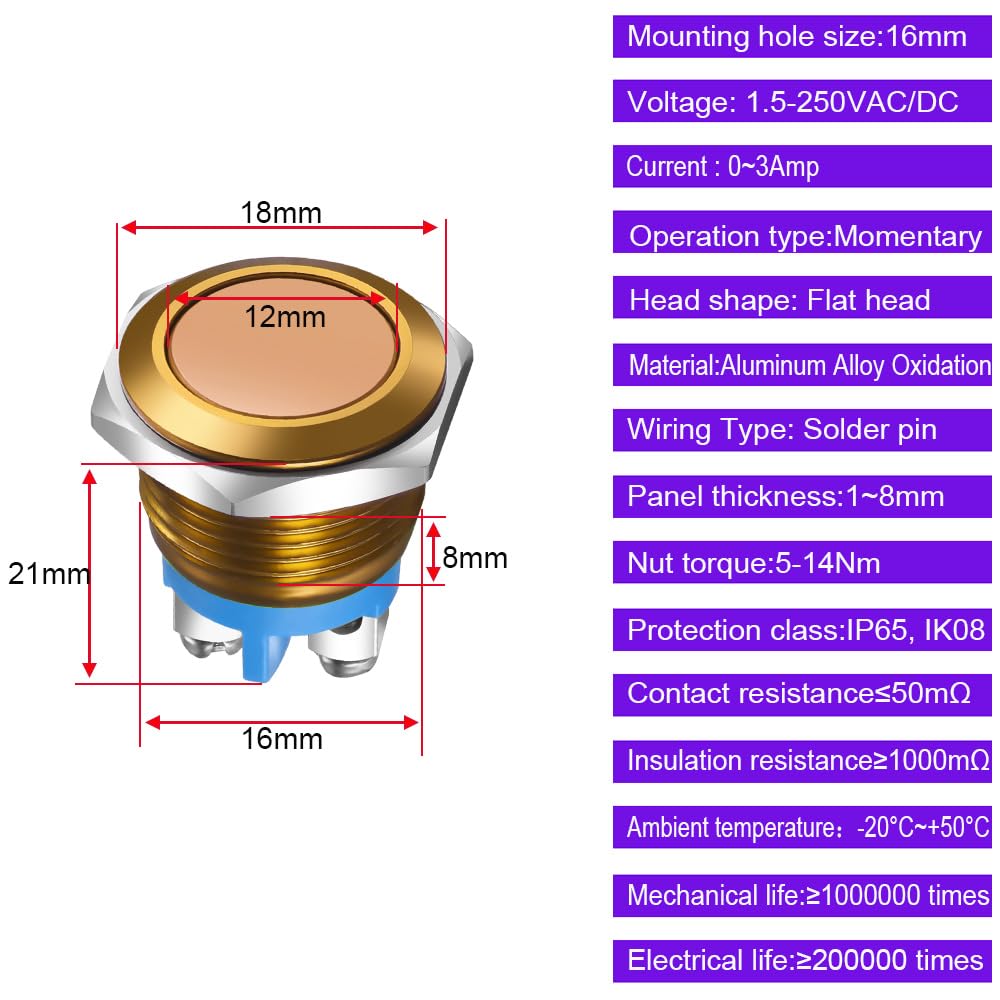

• Push Button Switch Dimension: This pushbutton with require 3/4''(16mm) diameter Panel Mounting Hole Size.
• Gold Horn Push Button Switch Function: Push ON, Release OFF(Finger loose, OFF) Momentary Version, SPST(Single Pole Single Throw) 2 pin Normal Open.
• Momentary Push Button Switch can be applied to car truck motorcycle Boat Marine, Electric Equipment, Industrial Machine, Home Lamps, and so on.

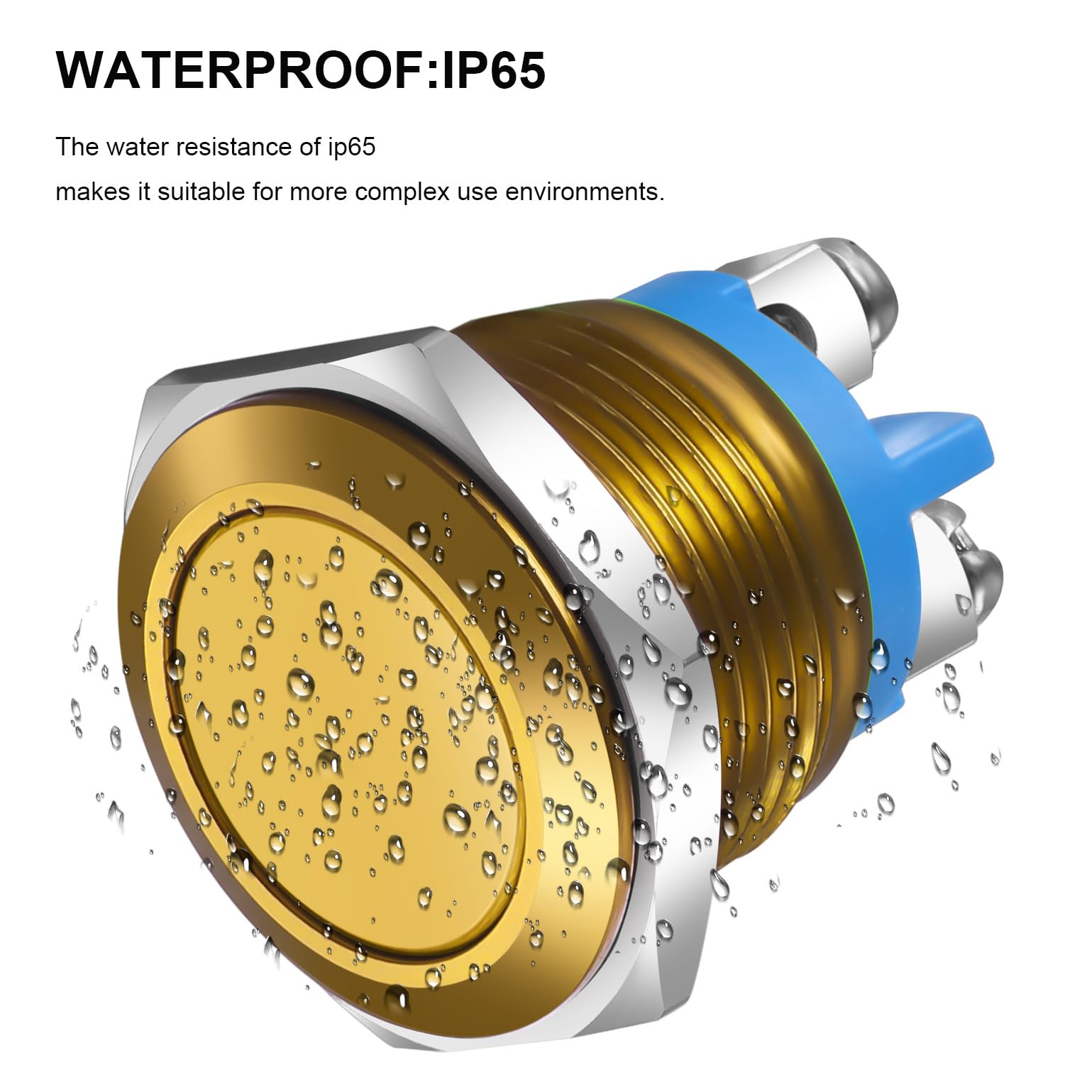

• IP65 Waterproof Push button switch with Aluminum Gold Anodized Shell, can be used in ourdoor, wet or dusty enviroment.

Switch Rating: 3A 12V 24V 36 DC 110V 250V AC Head Shape: High Round Terminal Type: Screw Mounting Cut Hole: 16mm Operation Type: Momentary Body and Button Material: Aluminium Alloy Color: Gold Operation Temperature: -20℃~ +55℃ Mechanical life: 1,000,000 cycles Electrical life: 200,000 cycles Panel thickness: 1 - 10mm Protection level: IP65, IK08 Switch Contact: 1NO (Normally Open)
