Gebildet 2pcs 16mm 12V/24V/125V/250V/5A Latching Push Button Switch with 2 Screw Terminals Stainless Steel Metal Waterproof Button(Flat Head)

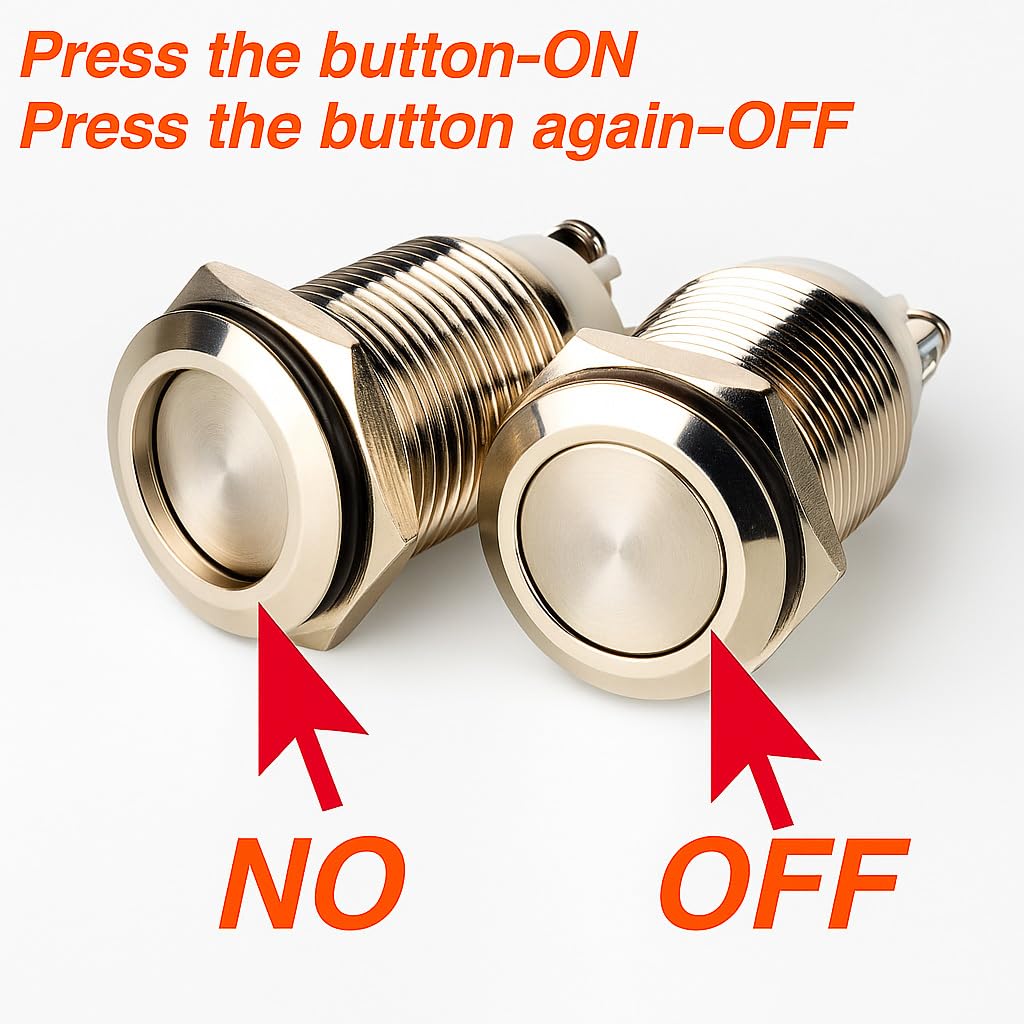

• On off switch operation type:Latching(press the button–>ON,press the button again–>OFF).

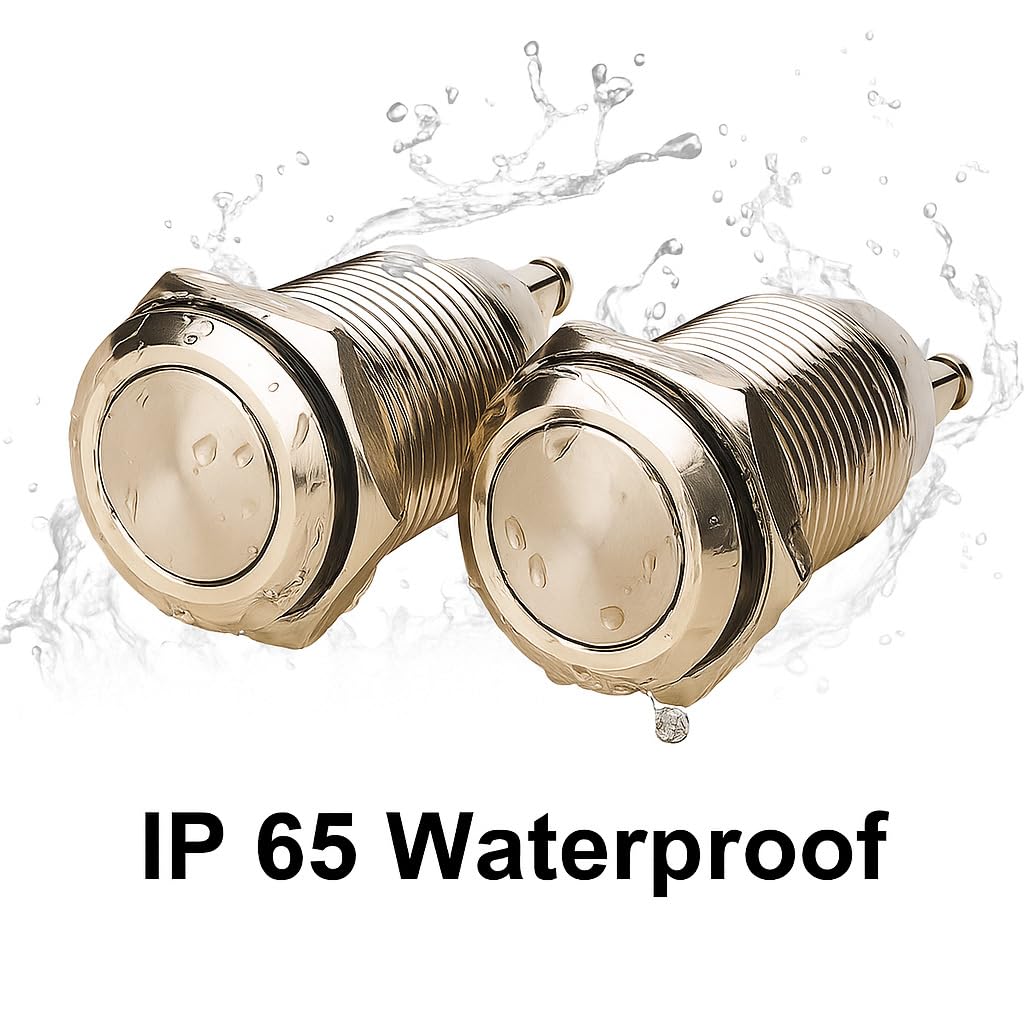

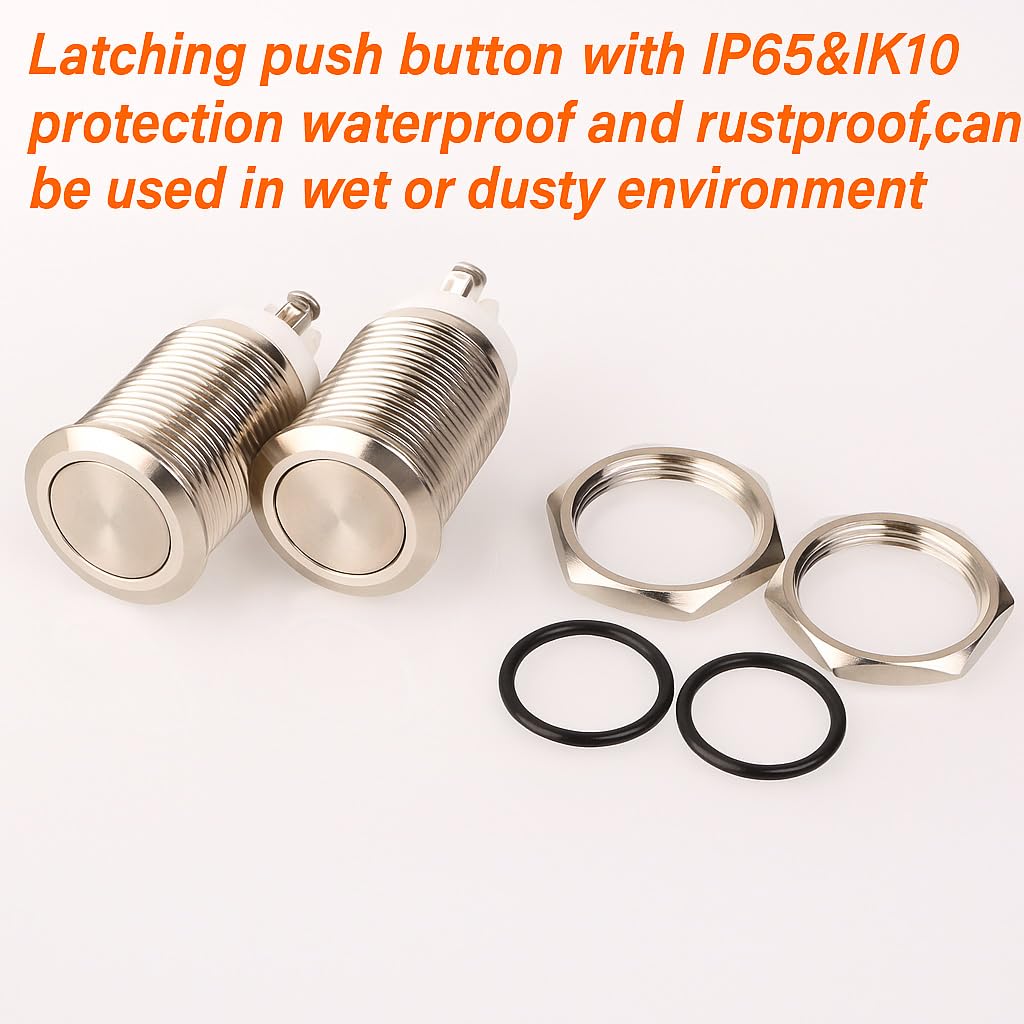

• Latching push button with IP65&IK10 protection:waterproof and rustproof,can be used in wet or dusty environment.

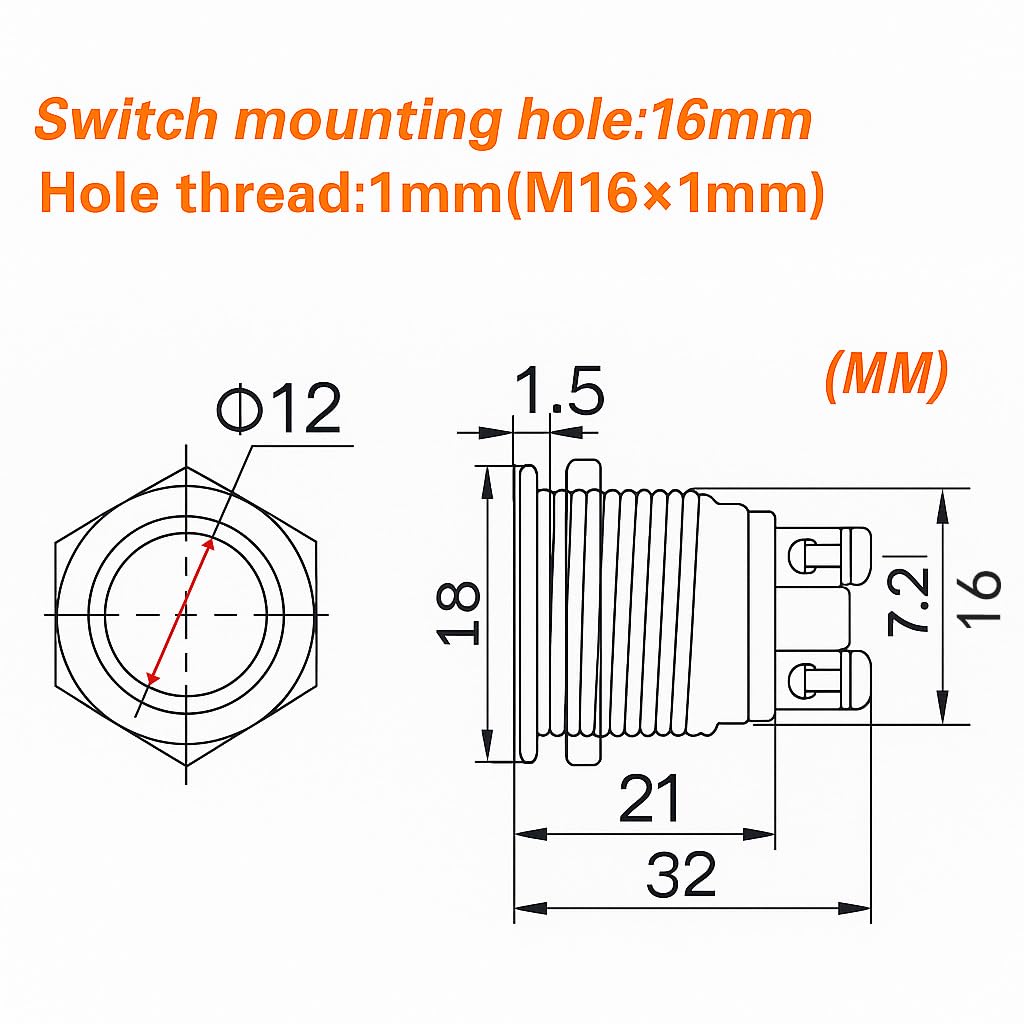

• Switch mounting hole:16mm;Push buttons hole thread:1mm.Rated current and voltage:12V 24V 36V 110V 125V 230V 250V.

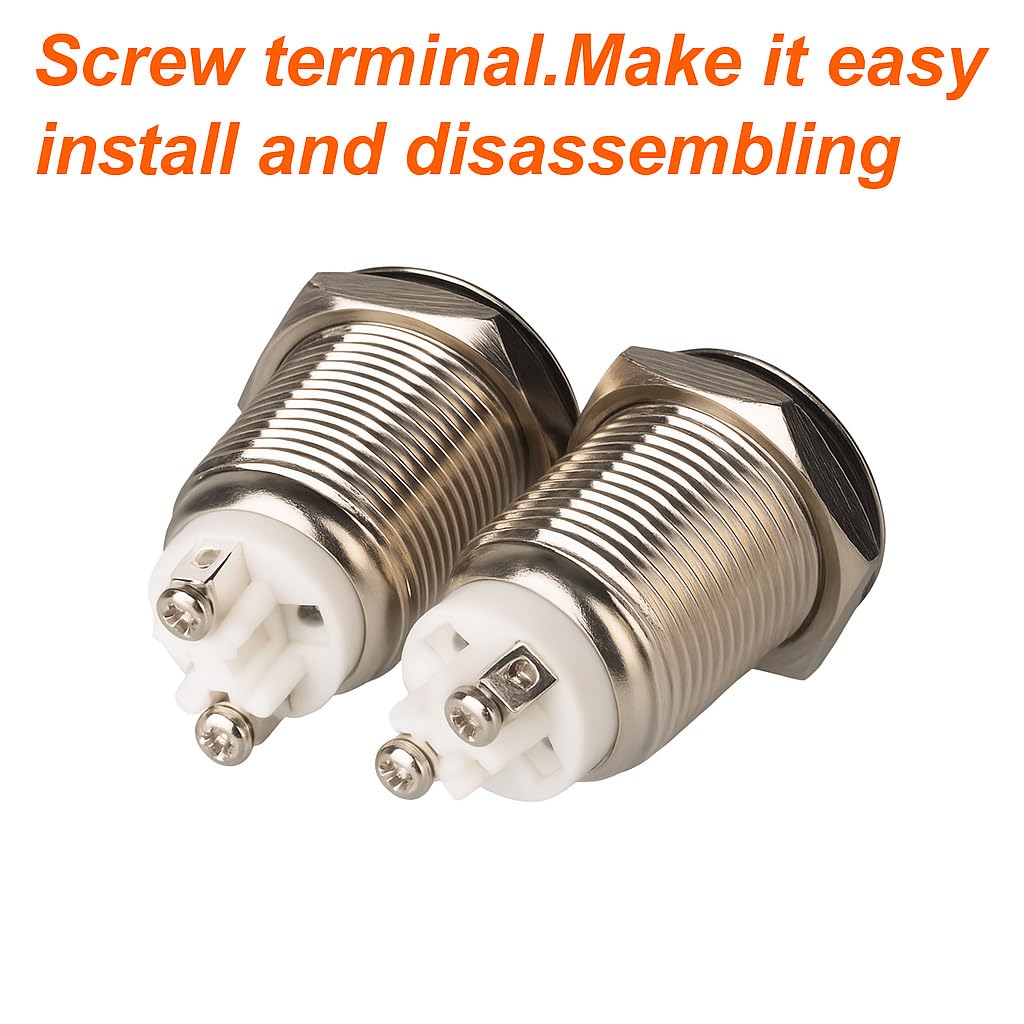

• Push button terminal type:screw terminal.Make it easy to install and disassembling.
• Widely used in entrance guard,various additional electric equipment,relay,inside or outside the car or any circuit controls.

Package includes: 2×Self-lock Push Button Switch Specifications: * Color:Silver * Material:Nickel plated brass+stainless steel * Head Shape:Flat Head * Mounting hole:16mm * Push buttons Hole thread:1mm * Terminal Type:Screw * Operation Type:Latching * Switch Max Rating:5A/12V/24V/125V/250V * Protection Level:IP65, IK10 * Operation Temperature:-20℃ to +55℃ * Contact Resistance:≤50mΩ * Insulation Resistance:≥1000mΩ * Mechanical life:>500,000 times * Electrical life:>50,000 times Notes: 1.These push button switch come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water. 2.Screw type terminals, don't need to solder. 3.Please allow 1-3mm error due to manual measurement. Thanks for your understanding. 4.We are committed to provide our customers with good products and excellent after-sales service.Should you have any problem, please feel free to contact us. We will solve all problems for you.
