Gebildet 150 Pcs Mini Slide Switch 3 Pin 2 Position 0.5A 50V DC SPDT ON/ON for Welding Mini Slide Plates Micro Snap On Toggle Switch SS12F15

• SPDT, 2 positions, 3-pin (single line) slide switch, contact type: ON/ON (if only one line is connected, this is ON/OFF).
• Working power: 0.5A 50V DC Contact resistance: max. 50 mΩ, insulation resistance: min. 100mΩ @ 500V DC; Dielectric strength: AC 500V/min
• Widely used to control the operation of many small electronic performance projects, including volume control, dimmer control for lights, electric toys, fax machines, audio equipment, medical equipment, etc.
• Material (External): Plastic, Metal; Main Color: Black

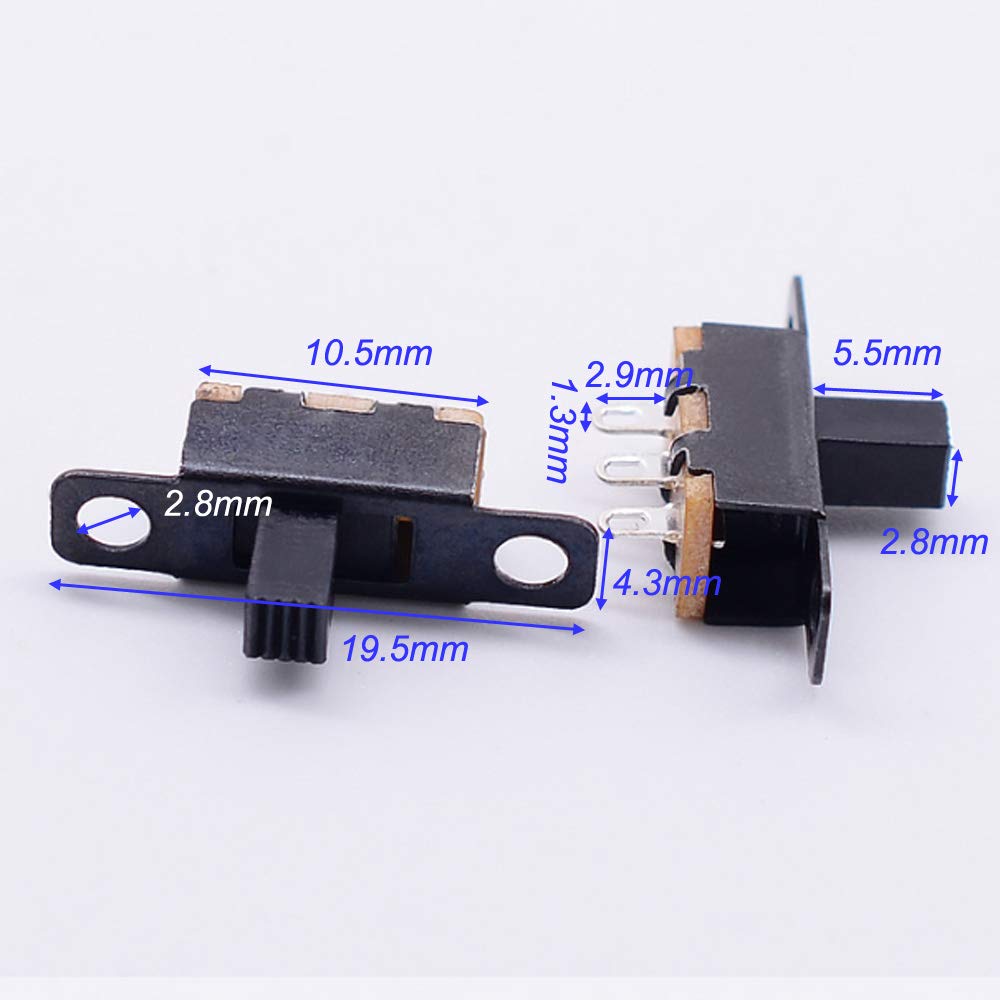

• Whole Size:20 x 5.5 x 13mm/0.78 x 0.21 x 0.51 inch(L*W*

Slide switch Technical data: - 2 positions. - 3 terminals. - Contact type: SPDT, ON/ON (if only one line is connected, this is ON/OFF) - Working power: 0.5A, 50V DC - Contact resistance: 50 mΩ max. Package Content: 150 x slide switches
