GARTT ML5010 300KV Brushless Motor for Multirotor Quadcopter Multi-Copter

• High magnetic energy ndfeb magnet steel-n45sh with 150 degrees heat-resistant.
• To support the high speed(up to 15000 spin), we used the imported japanese nmb bearing and hrc55 degrees stainless steel axis.
• Using the heat-resistant varnished wire enwinding the motor coil, 600mm weld wire(extra-soft silicone wire) can be cut optionally.
• Each rotor was balanced with high speed,ensure the motor high-speed runnung without shake.
• The vane-type design can reduce motor temperature with a big cloud of steam.

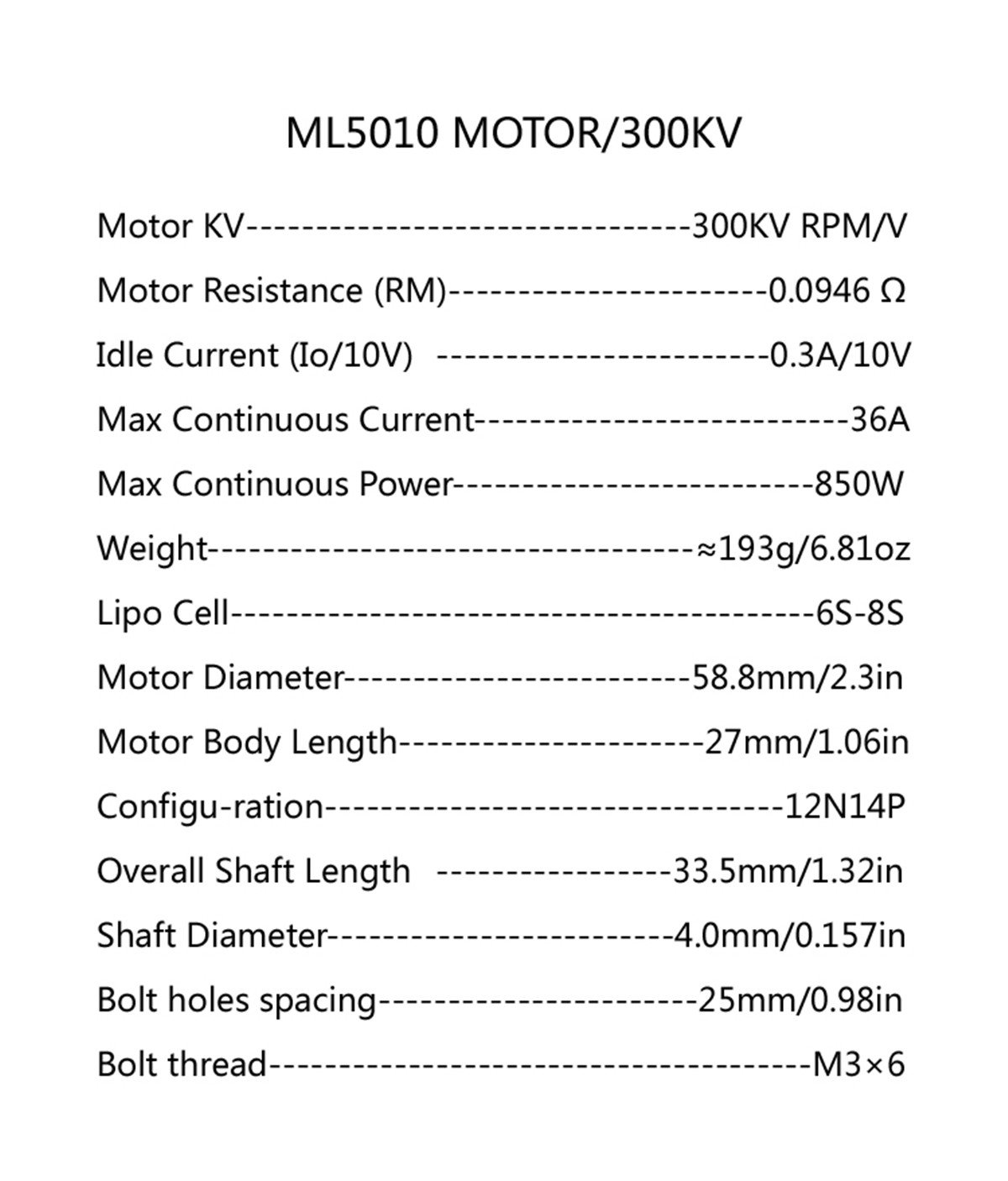

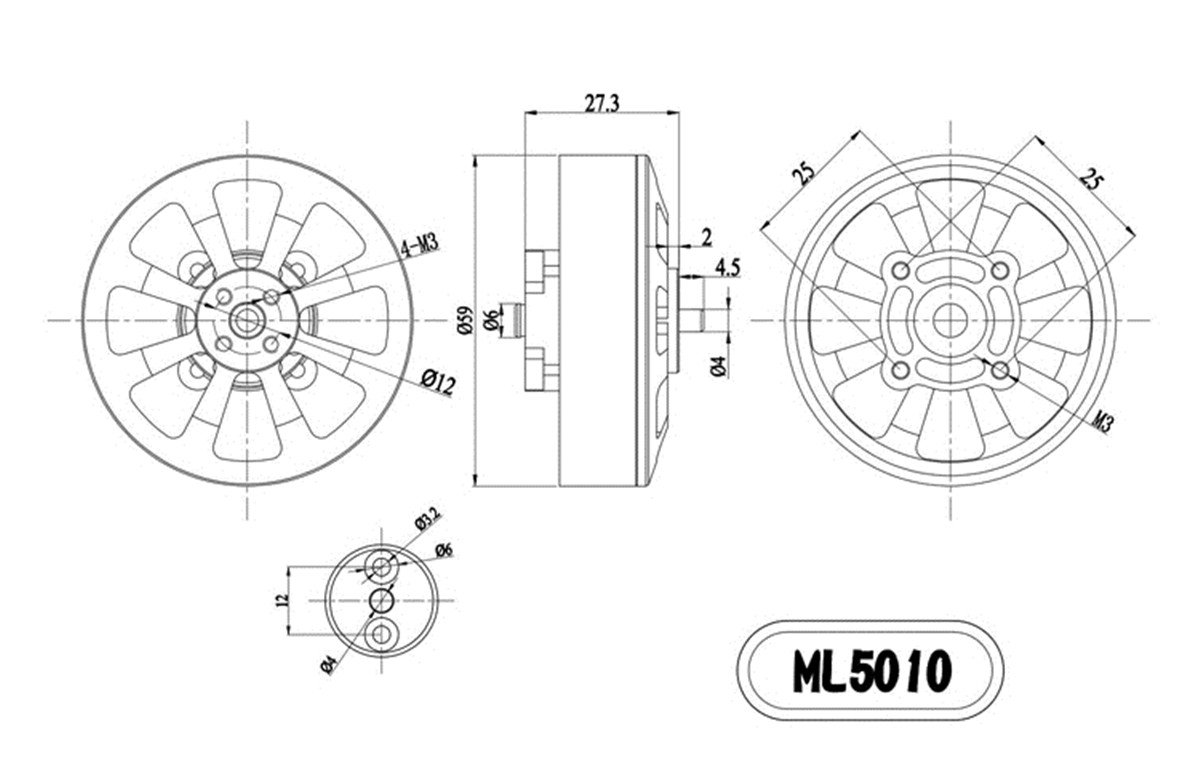

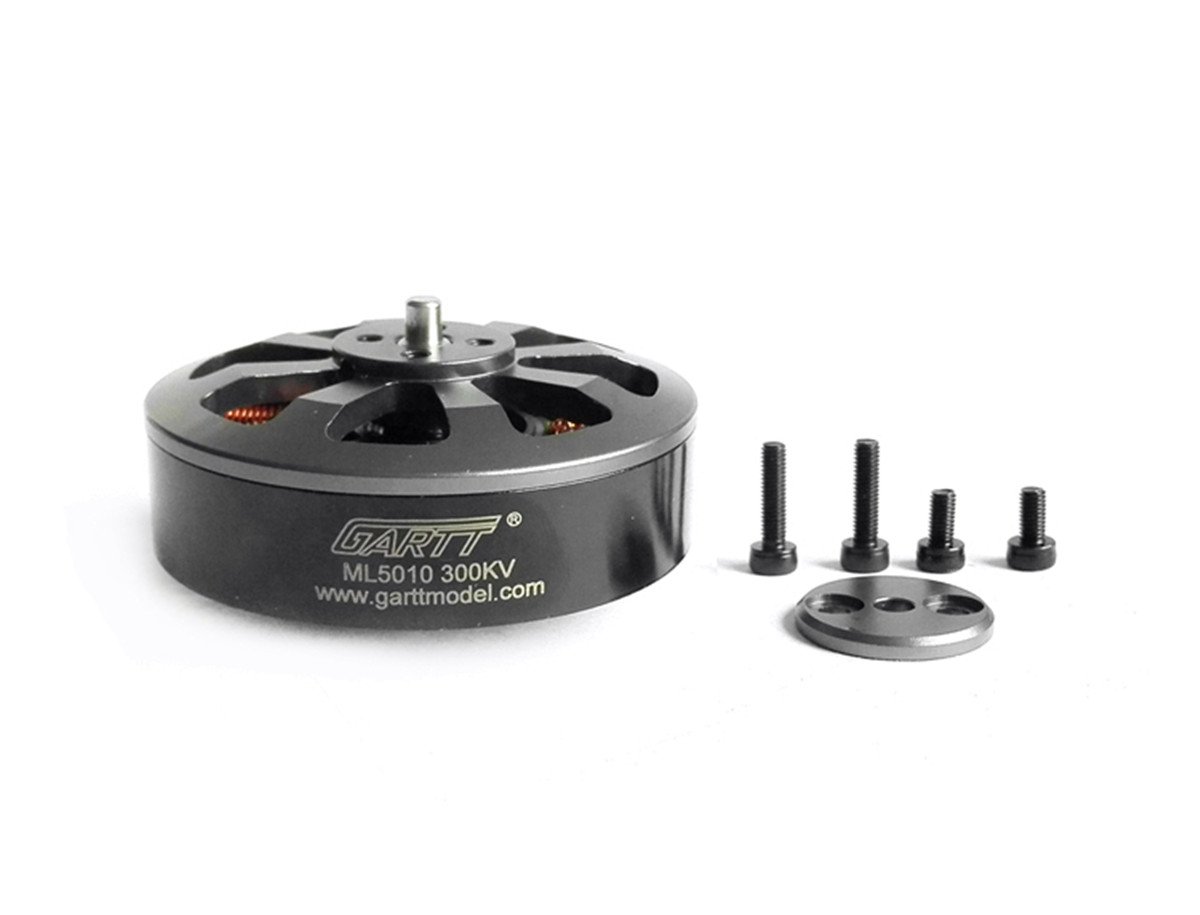

Specifications: Motor KV: 300KV RPM/V Motor Resistance (RM): 0.0946 Ω Idle Current (Io/10V): 0.3A/10V Max Continuous Current: 36A Max Continuous Power: 850W Weight: ≈193g/6.81oz Lipo Cell: 6S―8S Motor Diameter: 58.8mm/2.3in Motor Body Length: 27mm/1.06in Configu-ration: 12N14P Overall Shaft Length: 33.5mm/1.32in Shaft Diameter: 4.0mm/0.157in Bolt holes spacing: 25mm/0.98in Bolt thread: M3×6 Package include: ML5010 300KV brushless motor *1 When using the screws we provide, pay attention to the thickness of the motor mounting plate. If the mounting plate is too thin, it may cause the screws to be too long to be pushed up to the motor coil.
