Ganter Standard of GN 113.7 8 – Stainless Steel Ball Locking Pin, 1 Piece), Black

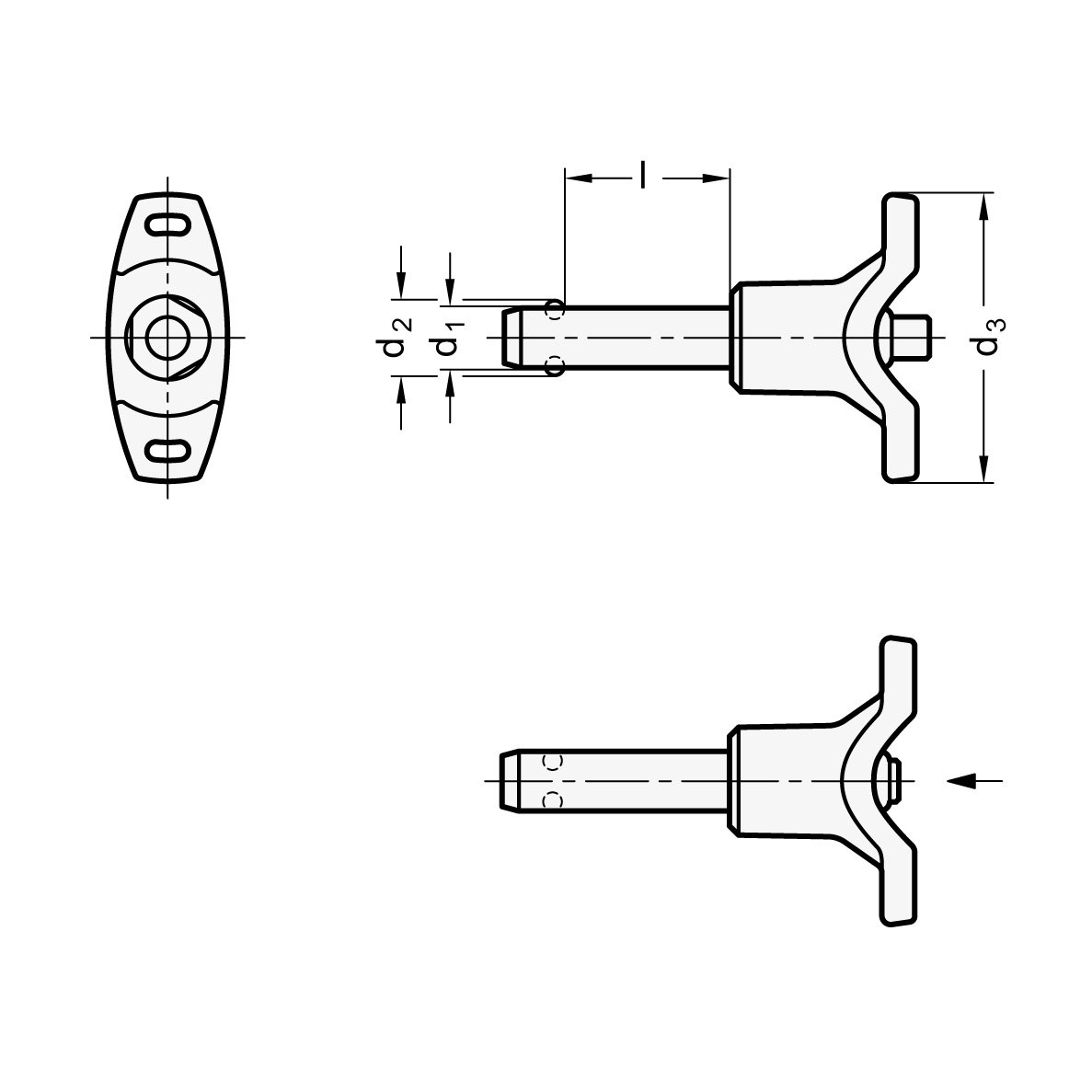

• Bolt diameter d1: 8 mm; length l: 50 mm; outer diameter locked d2: 9.5 mm; handle diameter d3: 48 mm
• Load capacity in kN: 38 (double-cut shear strength according to DIN 50141, breaking force)
• Bolt: stainless steel, rust-proof, 1.4305
• Balls (rust-proof stainless steel 1.3541); compression spring (rust-proof stainless steel 1.4565)
• T-handle: black, temperature resistant 80°C

Stainless steel ball lock bolts GN 113.7 are used for quickly fixing, connecting and securing various components. A typical application is bearing bolts, which require frequent assembly and disassembly. By pressing the spring-loaded pressure bolt, the two balls are unlocked and locked again when released. The information regarding the load capacity is theoretically determined guidelines excluding any liability. They generally do not constitute a commitment to quality. Whether a product is suitable for the respective use, it must be determined by the user in each individual case
