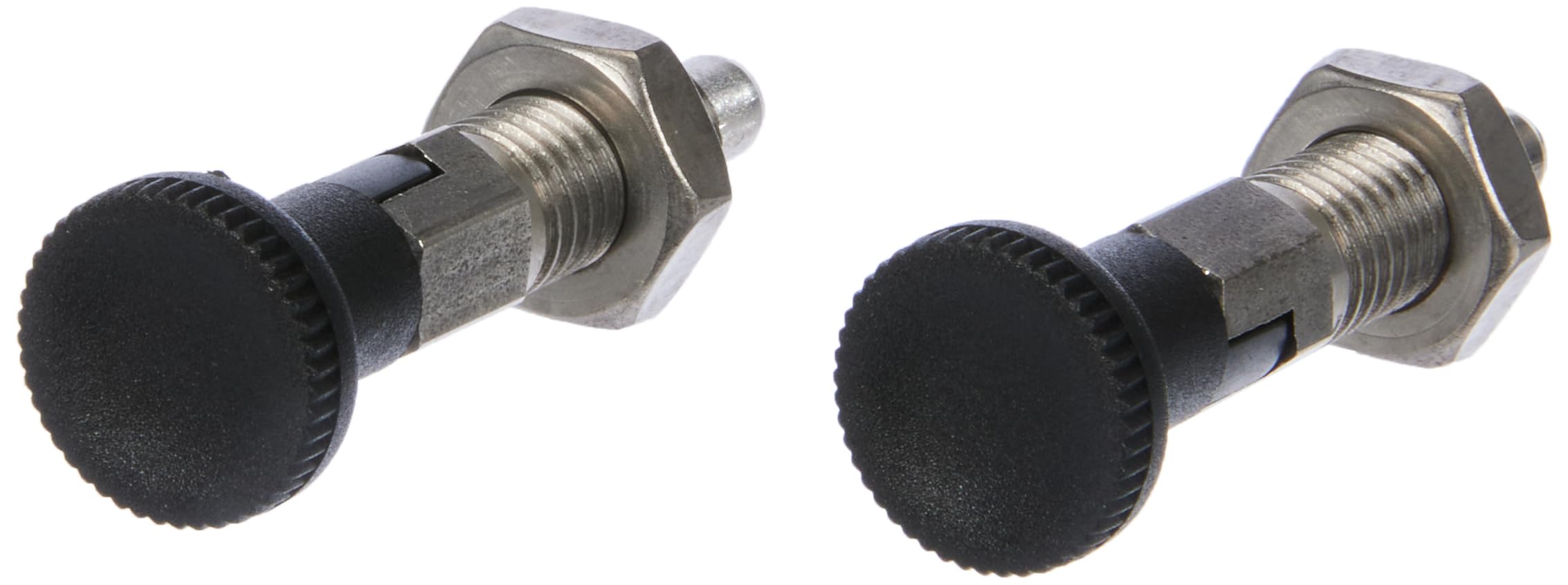

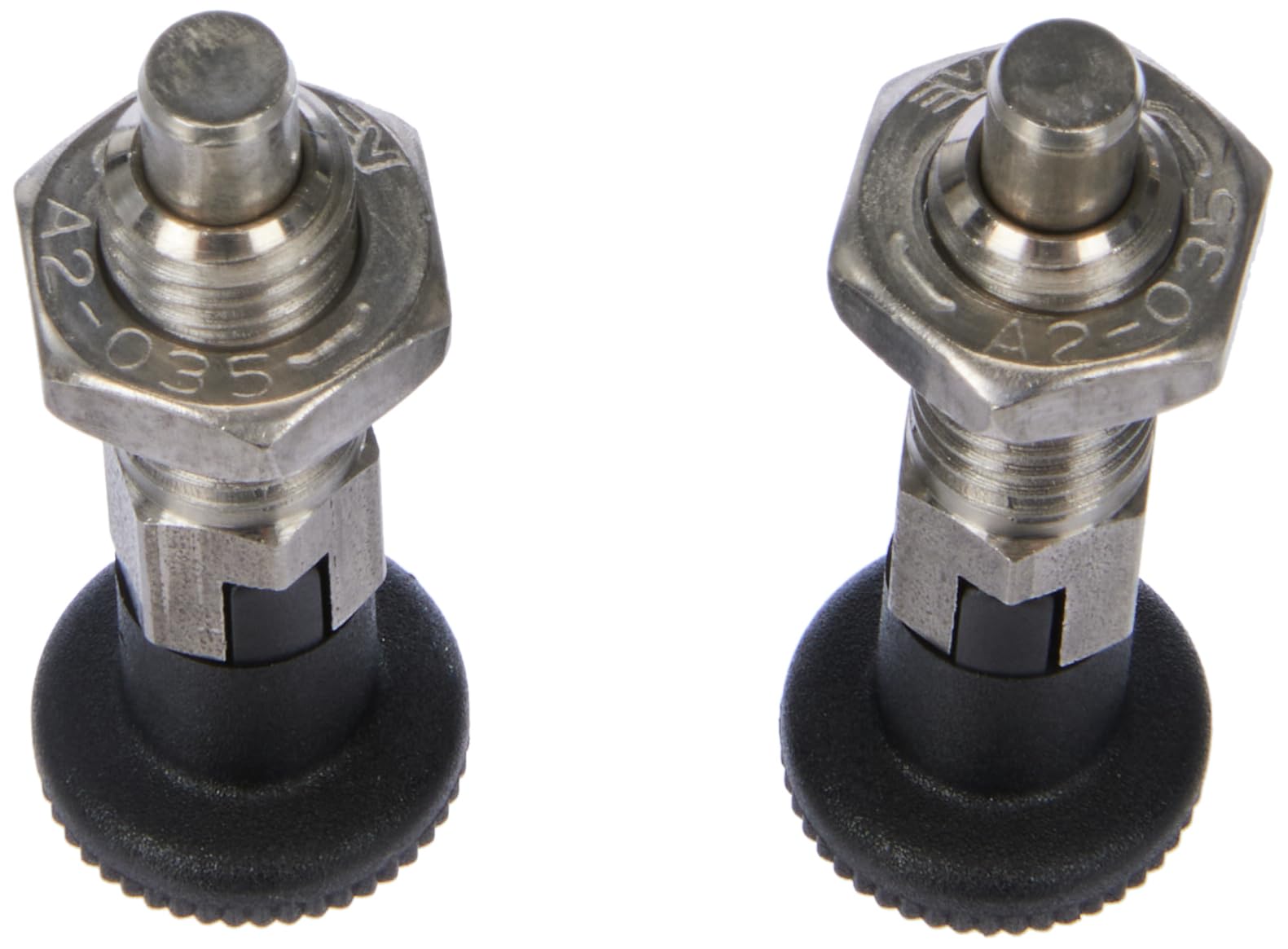

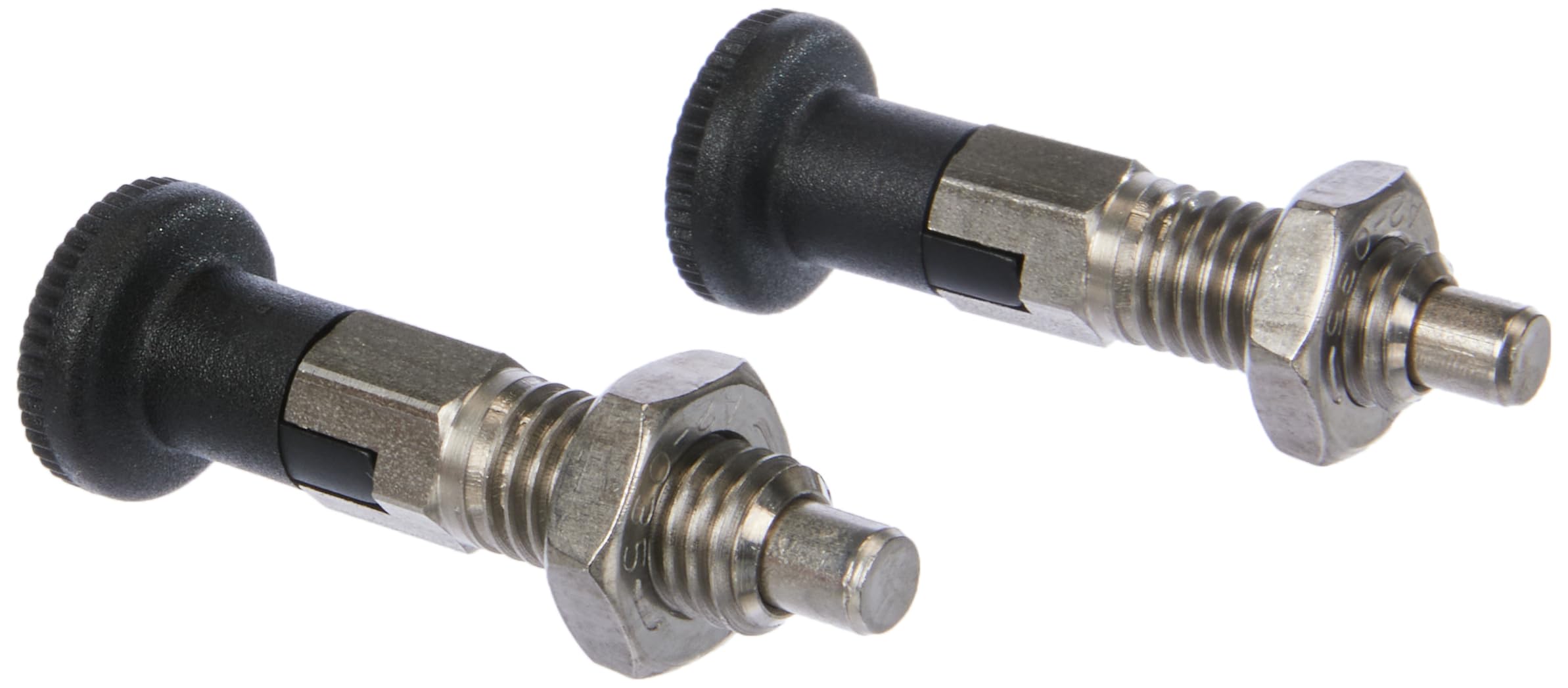

Ganter Normelemente GN 717-6-M10-CK-NI 717-6-M10-CK-NI-Stainless Steel Latching Bolt, Silver, Gewinde d2: M10, Set of 2 Pieces

• Locking distance l1: 6 mm; thread length l2: 20 mm; bolt diameter d1: 6 mm; thread d2: M10; hex length l3: 7.5 mm
• Box contents: 2 stainless steel locking bolts
• Form CK: with locking lock, with lock nut
• Guide (threaded part)/locking pin: stainless steel (1.4305); pressure spring: stainless steel stainless steel (1.4310); button plastic (polyamide) black, matt, cannot be dismantled
• Max. Tightening torque in Nm: 15; spring pressure in N: 5 (beginning) - 21 (end)

Stainless steel locking bolts GN 717 are characterized by small dimensions. The insensitivity to escape and position errors of the snap holes make these locking bolts universally applicable. The C/ CK mould with locking lock is used when the detent pin is to temporarily not protrude. During assembly, the maximum tightening torques when tightening the lock nut should not be exceeded.
