Ganter Standard Elements Locking Bolt L Small – GN 822.6 Form C: with Click Lock Galvanised Steel Blue Passivated, Black, GN 822.6-7-M12-C

• Bolt diameter d1: 7 mm; thread d2: M12; thread length l3: 10 mm;
• ; packaging unit: 2 mini grids;
• ; spring pressure in N: 10 (beginning) - 23 (end)
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

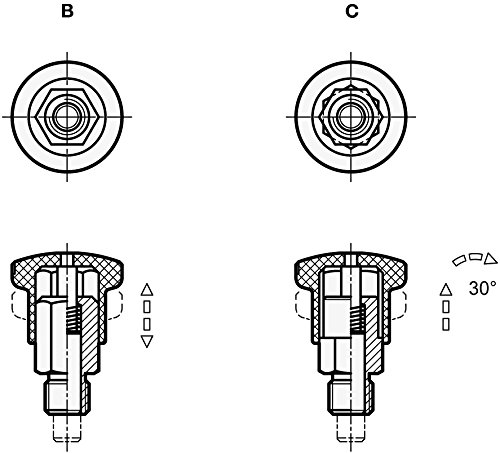

Locking bolts GN 822.6, also known as locking bolts, are characterised by their particularly compact dimensions. Based on the principle of the mini grid GN 822, they combine their advantageous design with a gapless range of all common sizes of bolts and threads. For assembly, the mini detent bolt is first screwed in with the help of the button knurling, when the detent pin is pulled the hexagonal becomes*to tighten tightly with an open-end wrench. With the shape C, the button can be rotated 30° after retracting the locking pin, which means it is held in "retracted" position by means of a locking lock.
