Ganter Normelemente Tension Latches - GN 821-400-S-ST-1 | with Safety | Steel | Galvanised Blue Passivated | Pack of 1

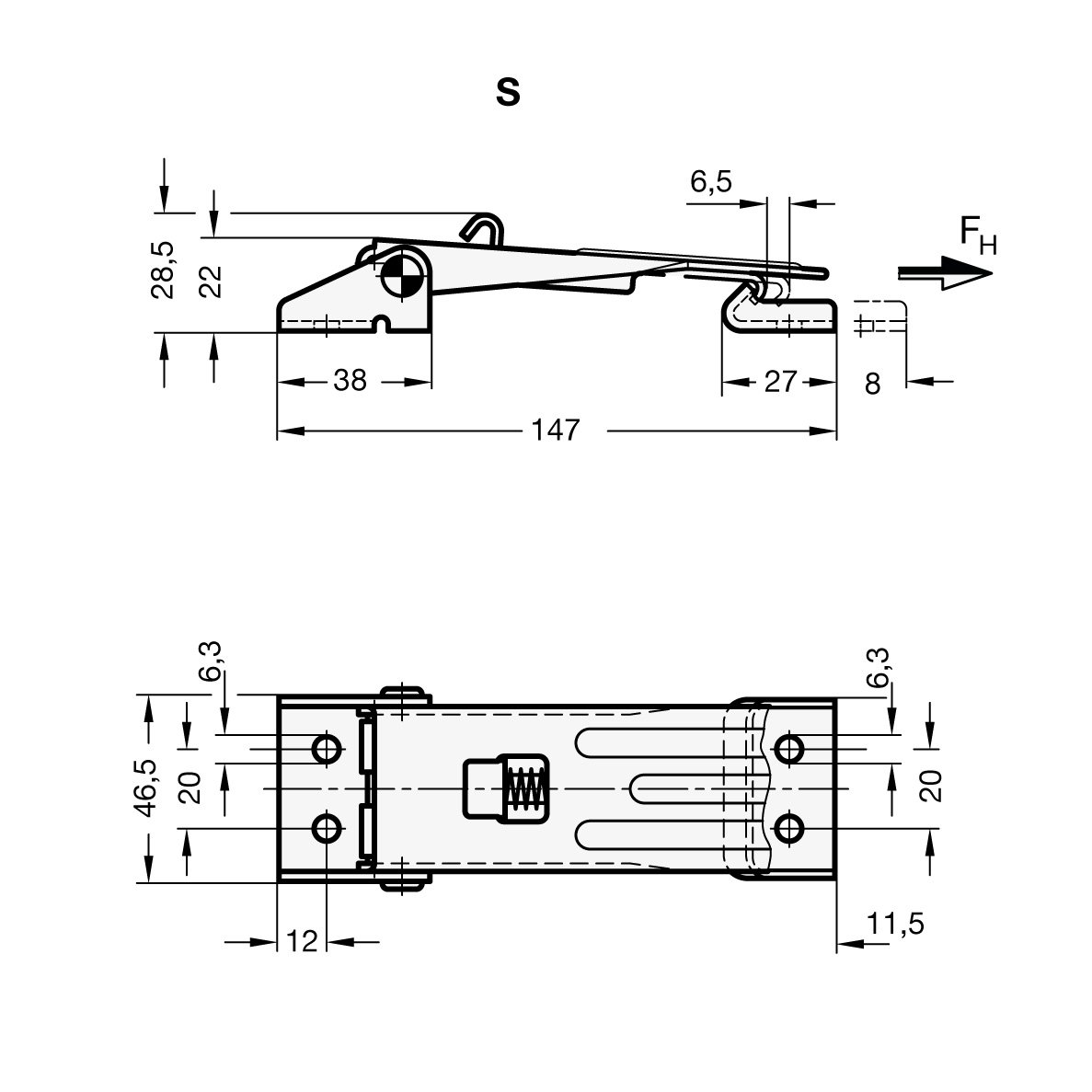

• Total length: 147 mm; height h: 22 mm; width b: 46.5 mm; hole spacing m1: 20 mm; adjustable hole spacing m2: 123.5 mm - 131.5 mm; stroke distance w1: 6.5 mm; adjustment distance w2: 8 mm
• Holding force F: 4000 N
• Form S: with fuse
• Steel: galvanised, blue passivated
• RoHS Compliant

Description Tension locks GN 821 are used for securely holding flaps, container lids and the like. Due to the dead centre exceedance, they keep vibration-resistant. Using the lifting path w1 of the tension hook, the parts to be connected can be pulled together up to 6 mm when tensioning. The adjustment range w2 is achieved via a spindle M6 of the tension hook. The stated holding force is a guideline for the possible static tensile stress of the clamping lock. Depending on the operating conditions, e.g. due to vibrations or sudden stress, the holding force may be impaired. The counter hook is included
