Ganter Normelemente, GN 743-18-M26X1.5-A Oil Sight Glasses with Reflector Thermoplastic Fine Thread Aluminium Pack of 2

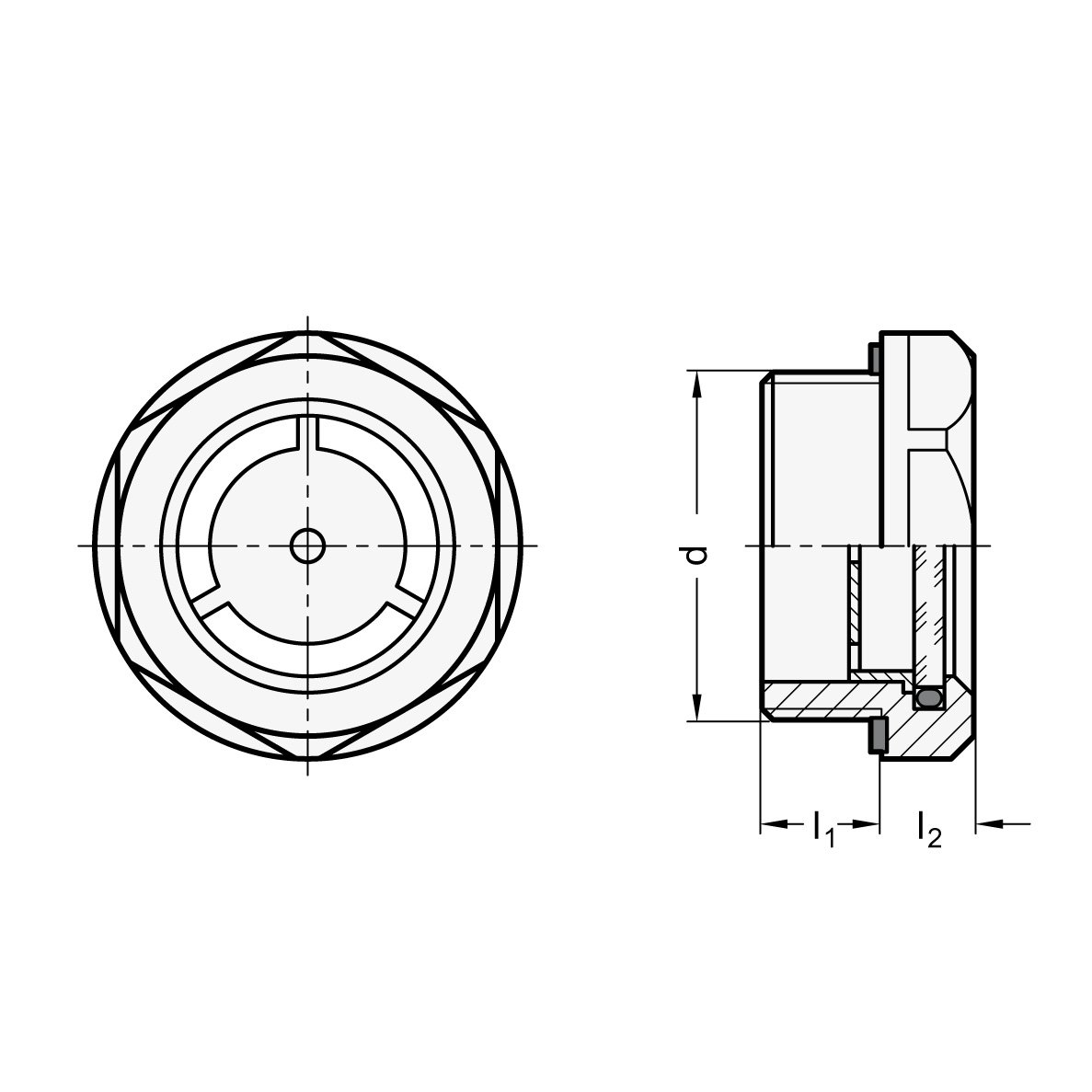

• Fine thread d: M26 x 1.5; thread length l1: 9 mm; outer length l2: 8 mm
• Box contents: 2 oil sight glasses
• Form A: with reflector, blank
• Housing: aluminium, finely twisted; reflector: thermoplastic (polysulphone); seals: rubber NBR (perbunan)
• Lens: float glass, temperature resistant up to 100°C

The very stable, scratch-resistant natural glass panel of the GN 743 oil glasses is sealed via an O-ring on the circumference of the pane, so the tightness is independent of an axial contact force. The outer diameter of the oil indicator glasses with the reset hexagon is matched to screw holes for pipe fittings DIN 3852. The sealing ring is embedded in a radial and flat-sided puncture in the oil window glass, so the seal is not lose and cannot be squeezed out when tightening. Oil glasses GN 743 can also be used on containers that are under pressure. Test rows on the load capacity in case of overpressure and negative pressure are available.
