Ganter Standard Elements GN 343.3 40 M12 A Joint Feet with Threaded Bushing, Black, Set of 4

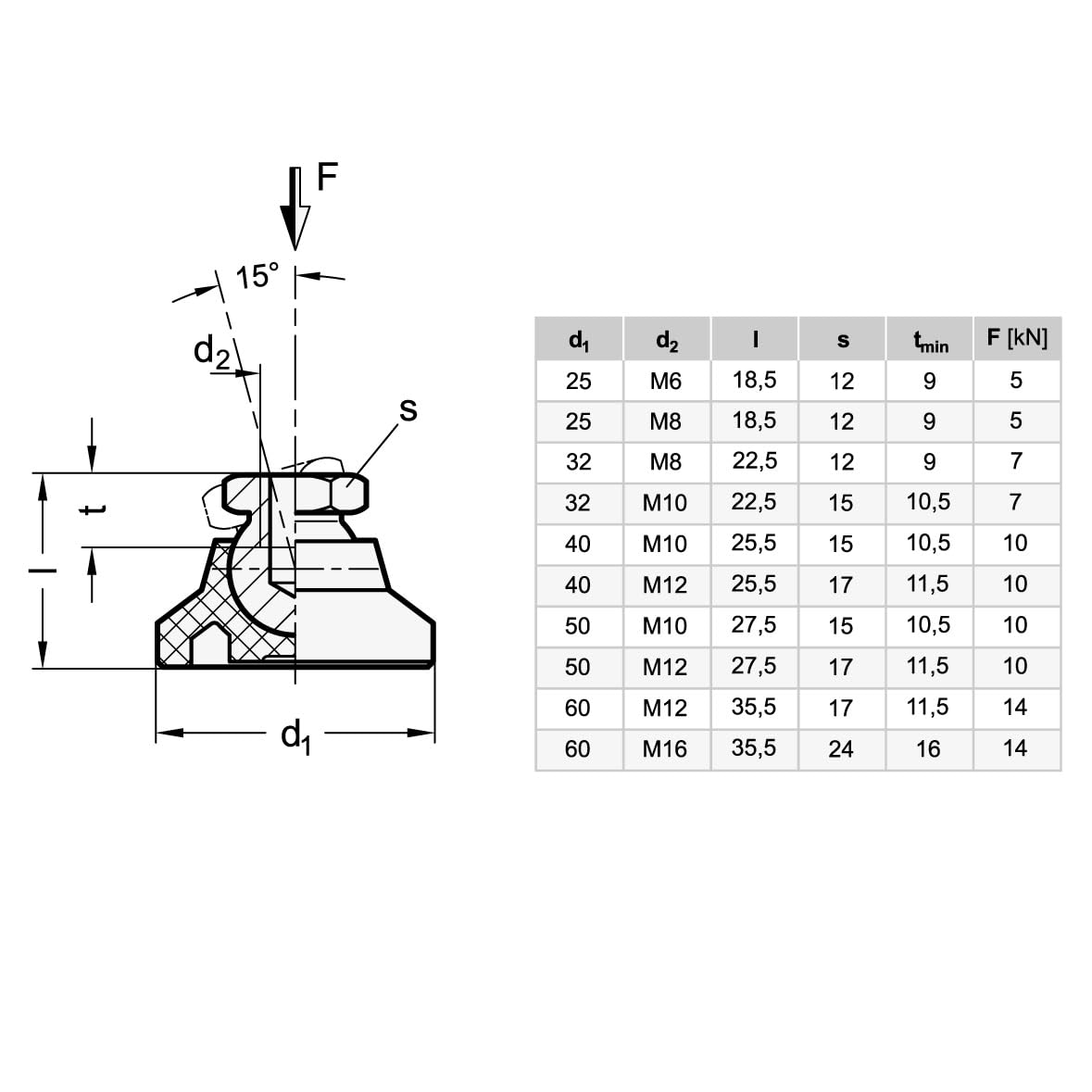

• Diameter of base D1: 40 mm, Thread D2: M12; Height L2: 25, 5 mm; Head widths SW 17, thread length t: 11, 5 mm
• Box contents: 4 articulated feet
• Static max. load: 10 kN
• Base: (polyamide) plastic with fibreglass reinforcement, Black Matte, temperature resistant up to 100 °C
• Threaded bushing: Steel, strength Class 5.8, galvanised, Blue, passivated; (NBR): 70 Shore A rubber surface, black

Product Description Joint Legs a GN 343.3 achieve their high static reliability thanks to the use of high quality with a body and a design that the load distributed over a large area. Exceeds the stated values of the static can hold can be used to break the plastic plate. The values have been thanks to try series Weight that uses a limited number of joint feet a limited time through a upright for plate looking, static power Beaufschlagt has been. Joint feet GN 343.3 be assembled, but are for tools. Safety Warning Avoid overloading the legs beyond 10 kN. Be cautious of sharp edges on the threaded bushing.
