Ganter Normelemente GN 810-230-C 810-230-C Vertical Clamp with Horizontal Base Galvanised Blue Passivated, Holding Force F: 2300 N

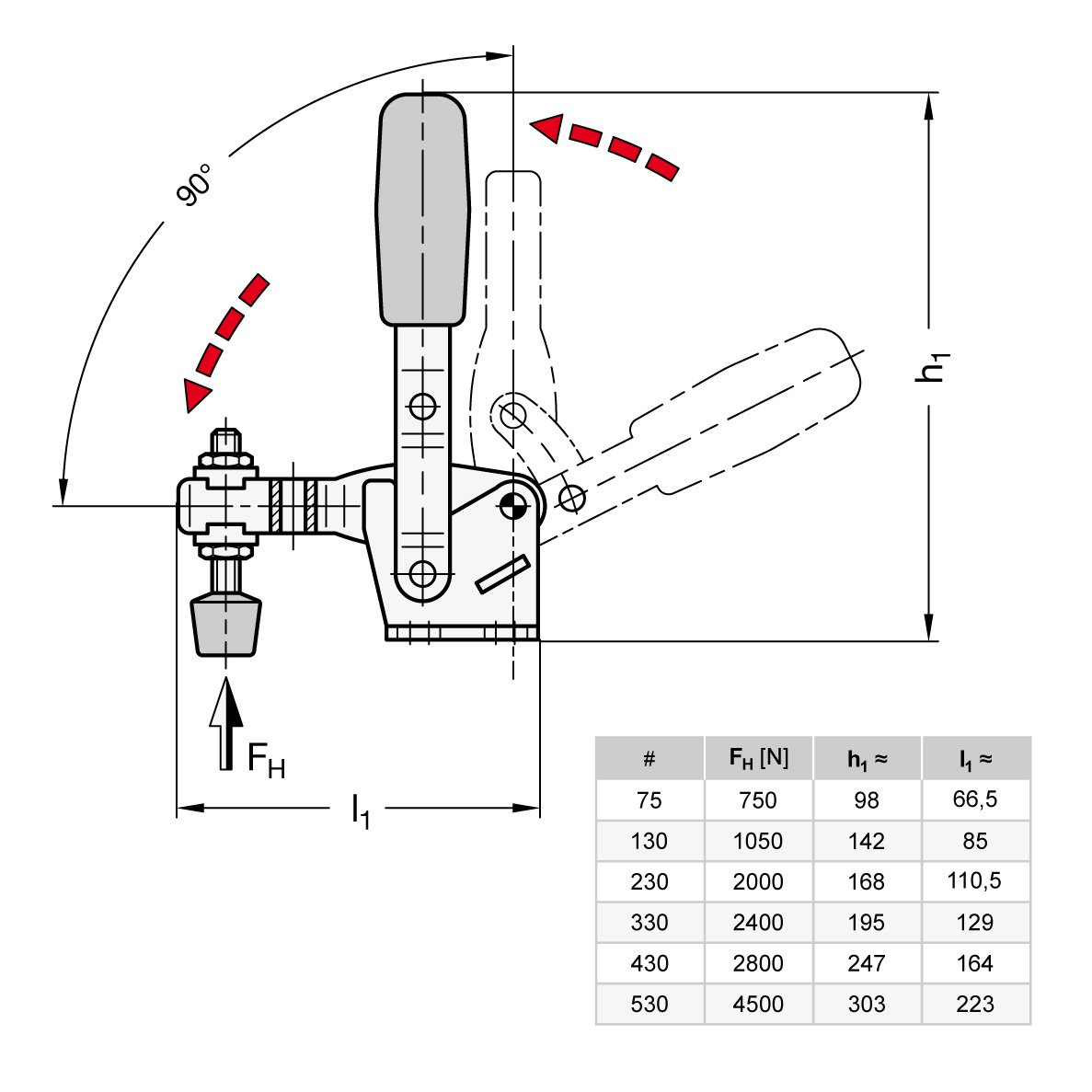

• Total length l1: 110.5 mm; height h1: 168 mm; width b1: 45 mm; hole spacing m1: 19-20 mm; hole spacing m2: 32 mm
• Holding force F: 2000 N

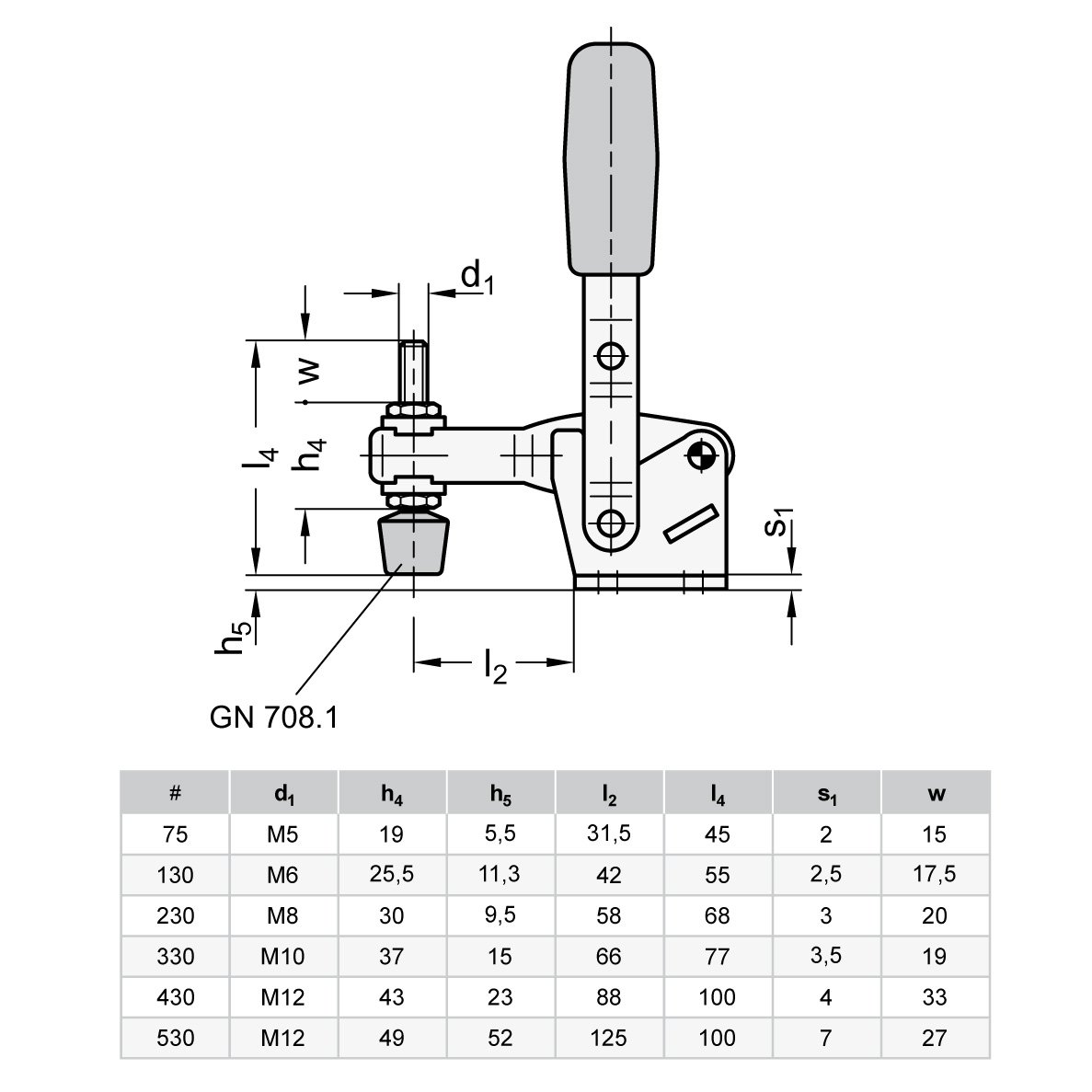

• Form C: open clamping arm, with 2 flank washers and pressure screw GN 708.1
• Tensioner: insert steel C 10, galvanised, blue passivated; bearing bolts tempered; bearing bushings case-hardened; pressure screw GN 708.1: steel, rubber pressure piece 85 Shore A
• All moving parts lubricated with special grease; solid moulded plastic handle: red, oil resistant

Description Vertical tensioners GN 810 work according to the toggle principle. The clamping lever and the clamping arm move in the same direction. In the clamping position, the actuating lever is in a vertical position. A pressure screw with rubber pressure piece GN 708.1, flank washers and the matching lock nuts are included in the box contents of the offered form C.
