Ganter Normelemente | Clamping latches - GN 831-100-S-NI-1 | with Safety Catch | Stainless Steel | 1 Piece

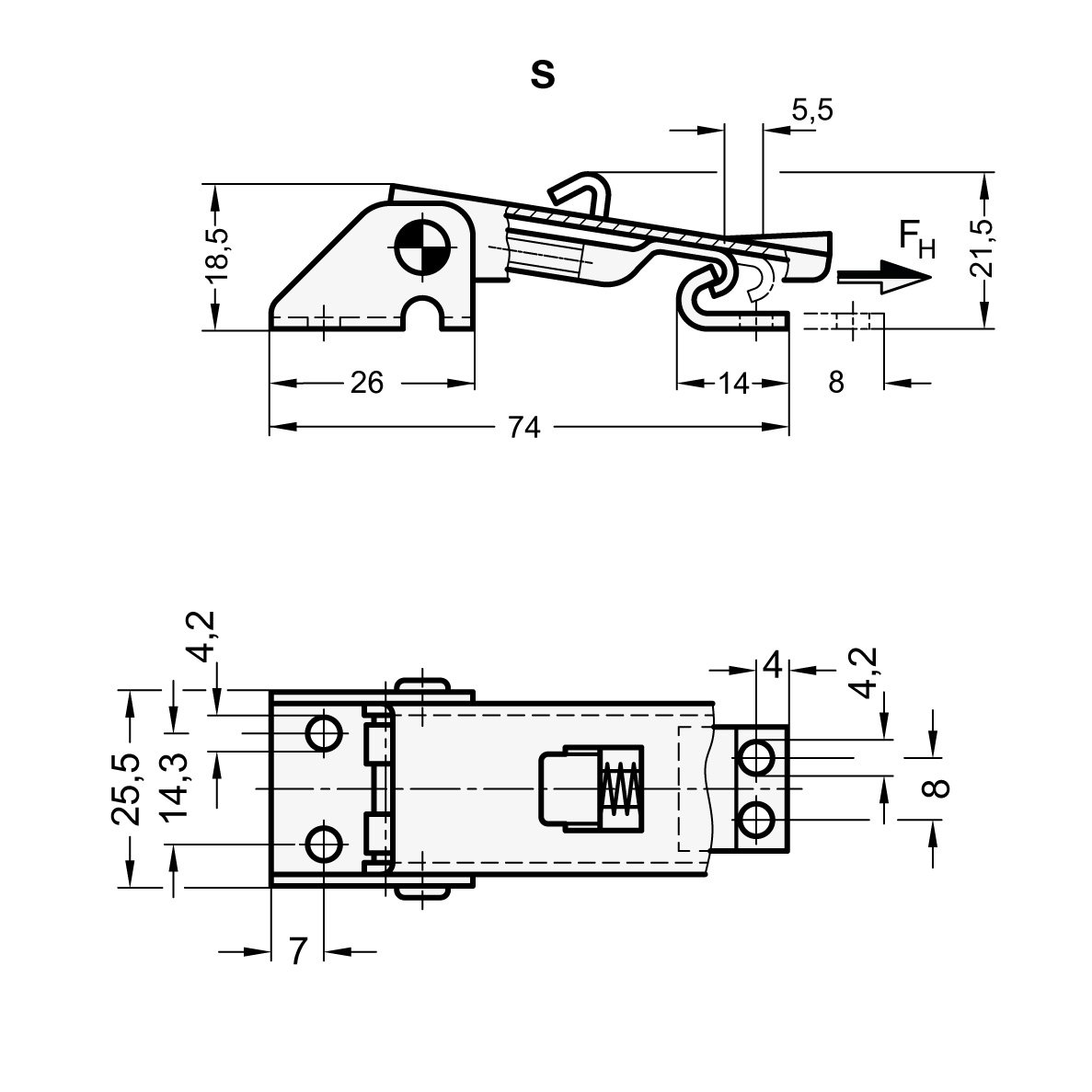

• Total length: 74 mm; height h: 18.5 mm; width b: 25.5 mm; hole spacing m1: 14.3 mm; hole spacing m2: 63 mm - 71 mm; hole spacing m3: 8 mm; stroke distance w1: 5.5 mm; adjustment distance w2: 8 mm
• Holding force in N: 1000
• Form S: with fuse
• Stainless steel: sheet metal parts, rustproof 1.4301; tension hook/bolt stainless, 1.4305
• RoHS Compliant

GN 831 tension locks are used, among other things, to securely hold flaps, container lids and the like. They are vibration-resistant due to the dead center override. The parts to be connected can be pulled together by up to 5 mm during clamping via the stroke w1 of the clamping hook. The adjustment range w2 is achieved via a spindle M5 of the clamping hook. The shape S prevents unintentional loosening of the clamping fastener. Screws with a low head height, such as hexagon socket head cap screws DIN 6912, should be used to fasten these tension locks. The specified holding force is a guide value for the possible static tensile load of the tension lock. Depending on the operating conditions, e.g. vibrations or impact loads, the holding force may be impaired. The counter hook is included in the scope of delivery
