Ganter Normelemente
⏳Price
$17.06
Ganter Normelemente GN 717-3-M6-BK-ST Locking Bolts Silver Pack of 2
★★★★★
$17.06
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

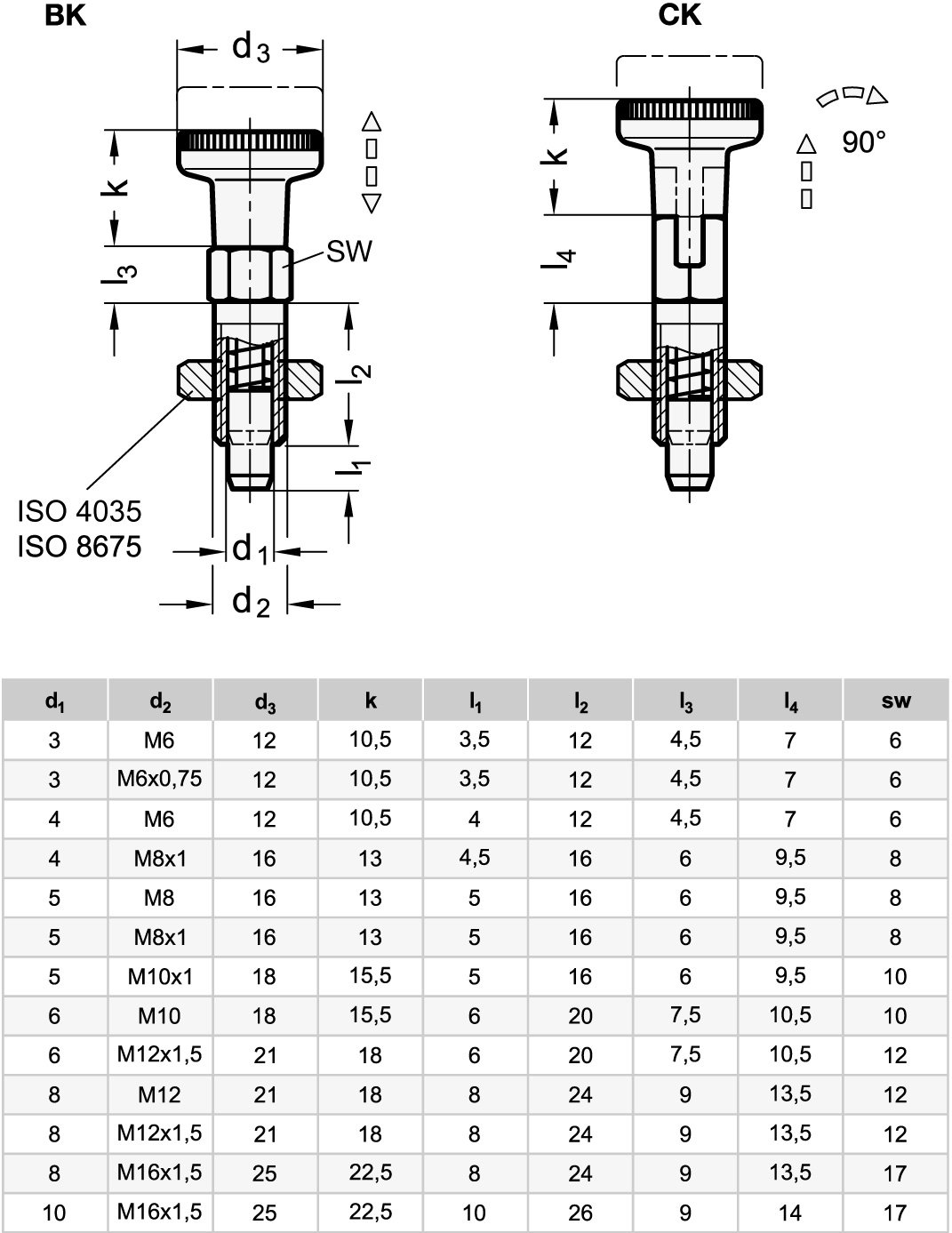

- Locking distance l1: 3.5 mm; thread length l2: 12 mm; bolt diameter d1: 3 mm; thread d2: M6; hex length l3: 4.5 mm.
- Box contents: 2 locking bolts.
- Form BK: without locking lock, with lock nut.
- Guide (threaded part): galvanised steel, blue passivated, locking pin: rust-proof stainless steel (1.4305); compression spring: rust-proof stainless steel (1.4310); button: polyamide black, matt, cannot be dismantled.
- Max. Tightening torque in Nm: 2; spring pressure in N: 3 (beginning) - 12 (end).
Product description
Locking bolts GN 717 are characterised by small dimensions. The insensitivity to misalignment and position errors of the locking holes make these locking bolts universally applicable. The C / CK shape with locking lock is used when the locking pin does not protrude temporarily. During assembly, the max. tightening torque when tightening the lock nut.
