Ganter Normelemente GN 353-30-36-M8-E-55 Stop Buffer with Internal Thread, Black, Gewinde d2: M8

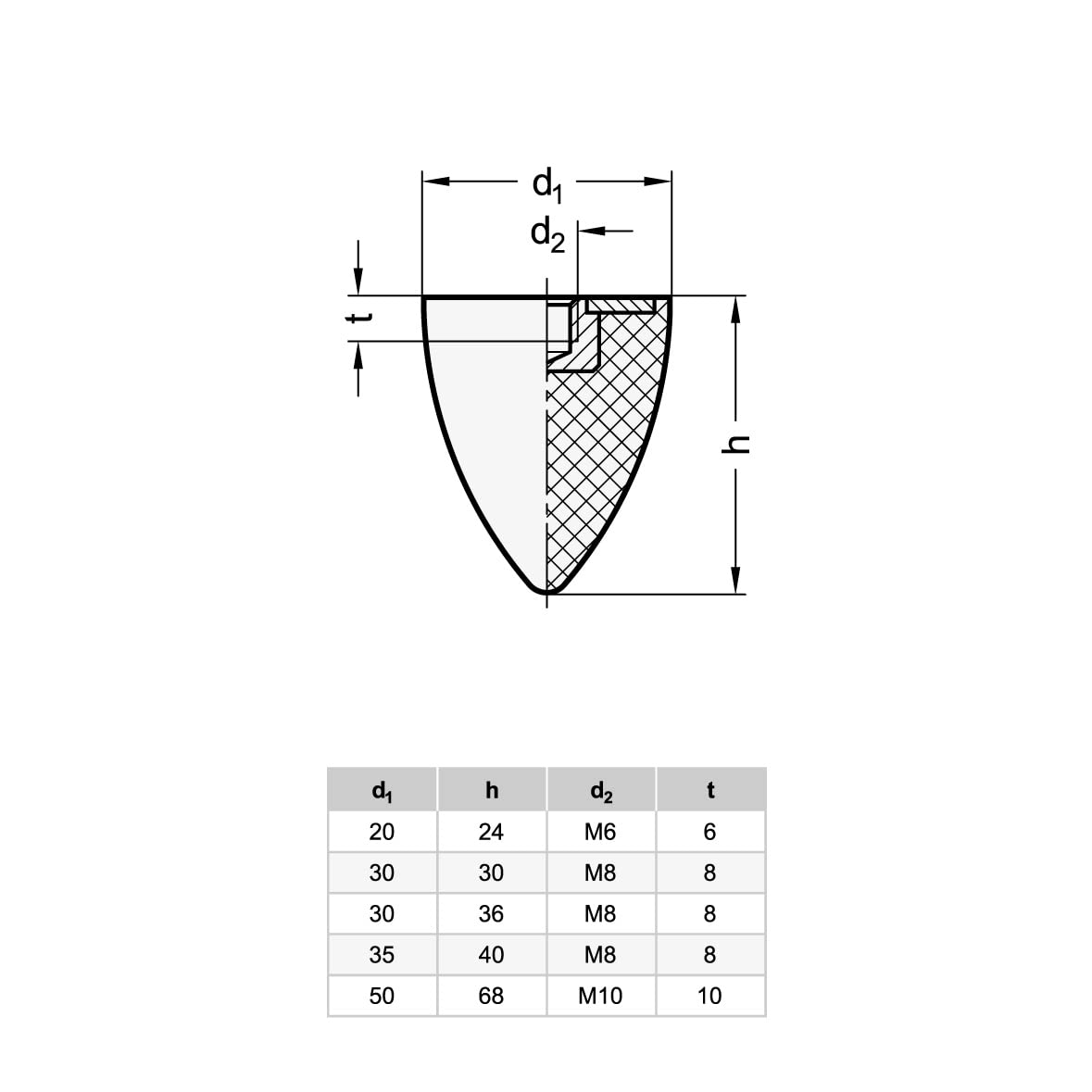

• Outer diameter d1: 30 mm; height h: 36 mm; thread d2: M8; thread depth: 8 mm
• Box contents: 3 stop buffers
• Rubber natural rubber (NR): black, vulcanised on cover plates, temperature-resistant up to 80°; hardness Shore A +/-5: medium (Shore 55)
• Cover plates, threaded bushings: galvanised steel, blue passivated
• RoHS

Bump stops GN 353 are used as end stops, e.g. B. for conveyor trucks. They absorb much of the kinetic energy effective on impact. They have a cushioning effect, avoid strong shocks leading to damage and minimise a rebound. Last but not least, they also have a noise-dampening effect. Due to the parabolic shape, these bump stops have a progressive spring characteristic: the damping of shocks is initially more gentle.
