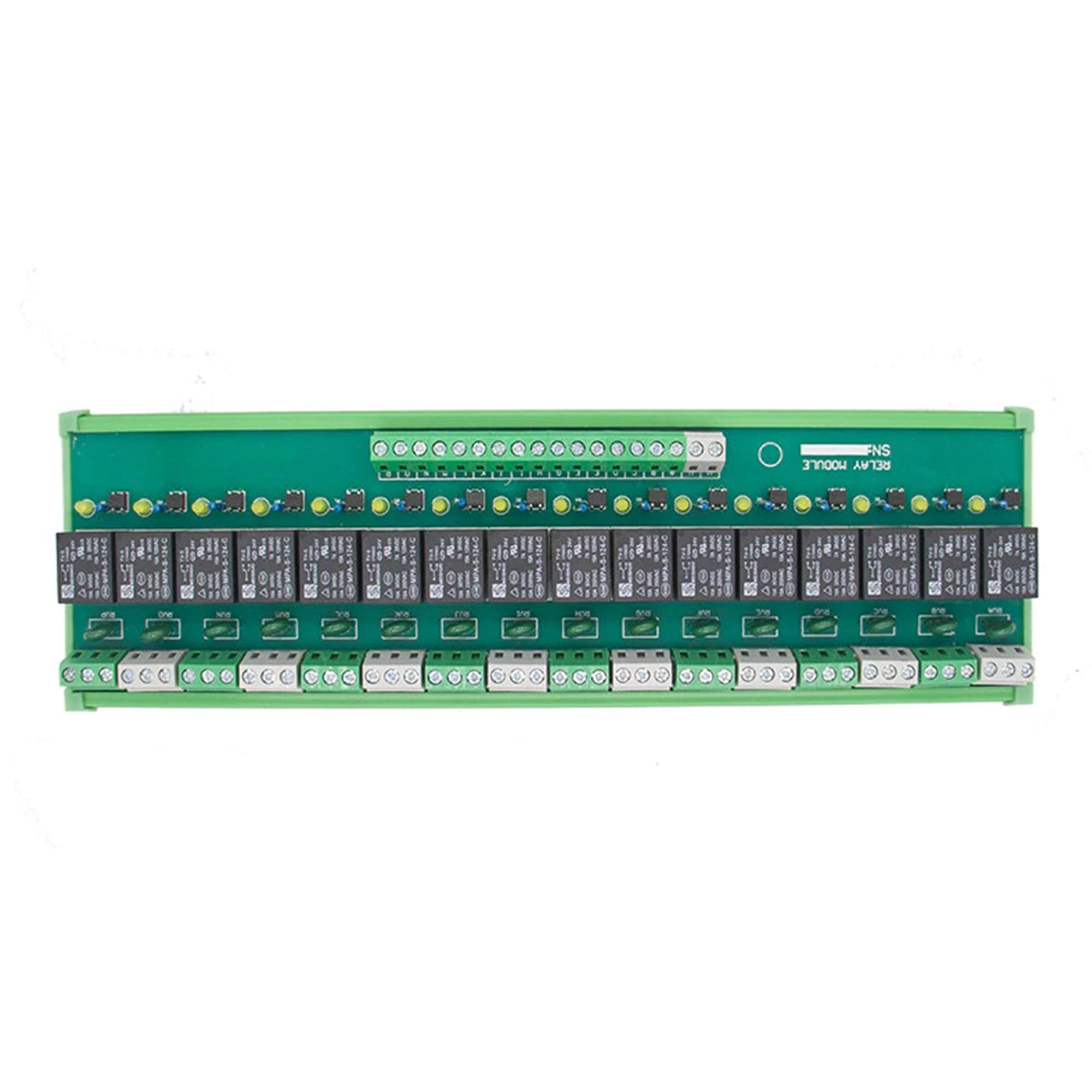

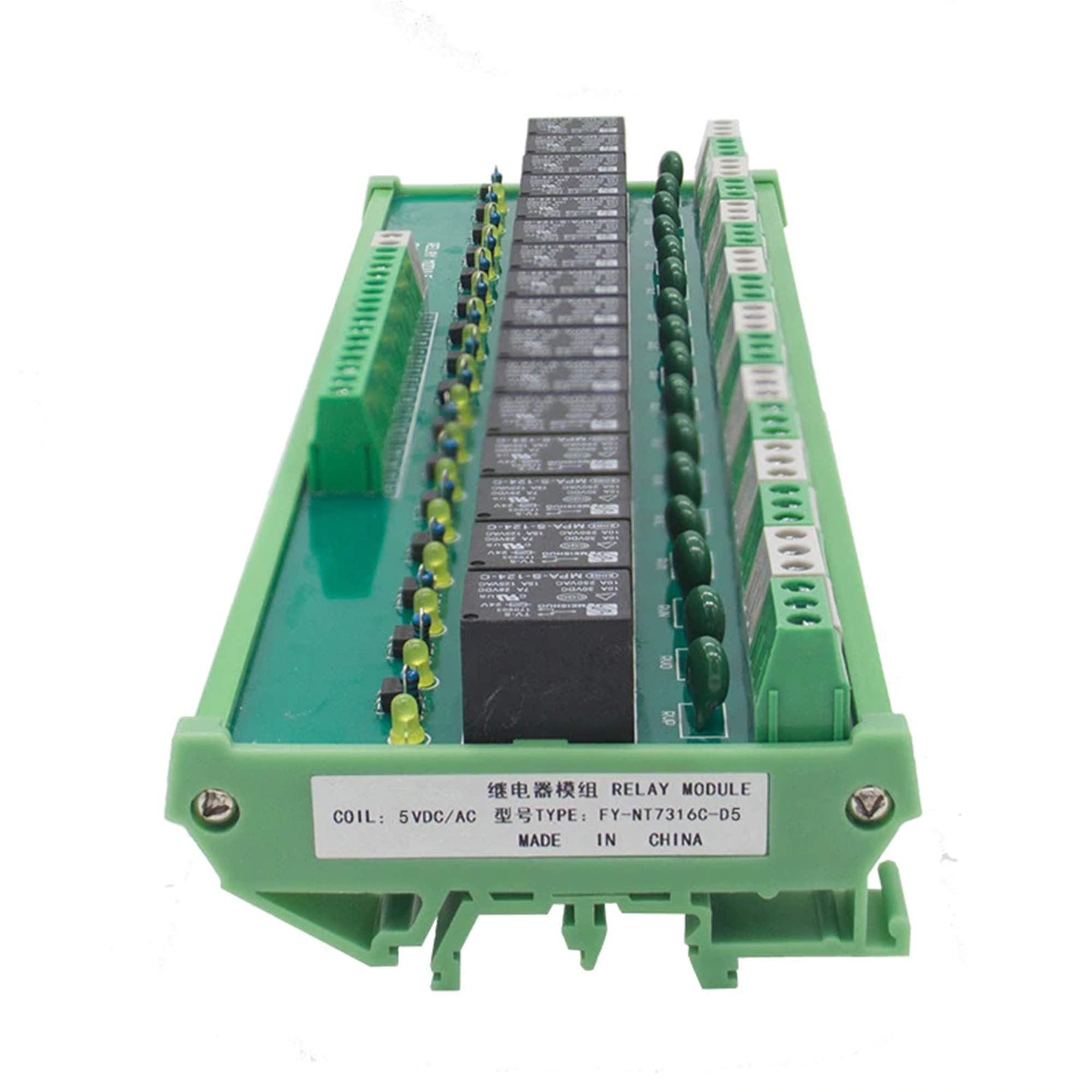

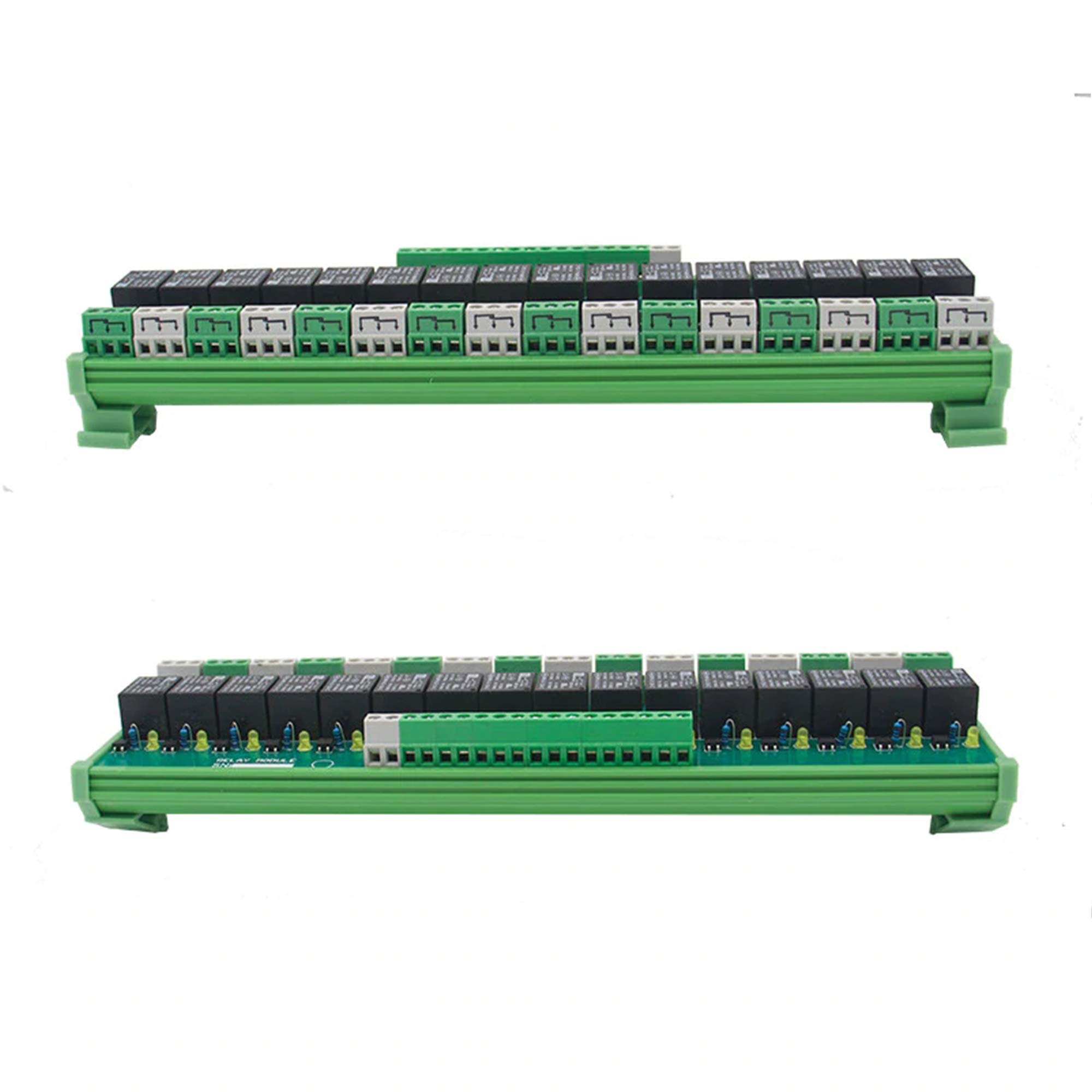

GAEYAELE 16 Groups 1SPDT 1NC1NO Relay Module for AC DC 5V 12V 24V PLC Relay (FY-T7316-12VACDC)

• 1. DIN Rail optional 1/2/4/8/16 channels relay interface modules.
• 2. Sub-miniature intermediate power relay,approved TUV,UL and RoHS compliant.
• 3. Switching current upto 10A at 250VAC or 30VDC.
• 4. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use.
• 5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel.

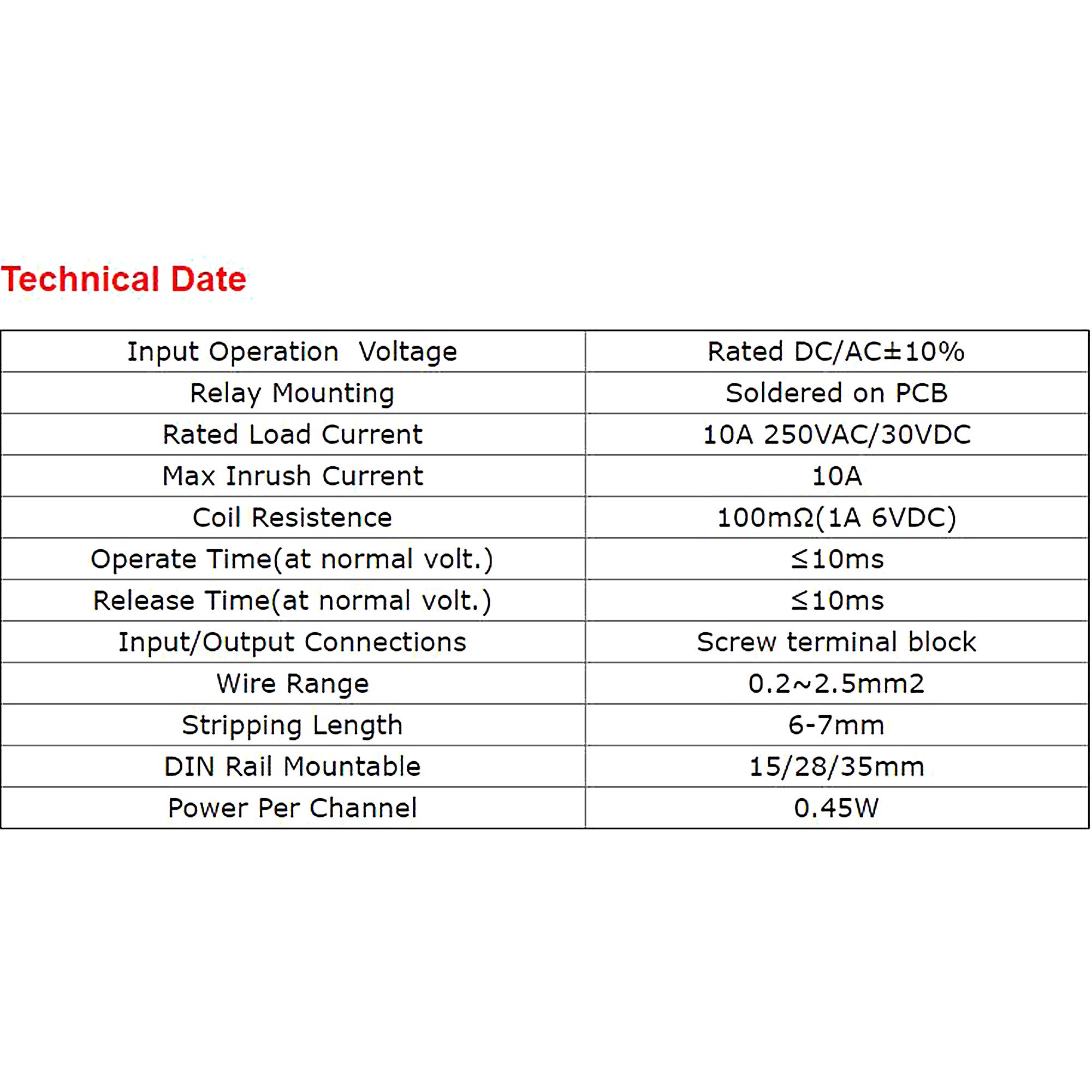

General Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed. Contact Load:Low Power Usage:General Purpose Theory:Electromagnetic Relay is_customized:Yes Protect Feature:Sealed Model Number:FY-T7316 Relay Module Power Source:DC Voltage:12V 24V Rated voltage:12VAC/DC, 24VAC/DC Relay Mounting:Soldered on PCB Rated Load Current:10A 250VAC/30VDC Output contact::16groups, 1NO1NC Max voltage:110% rated value Rated current:21.8mA Coil Resistence:1A 6VDC Warranty/guarantee:18months MOQ:1PCS Product Name:Relay Module
