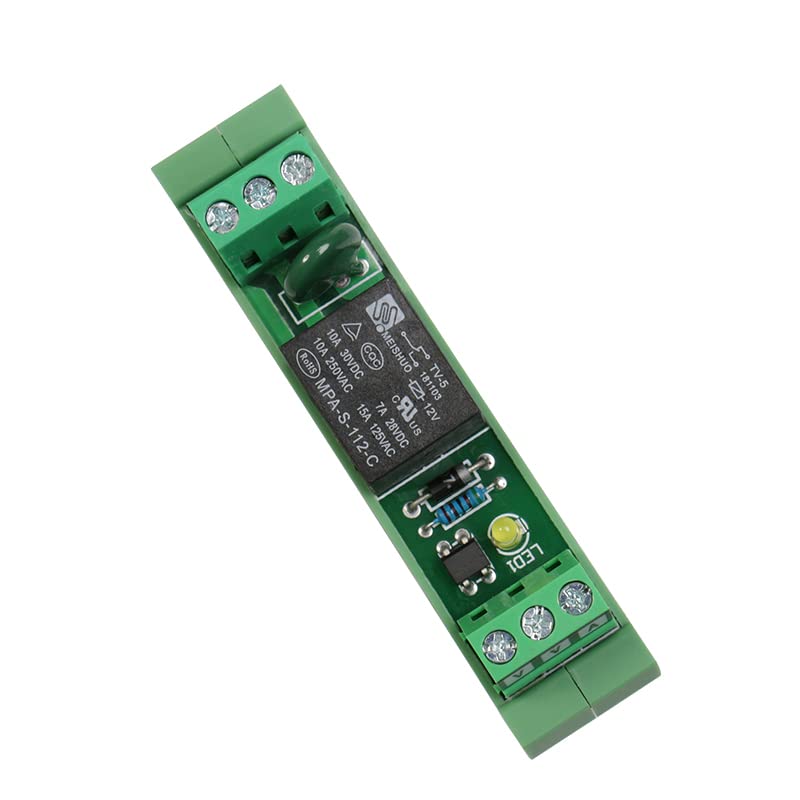

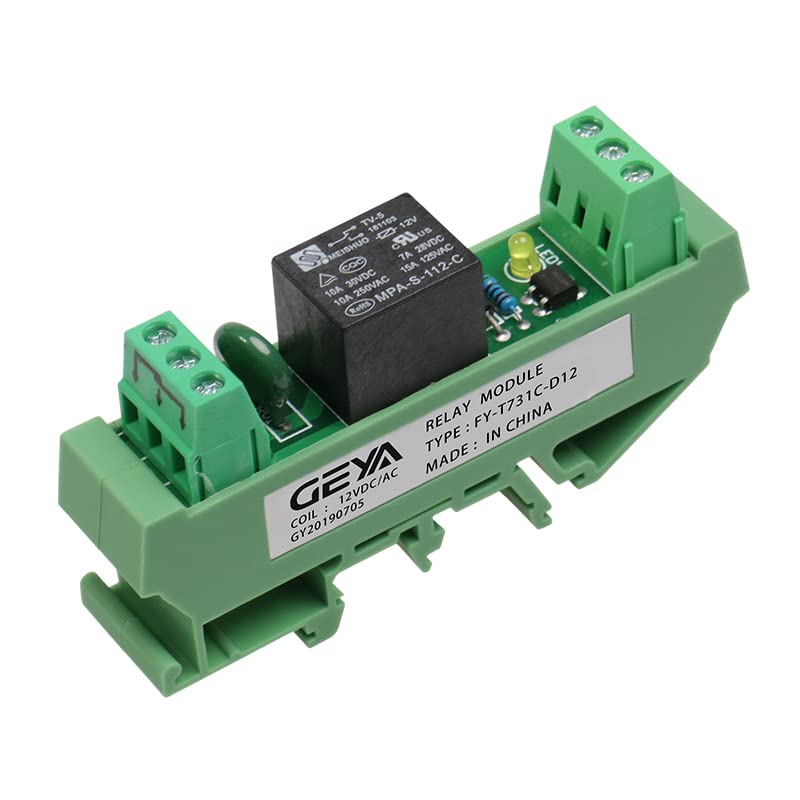

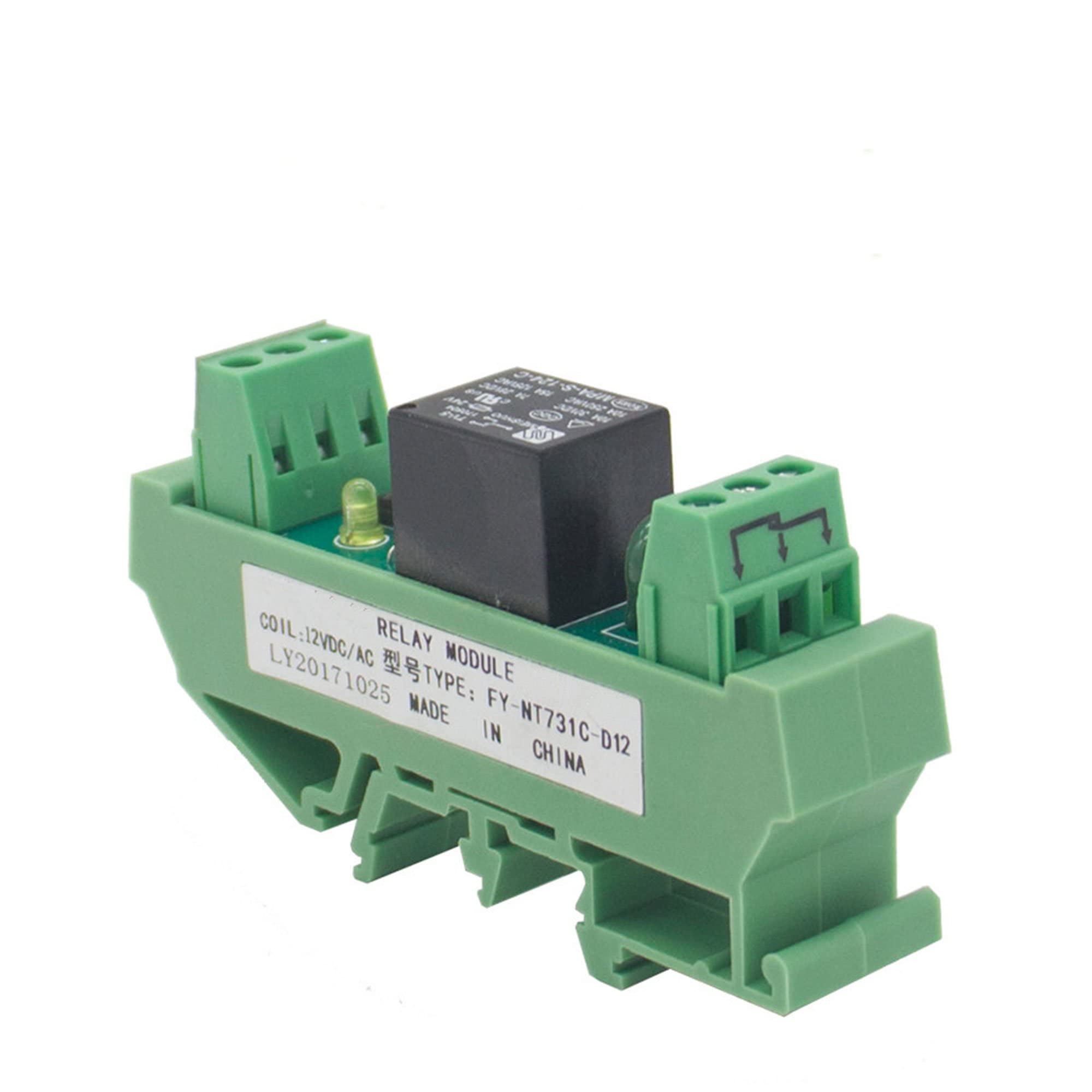

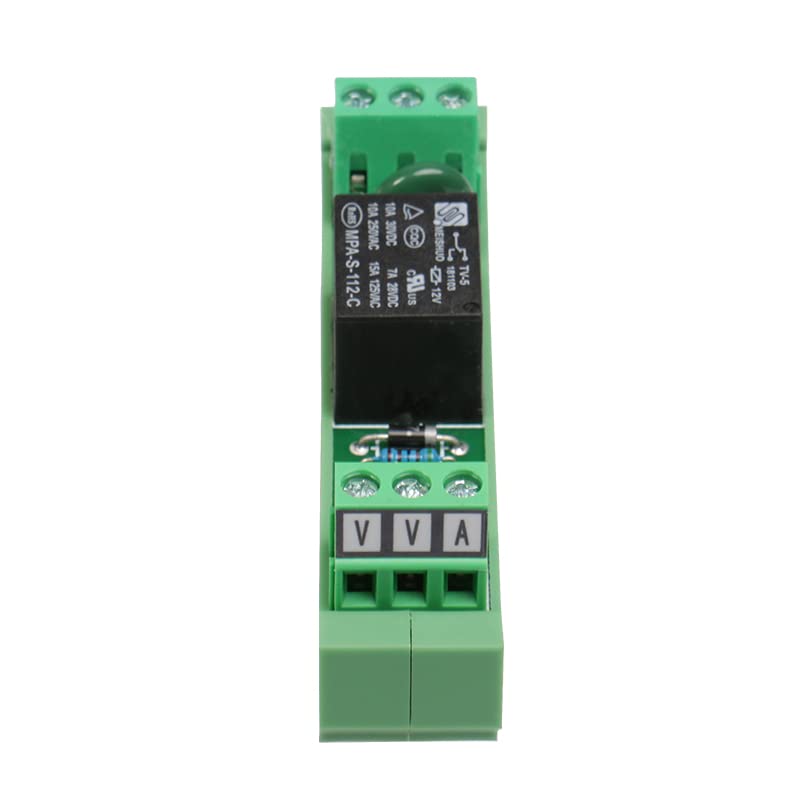

GAEYAELE 1 Channel Relay Module AC/DC 12V Din Rail Mounted GSM Relay Control Timer Module (FY-T731-12VACDC)

• DIN Rail optional 1/2/4/8/16 channels relay interface modules.
• Sub-miniature intermediate power relay,approved TUV,UL and RoHS compliant.
• Switching current upto 10A at 250VAC or 30VDC.
• Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use.
• Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel.

Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed. Item specifics Contact Load:Low Power Usage:General Purpose Power Source:AC Theory:Electromagnetic Relay is_customized:Yes Protect Feature:Sealed Rated voltage:12VAC/DC, 24VAC/DC, 230VAC Relay Mounting:Soldered on PCB Rated Load Current:10A 250VAC/30VDC Output contact::1 groups, 1NO1NC Max voltage:110% rated value Rated current:21.8mA Coil Resistence:1A 6VDC Warranty/guarantee:18months MOQ:1PCS Product Name:Relay Module
