G6B-1114P-US DC12 12VDC Power PCB Relay, 5A SPST-NO 1 Form A Through-Hole Solder Pin Miniature General Purpose Relay, G6B-1114P-US 12DC, Board Mount, 720 Ohm Non-Latching Coil, 1 Pack

• [MODEL & SPEC CHECK] G6B-1114P-US DC12 / G6B-1114P-US 12DC miniature power PCB relay, 1 pack. Match the original relay model, 12VDC coil, 5A contact rating, SPST-NO / 1 Form A contact form, through-hole solder-pin layout and PCB footprint before ordering.

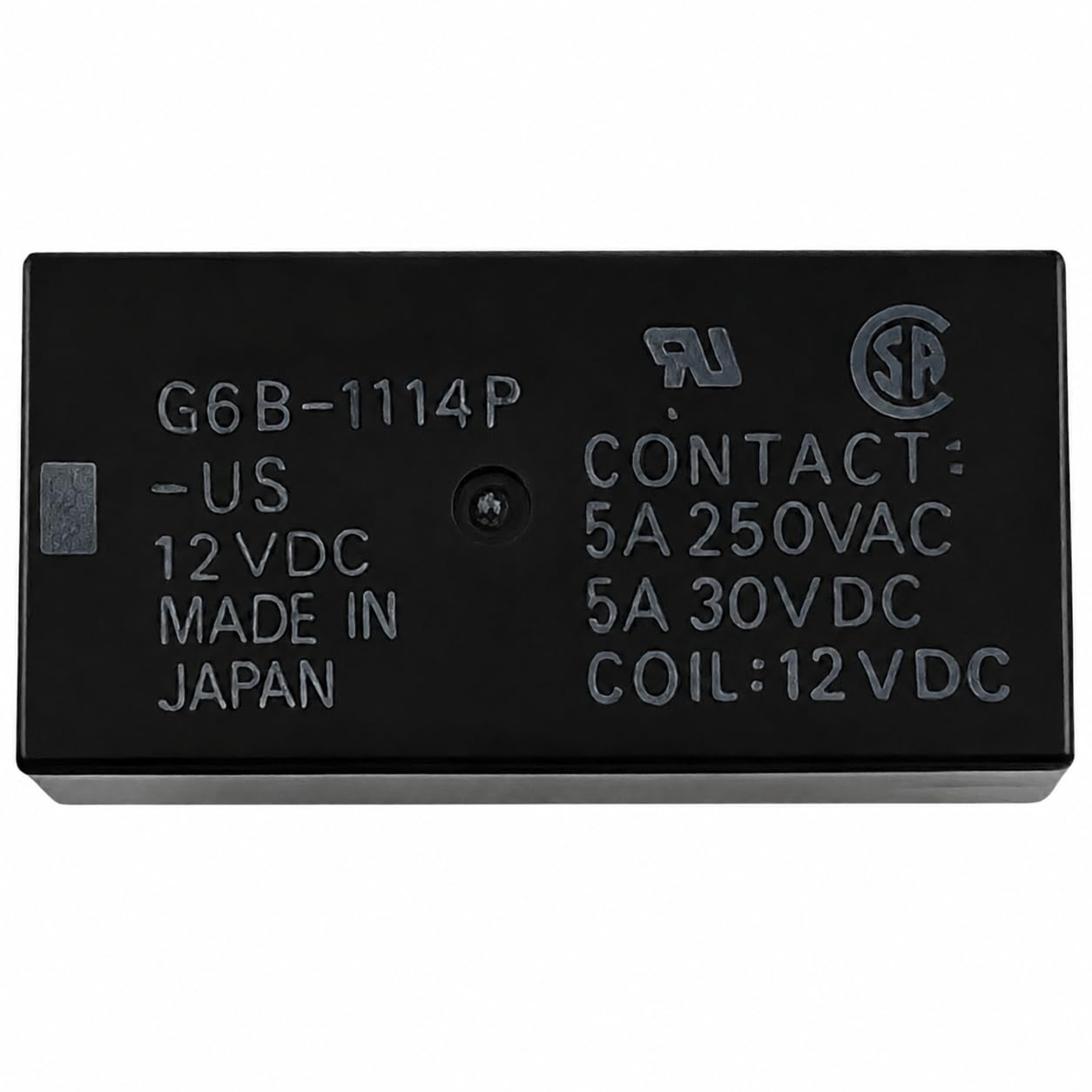

• [ELECTRICAL RATING] Relay housing is marked COIL: 12VDC and CONTACT: 5A 250VAC / 5A 30VDC. Distributor specifications list 720 ohm coil resistance, non-latching coil type, solder/PC pin termination and G6B series board-mount relay construction.
• [BOARD-MOUNT APPLICATION] Designed for control board and PCB-level relay replacement where the original board calls for Omron G6B-1114P-US DC12 or the same 12VDC SPST-NO 5A solder-pin relay footprint. Commonly checked for industrial, automation, control equipment and power-management boards.
• [INSTALLATION NOTES] This is not a plug-in automotive fuse-box relay. Desolder and solder only with proper electronics tools. Disconnect power, discharge capacitors, confirm coil polarity/circuit design if applicable, inspect pads/traces, and avoid overheating the relay body or PCB during service.
• [BUYER VERIFICATION] Part numbers and brand names are used for model identification and compatibility verification. Confirm your old relay marking, pin count, pin spacing, board footprint, coil voltage and load rating; do not use if your original relay uses a different contact form, coil voltage or terminal layout.

Product Fact Block Model: G6B-1114P-US DC12 / G6B-1114P-US 12DC. Relay type: miniature power PCB relay / general purpose relay. Coil: 12VDC, non-latching, 720 ohm reference specification. Contact form: SPST-NO / 1 Form A. Contact rating: housing marked 5A 250VAC and 5A 30VDC. Mounting / terminals: through-hole board mount with solder / PC pins. Package: 1 relay. Fitment / Model Verification Checklist Match the full relay marking: G6B-1114P-US DC12 or G6B-1114P-US 12DC. Confirm the coil voltage is 12VDC and the contact form is SPST-NO / 1 Form A. Compare pin count, pin spacing, solder-pin footprint, relay height clearance and board layout before installation. Confirm the load current and voltage are within your equipment design and datasheet conditions. Installation Notes Use proper soldering and desoldering tools; avoid pulling relay pins while solder is still attached to the PCB pads. Disconnect power and verify stored energy is discharged before servicing control boards. Inspect nearby traces, solder pads, connectors and components, because a failed relay may be caused by another circuit issue. Mini FAQ Q: Is this a plug-in automotive relay? A: No. This is a through-hole PCB relay with solder / PC pins. Q: Can it replace G6B-1114P-US 12DC? A: Use it when your original relay marking, 12VDC coil, SPST-NO contact form and PCB footprint match. Q: Will it fix my equipment? A: It may help when diagnosis confirms relay failure, but it is not a guaranteed repair for unrelated circuit problems.
