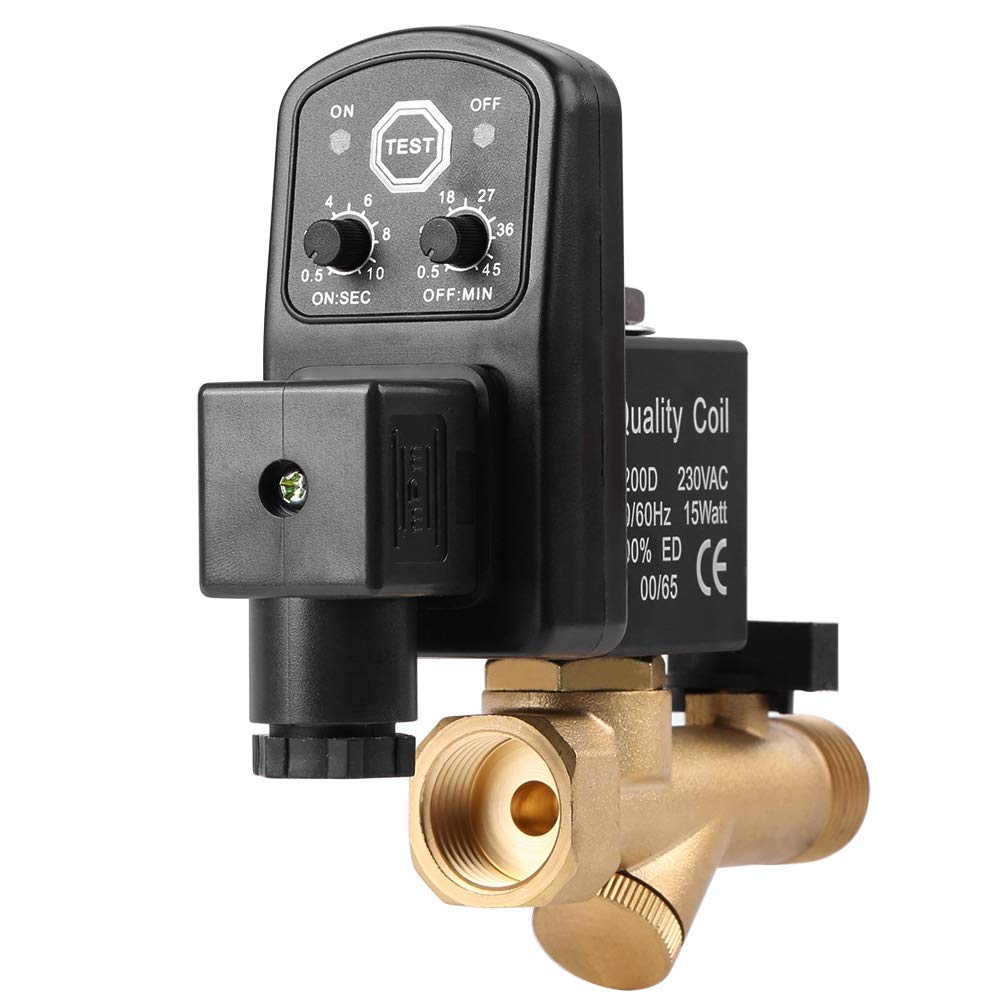

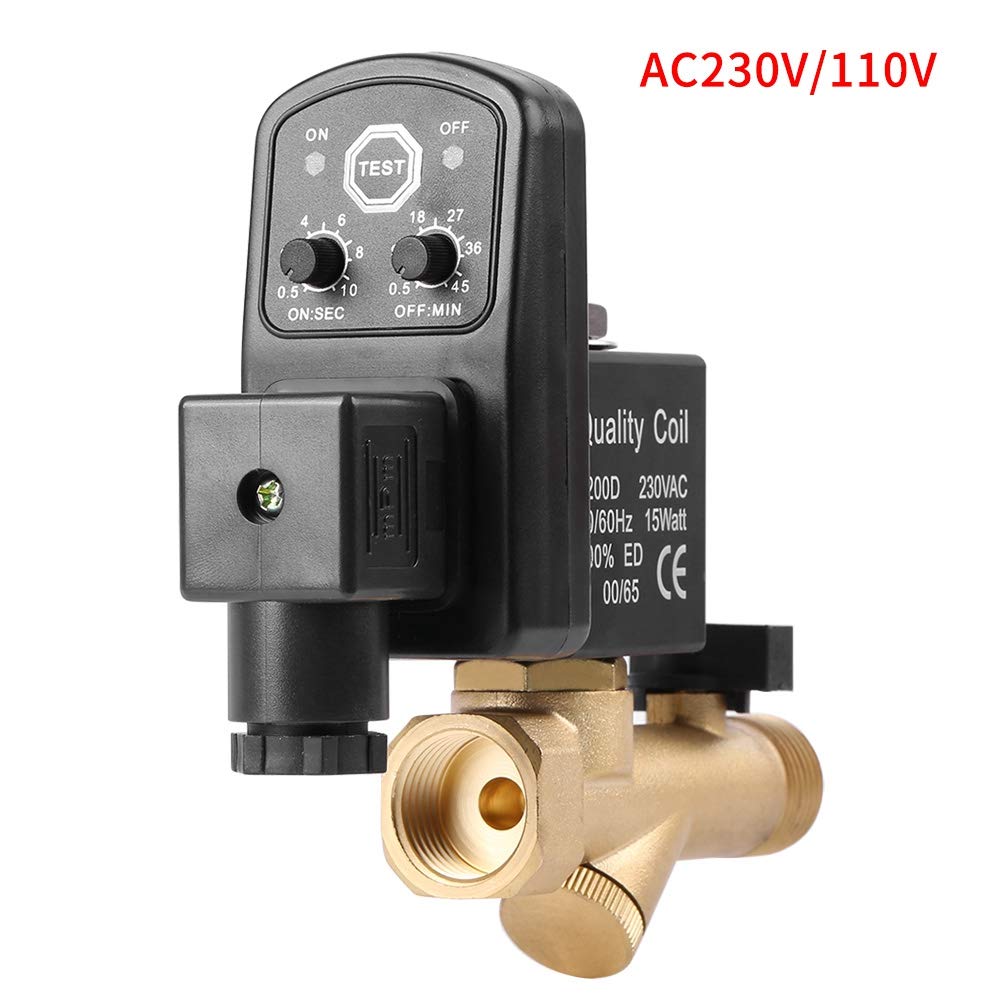

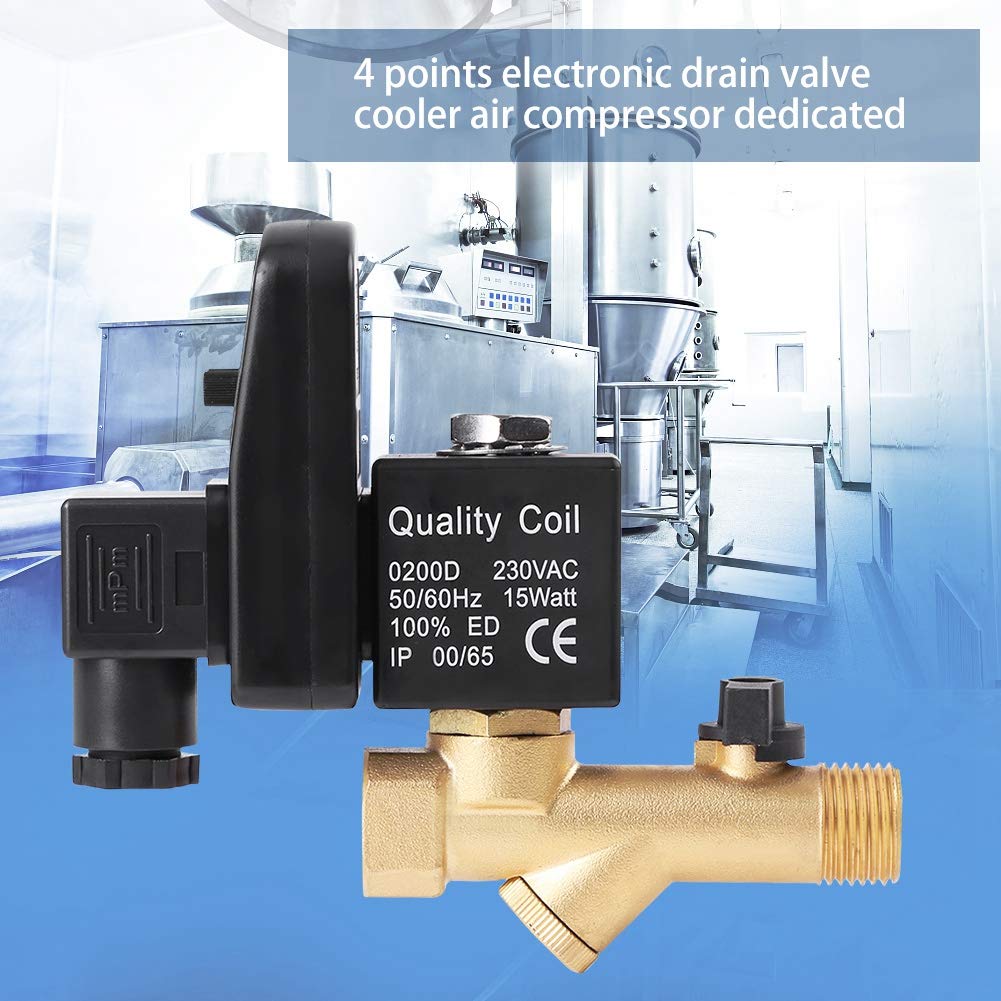

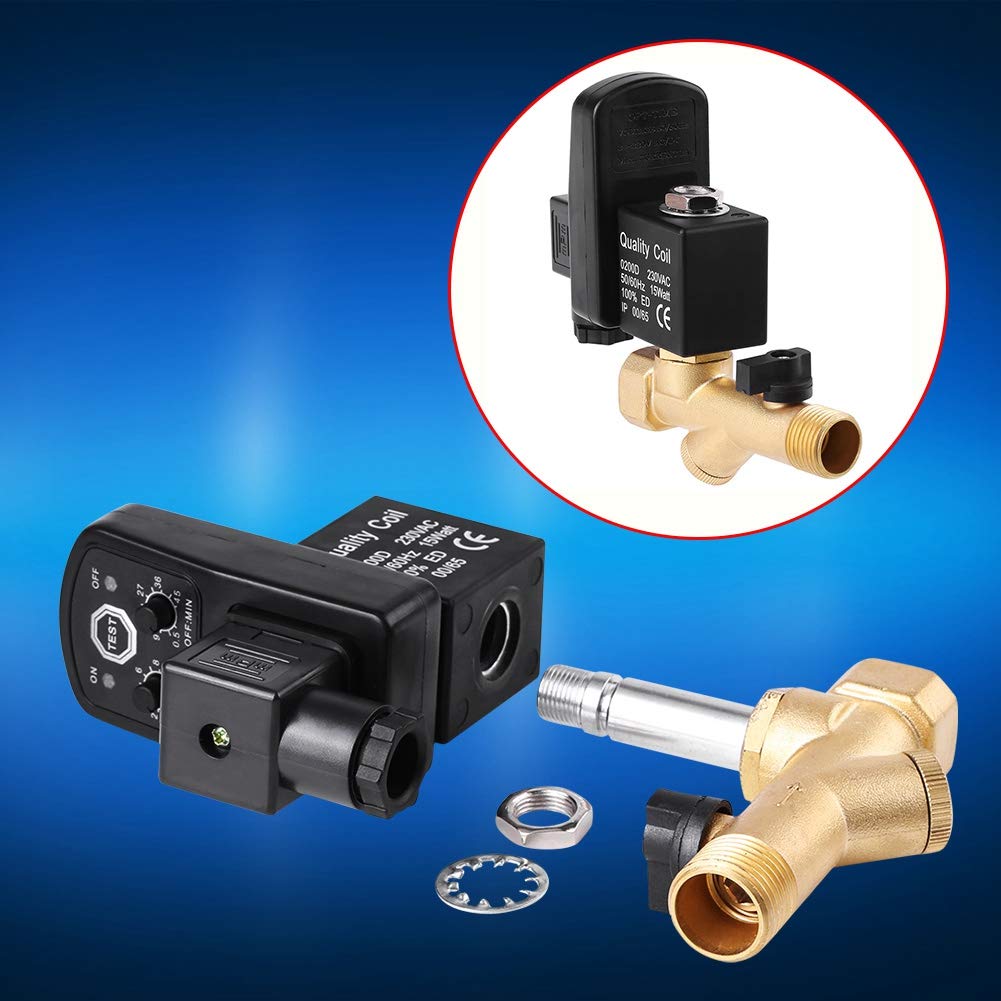

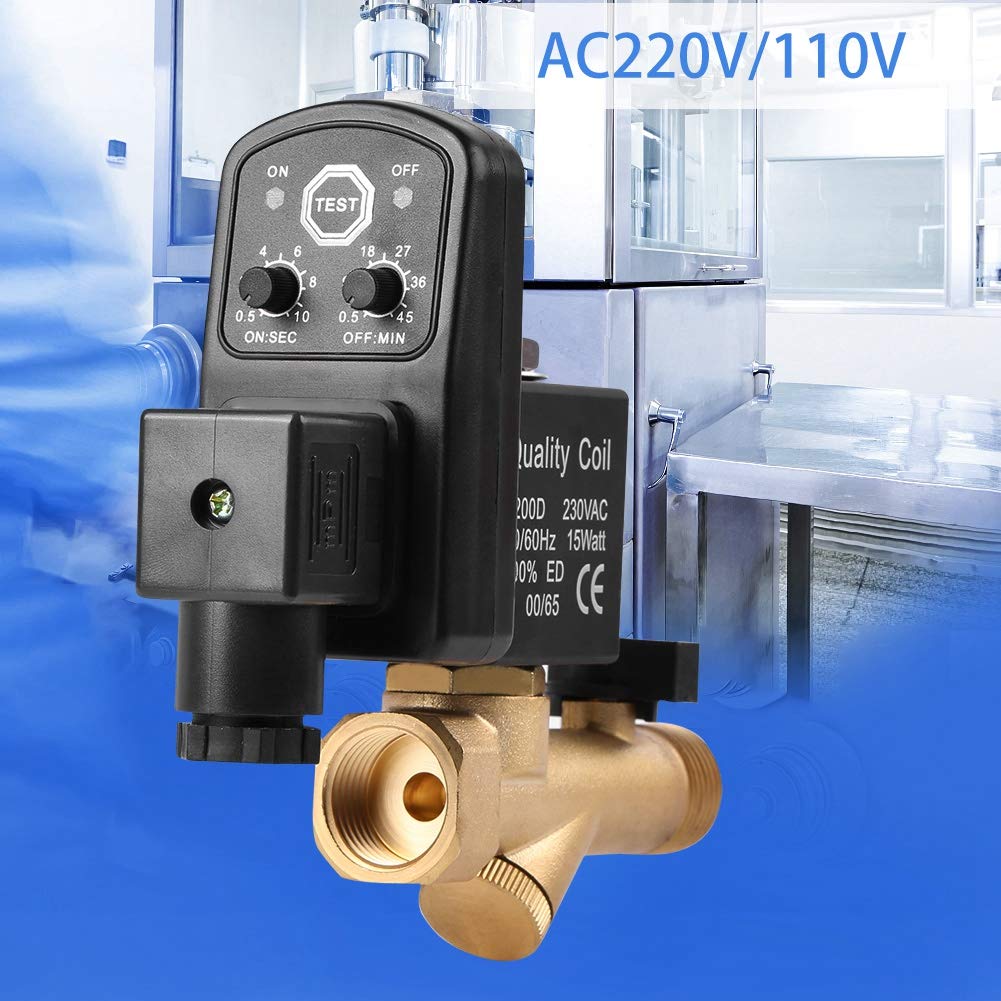

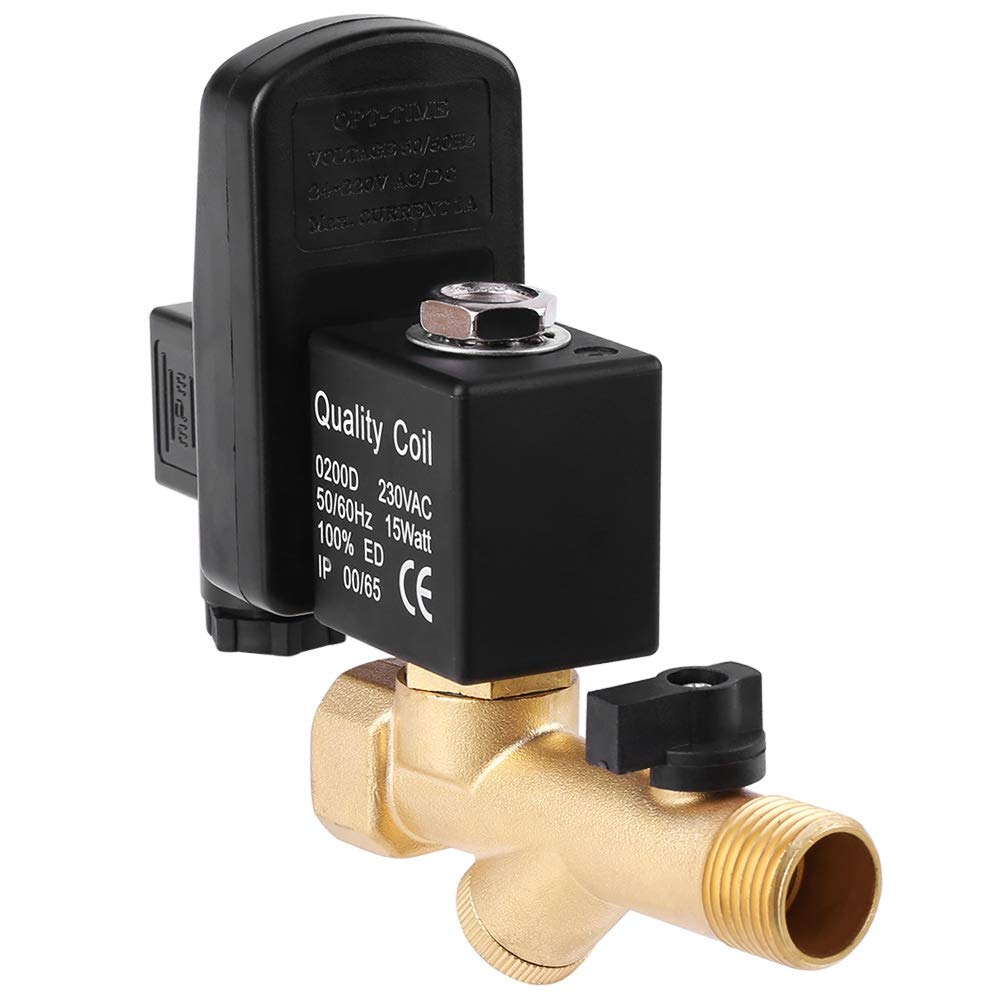

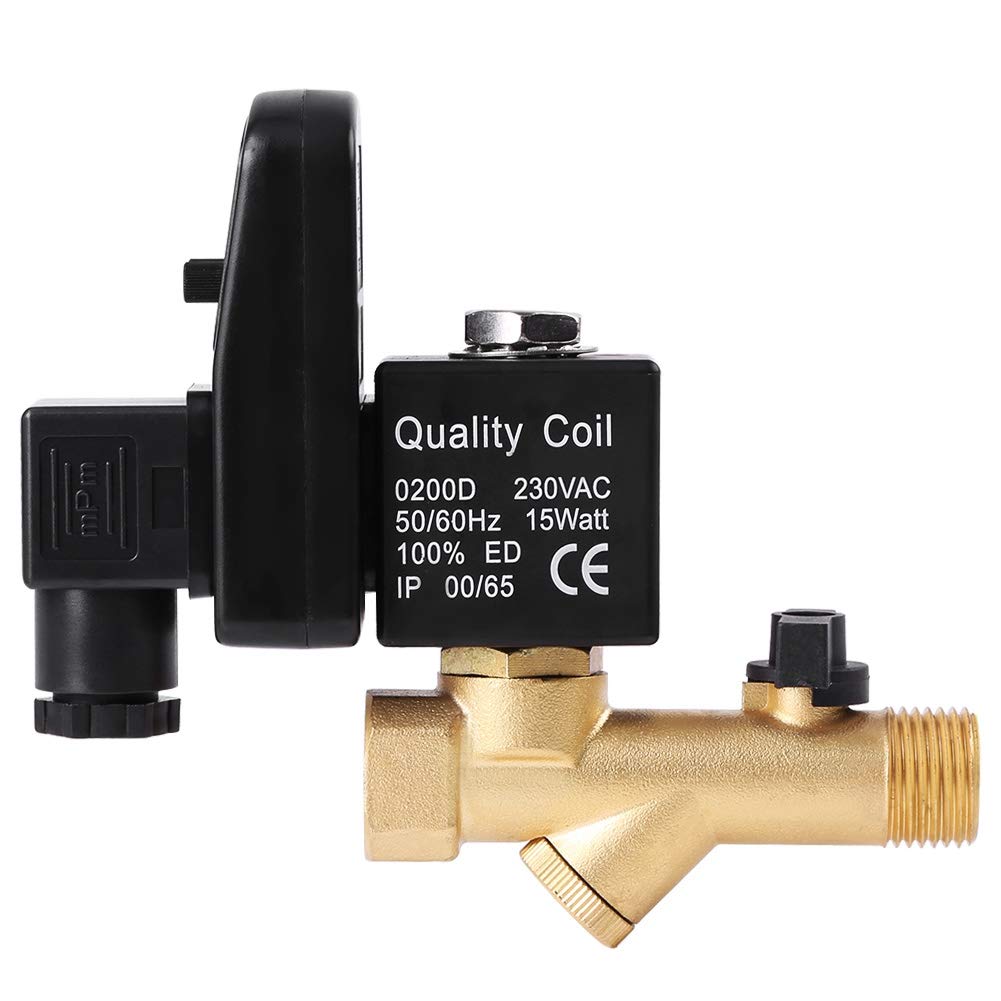

G1/2 DN15 Electronic Timed Drain Valve Automatic Operate Direct-Acting Drain Valve for Air Compressor Condensate Management(AC230V)

• ✔ Condensate Drain Valve -- This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally
• ✔ Electric Timed Drain Valve -- Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions
• ✔ Valve Open&Close Time -- Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes
• ✔ Automatically Operate -- It operate automatically and waste less compressed air when discharging condensate
• ✔ G1/2(DN15) Thread -- G1/2 thread is widely used and can fit for most air compressors

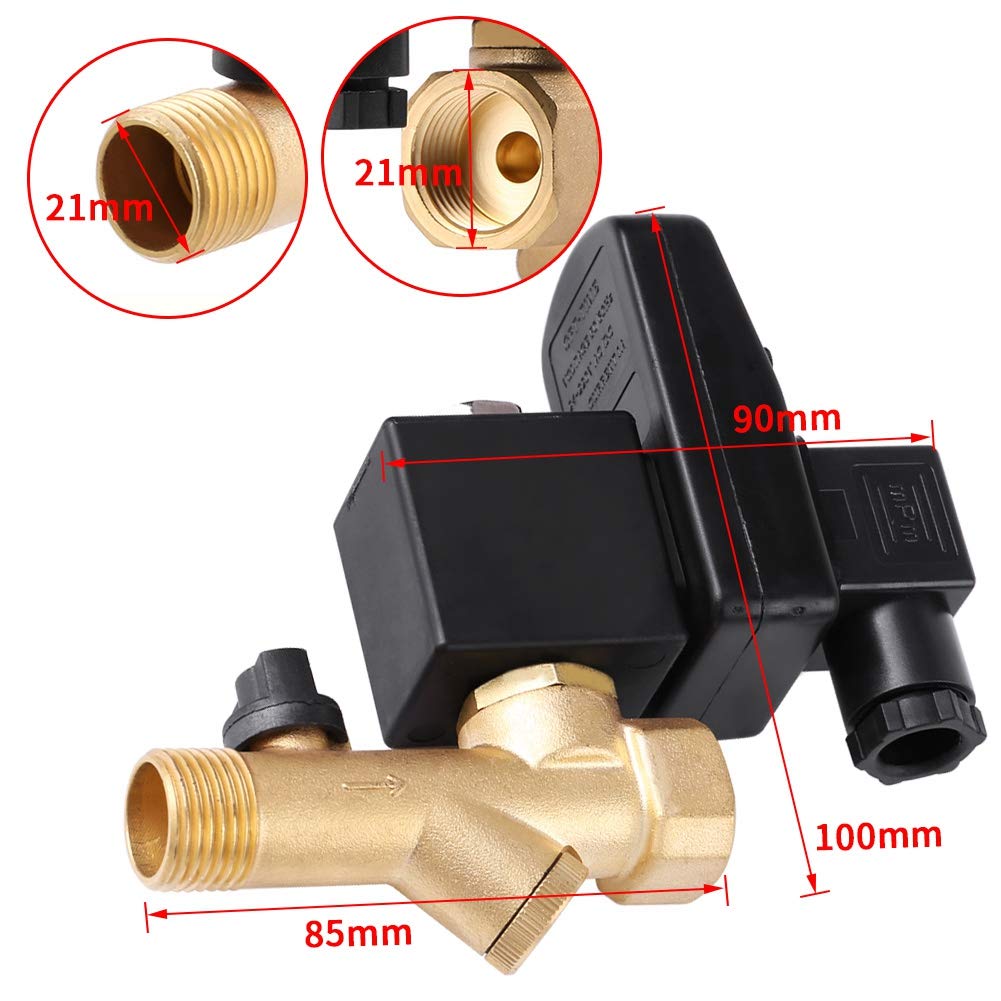

Specifications: Voltage: AC110V, AC230V (Optional) Type: Integrated Valve Material: Brass Valve Operating Modes: Direct-acting Interval(OFF): 0.5-45min. Discharge Time: 0.5-10sec. Thread: G1/2 (DN15) Thread Outer Diameter: Approx. 21mm Pressure: 0-1.6Mpa Fluid: Air, water Fluid Temperature: -5℃~80℃ Fluid Direction: One-way Package Includes: 1 x Drain Valve Note: The AC230V one can also connect to AC220V. Features: 1. This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally. 2. Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions. 3. Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes. 4. It operate automatically and waste less compressed air when discharging condensate. 5. G1/2 thread is widely used and can fit for most air compressors.
