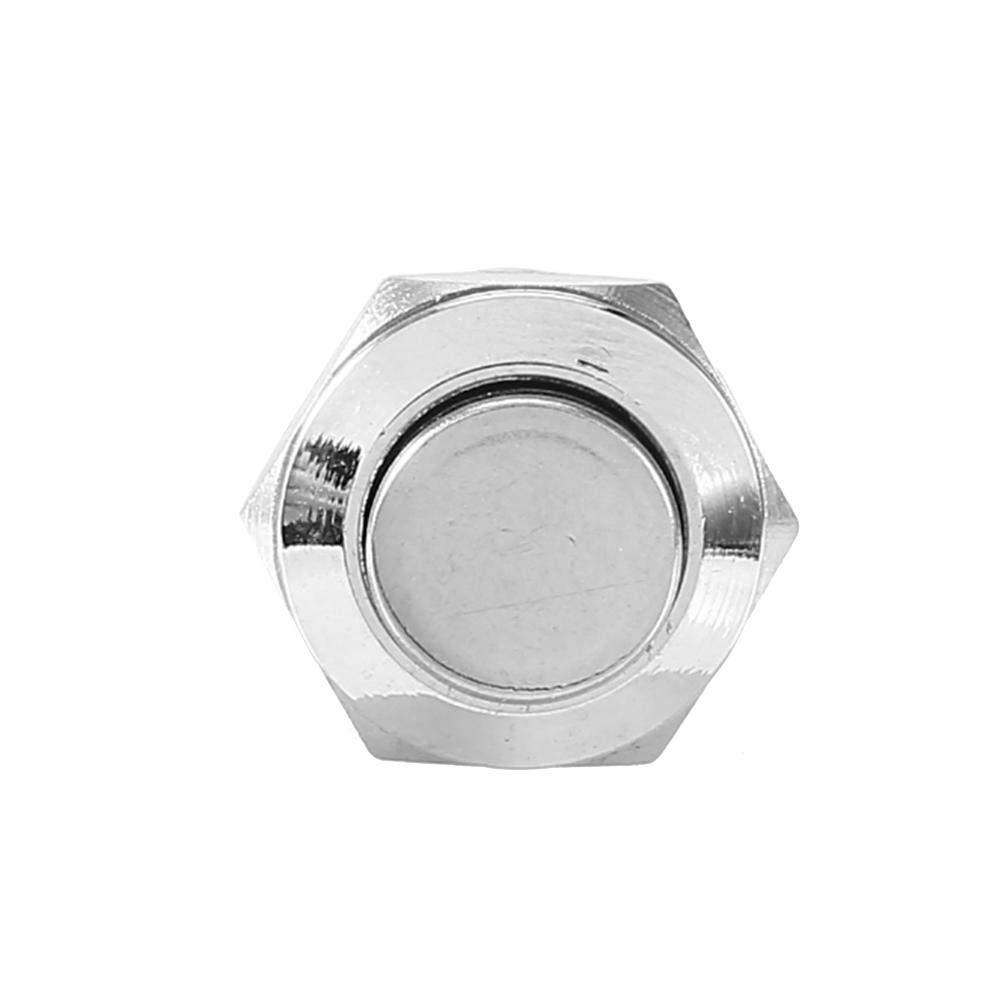

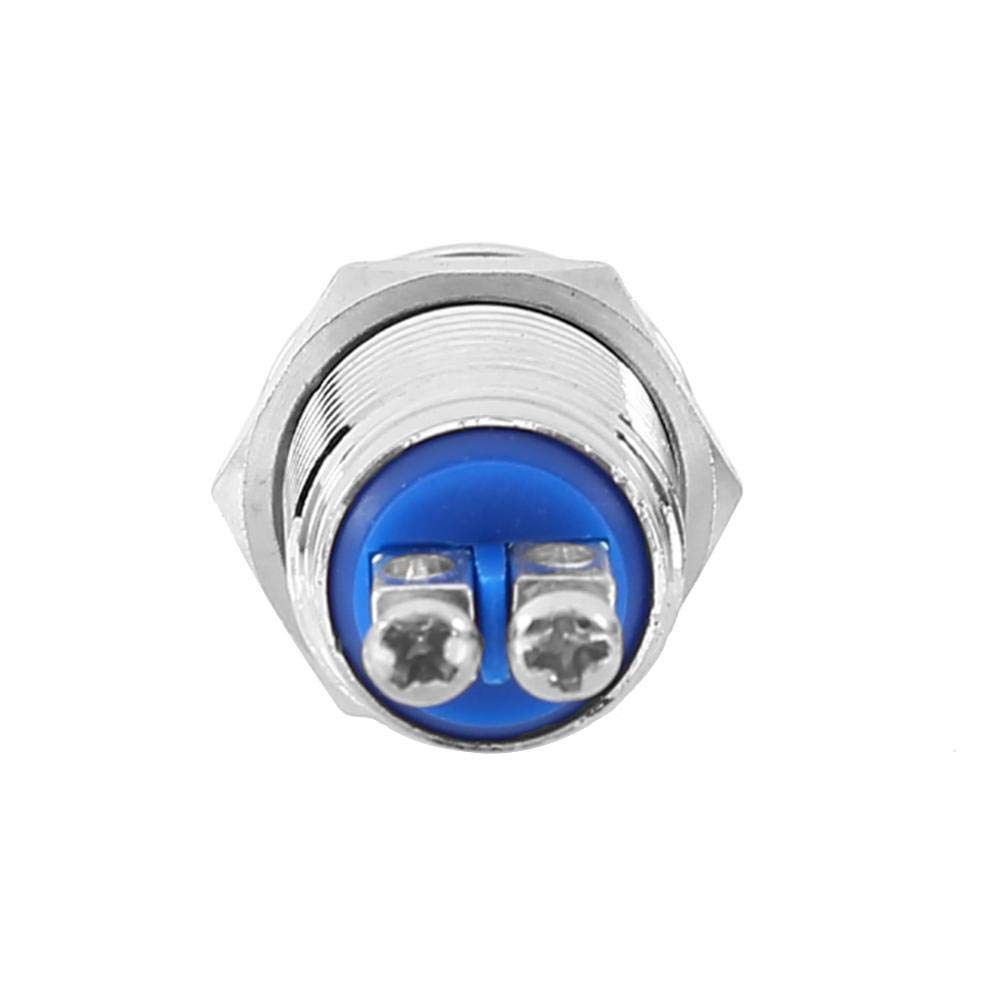

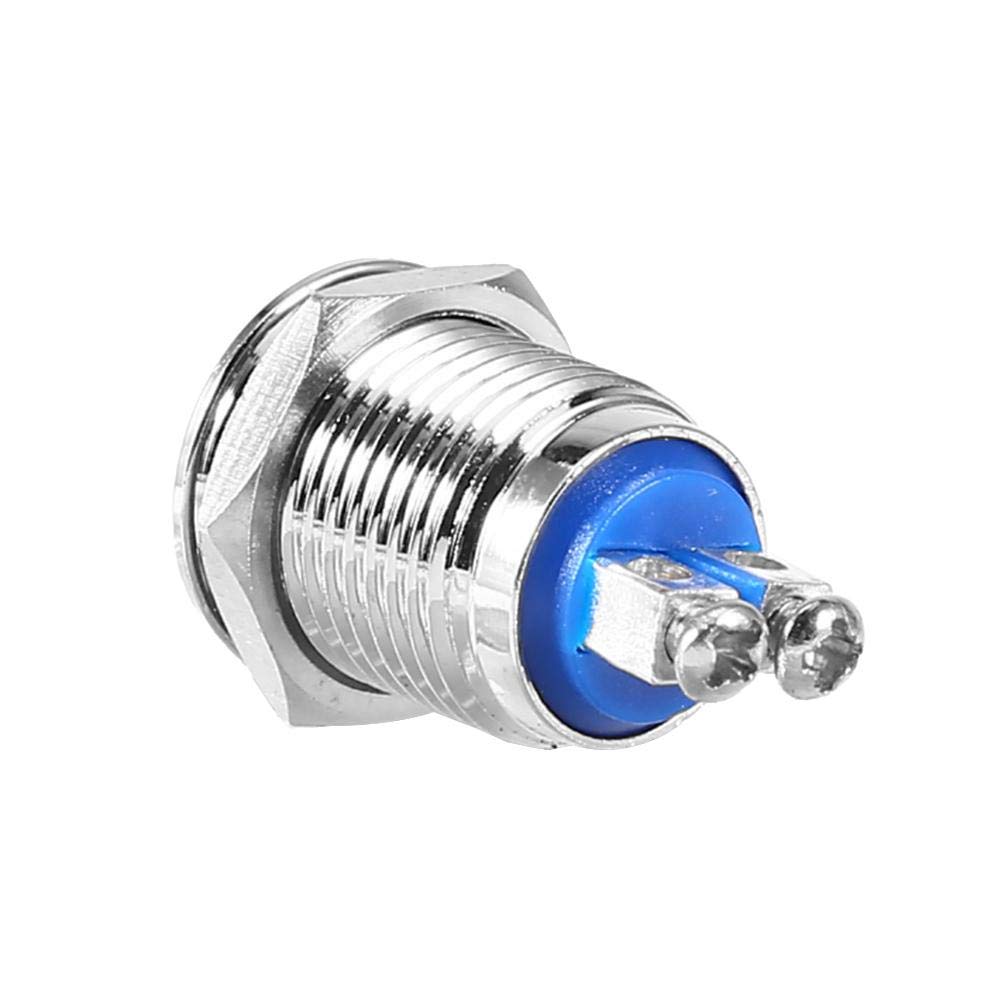

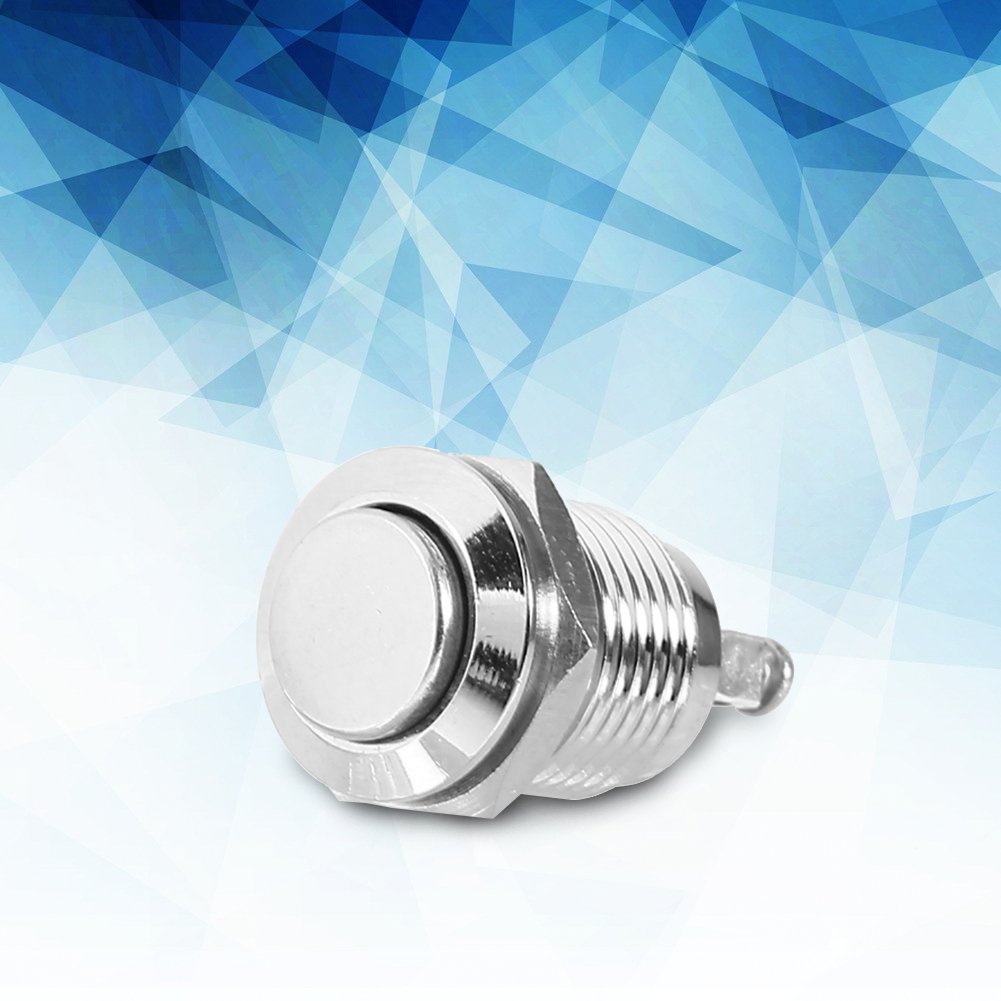

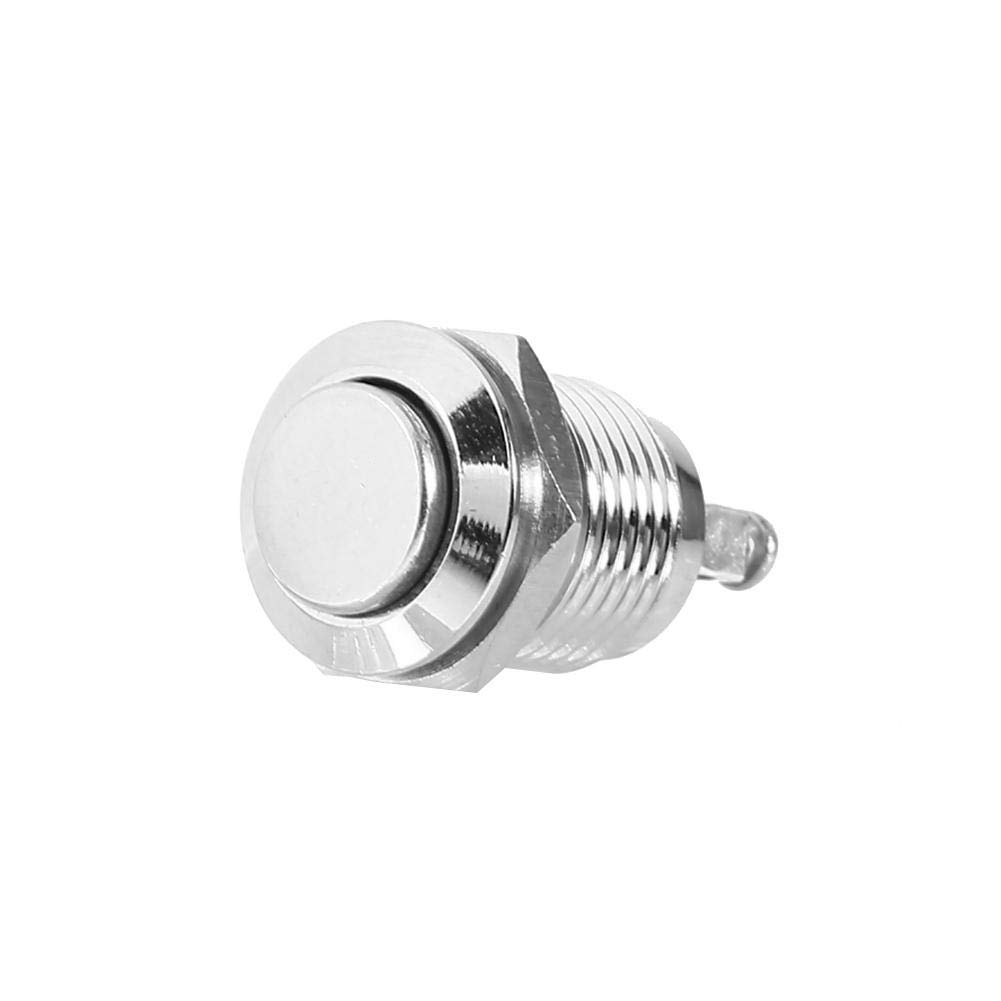

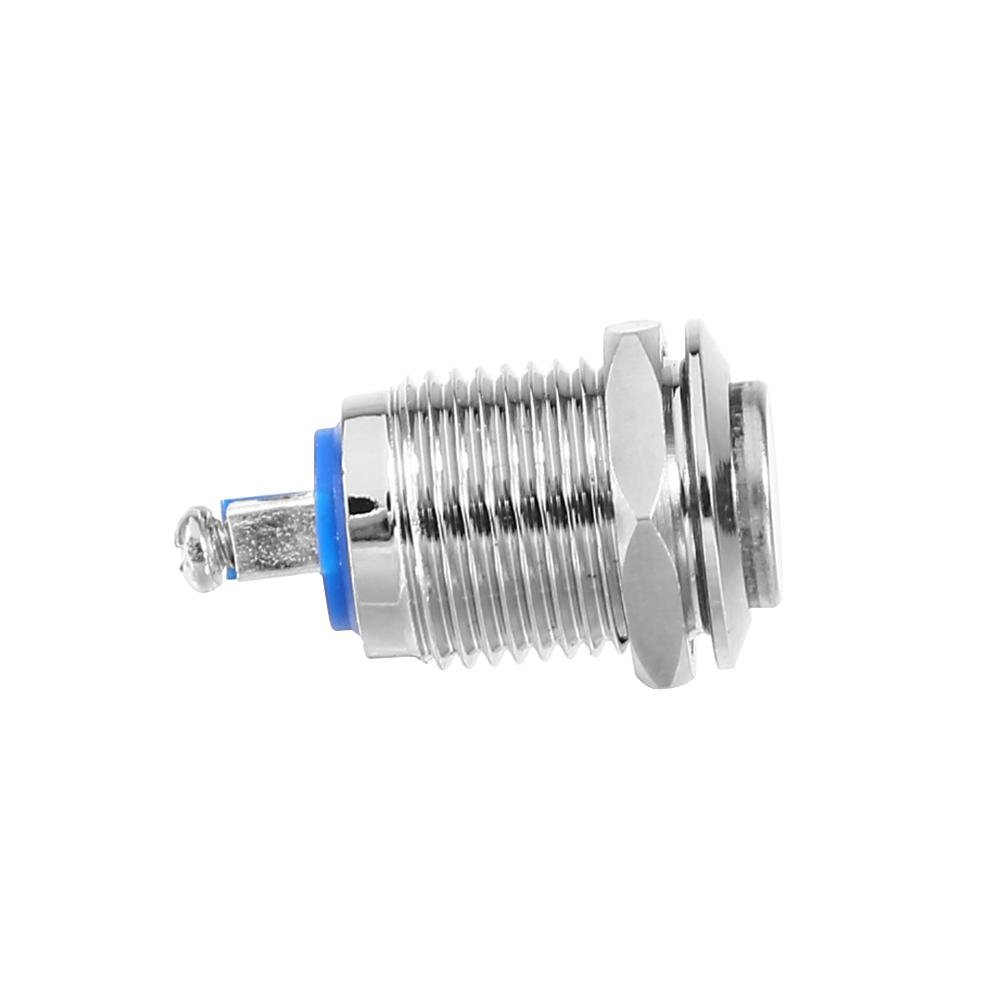

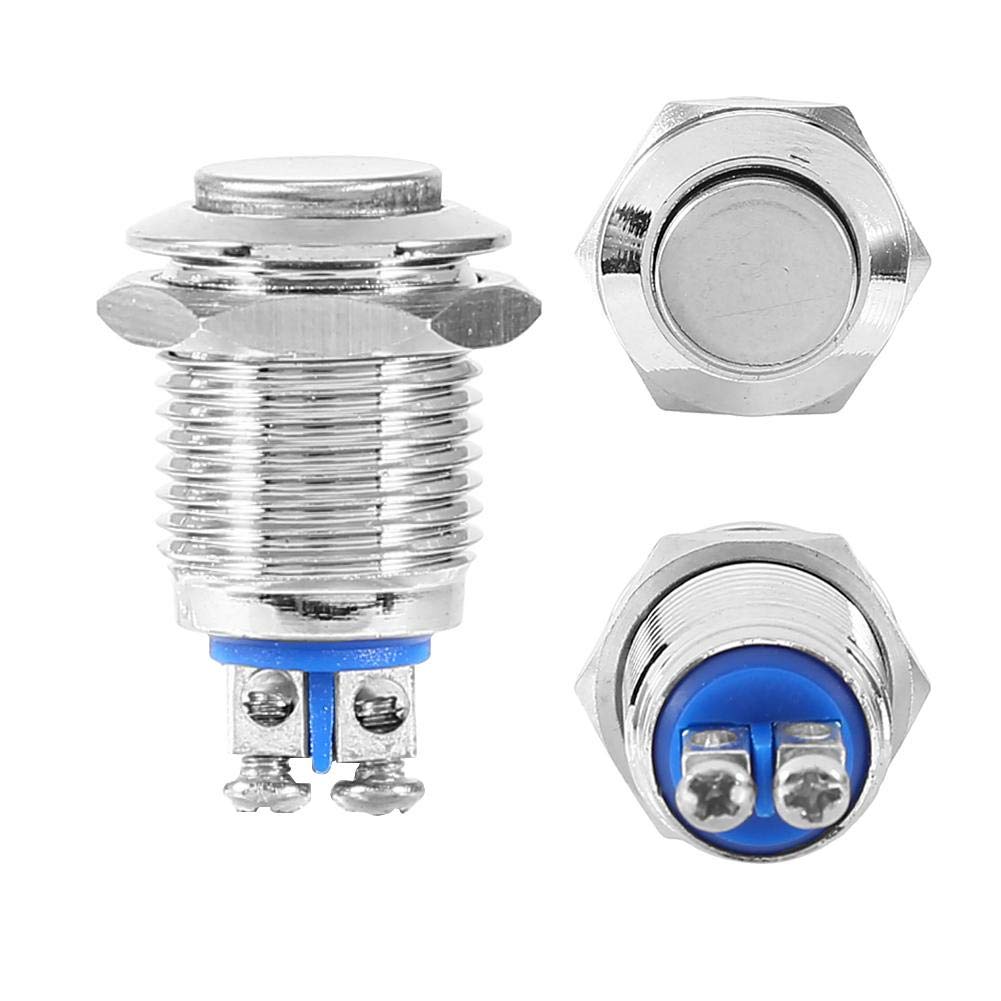

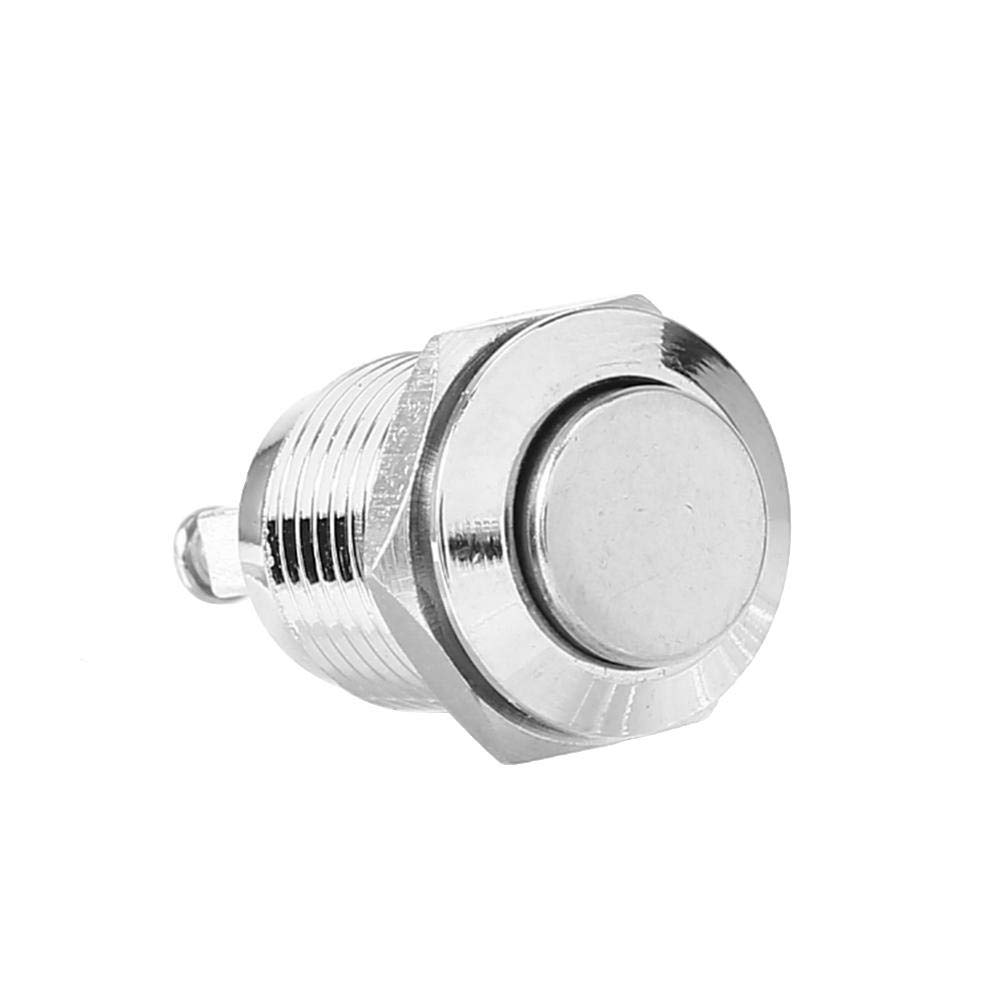

motorcycle kill button ◈ Fydun Push Button Switch Waterproof Metal 12mm IP65 IK08 Degree PBT Start Button Momentary Electrical Switch

• Momentary type: this type of momentary button is a button, press and hold, ON; Release, OFF. Switch type: two slow-moving breakpoint contacts; Contact configuration: 1 NO; Switch: 2A / 36VDC; The frontal shape: High Round; Mounting hole size: 12mm / 0.47 "
• Momentary type: this type of momentary button is a button, press and hold, ON; Release, OFF. Switch type: two slow-moving breakpoint contacts; Contact configuration: 1 NO; Switch: 2A / 36VDC; The frontal shape: High Round; Mounting hole size: 12mm / 0.47 "
• Stable and : made of stainless steel and high quality alloy, this momentary button is waterproof and robust, not easy to age and resistant to abrasion, to ensure maximum strength and durability for long-lasting use.
• Wide application: the waterproof momentary button is widely applied for circuit control in electromagnetic starting, contactor, relay and other electrical circuits. Perfect match with your machine, excellent solution for replacing the old or damaged one.
• Simple installation: simplify installation, no modification, no cutting or drilling required. Easy to install and remove, the waterproof push-button switch can be cleaned and maintained comfortably. Stable and performance.

Specification: Mounting Hole Size: 12mm / 0.47" Switch: 2A/36VDC Contact Configuration: 1 NO Operation Type: Momentary The Front Shape: High Round The Crust Material:Nickel-plated Brass, Stainless Steel Protection Degree: IP65, IK08 Terminal Type: Pin Terminal Switch Type: Two terminal breakpoints slow moving contact Contact Resistance: ≤50mΩ Insulation Resistance: ≥1000mΩ Dielectric Strength: 2000VAC Operation Temperature: -20℃ to +55℃ Mechanical Life: > 1,000,000 times Electrical Life: > 200,000 times Operating Pressure: About 4N Material: Contact: Alloy Button: Stainless steel Case: Stainless steel / nickel-plated brass Base: PBT Package includes: 1 x Push Button Switch Note: 1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
