Futheda M.2 NGFF B/B+M KEY mSATA SSD Hard Drive to SATA III 3 SATA 3.0 7 + 15pin Board Conversion Adapter Converter Card 2 in 1

• This card can be used for two purposes. It can be connected to 2.7CM/5CM MSATA SSD hard drives, and can also convert (B KEY) M.2 NGFF SSD hard drives into SATA3.0 interface (two SSDs cannot be used at the same time), priority recognition M.2 NGFF SSD.
• When M.2 and mSATA SSD are installed on this adapter at the same time, M.2 SSD will be detected first, but mSATA SSD will not work.
• M.2 (NGFF) and MSATA SSD allow input of 3.3V voltage, maximum current 3A Support Hi-Speed SATA3/ 6Gbps mass storage interface.
• Allows user to use NGFF M.2 SSD or mSATA SSD as standard SATA SSD in the Desktop or laptop.
• It can be used as a bootable disk and requires no extra driver. It is suitable for both PC and Mac systems.

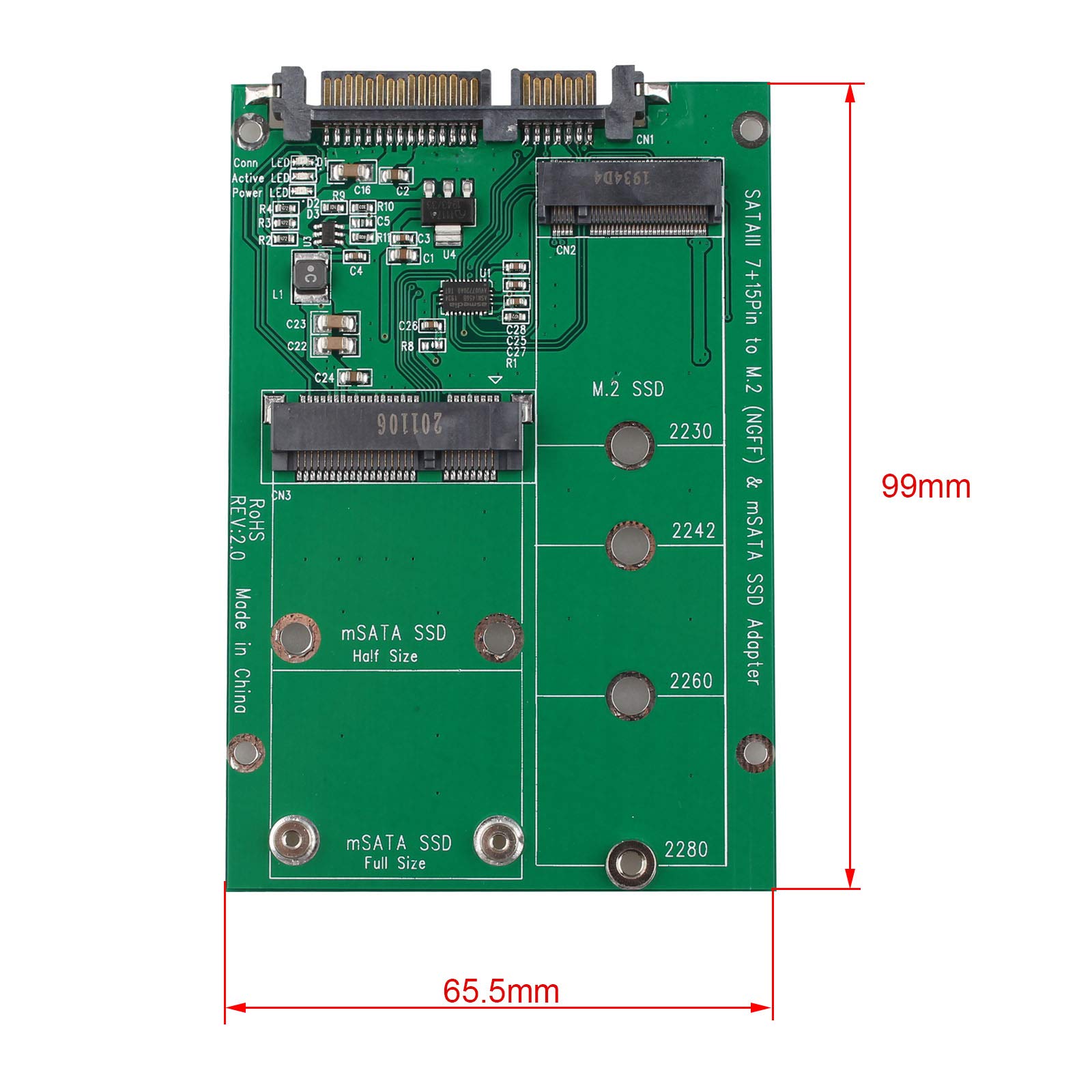

Function: This card is dual-use, that is, it can be connected to 2.7CM/5CM MSATA SSD hard drives, or (B KEY) M.2 NGFF SSD hard drives can be converted to SATA3.0 interface (two SSDs cannot be used at the same time), priority Identify the M.2 NGFF SSD. Features: 1. M.2 (NGFF) & mSATA to SATA3 module 2. Mini PCI-e 52pin male 3. M.2 (NGFF) B key male seat 4. The green LED indicates the SSD power-on state. 5. The red LED indicates SSD operation status. 6. When M.2 and mSATA SSD are installed on this adapter at the same time, M.2 SSD will be detected first, but mSATA SSD will not work. 7. Size: 99 x 65.5 x 5 mm 8. Weight: 21.3g Specification: 1. Support SATA Reversion 3.2 2. Compatible with PCI Express M.2 Spec. Version 1.0 3.PWM synchronous buck converter power IC 4. Provide a maximum current of 3 amps 5. Short circuit protection 6. Instantaneous surge current protection 7. Static protection HBM (Human Body Mode)/2KV Support M.2 (NGFF) SSD specification size: Type 2280-D2-B-M: 80mm(L)*22mm(W) Type 2260-D2-B-M: 60mm(L)*22mm(W) Type 2242-D2-B-M: 42mm(L)*22mm(W) Type 2230-D2-B-M: 30mm(L)*22mm(W) Support mSATA SSD specification size: Half size mSATA: 26.8mm(L)*30mm(W) Full size mSATA: 50.95mm(L)*30mm(W) Package Including: 1 x M.2 (NGFF) and mSATA to SATA3.0 Card
