Futheda DB25 D-SUB Male and Female Port Breakout Board Connector 25 Pin 2-row Adapter RS232 Solderless PCB Board to Terminal Block Signal Module Breakout Board with Thumb Screws

• Package Content : 1 x DB25 male Adapter, 1 x DB25 female Adapter.

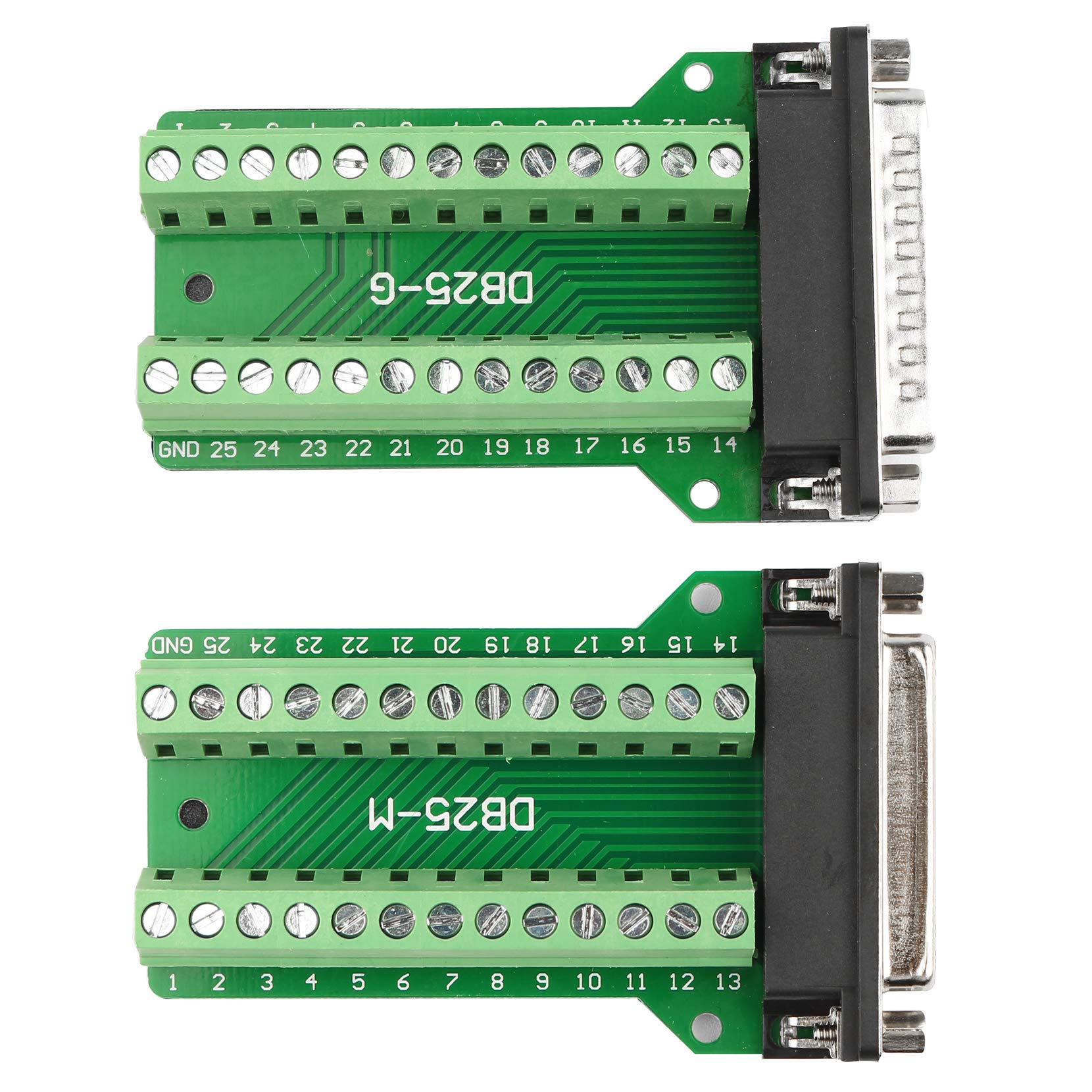

• 25 Pcs signal line lead out with the name and number clearly labeled. This breakout adapter is solderless. No soldering or crimping required.
• Accept 24-12AWG Wire and max 10A current used for communication debug.
• Connection distance 5 mm screw hole diameter 2.5 mm, install insulated underlay with 3 mm thickness at the bottom.
• The breakout board can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.

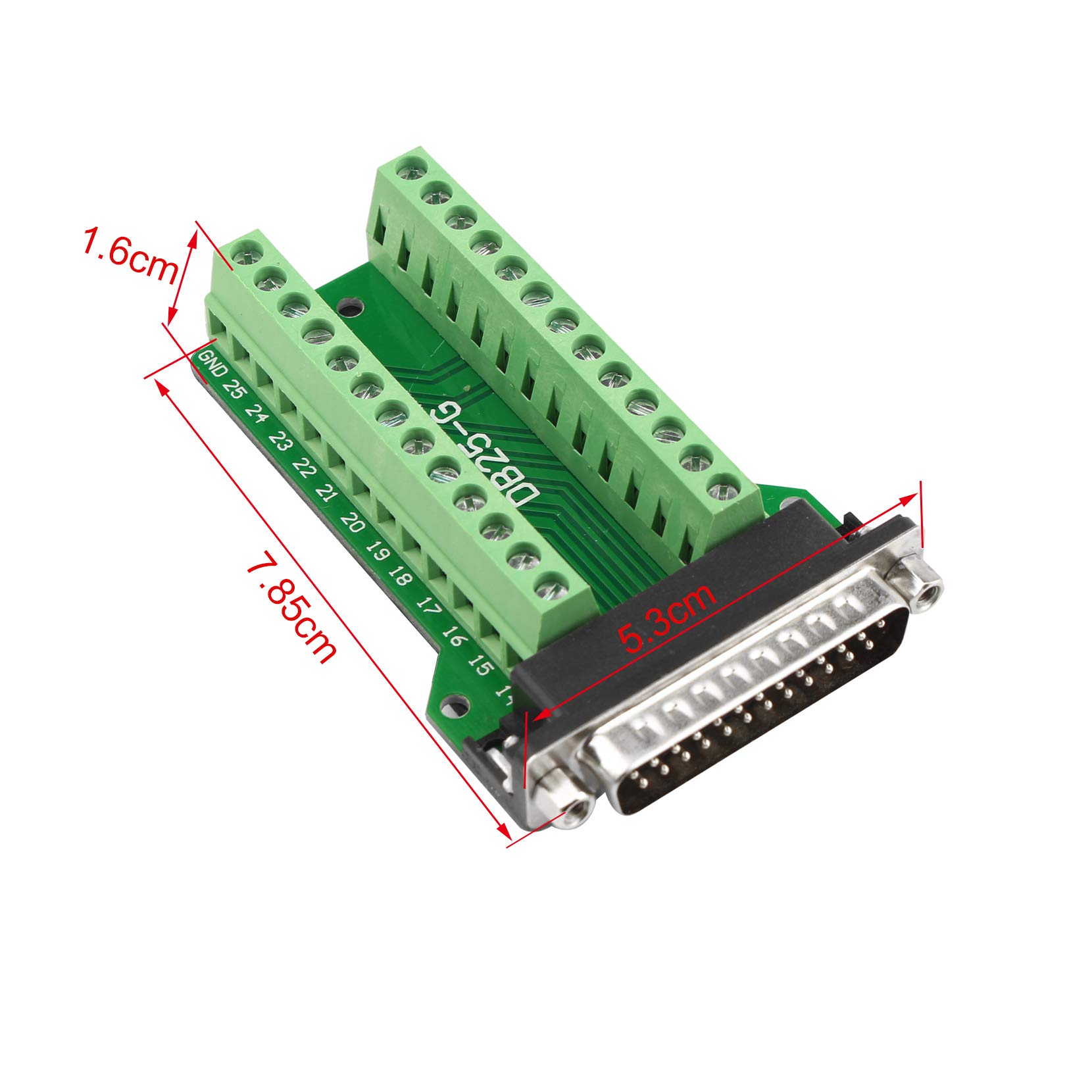

Features: Anti-oxidation, better contacts. 25 Pcs signal line lead out with the name and number clearly labeled. Accept 24-12AWG Wire and max 10A current Used for communication debug. Connection distance 5 mm screw hole diameter 2.5 mm, install insulated underlay with 3 mm thickness at the bottom. This breakout adapter is solderless. No soldering or crimping required. Simple and quick connections installation. These adapter boards can be mounted directly to the equipment without using extension cables. The breakout board can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc. Specification(Female): Number of Pin: 25 Number of Row: 2 Hole diameter: 3mm Size: 85 x 53 x 18mm Weight: 57.9g Specification(Male): Number of Pin: 25 Number of Row: 2 Hole diameter: 3mm Size: 85 x 53 x 18mm Weight: 56g Package Including: 1 x Breakout Board (Female) 1 x Breakout Board (Male)
