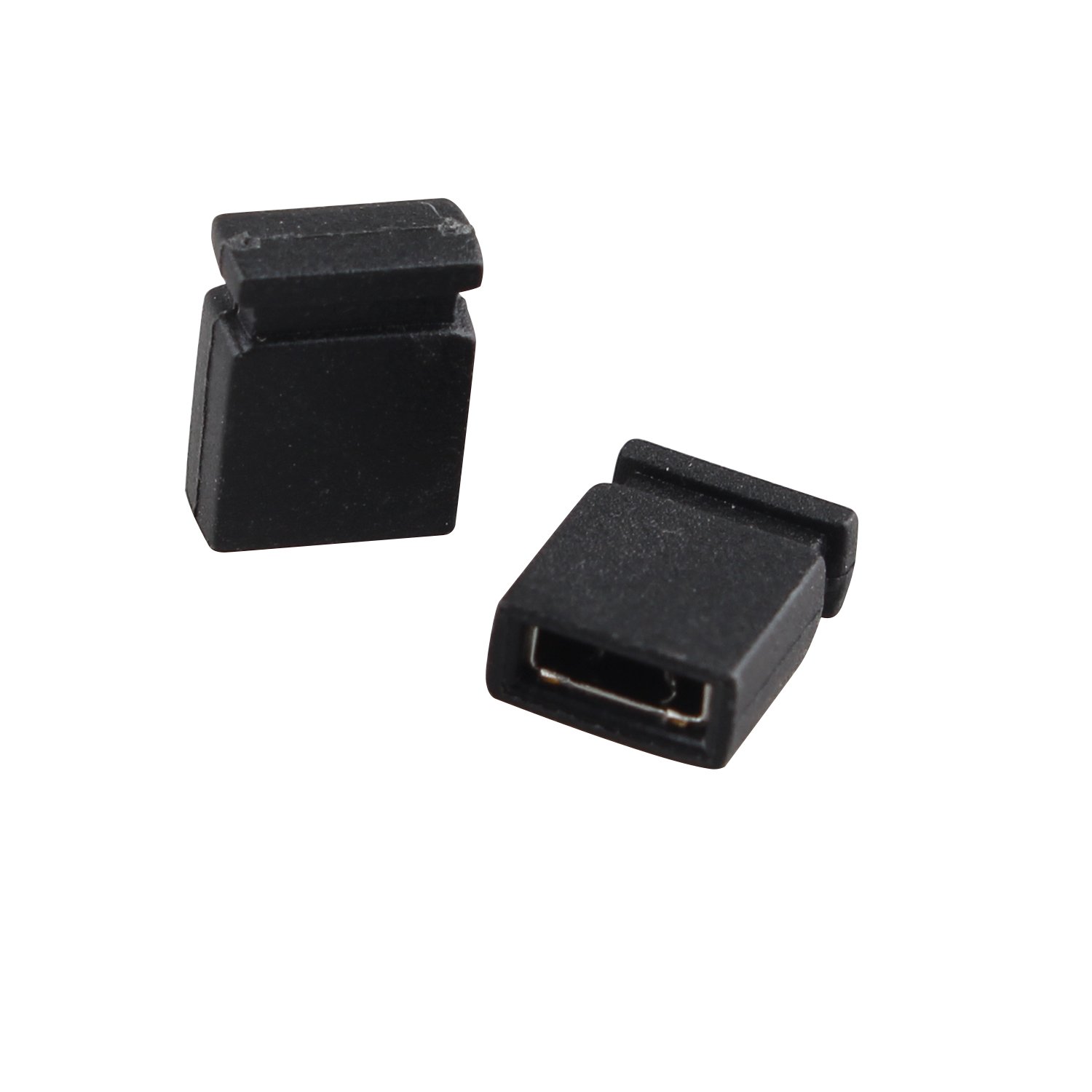

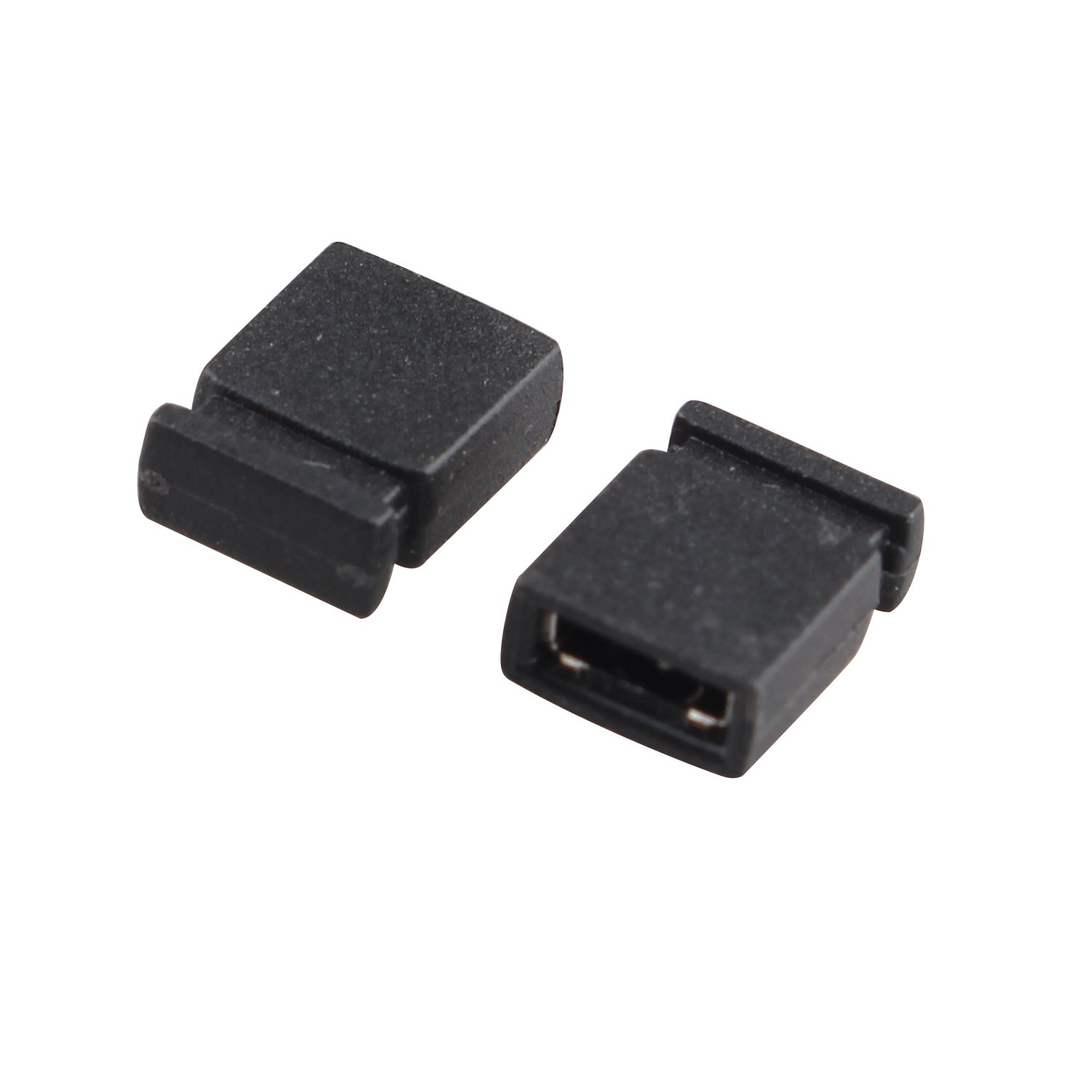

Futheda 200pcs 2.54mm Standard Circuit Board Shunts Short Jumper Cap

• Product Name : Jumper Cap
• Standard : 2.54mm
• Total Size : 6.5 x 5 x 2.5mm/0.26" x 0.2" x 0.1"(L*W*T)
• Main Color : Black
• Materials : Plastic, Metal

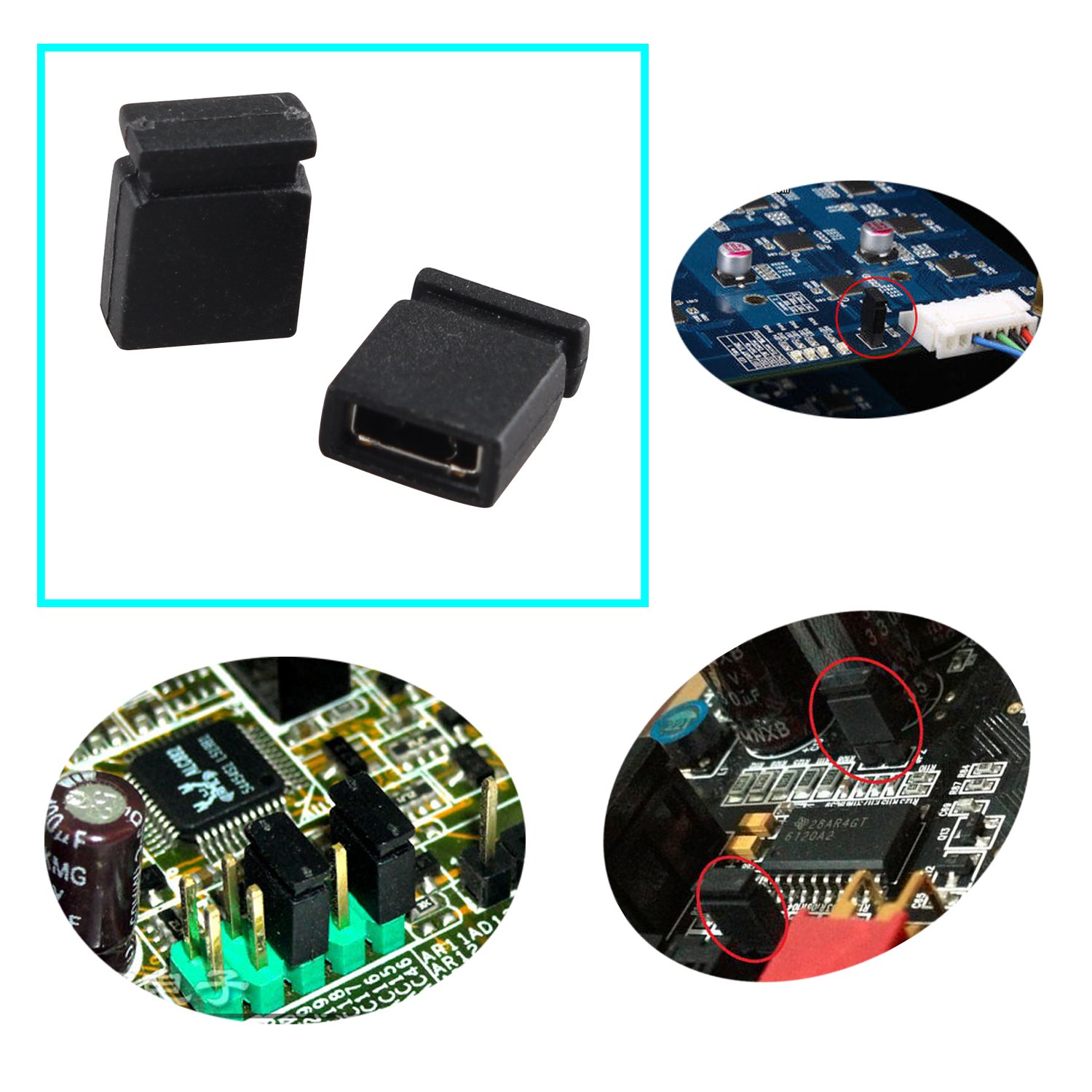

Description These are two pin jumpers (also called shunts) that will create an electrical connection for the 2.54 mm (0.1 inch) male Pin headers. Specifications Rated Current: 3.0AMP Contact Resistance: 20mΩ Max Withstand Voltage: 1000V AC/DC Insulation Resistance: 1000MΩ Min Operotion Temperoture: -40 Degree Celsius to 105 Degree Celsius Contact Moteriol: Phosphor Bronze Coneact Plating: Au Over Ni Insulator Material: Polyester(UL94V-0) Standard: PBT Max.Processing Temp: 180 Degree Celsius for 30 - 60 Seconds(200 Degree Celsius for 10 Seconds) Package Including 200 x Jumper Cap
