Futheda 10 PCS Micro USB2.0 Jack Socket Connector Type B Female Port 4 Pin 90 Degree PCB DIP
★★★★★
$20.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

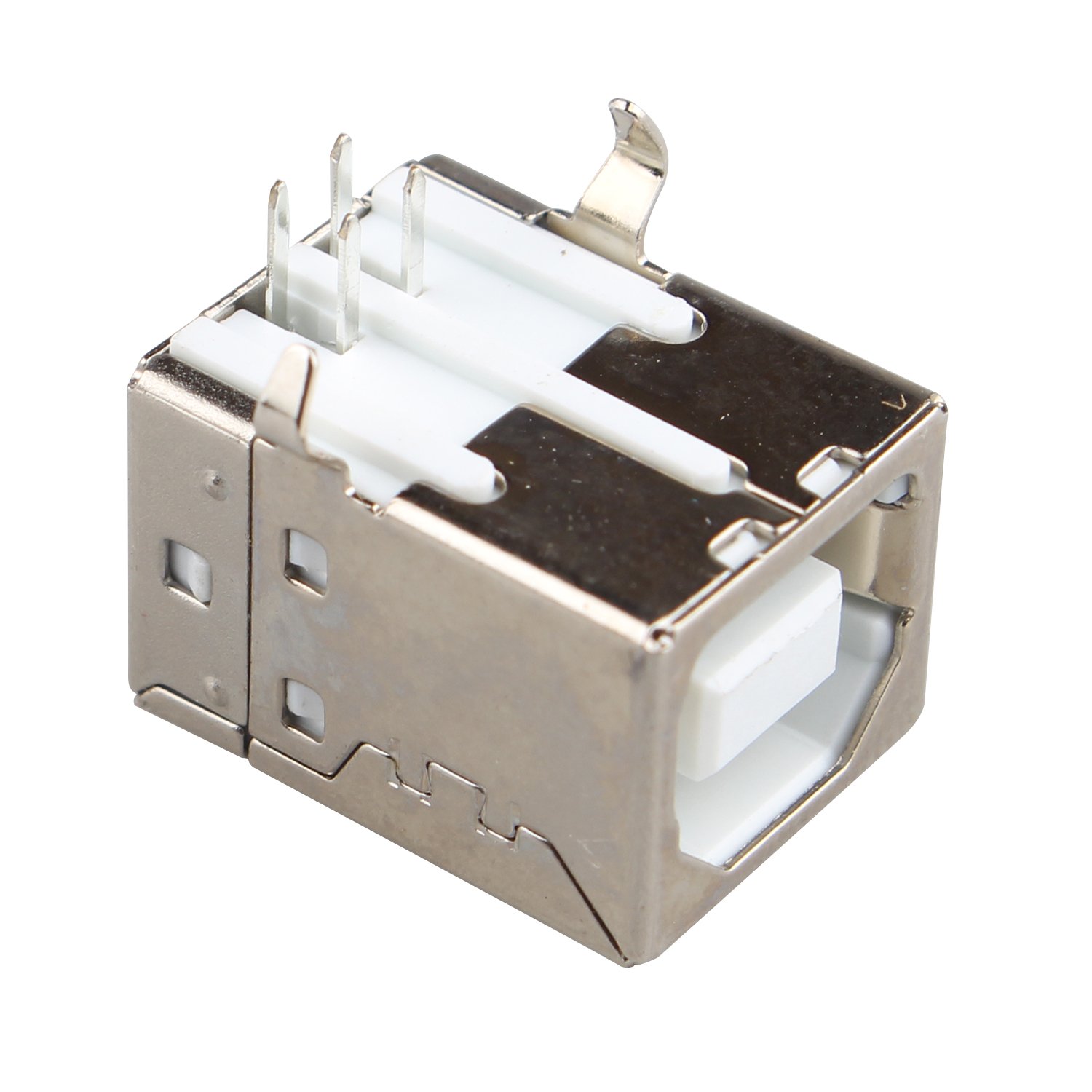

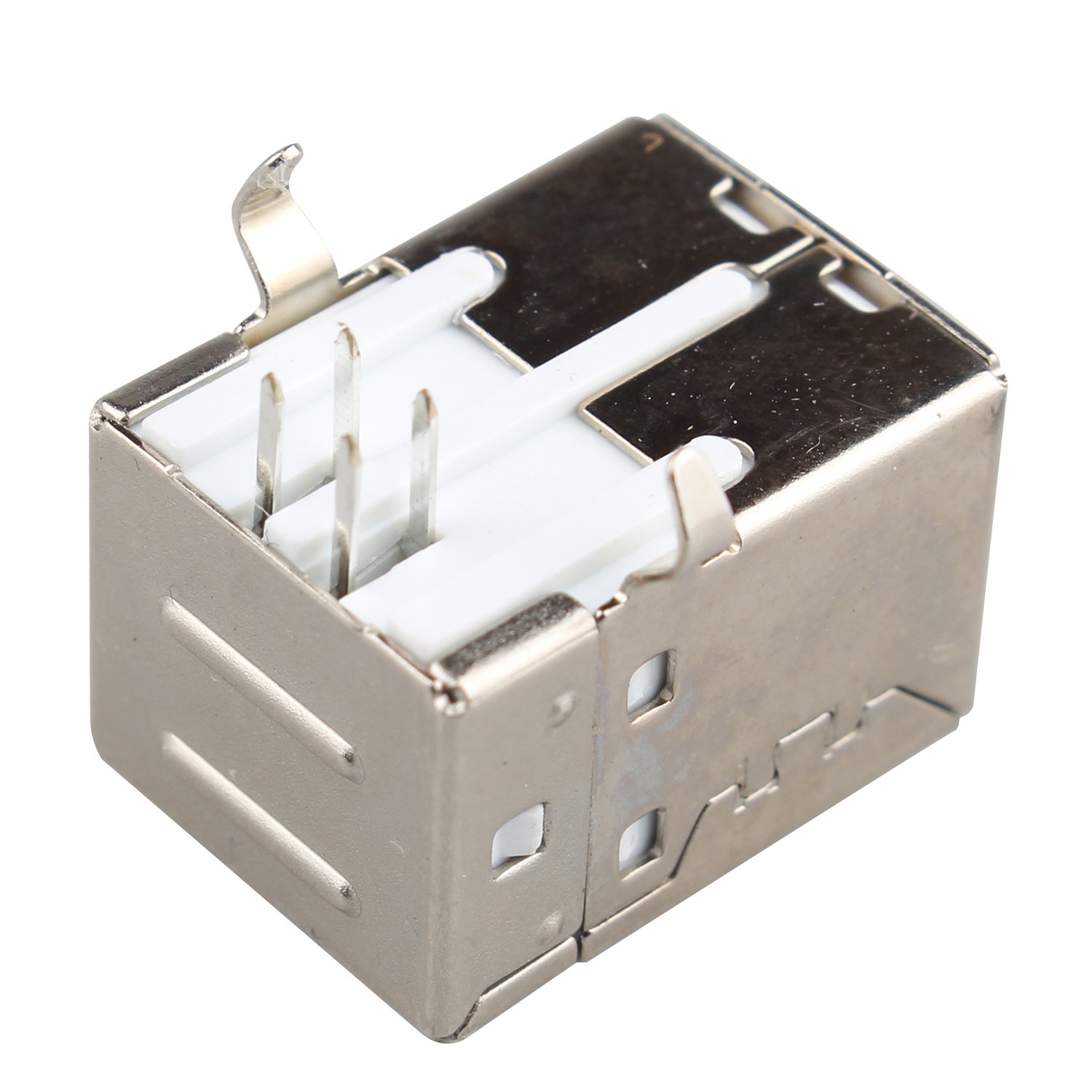

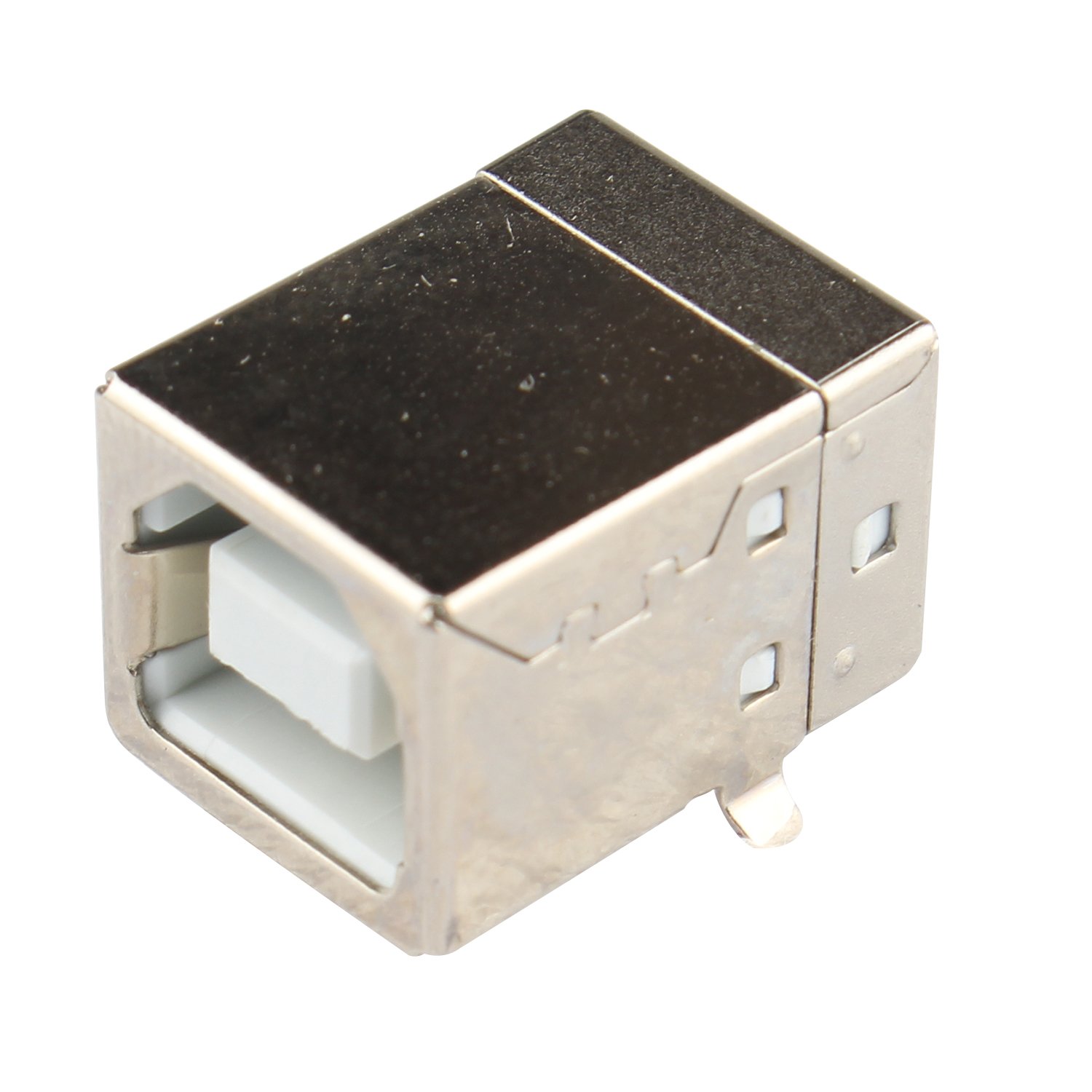

- This USB Jack is a great replacement for your broken USB socket
- USB 2.0 Jack;Type : USB Type B Female 4 Pin 90 Degree

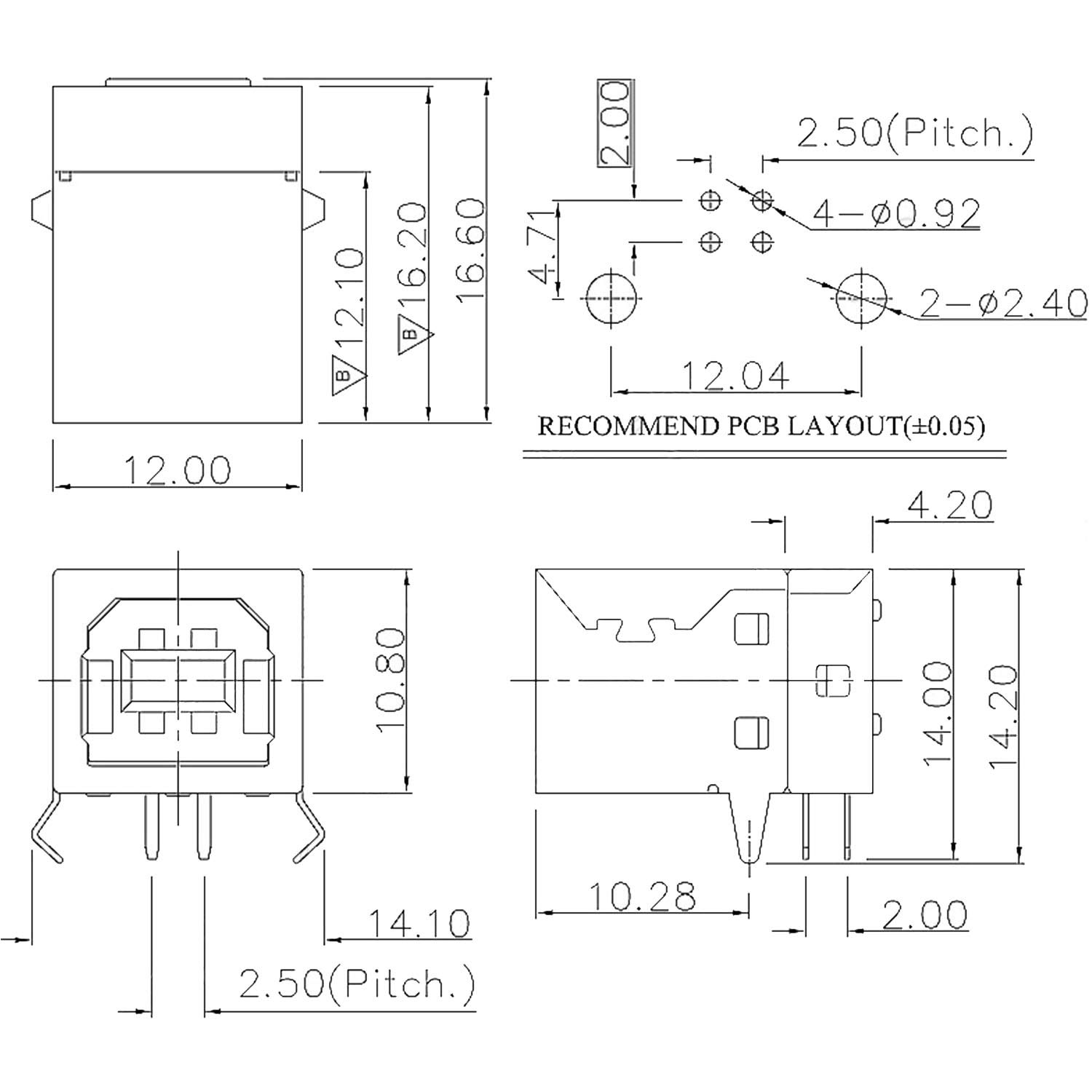

- Mount Pin Distance : 12mm/0.5";Pin Spacing : 2 x 1.5mm/0.08" x 0.06"(L*W)
- Total Size : 16 x 12 x 11mm/0.6"x 0.5"x 0.4"(L*W*H);Material : Metal, Electronic Parts
- Main Color : White, Silver Tone
Product description
Description: This USB Jack is a great replacement for your broken USB socket USB 2.0 Jack;Type : USB Type B Female 4 Pin 90 Degree Mount Pin Distance : 12mm/0.5";Pin Spacing : 2 x 1.5mm/0.08" x 0.06"(L*W) Total Size : 16 x 12 x 11mm/0.6'' x 0.5'' x 0.4'' (L*W*H);Material : Metal, Electronic Parts Main Color : White, Silver Tone operating temperature:0℃ to 50℃ Electrical characteristics: 1.current rating:1AMP.MAX.PER CONTACT 2.low level contact resistance:50 milliohms 3.dielectric withstanding voltage:500V AC MIN for 1 minute.with 1ma max.current leakage 4.insulation resistance:100 megaohms min initial at 100VDC Mechanical characteristics: 1.mating force:40N(4.0kgf)MAX 2.unmating force:10N(1.02kgf)MIN 3.contact retention force:1.47N(0.15kgf)MIN 4.durability:5000 times Package Content: 10*Micro USB2.0 Jack Socket Connector Type B Female Port 4 Pin 90 Degree PCB DIP
