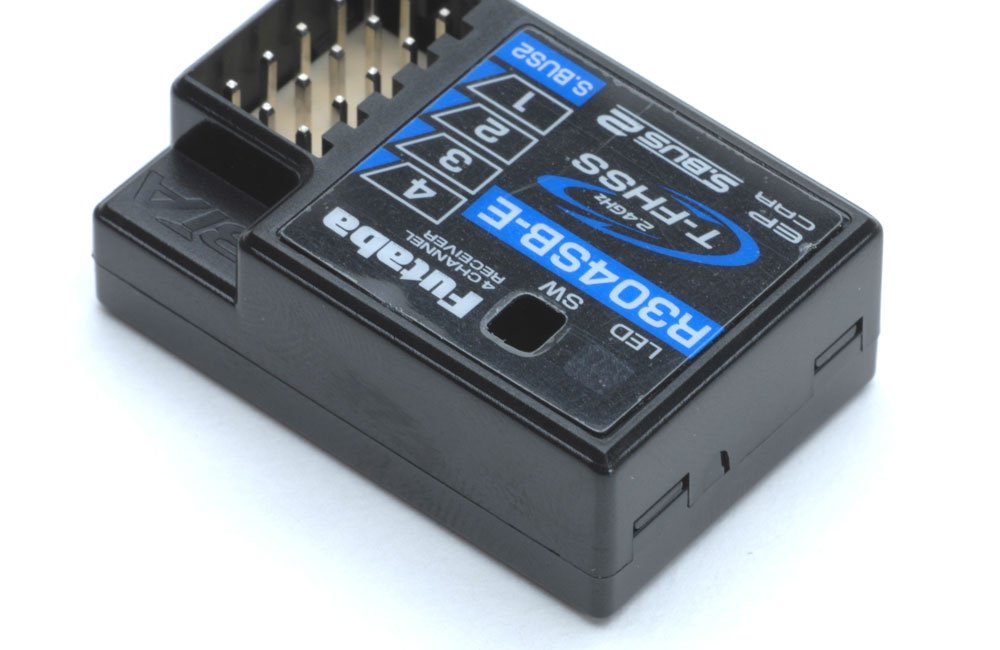

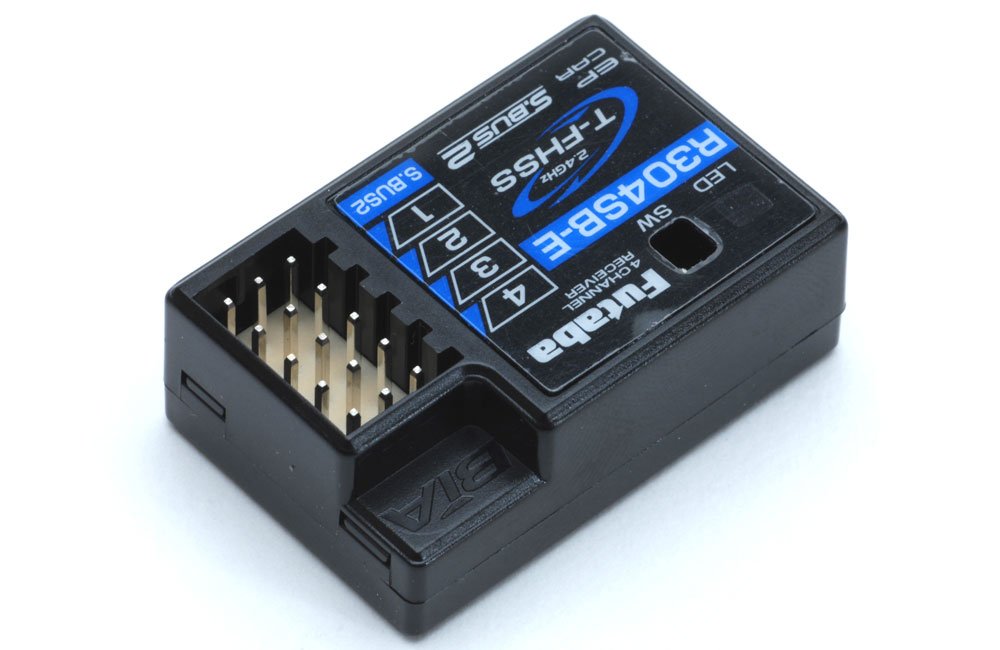

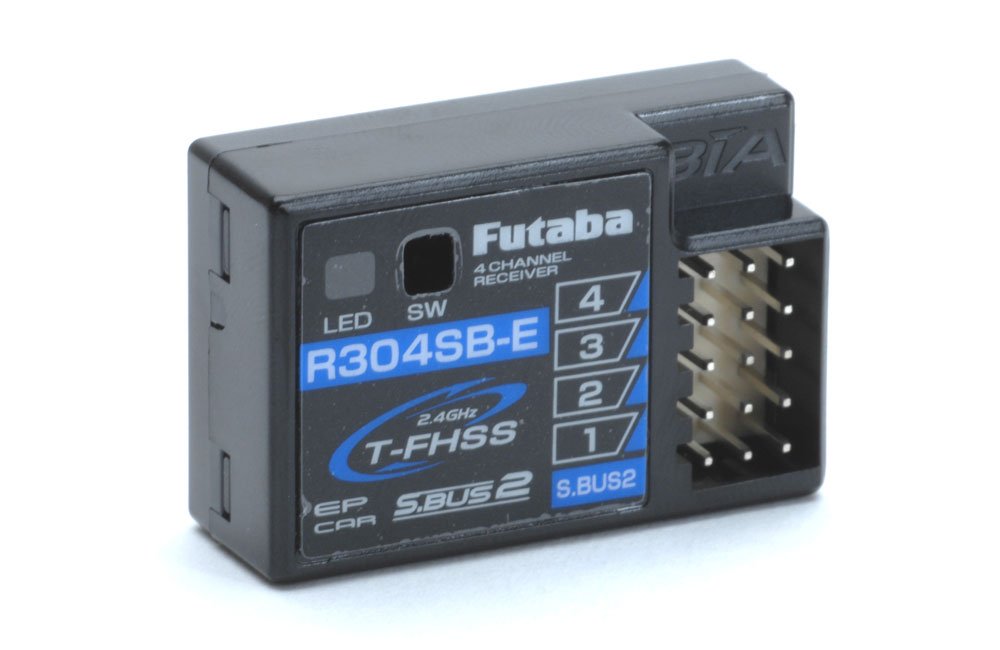

Futaba R304SB-E 4 Channel Receiver 2.4GHz T-FHSS

• Built-in antenna for clean installations. Compact size T-fhss Telemetry Operating voltage of 3.6-8.4V, weighs only 6.7g.
• Mode: Normal/High Speed Mode (Auto Detection) Modulation: Futaba 2.4GHz t-fhss
• Range: 70 m (230 inches) in best conditions. S-BUS:S BUS2
• Weight: 6.7g (0.23oz) Channels:4
• Dimensions: 35.1 x 23.2 x 12.5 mm (3.5 x 2.3 x 0.8 cm). Voltage: 4.8-7.4V

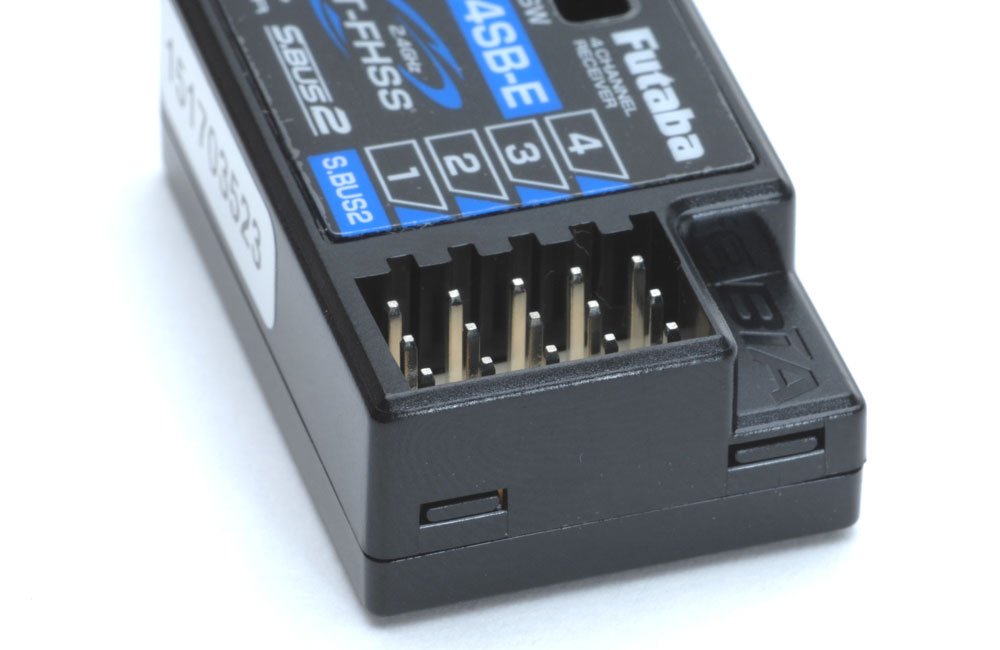

Features: 4/4-channel T-FHSS 2.4 GHz telemetry receiver with S.BUS2. Telemetry function with 32 channels. S.BUS2 output. Hi-voltage. Suitable for indoor electric RC cars. Technical data: Frequency band: 2.4 GHz. Transmission system: T-FHS. Number of channels: 4 PWM / 4 S.BUS · S.BUS output: S.BUS2 · Voltage range: 3.7 - 8.4 V. Dimensions: 35 x 23 x 12 mm. Weight: 6.7 g. Description: The Futaba R304SB is a compact and lightweight T-FHSS 2.4GHz receiver with integrated telemetry function. The receiver is particularly suitable for indoor use in electric RC cars. As a special feature, the antenna of the receiver is integrated into the housing. The S.BUS2 connector allows S.BUS2 sensors to be connected and up to 32 telemetry data sets can be transferred. The telemetry transmitter integrated into the receiver transmits the telemetry data on the S.BUS2 connection to the transmitter, which indicates it in the display, or outputs it acoustically. NOTE: When using 7.4V LiPo batteries as a receiver battery, the connected servos must also be designed for this voltage. The receiver does not have an internal voltage converter for the servo voltage.
