Fullex XL34R6357 3 Hook 2 Pin 4 Cam 35mm Backset 2 Spindle Door Lock

• Hardware

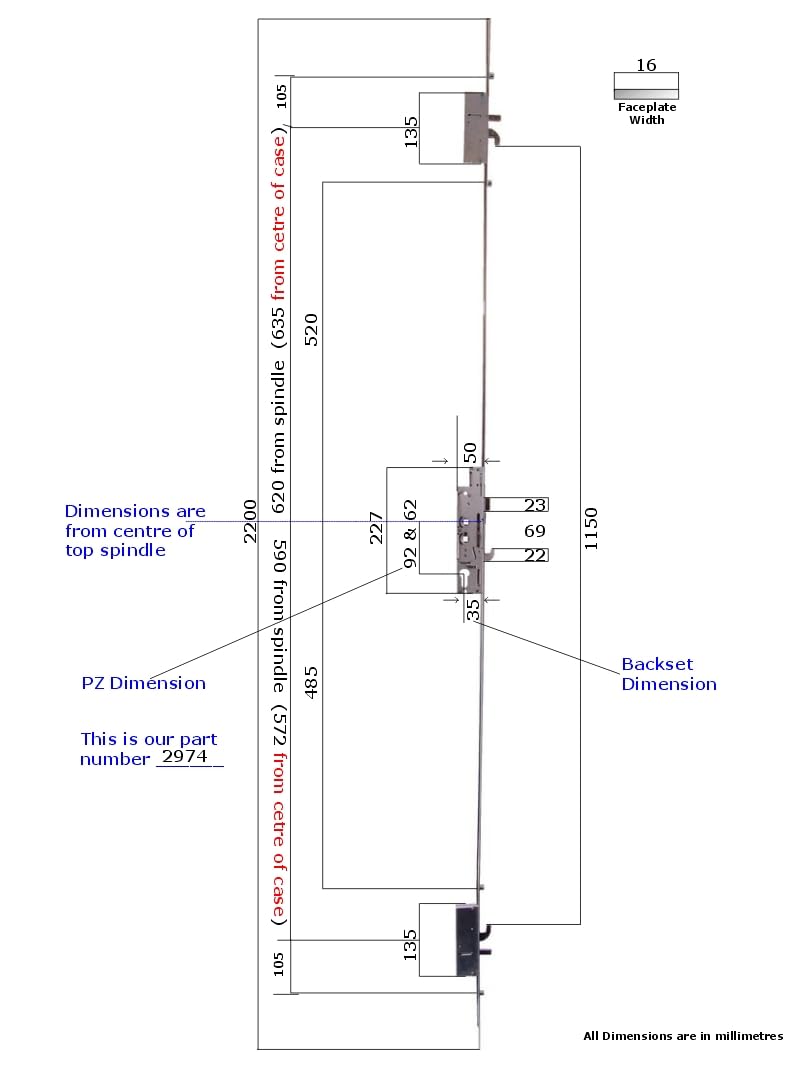

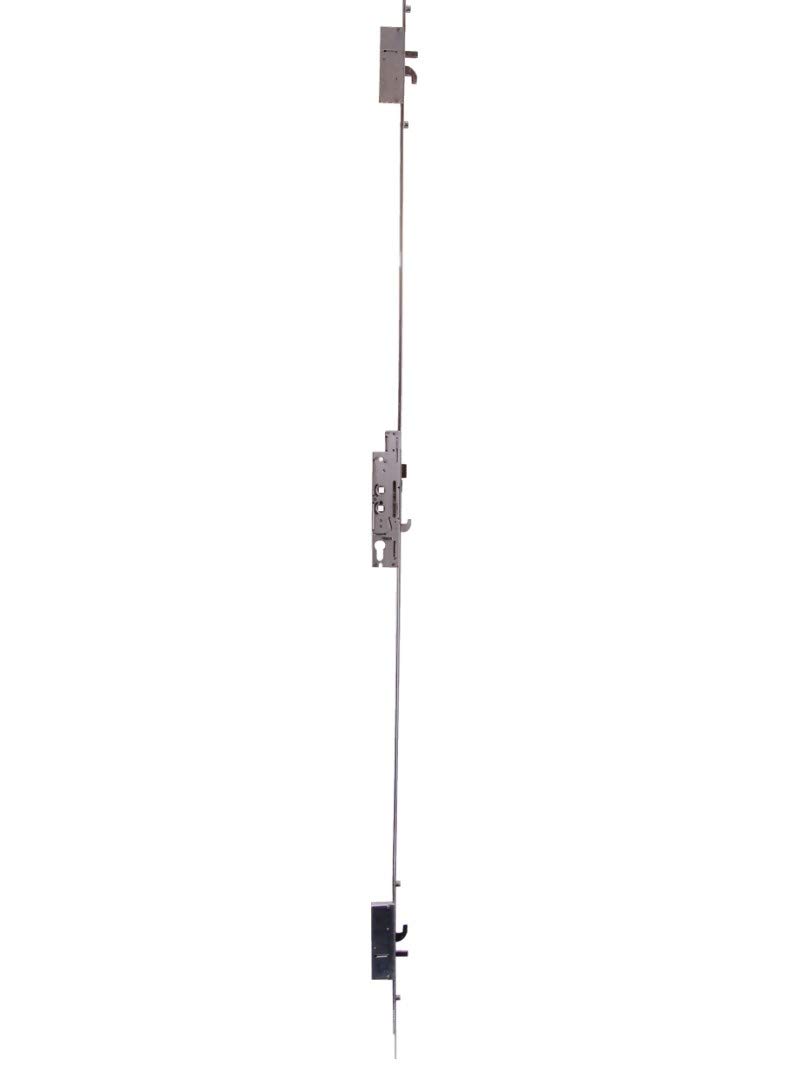

Fullex X34R6357TH Crimebeater with 3 Hooks, 2 Pins, 4 Cams, 35mm Backset, 2 Spindle, Upvc Door Lock Low Height Spindle to Key: 92 and 62mm Backset: 35mm Op Type: Lever/Lever Locking Points: 3 Hooks, 2 Pinbolts, and 4 Roller Cams Faceplate Dimensions: 16mm This is the Fullex XL34R6357TH multipoint door lock The overall length of the lock faceplate shown (OL: in attached detailed dimensions file) is simply trimmed down at the ends with a hacksaw to suit the length of your own personal door. This is the Fullex XL34R6357TH Crimebeater lock with the top and bottom hook box slightly nearer to the centre gearbox than the other crimebeater locks. It is sometimes used on door systems that are not a standard height and where there is a need to achieve the same security. However, due to the low height restriction the hook lock points need to be nearer to each other. Please check the detailed dimension diagram to compare against your existing requirements. What You Will Receive: 1 X Full length locking mechanism The centre hook replaces the centre deadbolt normally fitted to a door to provide an enhanced security point.
