Fuhuihe 10A 12V/24V Solar Charge Controller, Solar Panel Battery Intelligent Regulator with Auto Switch, LCD Display Intelligent USB Port, Overload Protection &Temperature Compensation

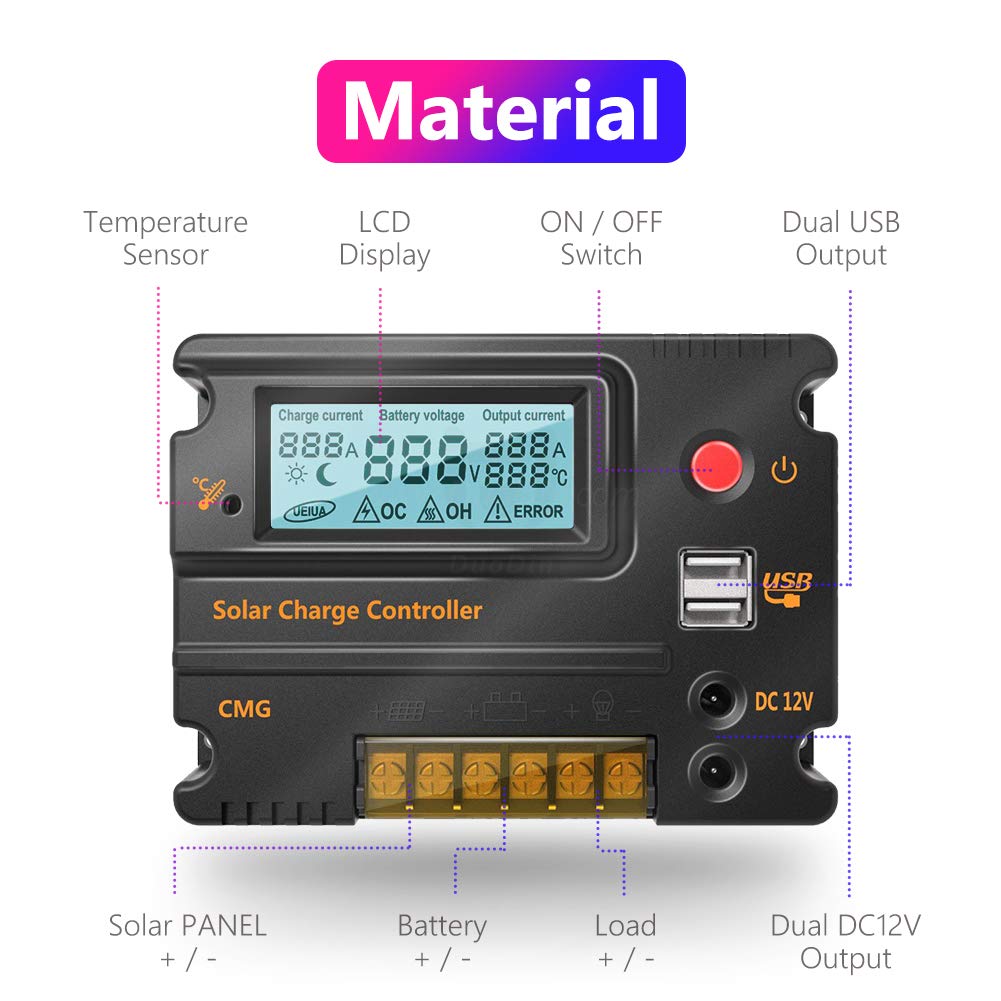

• Auto regulator switch, LCD screen displays all parameters.
• Fully automatic operation and microcontroller digital accuracy.
• With output switch intelligent control, easy to operate.
• Overloading & short-circuit protection; Under-voltage and over-charging protection; Reverse discharging & reverse-polarity protection.
• Available for DC lamp and phone charging. Suitable for home, industrial, commercial etc.

12V Solar Charge Controller Protection Overload protection Short-circuit protection Lighting protection Under-voltage protection Over-charging protection Reverse polarity protection Specification Voltage of Battery: 12V / 24V Automatic Rated Charge/Discharge Current: 10A USB Output Voltage&Total USB Output Current： 5V &3A DC Output Voltage&Total DC Output Current: 12V&2A Overload/Short Circuit Protection: 1.5 Times by Rated Current Short Circuit Recovery Time: 10s Open Circuit Voltage of Solar Panel: 40V No Load Loss: 0.05W Over Voltage Protection: 15V; x2/24V Float Charge Voltage: 14V; x2/24V Discharge Recovery Voltage: 12V; x2/24V Over Discharge Voltage: 10.5V; x2/24V Control Mode: Software Intelligent Control Working Temperature: -35~55°C Packing List 1 x Solar Charge Controller 2 x DC Cable 1 x User Manual(English)
