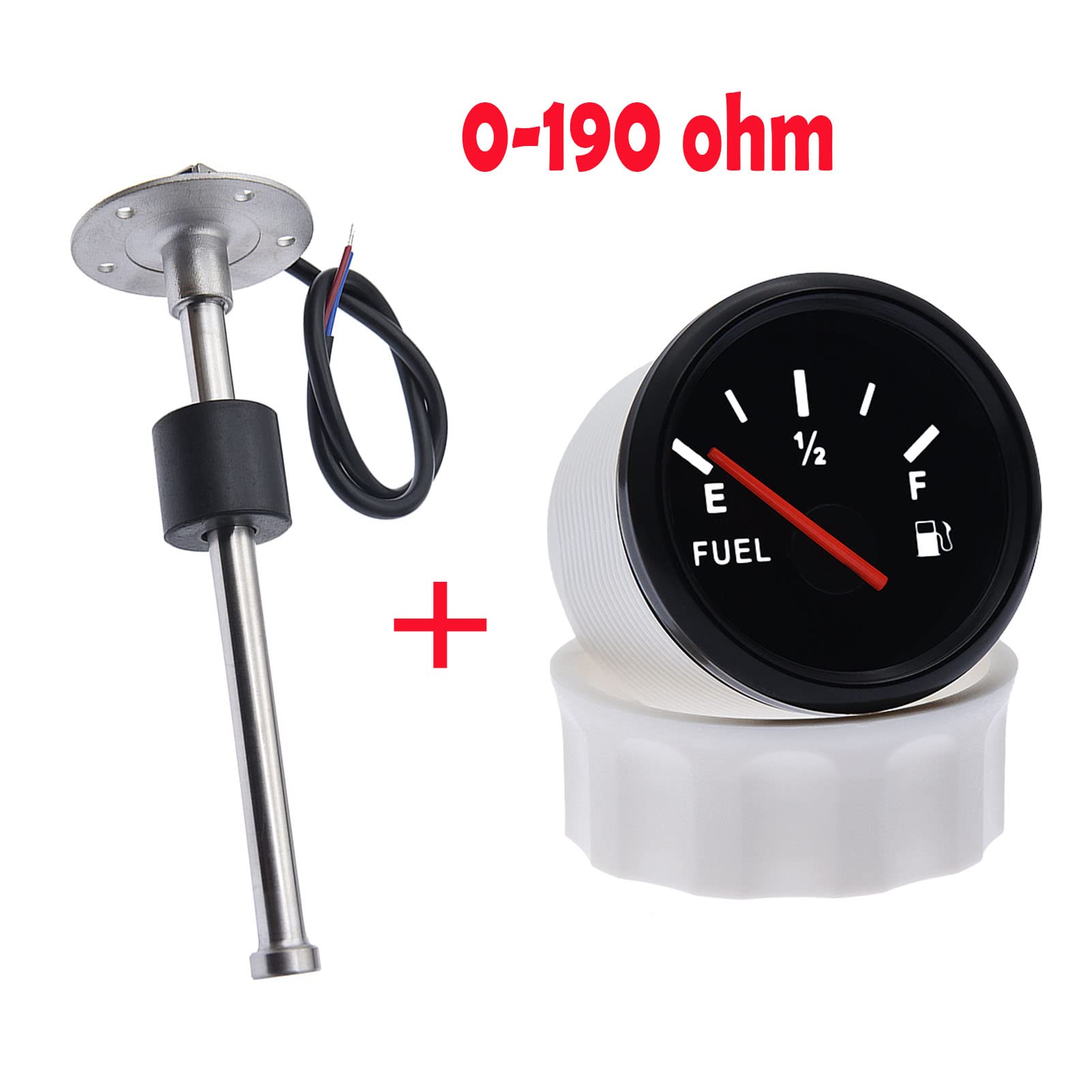

Fuel Gauge With Sensor - 0-190 Ohm Meter, Red Backlight, Boat RV Water Level Sensor (200MM)

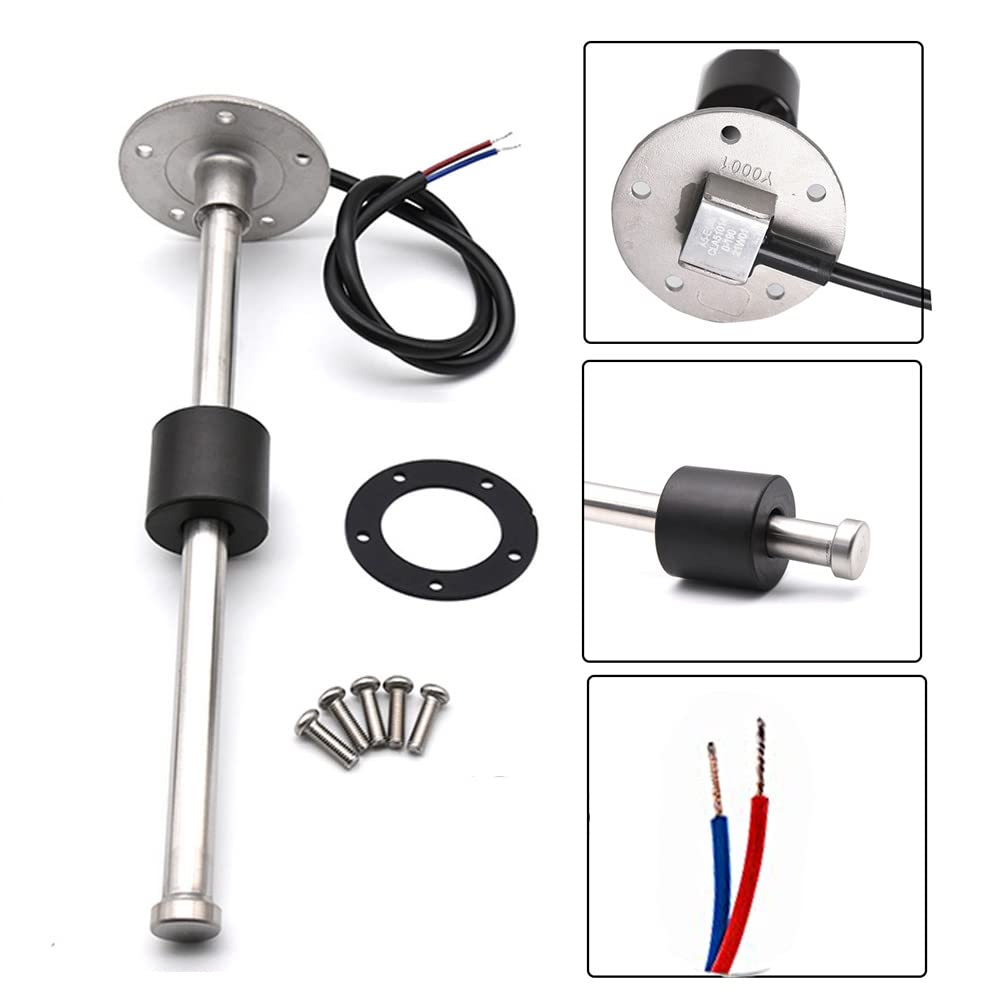

• The sensor is made of 316 Stainless Steel construction, corrosion-resistant, does not rust, anti-vibration, anti-explosion. Stable output signal, and accurate measurement.
• Fuel Level Gauge has IP67 waterproof and dustproof grade, anti-fog curved glass. E-1/2-F Range Meter 52mm 0-190ohm.
• Fuel Level Gauge great feature with its less power consumption, longer life, higher precision, etc, featuring good endurance and anti-vibration.

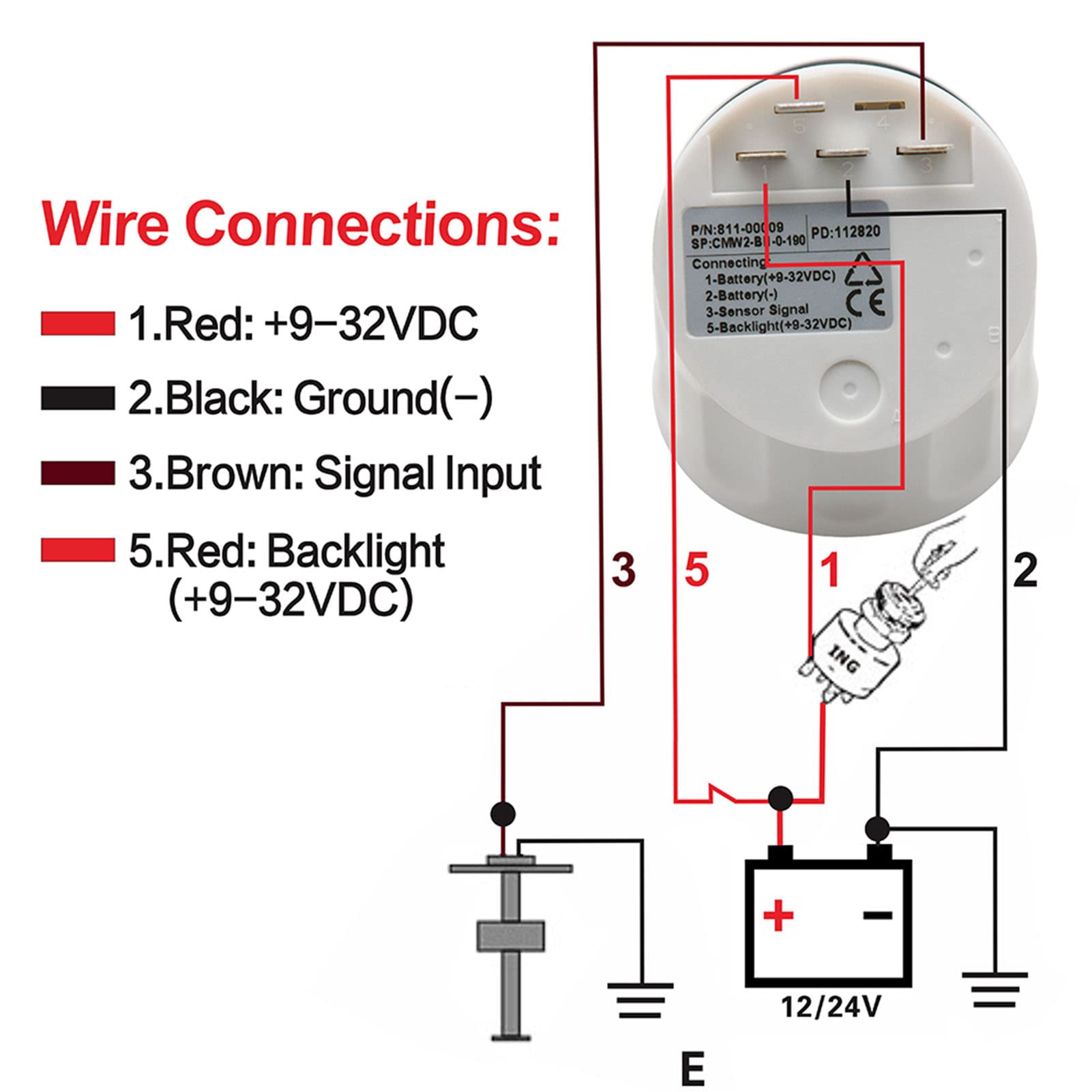

• SAE 5 hole mounting pattern, with M5 5 screws and gasket, easy to install and hookup. The sensor signal output: 0-190ohm.
• Suitable for Boat, Auto,Trucks, Buses and Marine field. Fit for Fuel Level Gauge,Water Level Gauge and any kinds of liquids without impurities.

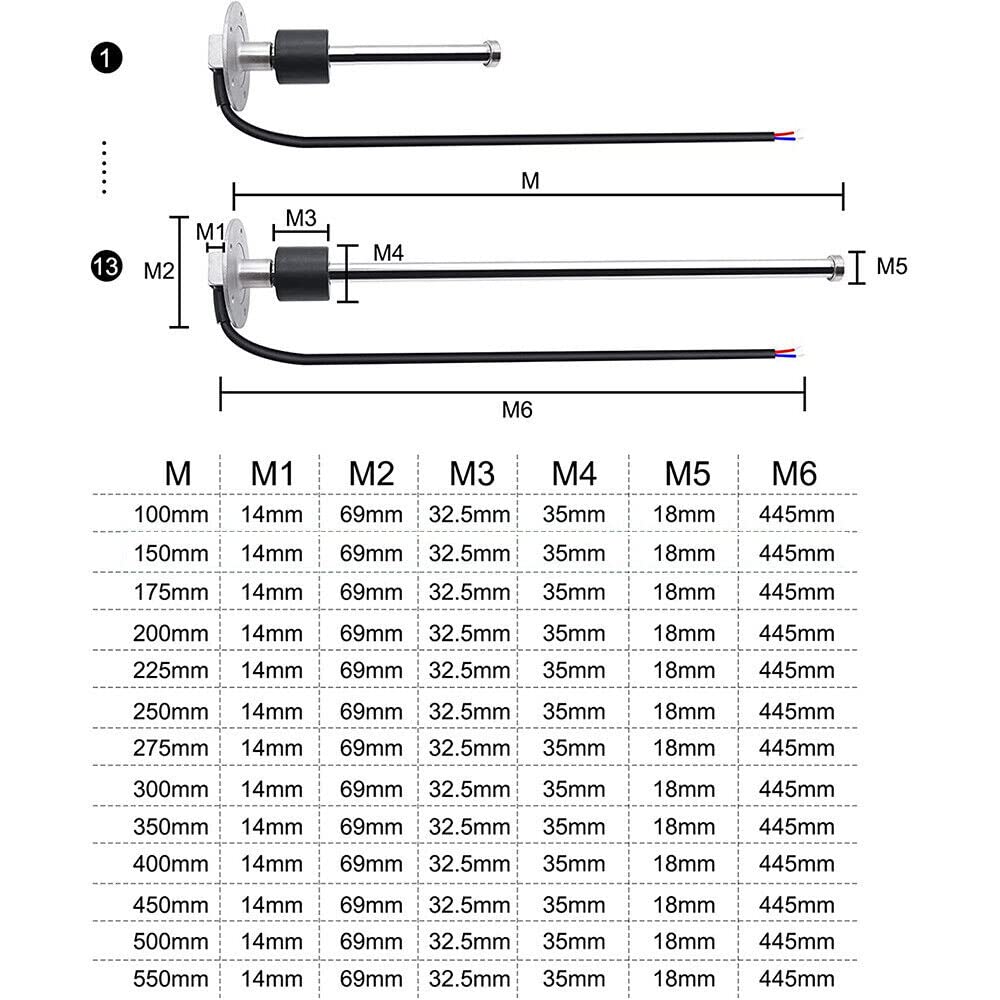

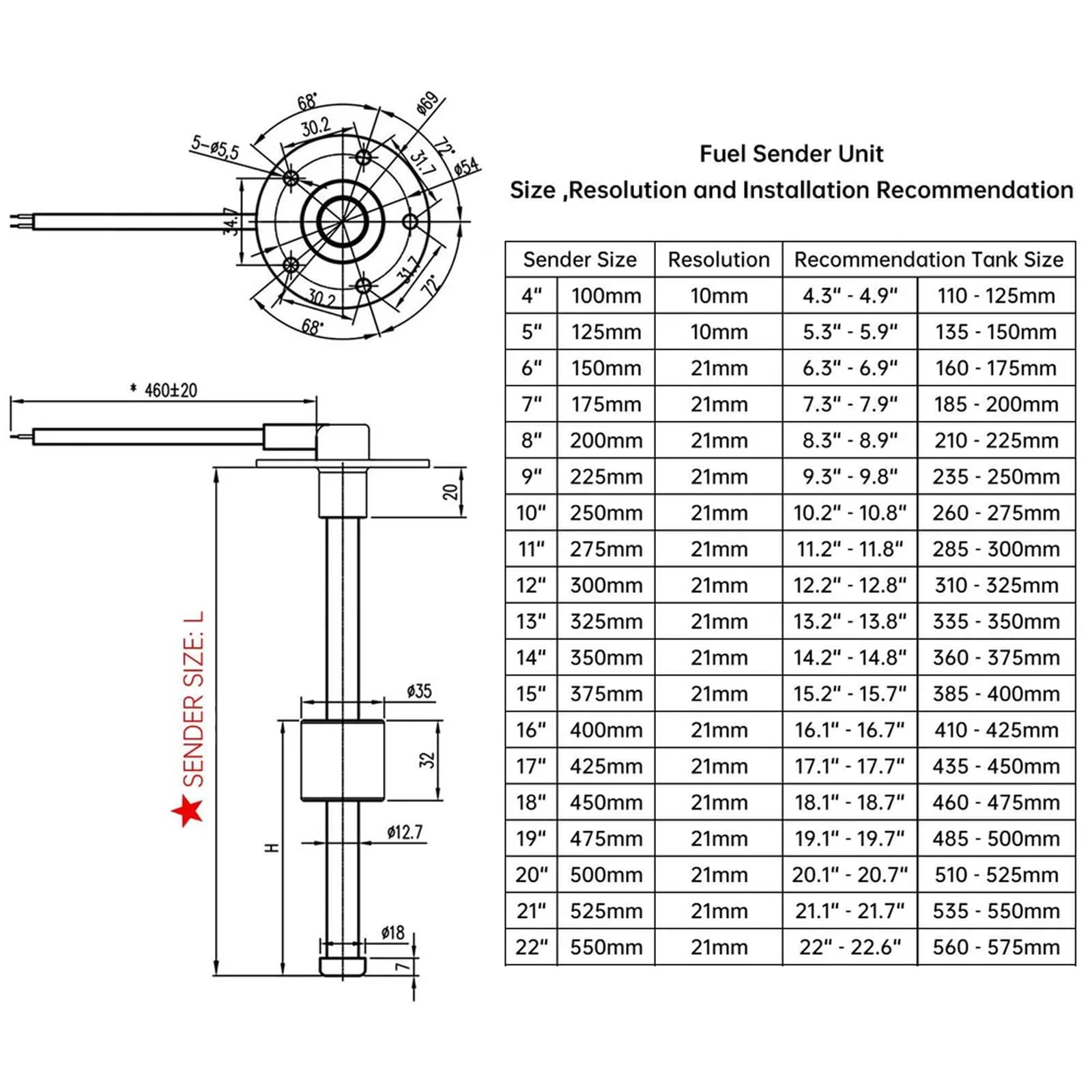

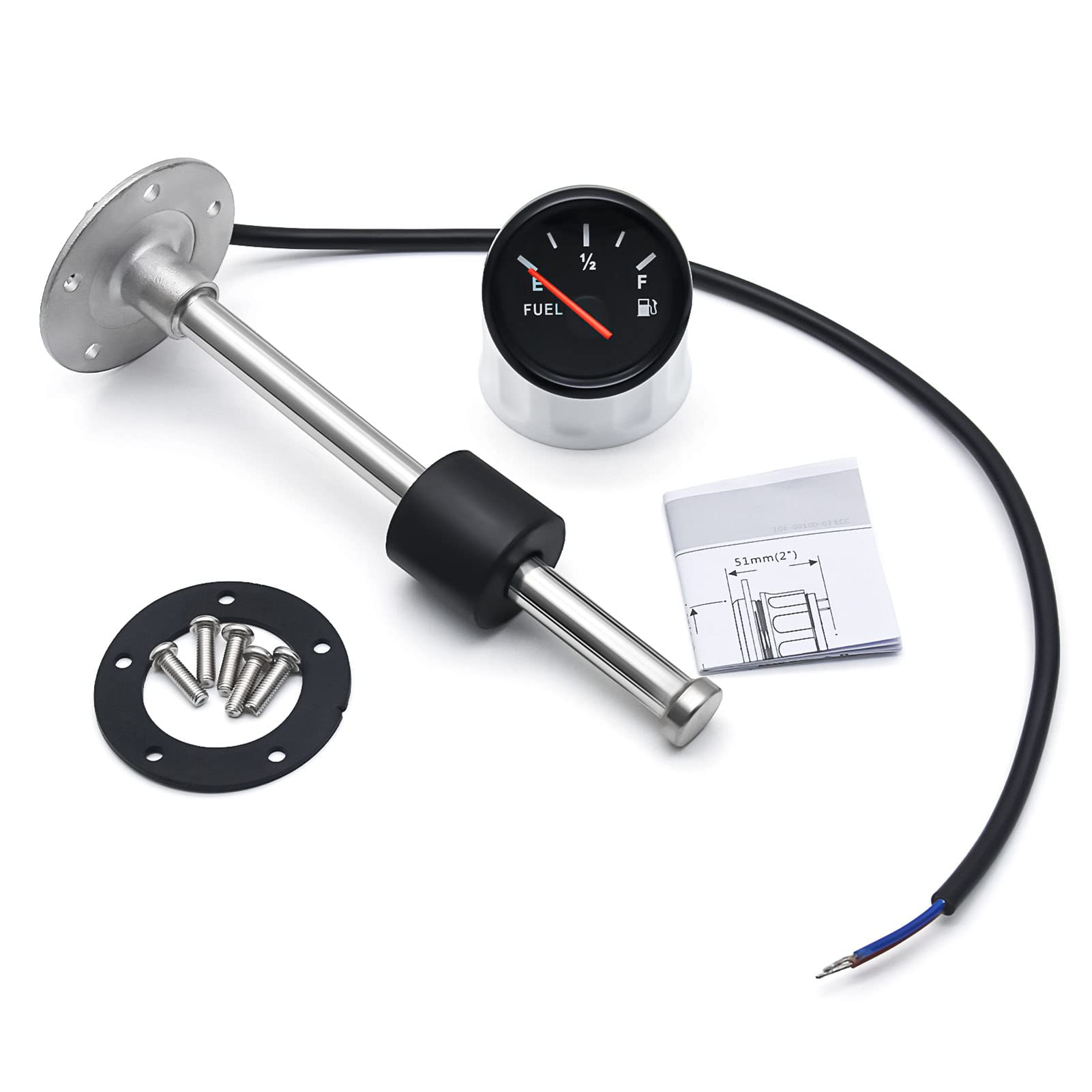

Specifications: Fuel Level Guage Diameter: 52mm Indicating Range: E-1/2-FULL (E means empty, 1/2 means half fuel,F means full fuel) Working voltage:9~32V DC (12V/24V) Backlight: Red Input signal: 0~190 ohm Operation mode: LCD display, stepper motor Gauge fit for Boat, Car, Motocycle, Truck, ect Sensor Material: 316 Stainless Steel Mounting Methods: Standard SAE 5 Hole Pattern Length range: 100-500MM optional. Output Signal: 0-190 Ohms (Standard European) Protection Rank: IP67 Operational Temperature: -40~+85℃ Screw Size: M5*16 Cable Lenth: 445mm 12/24V Universal Level Sensor Support : Fuel Level Gauge and Water Level Gauge Package List: 1 x Fuel Level Gauge 1 x Instruction manual 1 x Water Fuel Level Sender 1 x Gasket 5 x M5*16 Screws
