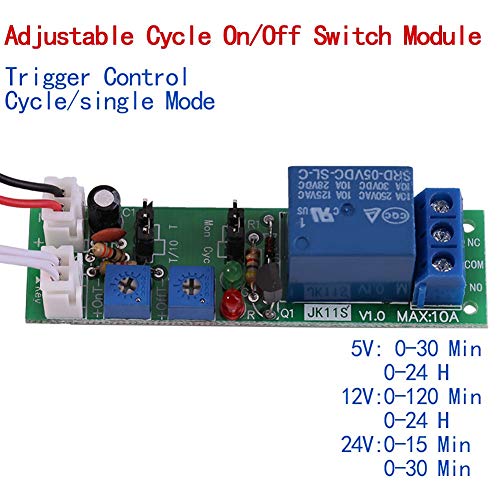

Timer Relay Module Adjustable, Electronic Components Modules Cycle Timer On/Off Switch Delay Module for Testing Circuit (0-24hr/DC5V)

• [Can Switch Mode ] You can simply switch mode by adjusting the jumper. Connect 2 wires of "Key" if you need module to work recurrently after power on.
• [Mon Mode] The module Power-on, When triggered the relay is switched on, timer delay off; when triggered on the delay process, again triggered, it will immediately interrupt the delay.
• [Cycle Mode] The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on,such cycle,T1 and T2 setting by two adjustable resistors, respectively; when triggered on the delay process, again triggered, it will immediately interrupt the delay.

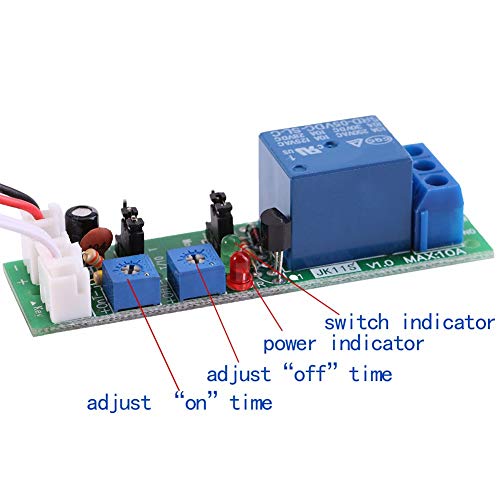

• [Adjustable] There are many voltage and time range for your choice, both "on" time and "off" time are adjustable.
• [Performance and Function] Timer relay module with high precision, stable and reliable performance, widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.

Specifications: Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional) Quiescent Current: <10mA Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO NC Load Capacity: 10A(AC0-250V, DC0-30V Size: 70*20*18mm / 2.75*0.78*0.7" Time Accuracy: Max value*0.001 Package Includes: 1 x Timer Relay Module
