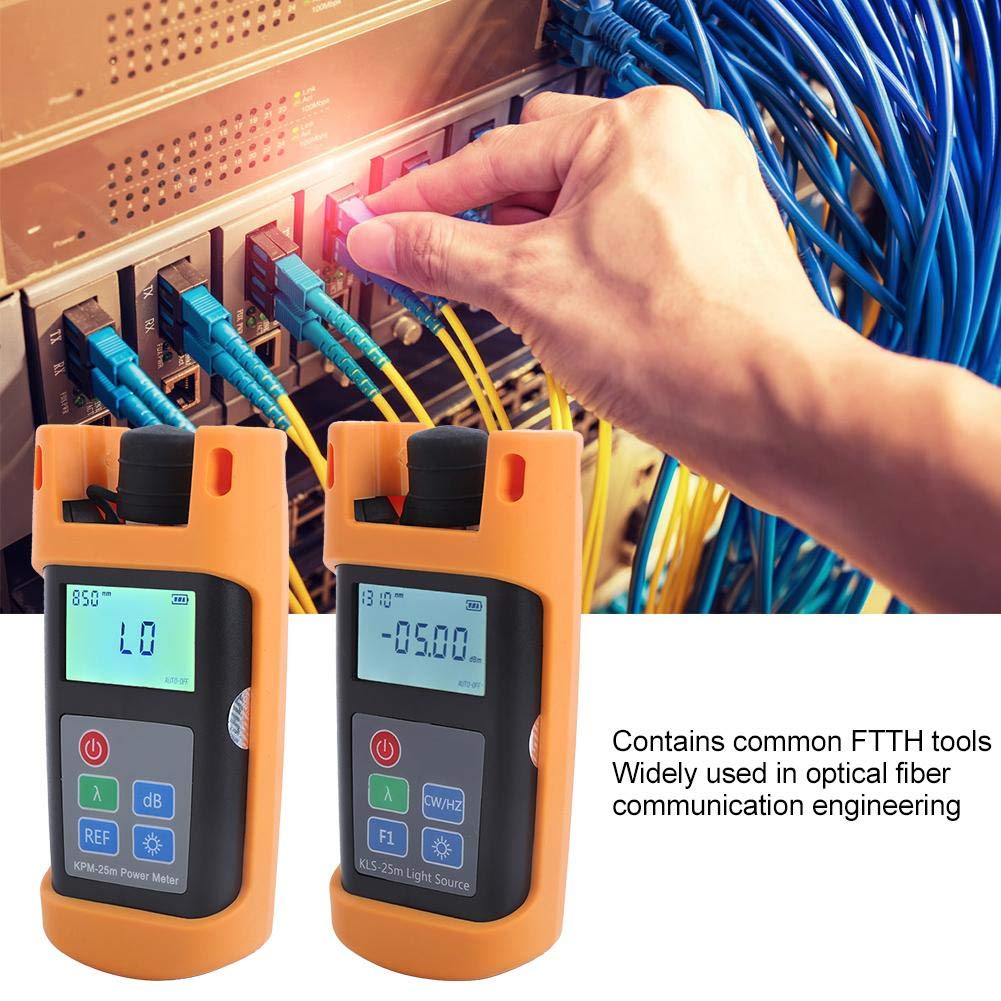

FTTH Tool Kit Fiber Optic Cable Tester Portable Optical Power Meter Loss Test Fiber Optic Power Meter Light Source

• Widely compatibility: Built with 2.5mm universal connector for testing different sc, fc interferes fiber optic cables, making it more suitable for FTTH. Mini optical fiber red light pen support 35km wide measuring distance.
• Powerful function: High precision, high sensitivity and high linearity. Support lighting, support automatic shutdown, support backlight selection, support wavelenghth memory function, support user calibration.

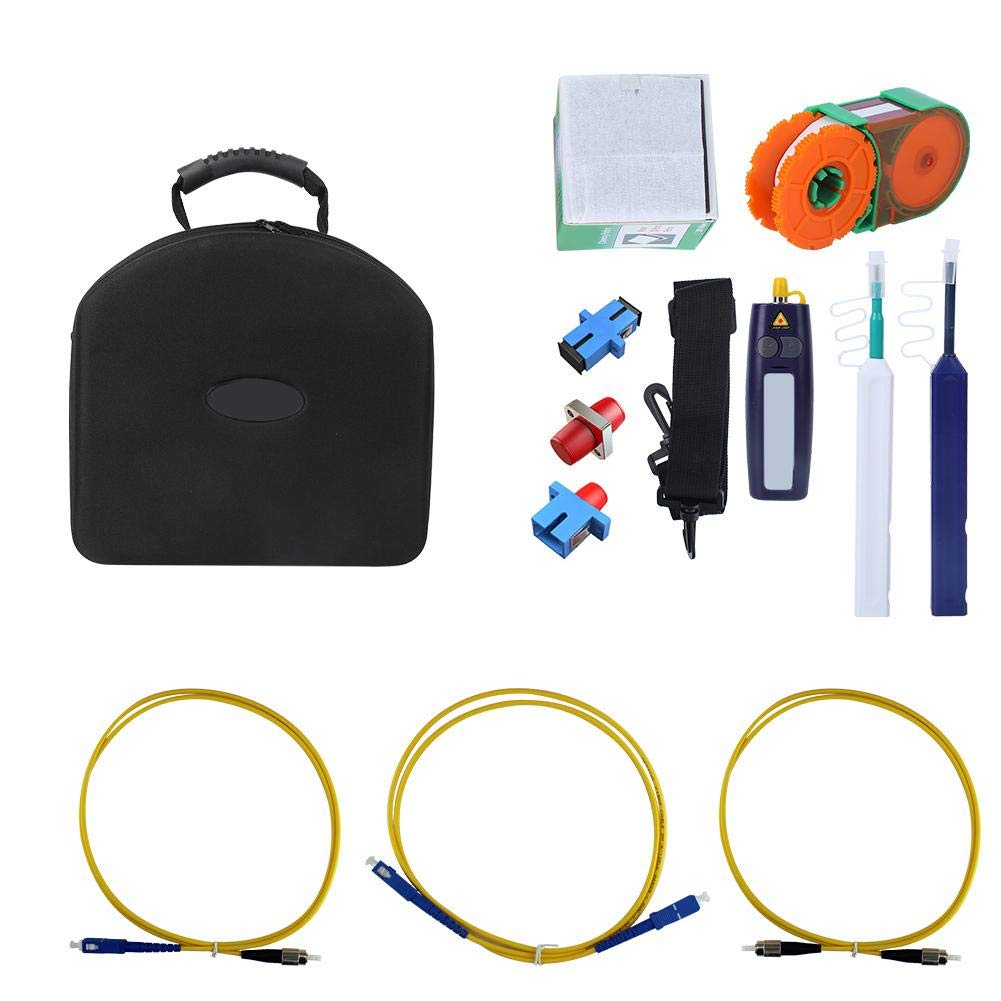

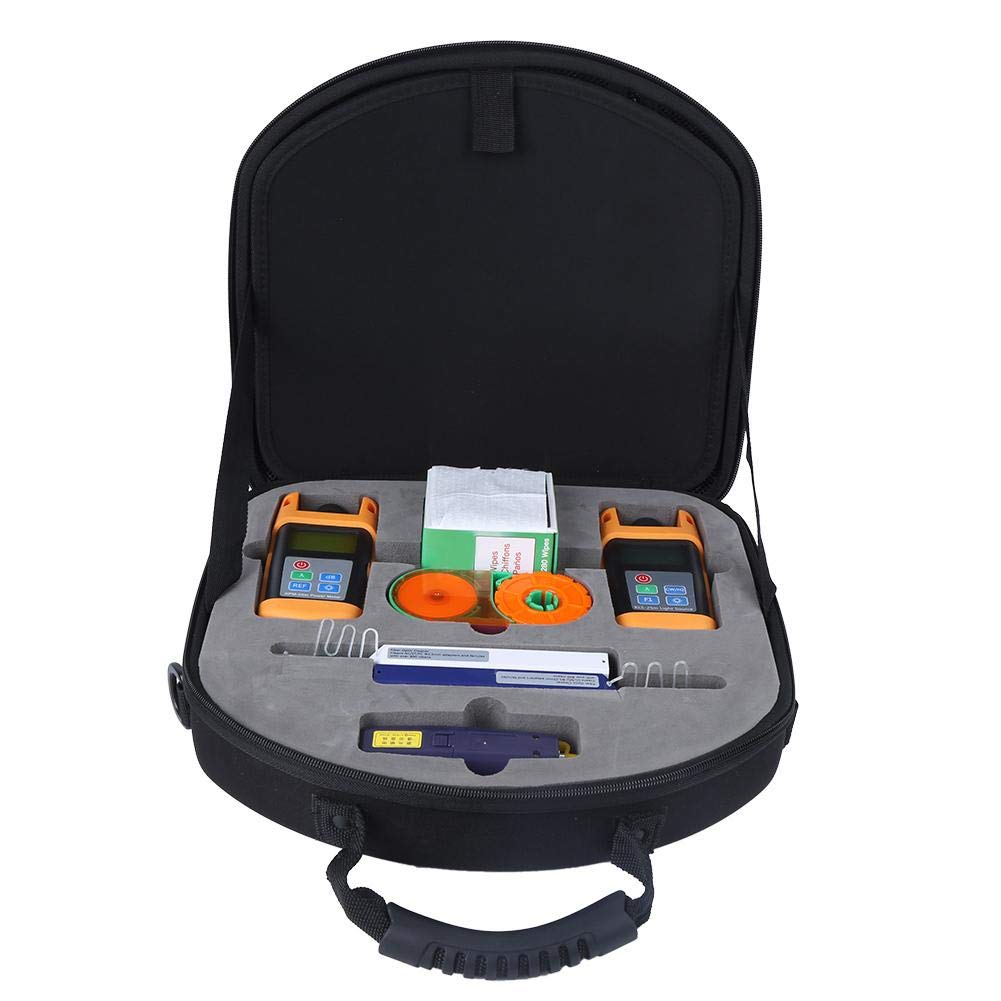

• Value package: Contains commonly used φ1.25mm and φ2.5mm fiber optic cleaning pens; Contains fiber end face cleaning box and 280 sheets of fiber end face cleaning paper for easy fiber cleaning.

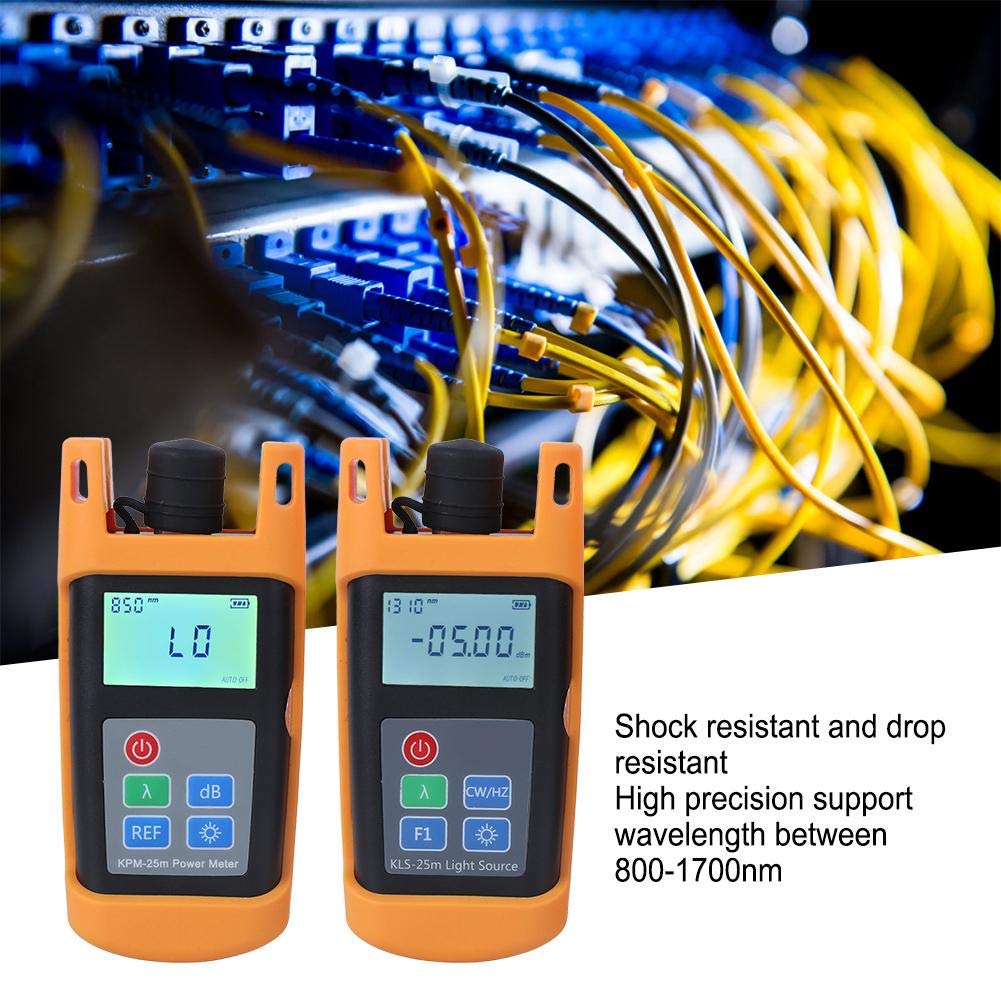

• Wavelength range: 800-1700nm; Standard wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm; Uncertainty: ±0.25; Optical connection machine: FC+SC+2.5MM universal.
• Test distance: 3-5KM; Wavelength range: 650nm; Modulation frequency: CW/2Hz; Working temperature: -2060; Test jumper: Specifications: SC/UPC-SC/UPC, SC/UPC-FC/UPC, FC/UPC-SC/UPC.

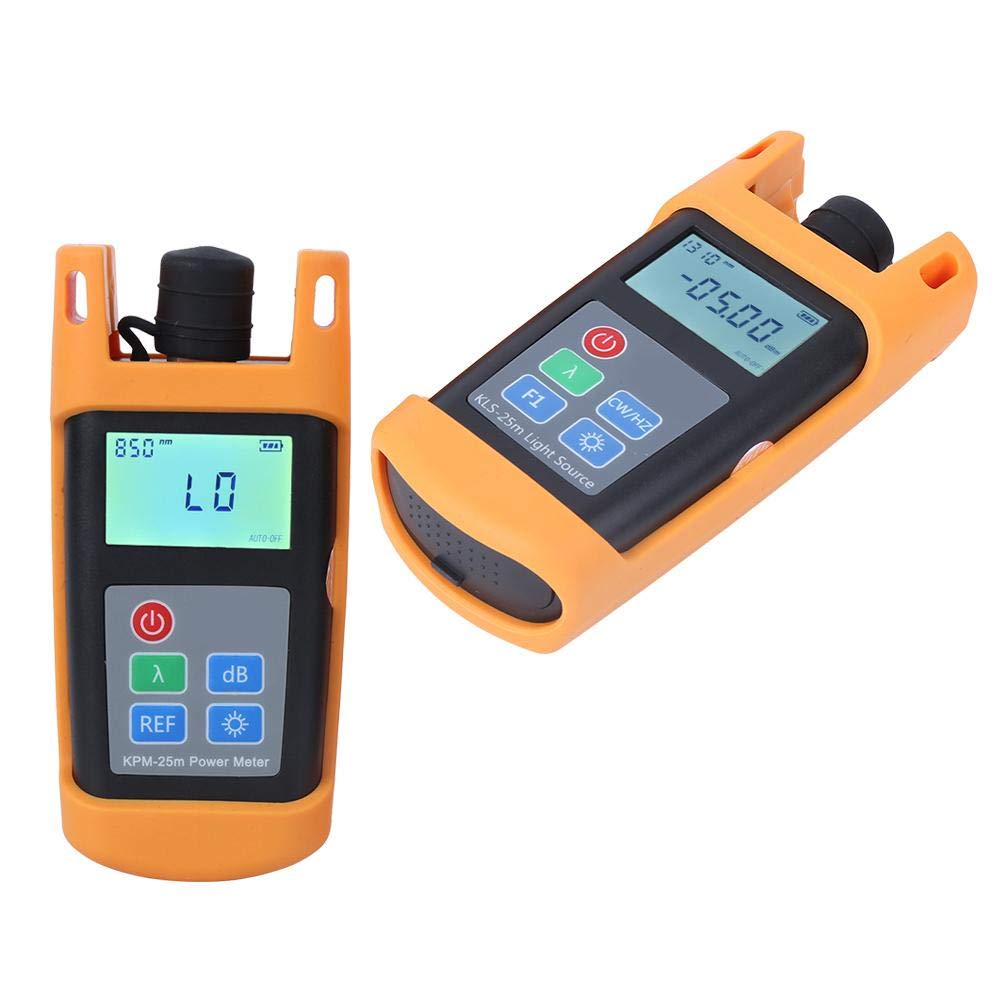

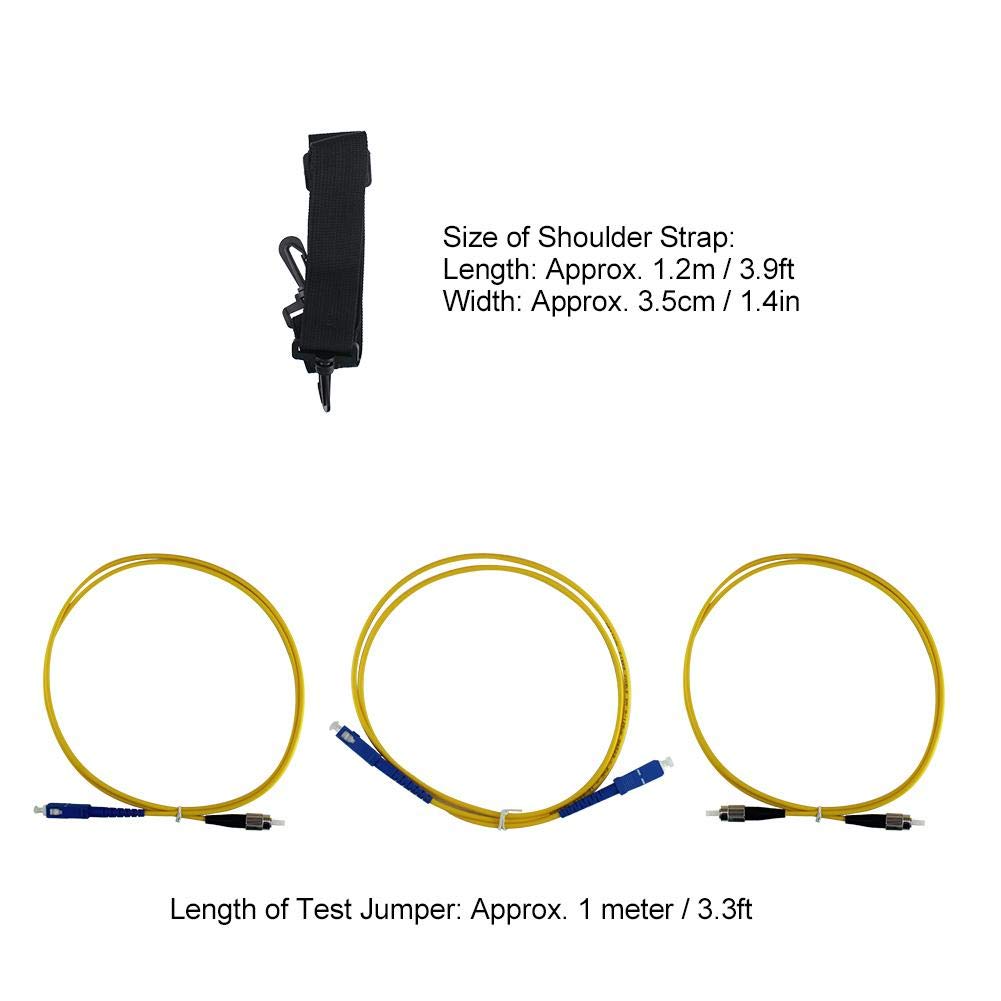

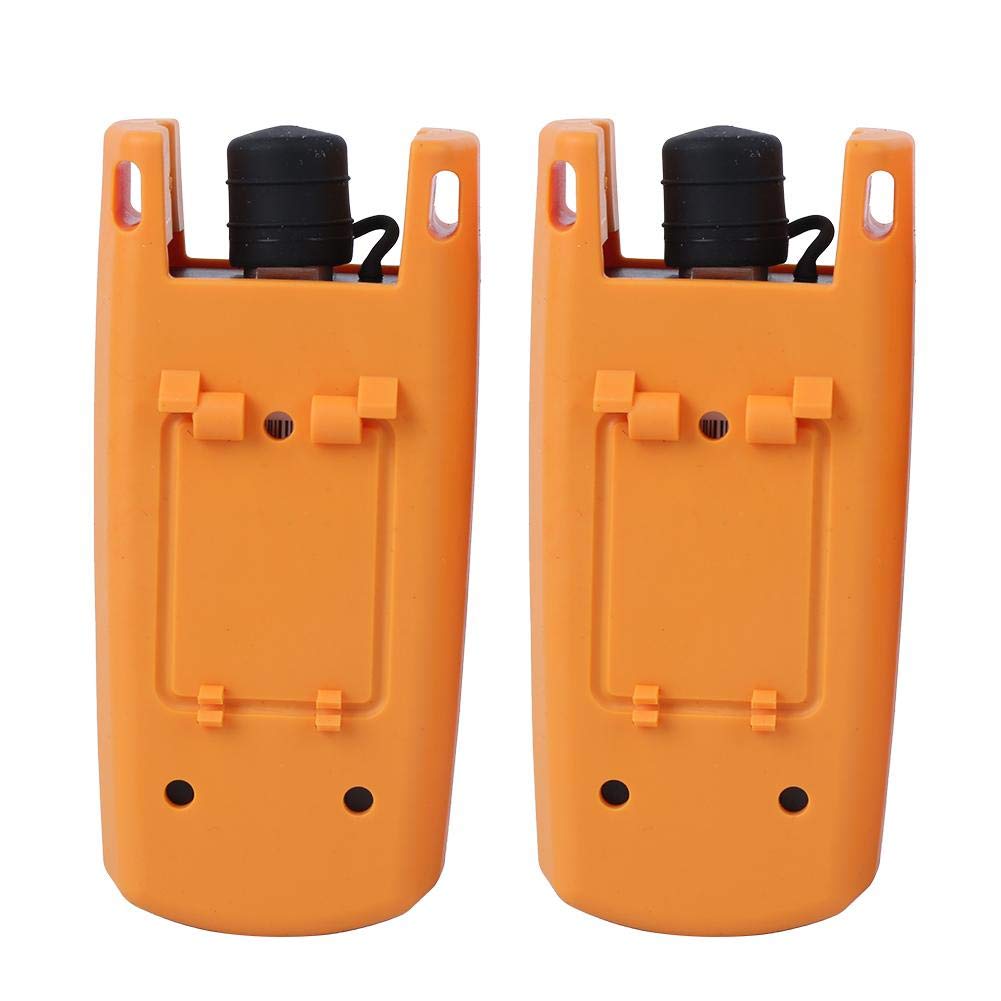

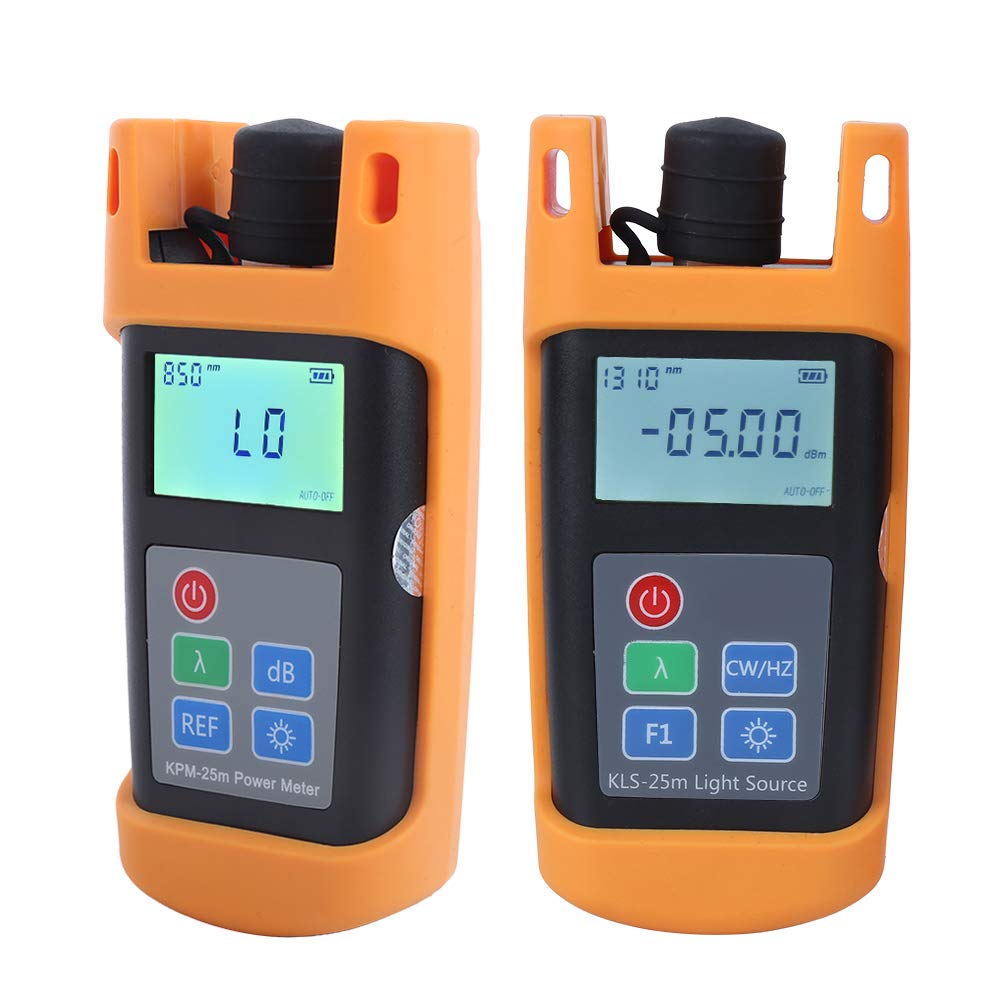

Feature: Including SC/UPC‑SC/UPC, SC/UPC‑FC/UPC, FC/UPC‑SC/UPC three specifications of single‑mode fiber jumper to meet most test requirements Specification: Fiber Optic Light Source:  Wavelength: 1310nm, 1550nm Output Power: -5dB Optical Connection Machine: FC+SC+2.5MM universal Modulation Frequency: CW, 270Hz, 1kHz, 2kHz Output Stability: ±0.05dB/15mins; ±0.1dB/15h LED Backlight: Support Automatic Shutdown: Support Key Waterproof: Support Silicone Sleeve: Included Fiber Optic Power Meter:  Uncertainty: ≤±0.25 Optical Connection Machine: FC+SC+2.5MM universal LED Backlight: Support Measurement Type: Absolute power, relative power Automatic Shutdown: Support Key Waterproof: Support Silicone Sleeve: Included Power Supply: 2 AAA batteries (not included) Fault Visual Locator:  Power: 1mW Test Jumper:  Length: Approx. 1 meter / 3.3ft Type: Single mode single core Fiber Optic Cleaning Pen:  Specifications: Conventional φ1.25mm, 2.5mm cleaning pen Shoulder Strap:  Length: Approx. 1.2m / 3.9ft Width: Approx. 3.5cm / 1.4in Package List: 1 x Power Meter1 x Light Source1 x Fiber End Face Cleaning Box1 x Fiber End Face Cleaning Paper1 x φ1.25mm Optical Fiber Cleaning Pen1 x φ2.5mm Optical Fiber Cleaning Pen1 x Red Light Pen1 x SC/UPC-SC/UPC Single Mode Single Core Jumper 1 Meter1 x SC/UPC-FC/UPC Single Mode Single Core Jumper 1 Meter1 x FC/UPC-SC/UPC Single Mode Single Core Jumper 1 Meter1 x SC-SC Flange1 x FC-FC Flange1 x SC-FC Flange1 x Shoulder Strap1 x Cloth Bag Box
