DAXGD Optical Power Meter, 3 in 1 Visual Fault Optic Cable Tester, 850-1650nm Fault Locator Fiber Optic Power Meter, FC/SC/ST Universal Interface Portable Fiber Optic Cable Tester Tool

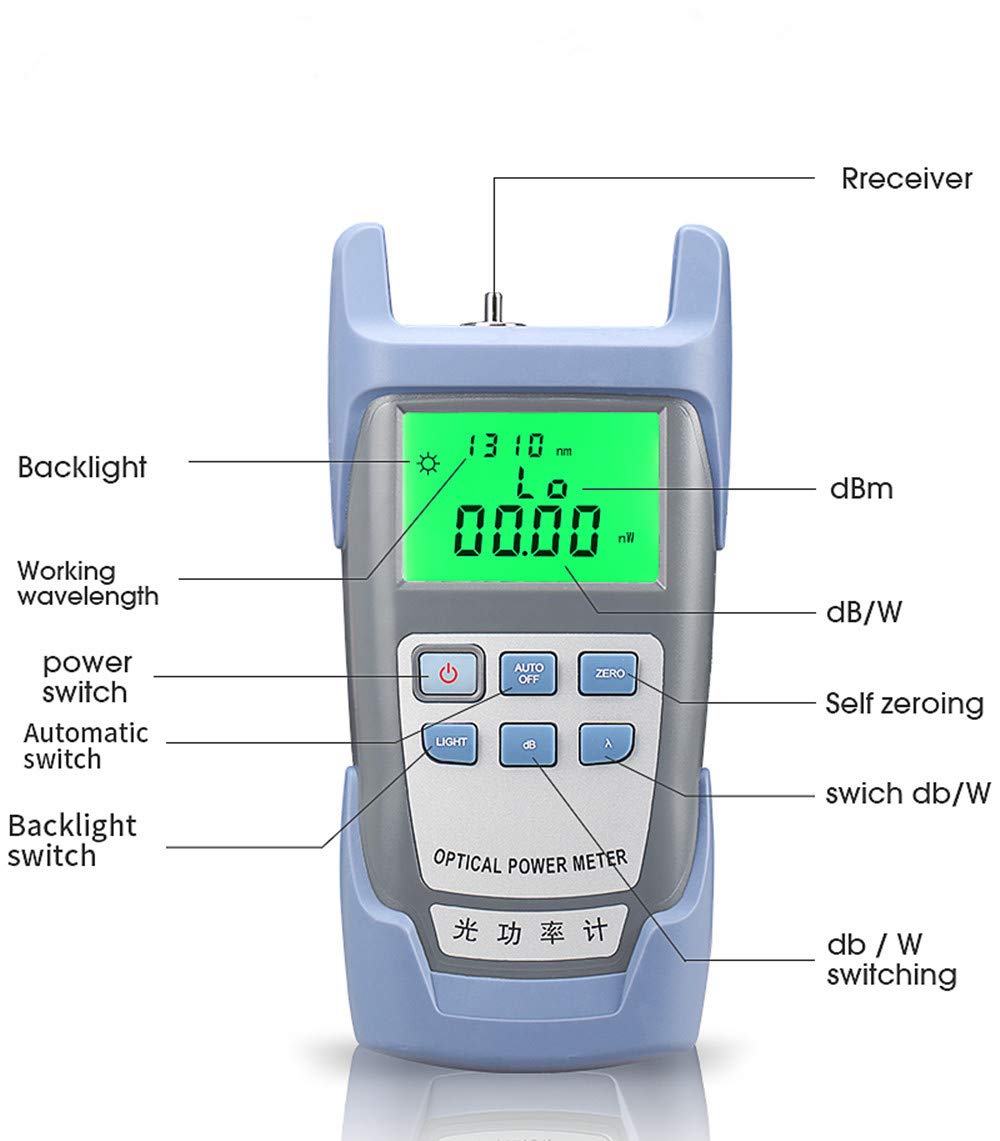

• Pocket tool with fiber optic tester screen, comfortable to use.

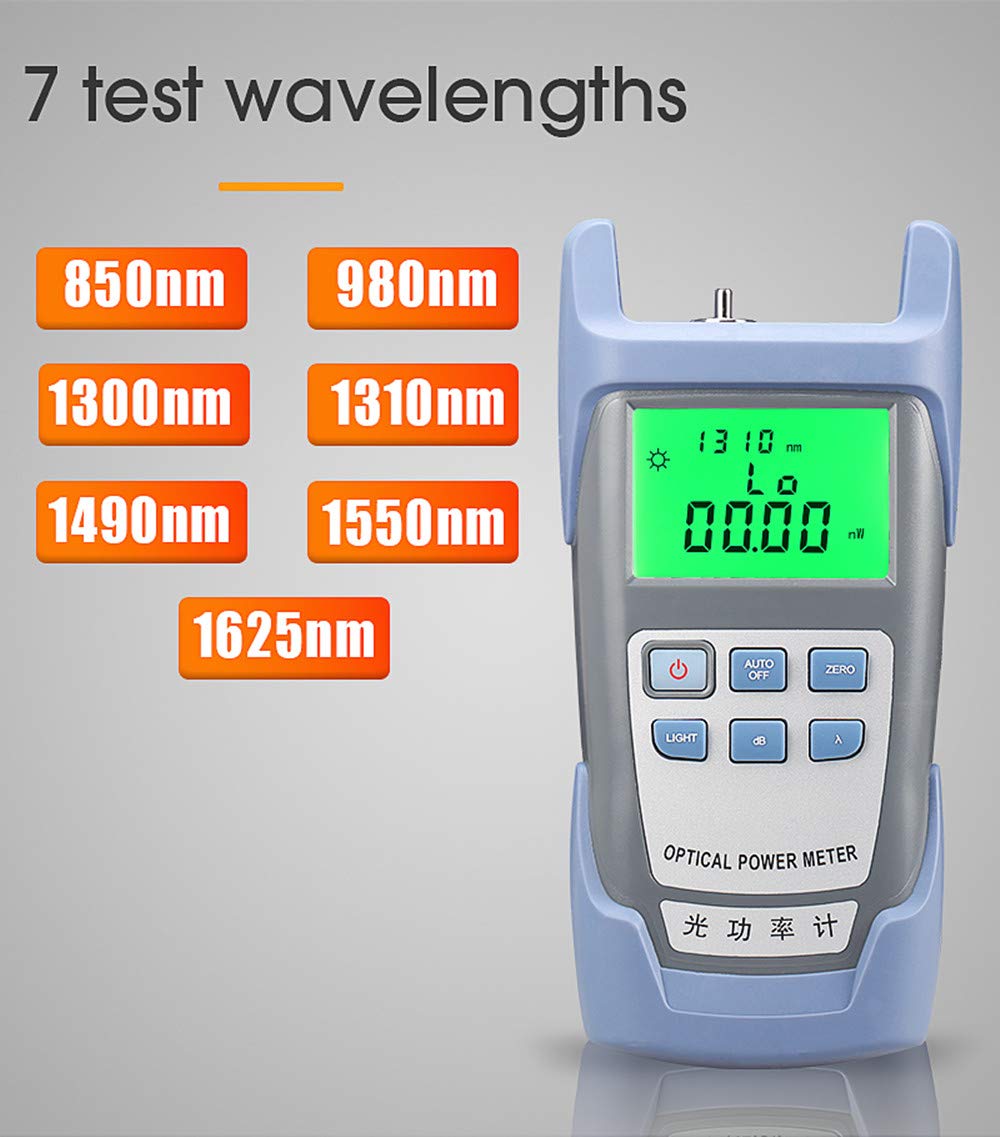

• It is able to measure optical power in 7 wavelengths, such as 850/980/1300/1310/1490/1550/1625nm.
• Linear and non-linear with the same display screen, alternately fixed / strobe red light source; work for 40 hours with automatic shut-off.

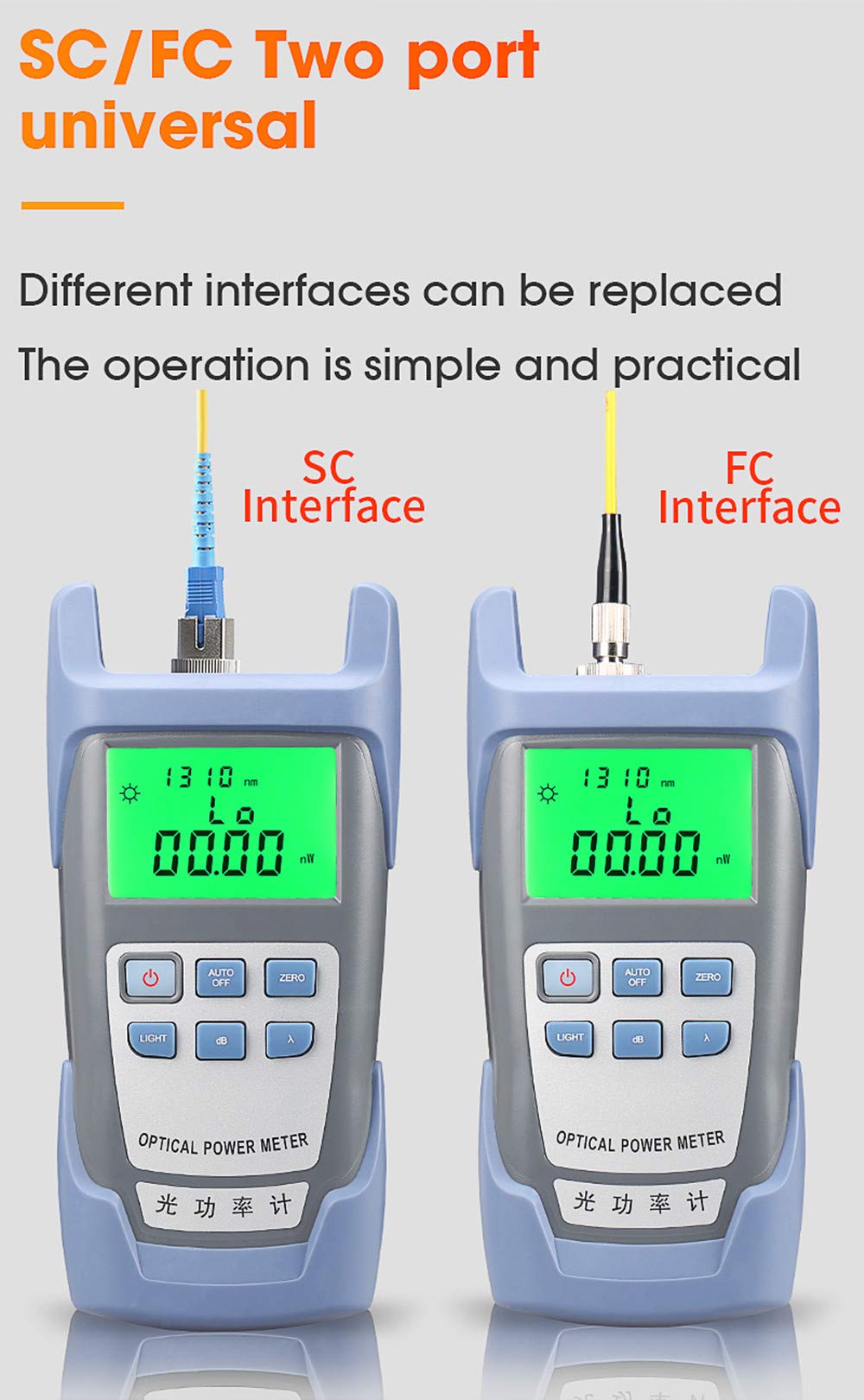

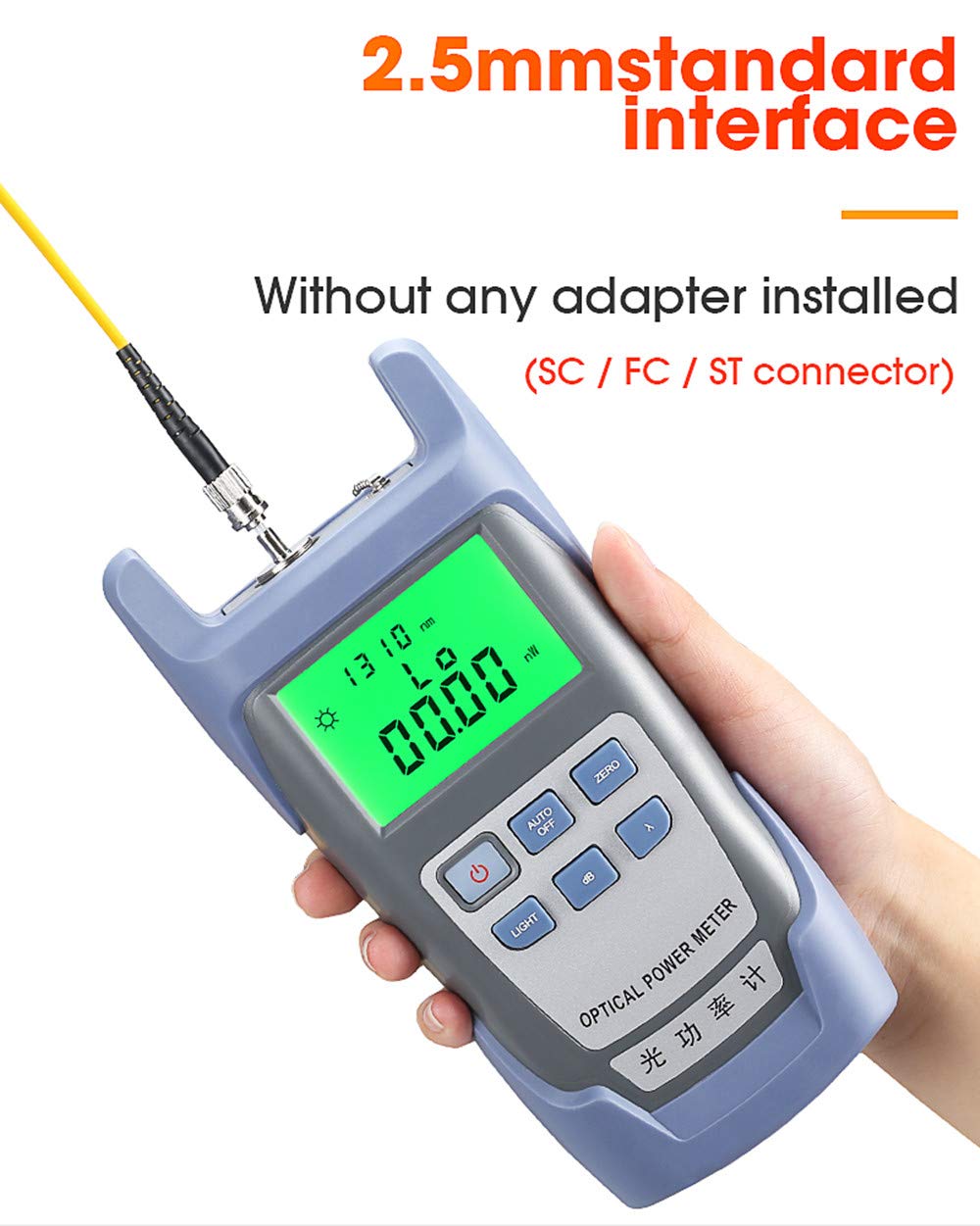

• Universal 2.5mm connector, FC / SC / ST interface and quick switch.
• Take with FC and SC adapter.

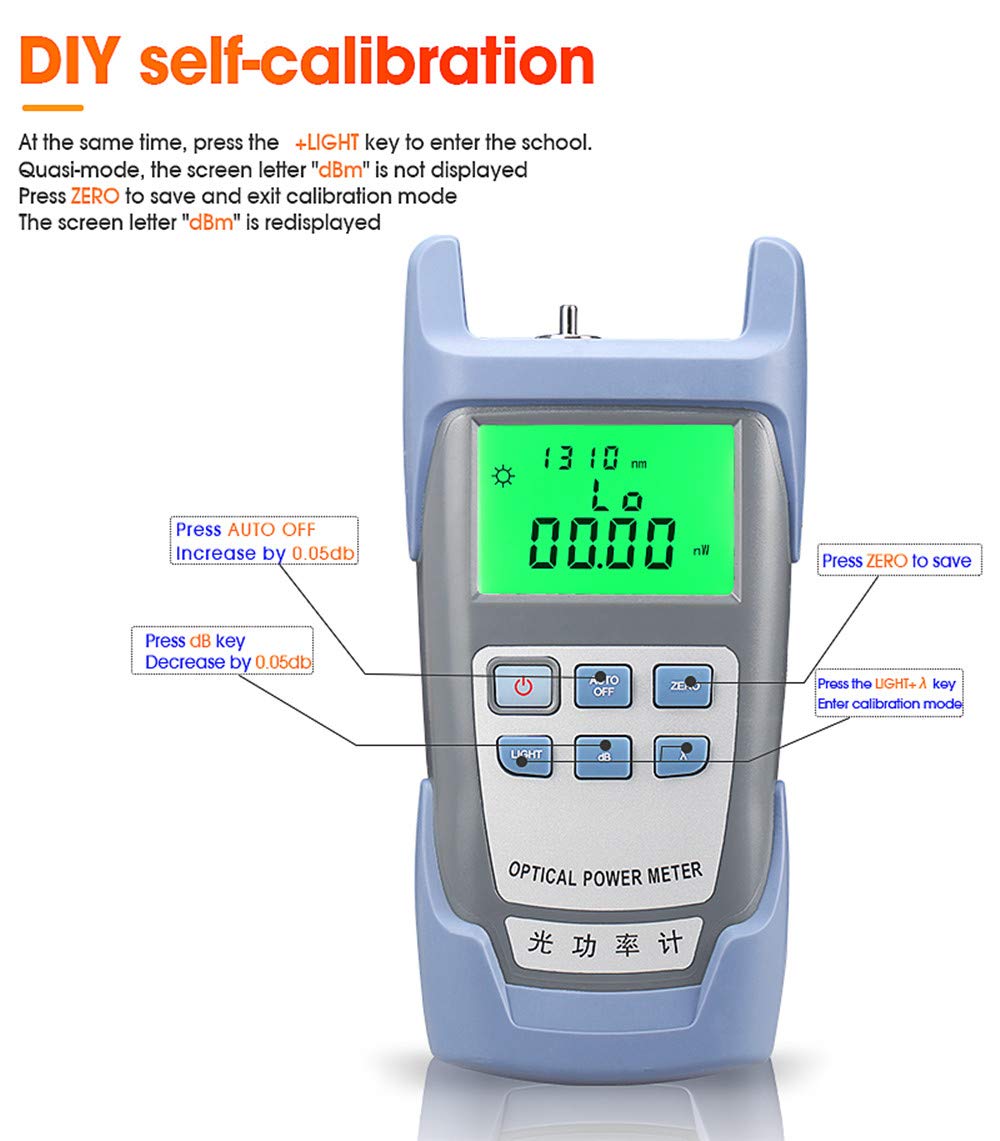

Specification: Working wavelength: 850-1625nm (850/980/1300/1310/1490/1550/1625). Test accuracy: ± 0.2dB Test range (dbm): -70dBm ~ + 10dBm Connector: FC / PC and SC / PC. Transmitter type: InGaAs Auto Power Off: Yes Backlight: yes Operating temperature: -10 to +50 °C. Storage temperature: -20 to +70 °C. Features: 1. Find the breakpoint, bad connections, bending or cracking of fiber optic cables. 2. Linear display (mW) and logarithmic display (dBm) displayed on the same screen. 3. Universal 2.5mm connector, FC / SC / ST interface and quick switch. 4. Find OTDR flaws. 5. Works in CW or pulse. 6. Constant power output. 7. Lower battery warning. 8. Self-calibration. 9. Backlight available. Package contents: 1 x optical power meter. 1 x FC adapter to round port (installed on optical power indicator), SC to square port adapter. 1 x manual. 1 x packaging box.
