FTSTech RFID Full Door Access Control Home Security Kit with 125KHz Standalone Keypad+ Electric Lock + Power Supply +Exit Button+10pcs Keyfobs+10pcs White Cards (NC Electric Lock Kit)

• Full access control system,working with DC12V system. Don't need to connect to computer. You can program the RFID cards or password on the keypad directly.
• Keypad Support 1000 users.3 open door mode：RFID card, password, card+password.Full programming from the keypad, doesn't need to connect on the computer, can works alone.
• Power supply support 0-15 seconds time delay to adjust.Small size and light weight.

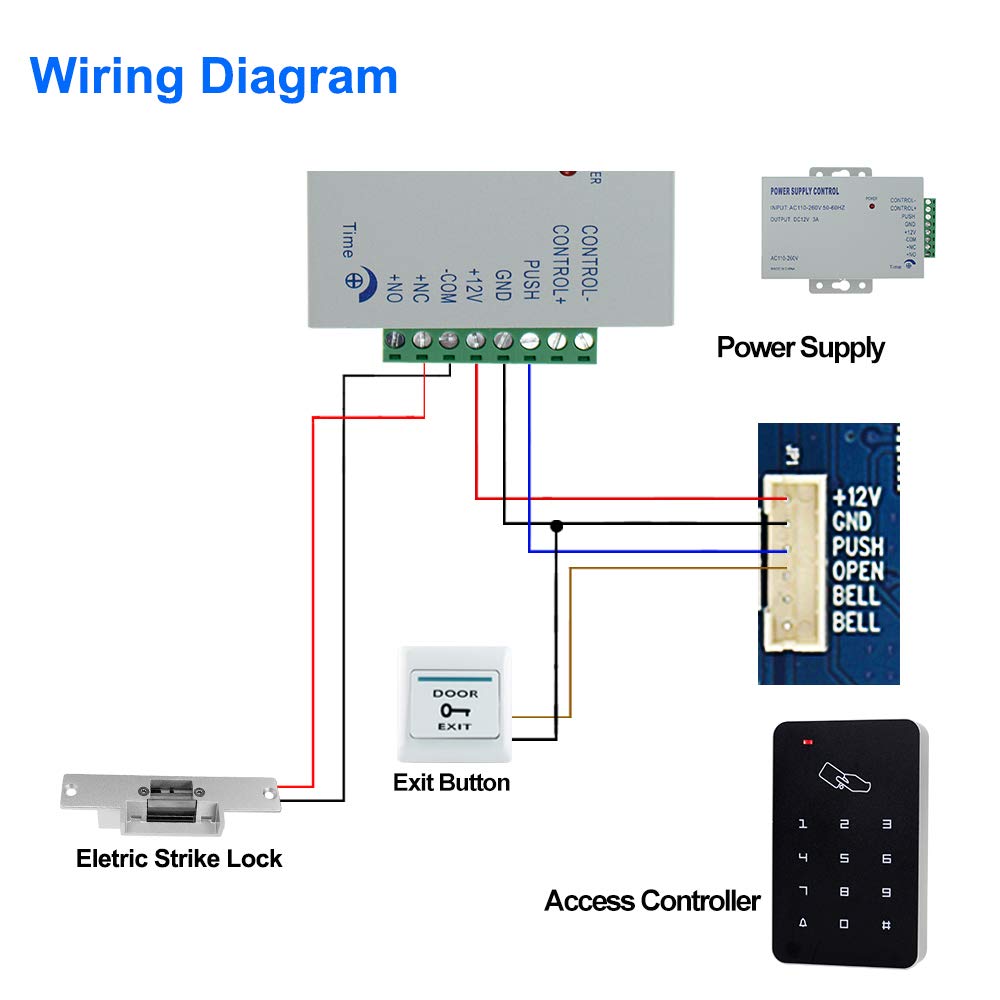

• Lock is NC mode: Fail-safe type, unlocked when power off, locked when power on.Wires: red to "NC", black to "COM".

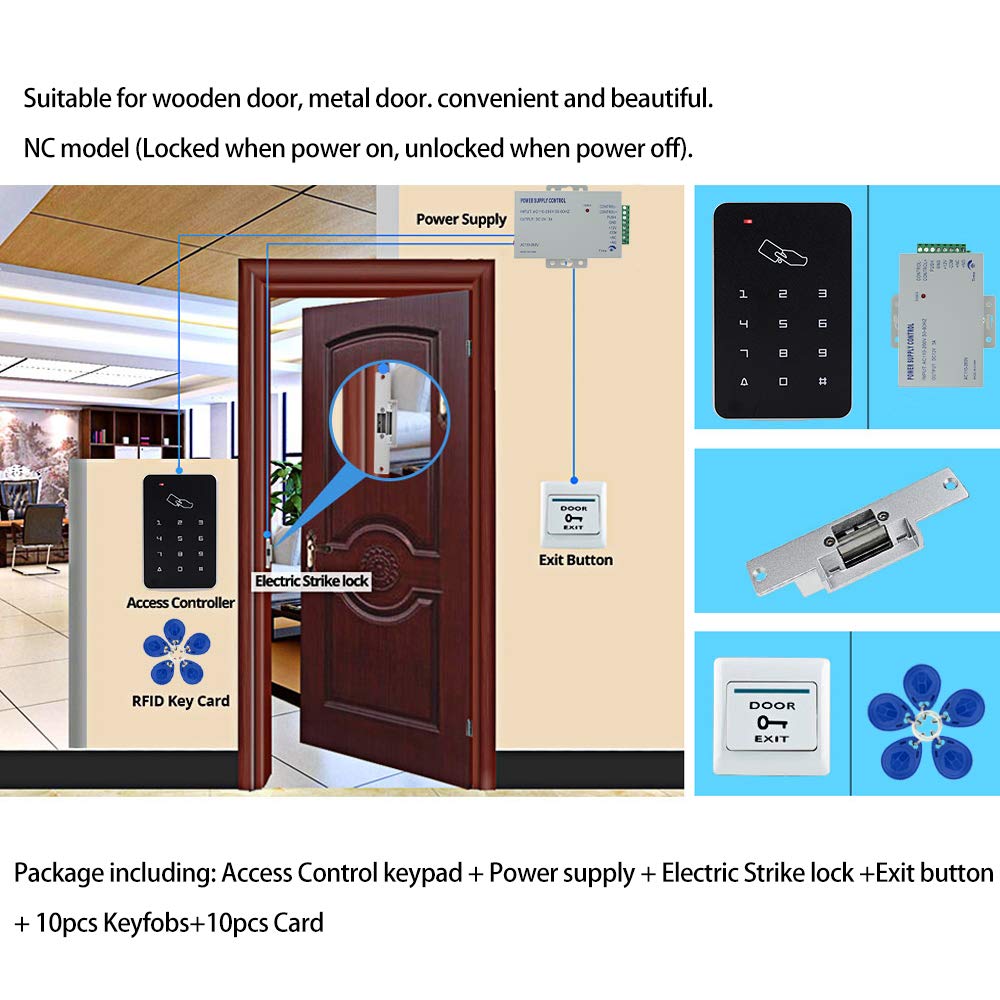

• Package including access control keypad + NC electric lock+power supply+ door exit button +10pcs Keyfobs+10pcs Card. Applications: Home/ hotel/ office/ apartment/ factory.

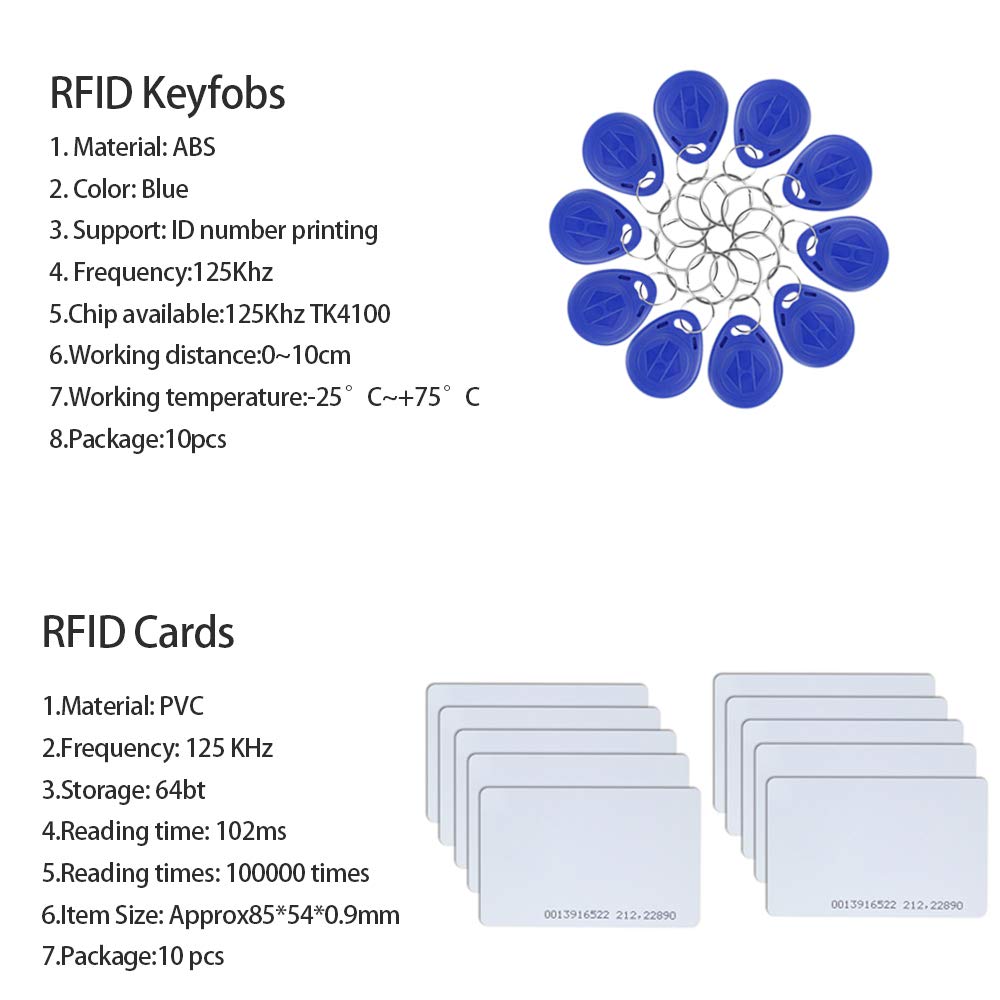

Product Description T22 Standalone Access Control Keypad 1.Material: plastic 2.Voltage: 12VDC, Current 120mA 3.User capacity: 1000 users 4.Proximity Reader Frequency: 125KHz 5.Compatible Cards: EM or EM compatible card 6.Reading Distance: 3-10cm 7.Support Card, password, Card + password, total three open door mode. 8.Full programming from the keypad, doesn't need to connect on the computer, can works alone. 9.Dimension: 117*75*22mm 3A Power Supply 1.AC input: Standard AC100V-240V 50-60HZ 2.DC output: Stabilivolt DC12V/3 A 3.Dimension: 138X67X37mm( L/W/H );Material: stell 4.Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit. 5.Set NC / NO outputs, can control various types of electric locks. NC Electric Strike Lock 1.Material: stainless steel 2.Working Voltage: DC12V+/- 10% 3.Working Current: 110mA-250mA 4.Dimension: 150*28 mm 5.Opening Mode: 90 degree swinging door 6.Secure Mode: NC model ( Locked when power on, unlocked when power off ) 7.It's especially suitable for wooden doors. Door Exit Button 1.Dimensions: 86*86*8mm 2.Material: fireproof ABS plastic 3.Power Input: DC 12V RFID Keyfobs&Cards You can use these key&cards on the keypad to open the door. Only the key finished programed with our instruction then can be open the door. 1.Frequency: 125KHz, EM ID type 2.Chip: TK4100 3. Read Only 4.Quantity: 10pcs keyfobs,10pcs cards. Package Including 1 x Access Control Keypad 1 x Power Supply 1 x NC Electric Strike Lock 1 x Door Exit Button 10 x RFID Keyfobs 10 x RFID Cards 1 x User Manual
