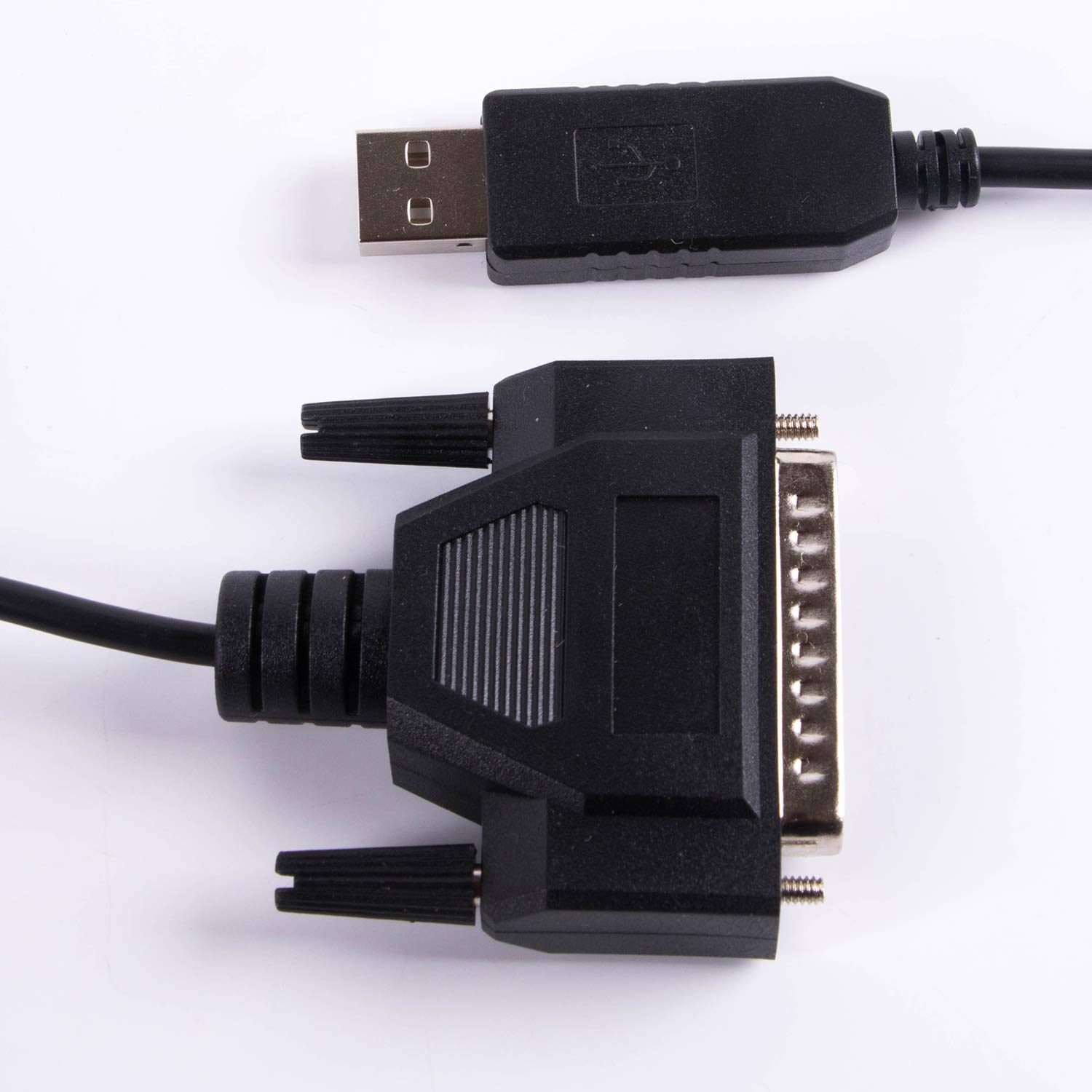

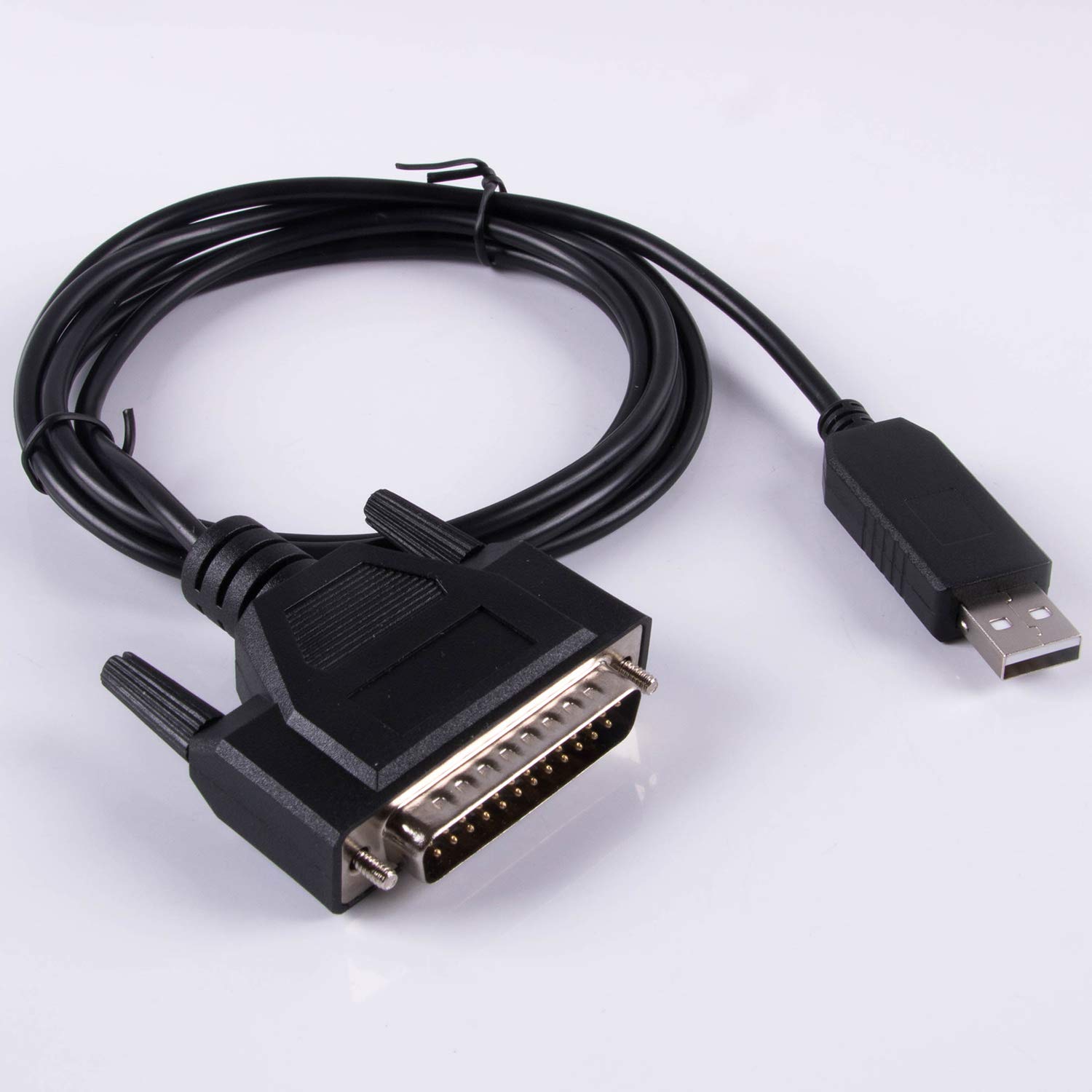

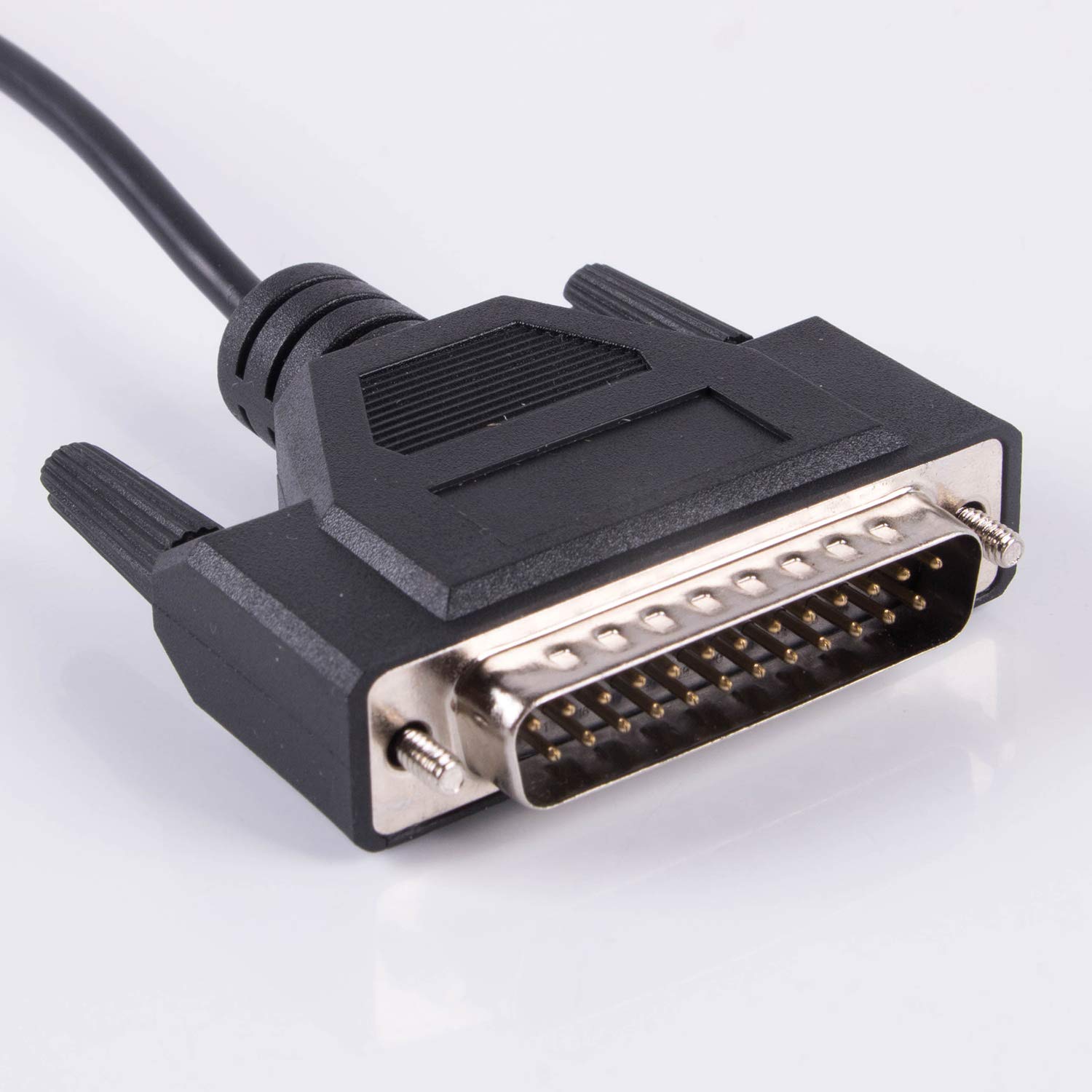

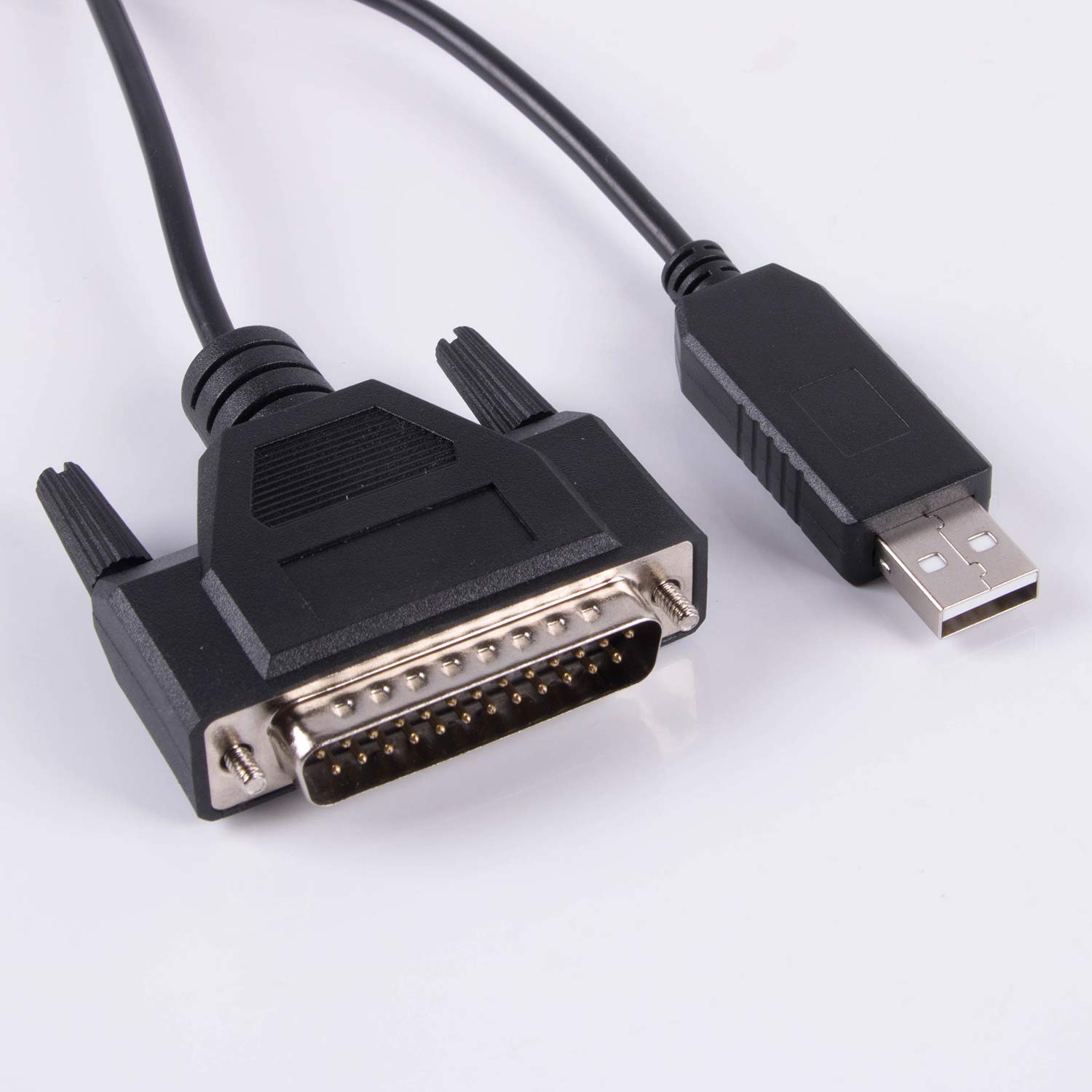

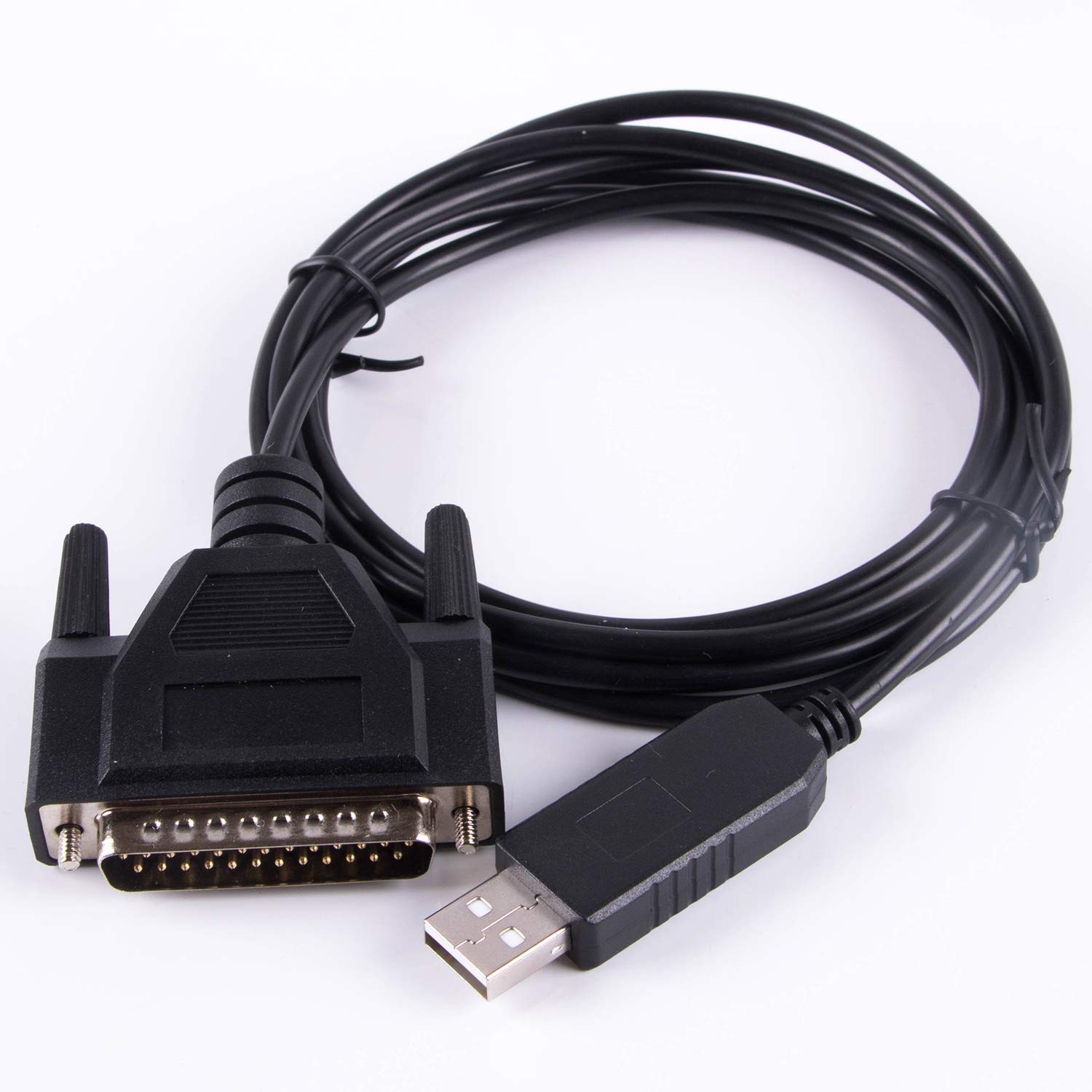

usangreen FTDI USB RS232 to DB25 Cable for Fanuc CNC Control Data Transfering Serial Cable Compatible C-232R US-232R (16ft/500cm)

• FTDI Usb to RS232 25 Pin DB25 Male Connector CNC Control Serial Adapter Cable
• Injection molding DB25 Instead of Metal DB25 , With Screws , 100% test before sending
• New Geniune FTDI/FT232RL Chip from UK . Top grade quality. One Year Quality Warranty, Win7/8/10 free installtion driver .
• Multiple System Support : Support Windows XP/7/8/10/Android/Mac OS/Linux/Vista (FTDI driver :www.ftdichip.com, FTDI installation driver:https://www.ftdichip.com/Support/Documents/InstallGuides.htm)
• Length: 16ft/500cm; FTDI Chip Usb to RS232 25 Pin DB25 Male Connector Serial Adapter Cable CNC Controls Programming Cable Compatible C-232R US-232R

FTDI Usb to RS232 25 Pin DB25 Male Connector CNC Control Serial Adapter Cable FTDI Chip Usb to RS232 25 Pin DB25 Male Connector Serial Adapter Cable CNC Controls Programming Cable Compatible C-232R US-232R 16ft industrial grade USB to RS232(DB25 Male) adapter cable. It is an ideal solution for computer to communicate with many serial devices directly through USB port such as CNC, PLC, plotter, modem, Scanner etc This cable is designed to make connection between USB port and serial devices(RS232), NOT for parallel printer or other devices based on parallel protocol (IEEE-1284), even though both have DB25 connector. It is a USB to Serial cable with Software Handshaking using only three signals: TXD(Pin2), RXD(pin3) and GND(pin7). Check your devices setup prior to purchase. Works with USB 1.1 & 2.0 Host and Hub ports. Powered directly by USB port, no external power adapter required. Industry Standard FTDI chip set & device drivers to ensure maximum compatibility and superior reliability for industrial application DB25 connector with locking screws on one end, Plastic USB housing on the other end of the cable with data traffic Use on my R2E3 mill and seems to work ok. Had to adjust Windows XP a bit. Connected this to a new Windows 10 business desktop to run an old Anagraph plotter Works very well with my amateur radio equipment. It is a USB to RS-232 interface adapter cable. No external power supply needed. Compatible with USB and RS-232 standards. It is capable of performing the conversion from single-ended USB signal into UART signal of RS-232. DB25 male connector is used for connection from RS-232 interface. The unique I/O circuit of the internal zero delay auto transceiver contained in the converter controls the data stream direction automatically. The cable is plug-and-play for windows7, 8 and 10. U.S based technical support, please contact the seller if you are not sure this cable works or not for your devices.
