usangreen FT232RQ USB to RS485 Adapter Serial Converter Module Cable With LED Compatible for USB-RS485-WE-1800-BT Support for All Windows Android Linux Vista

• USB to RS485 Serial Programming Cable . 6 feet
• Chip: FT232RQ, Support for All windows, Mac, Linux, Vista etc
• Driver Download : https://ftdichip.com/drivers/vcp-drivers/
• This cable has 6 outputs: GND(Black), Data-(Yellow), 5vPower(RED), Terminator1(Brown), Data+(Orange), Terminator 2(Green).
• Visual indication of Power and Tx/Rx data traffic via LEDs in the transparent USB connector

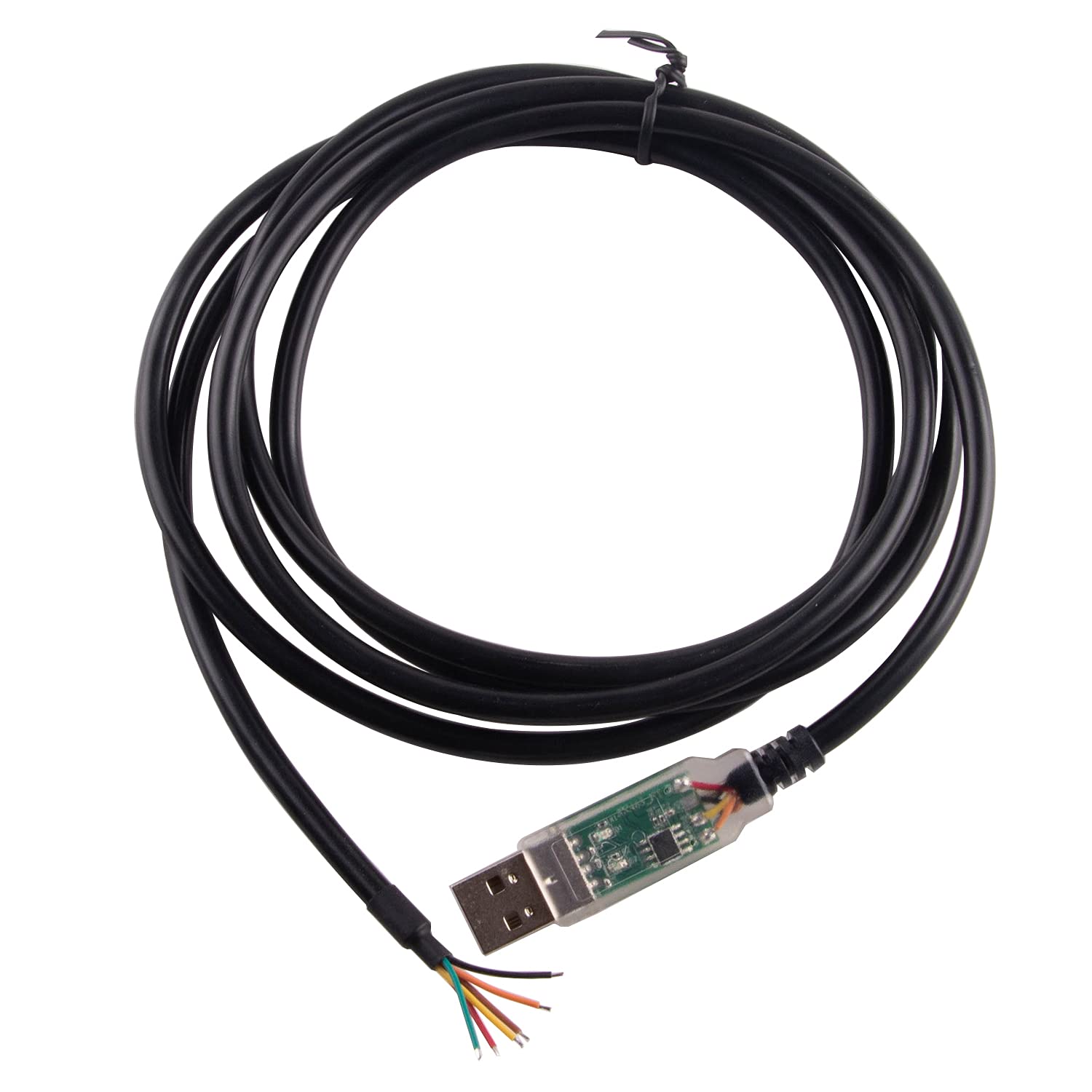

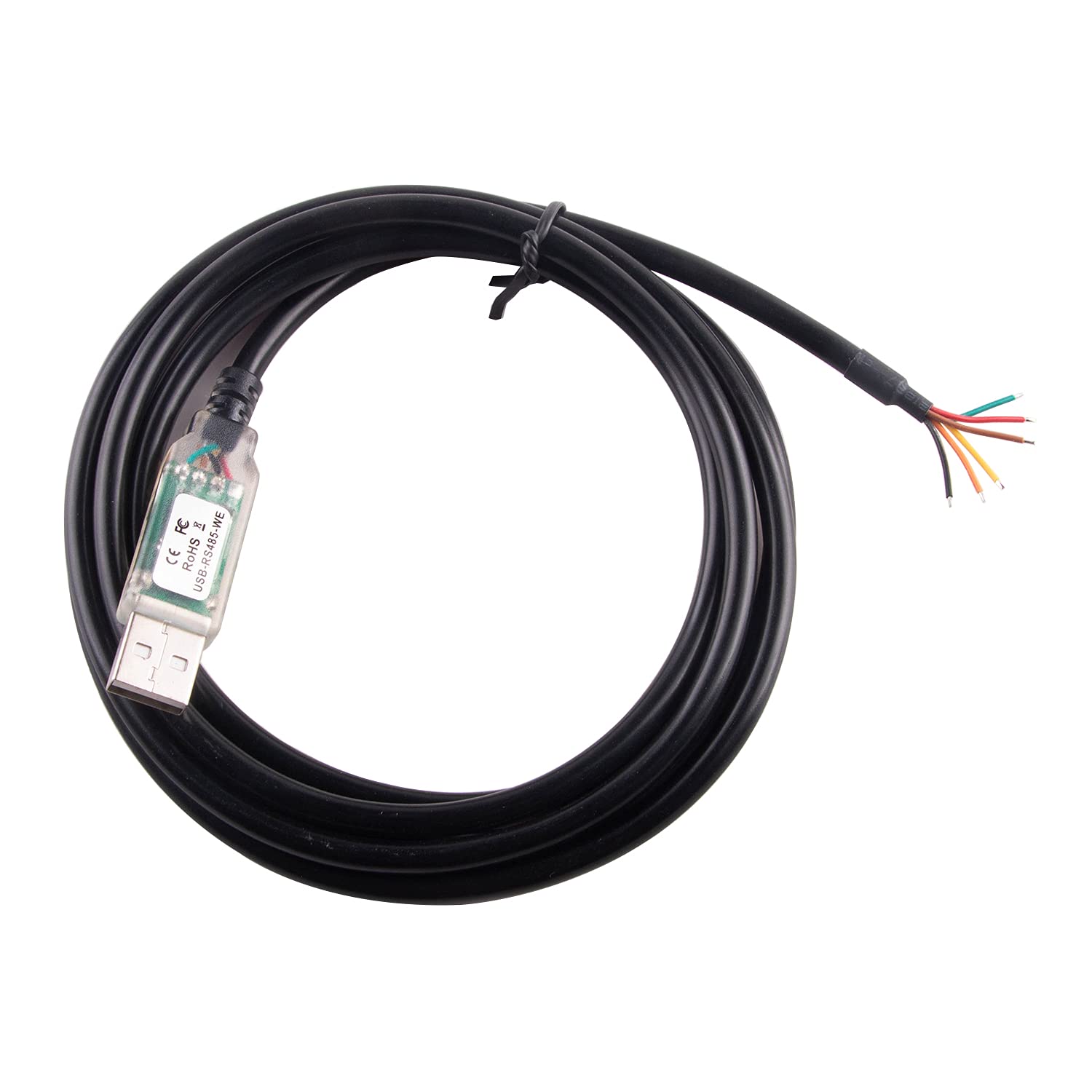

The USB-RS485 cable is a USB to RS485 levels serial UART converter cable . FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS485 interface to USB. Each USB-RS485 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The FT232R datasheet, DS_FT232R, is available at http://www.ftdichip.com. The integrated electronics also include the RS485 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified). The other end of the cable is bare, tinned wire ended connections by default, using different connectors to support various applications. The cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 3 Mbaud. Each cable supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. The USB-RS485 cables require USB drivers, available free from http://www.ftdichip.com, which are used to make the FT232R in the cable appear as a virtual COM port (VCP). This then allows the user to to communicate with the USB interface via a standard PC serial emulation port (for example TTY). Another FT232RQ USB driver, the D2XX driver, can also be used with application software to directly access the FT232R on the cable though a DLL. Package : 1 X USB TO RS485 Serial Converter Cable
